Briggs & Stratton 422707 (1511-01 - 1511-01) engine Parts

Here are the diagrams and repair parts for Briggs & Stratton 422707 (1511-01 - 1511-01) engine, as well as links to manuals and error code tables, if available.

Briggs & Stratton 422707 (1511-01 - 1511-01) engine
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 422707 (1511-01 - 1511-01) Engine

  • Briggs & Statton Lawn & Garden Equipment Engine Washer for Briggs & Stratton 422707 (1511-01 - 1511-01) - Part 220863

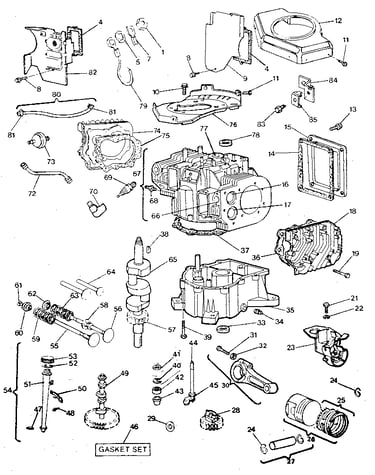

    Cylinder, crankshaft and engine base group diagram

    Briggs & Statton Lawn & Garden Equipment Engine Washer

    Part #220863
    This item is not returnable
    In Stock
    $30.61
    Minus Item
    Qty
    Plus Item
  • Briggs & Statton Craftsman Lawn & Garden Equipment Engine Starter Motor End Cap for Briggs & Stratton 422707 (1511-01 - 1511-01) - Part 395537

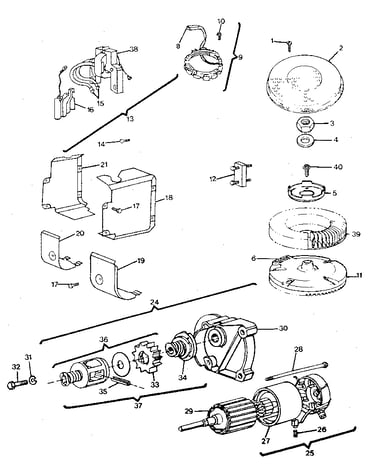

    Alternator and starter motor group diagram

    Briggs & Statton Craftsman Lawn & Garden Equipment Engine Starter Motor End Cap

    Part #395537
    In Stock
    $69.86
    8% OFF Phone Price : $75.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Briggs & Statton Lawn & Garden Equipment Engine Hex Screw for Briggs & Stratton 422707 (1511-01 - 1511-01) - Part 691666

    Cylinder, crankshaft and engine base group diagram

    Briggs & Statton Screw

    Part #93394

    Replaced by #691666

    Info Icon
    Manufacturer substitution
    This part replaces 93394. Substitute parts can look different from the original.
    In Stock
    $7.91
    11% OFF Phone Price : $8.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Briggs & Stratton Briggs And Stratton Pin-float Hinge for Briggs & Stratton 422707 (1511-01 - 1511-01) - Part 691775

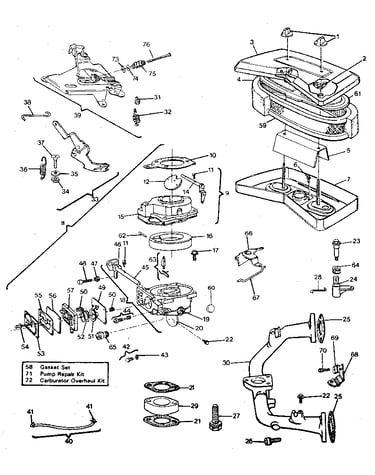

    Air cleaner - carburetor group diagram

    Briggs & Statton Pin E

    Part #230896

    Replaced by #691775

    Info Icon
    Manufacturer substitution
    This part replaces 230896. Substitute parts can look different from the original.
    In Stock
    $30.48
    Minus Item
    Qty
    Plus Item
  • Briggs & Statton Connector Housing for Briggs & Stratton 422707 (1511-01 - 1511-01) - Part 691764

    Cylinder, crankshaft and engine base group diagram

    Briggs & Statton Connector

    Part #230318

    Replaced by #691764

    Info Icon
    Manufacturer substitution
    This part replaces 230318. Substitute parts can look different from the original.
    In Stock
    $47.71
    Minus Item
    Qty
    Plus Item
  • Briggs & Statton Lawn & Garden Equipment Engine Hex Screw for Briggs & Stratton 422707 (1511-01 - 1511-01) - Part 690321

    Air cleaner - carburetor group diagram

    Briggs & Statton Screw

    Part #93970

    Replaced by #690321

    Info Icon
    Manufacturer substitution
    This part replaces 93970. Substitute parts can look different from the original.
    In Stock
    $34.88
    Minus Item
    Qty
    Plus Item
  • Briggs & Statton Lawn & Garden Equipment Engine Casing Clamp for Briggs & Stratton 422707 (1511-01 - 1511-01) - Part 691024

    Cylinder, crankshaft and engine base group diagram

    Briggs & Statton Casing Clamp

    Part #221535

    Replaced by #691024

    Info Icon
    Manufacturer substitution
    This part replaces 221535. Substitute parts can look different from the original.
    In Stock
    $8.48
    11% OFF Phone Price : $9.48Info Icon
    Minus Item
    Qty
    Plus Item
  • Briggs & Statton Lawn & Garden Equipment Engine Flywheel Washer for Briggs & Stratton 422707 (1511-01 - 1511-01) - Part 691056

    Alternator and starter motor group diagram

    Briggs & Statton Washer

    Part #222511

    Replaced by #691056

    Info Icon
    Manufacturer substitution
    This part replaces 222511. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $38.32
    Minus Item
    Qty
    Plus Item
  • Briggs & Statton Lawn & Garden Equipment E-ring for Briggs & Stratton 422707 (1511-01 - 1511-01) - Part 690328

    Cylinder, crankshaft and engine base group diagram

    Briggs & Statton Retainer

    Part #94296

    Replaced by #690328

    Info Icon
    Manufacturer substitution
    This part replaces 94296. Substitute parts can look different from the original.
    In Stock
    $31.01
    Minus Item
    Qty
    Plus Item
  • Briggs & Stratton Spring-governed Idle for Briggs & Stratton 422707 (1511-01 - 1511-01) - Part 691807

    Air cleaner - carburetor group diagram

    Briggs & Statton Spring

    Part #261563

    Replaced by #691807

    Info Icon
    Manufacturer substitution
    This part replaces 261563. Substitute parts can look different from the original.
    In Stock
    $41.76
    Minus Item
    Qty
    Plus Item
