GE
Wall Oven/Microwave Combo

Model # JKP65WP1 Official GE electric oven with microwave

Here are the diagrams and repair parts for Official GE JKP65WP1 electric oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

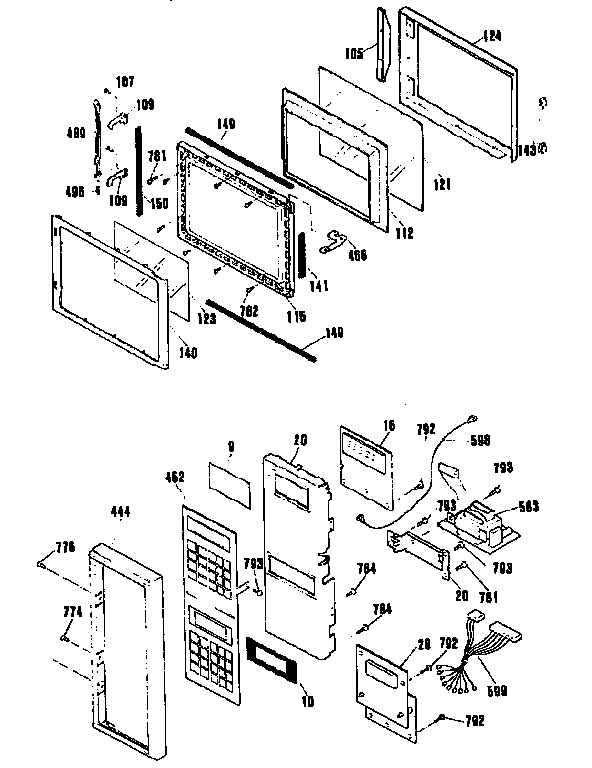

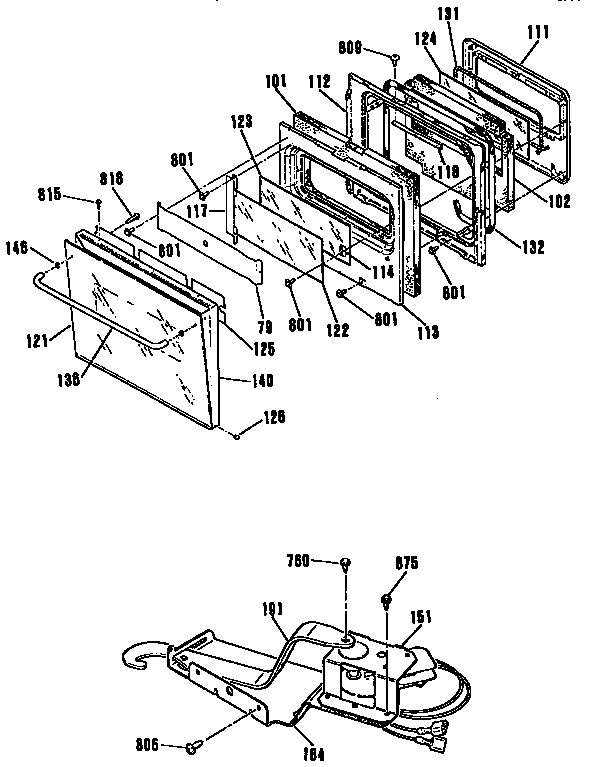

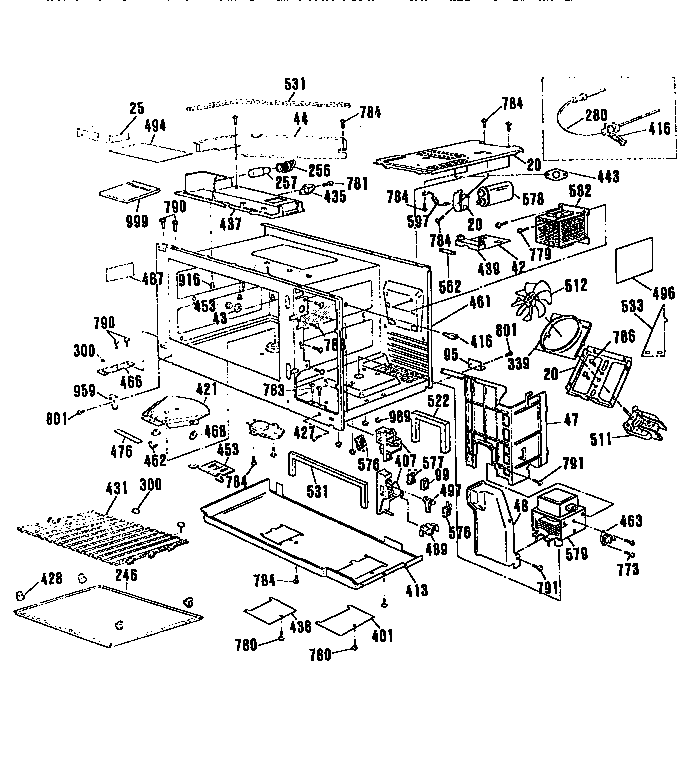

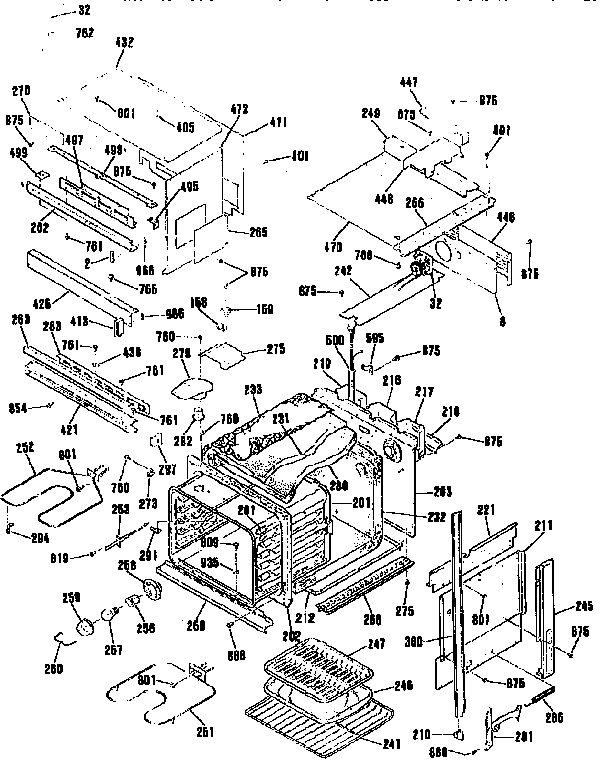

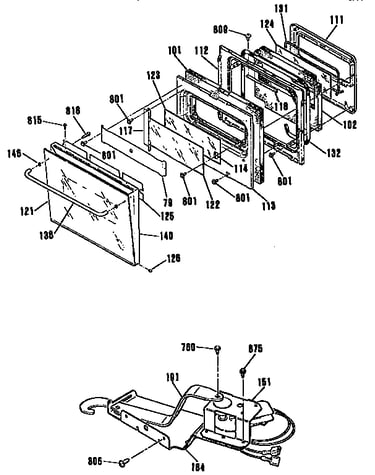

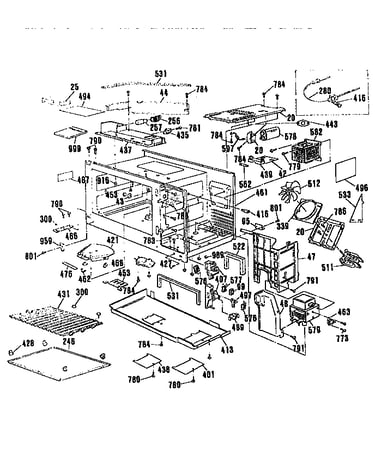

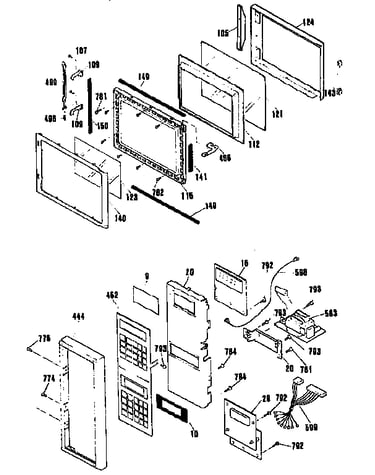

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 239 parts  |
Bake Element WB44K5008

#251

All parts diagram

Bake element

Part #WB44K5008

Replaced by #WB44K5013

?
Manufacturer substitution
This part replaces WB44K5008. Substitute parts can look different from the original.
BEST SELLER
$71.90 |
7% OFF Phone Price : $76.90
In Stock
Magnetron WB27X5410

#579

All parts diagram

Magnetron

Part #WB27X5410

The manufacturer no longer makes this part, and there's no substitute part

Broil Support WB02X9719

#294

All parts diagram

Broil support

Part #WB02X9719

Replaced by #WB2X9719

?
Manufacturer substitution
This part replaces WB02X9719. Substitute parts can look different from the original.
BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wall Oven Cooling Fan Limit Switch WB24K5033

#158

All parts diagram

Wall oven cooling fan limit switch

Part #WB24K5033

$23.29 |
18% OFF Phone Price : $28.29
In Stock
Oven Rack WB48K5006

#241

All parts diagram

Oven rack

Part #WB48K5006

Replaced by #WB48T10093

?
Manufacturer substitution
This part replaces WB48K5006. Substitute parts can look different from the original.
$43.96 |
10% OFF Phone Price : $48.96
In Stock
Seal WB02X9168

#131

All parts diagram

Seal

Part #WB02X9168

Replaced by #WB2X9168

?
Manufacturer substitution
This part replaces WB02X9168. Substitute parts can look different from the original.
This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Wall Oven High-limit Thermostat WB24K5049

#159

All parts diagram

Wall oven high-limit thermostat

Part #WB24K5049

$32.91 |
13% OFF Phone Price : $37.91
In Stock
Grid Broil WB49X0627

#247

All parts diagram

Grid broil

Part #WB49X0627

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB49X0627. Substitute parts can look different from the original.
$31.29 |
14% OFF Phone Price : $36.29
In Stock
Broiler Pan WB48M0003

#246A

All parts diagram

Broiler pan

Part #WB48M0003

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB48M0003. Substitute parts can look different from the original.
$31.29 |
14% OFF Phone Price : $36.29
In Stock
Exhaust Gd WB38K5038

#437

All parts diagram

Exhaust gd

Part #WB38K5038

$21.99
In Stock
