Kenmore
Canister Vacuum

Model # 1162645280 Official Kenmore vacuum cleaner hose & attachment parts

Here are the diagrams and repair parts for Official Kenmore 1162645280 vacuum cleaner hose & attachment parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |

Housing, Swivel 4147147
#5

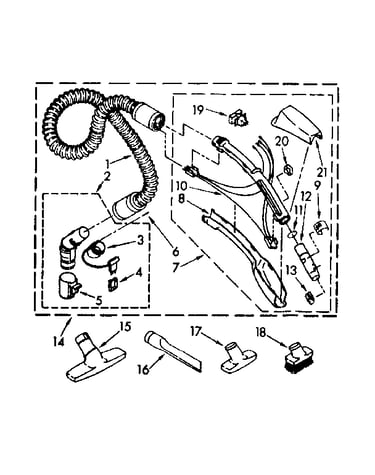

Hose and attachment diagram

Housing, swivel

Part #4147147

The manufacturer no longer makes this part, and there's no substitute part

Motor Mount 706504
#12

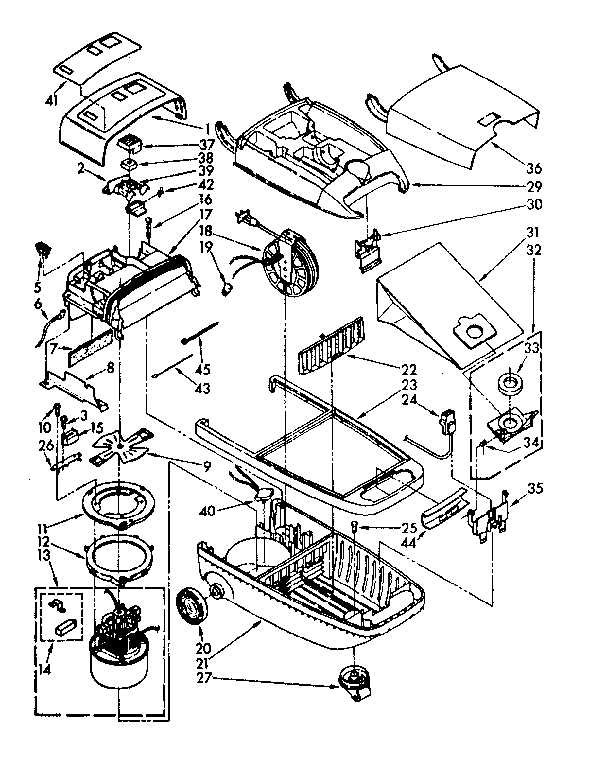

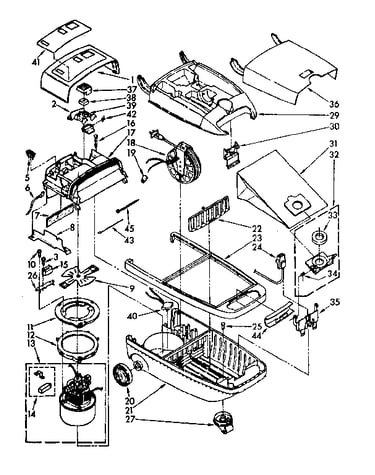

Vacuum cleaner diagram

Motor mount

Part #706504

The manufacturer no longer makes this part, and there's no substitute part

Brush Kit 588867
#14

Vacuum cleaner diagram

Brush kit

Part #588867

The manufacturer no longer makes this part, and there's no substitute part

Lock Cord 748005
#39

Vacuum cleaner diagram

Lock cord

Part #748005

The manufacturer no longer makes this part, and there's no substitute part

Canister Hood 4147194
#29

Vacuum cleaner diagram

Canister hood

Part #4147194

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bag 676246
#32

Vacuum cleaner diagram

Mounting bag

Part #676246

The manufacturer no longer makes this part, and there's no substitute part

Contact Pin 743337
#6

Hose and attachment diagram

Contact pin

Part #743337

The manufacturer no longer makes this part, and there's no substitute part

Hose Swivel 4147155
#2

Hose and attachment diagram

Hose swivel

Part #4147155

The manufacturer no longer makes this part, and there's no substitute part

Screw 681699
#3

Vacuum cleaner diagram

Screw

Part #681699

The manufacturer no longer makes this part, and there's no substitute part

Retainer 747360
#20

Hose and attachment diagram

Retainer

Part #747360

The manufacturer no longer makes this part, and there's no substitute part
