Model # MW620WA/XAA-00 Official Samsung microwave

Here are the diagrams and repair parts for Official Samsung MW620WA-XAA-00 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Microwave High-voltage Diode (replaces De91-70063a, De91-70063b, De91-70063e) DE91-70063D
#10

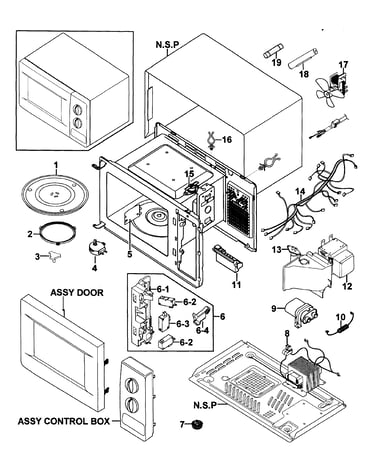

Cabinet parts diagram

Microwave high-voltage diode (replaces de91-70063a, de91-70063b, de91-70063e)

Part #DE91-70063D

BEST SELLER
$17.40 |
10% OFF Phone Price : $19.40
In Stock
Microwave Door Micro-switch 3405-000178
#6-2

Cabinet parts diagram

Microwave door micro-switch

Part #3405-000178

Replaced by #3405-001034

?
Manufacturer substitution
This part replaces 3405-000178. Substitute parts can look different from the original.
BEST SELLER
$17.74 |
10% OFF Phone Price : $19.74
In Stock
Micro-switch 3405-001032
#6-3

Cabinet parts diagram

Micro-switch

Part #3405-001032

$21.18 |
19% OFF Phone Price : $26.18
In Stock
Fuse 3601-001197
#19

Cabinet parts diagram

Fuse

Part #3601-001197

Replaced by #3601-001197

?
Manufacturer substitution
This part replaces 3601-001197. Substitute parts can look different from the original.
$27.23
In Stock
Lamp 4713-001150
#13

Cabinet parts diagram

Lamp

Part #4713-001150

Replaced by #4713-001102

?
Manufacturer substitution
This part replaces 4713-001150. Substitute parts can look different from the original.
This item is not returnable
$16.93 |
11% OFF Phone Price : $18.93
In Stock
Holder DE47-40025A
#18

Cabinet parts diagram

Holder

Part #DE47-40025A

$14.51
In Stock
Magnetron Cover DE71-00152A
#5

Cabinet parts diagram

Magnetron cover

Part #DE71-00152A

$14.51
In Stock
Foot DE61-40066A
#7

Cabinet parts diagram

Foot

Part #DE61-40066A

This item is not returnable
$2.59
In Stock
Spring Key DE61-00132A
#6

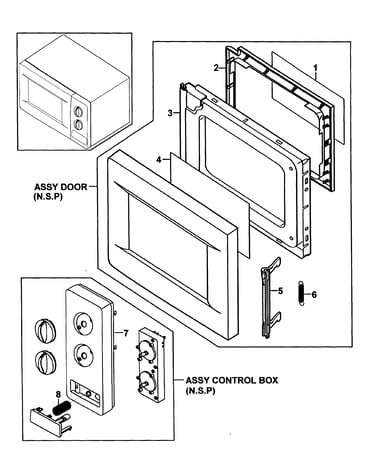

Door parts diagram

Spring key

Part #DE61-00132A

This item is not returnable
$2.16
In Stock
Lever DE66-00088A
#6-4

Cabinet parts diagram

Lever

Part #DE66-00088A

$16.94
In Stock
