Model # 38TRA042 SERIES340 Official Carrier condensing unit

Here are the diagrams and repair parts for Official Carrier 38TRA042-SERIES340 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

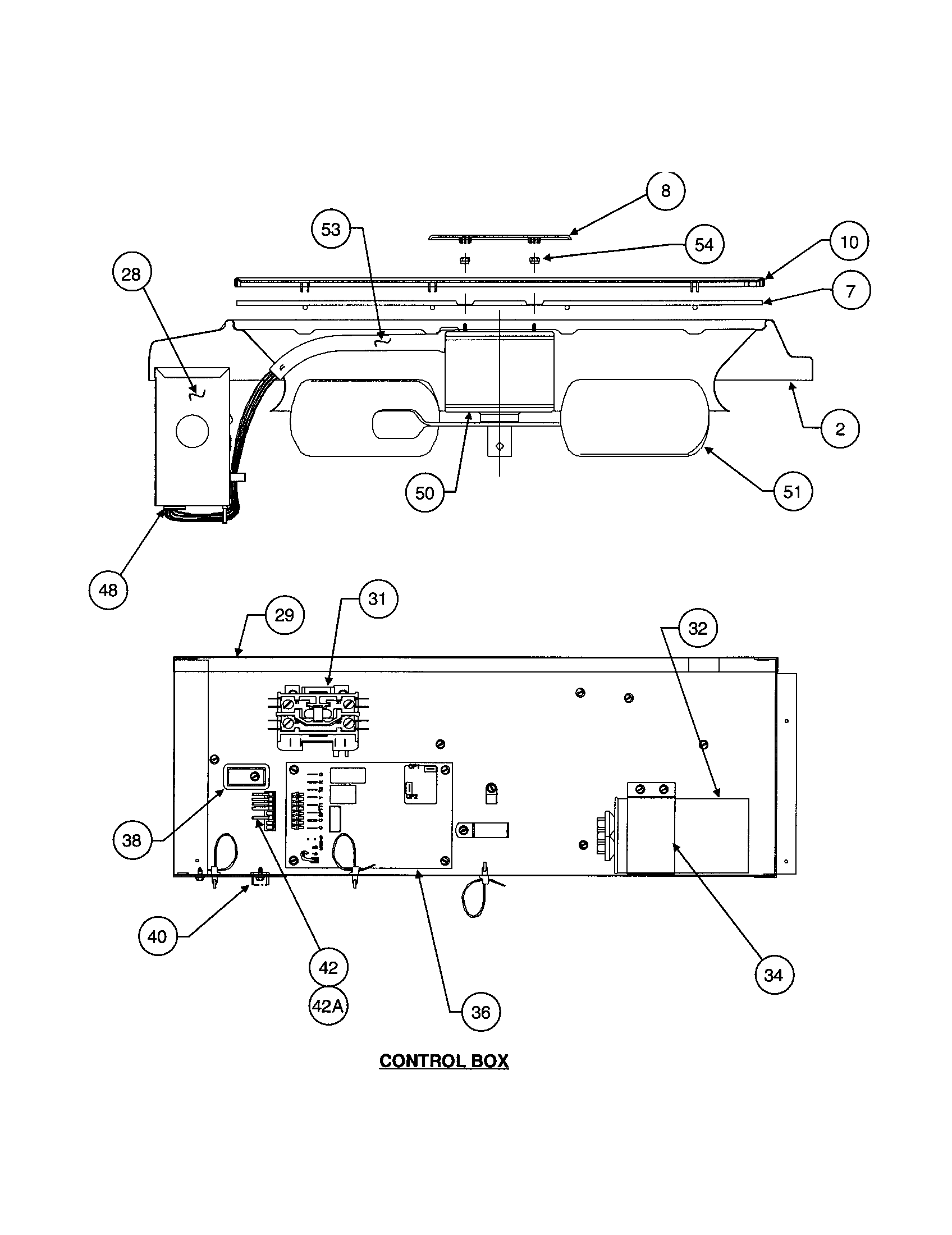

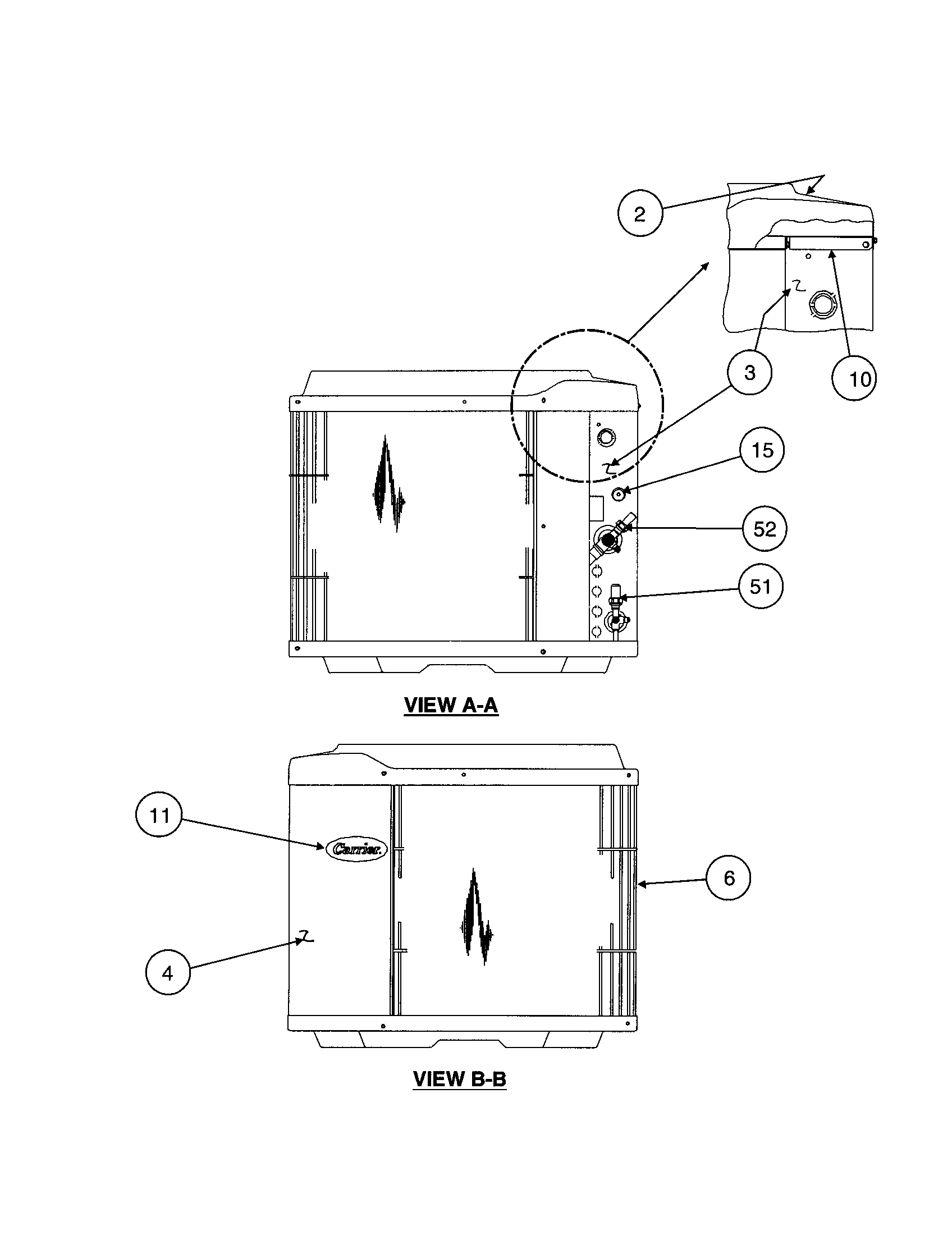

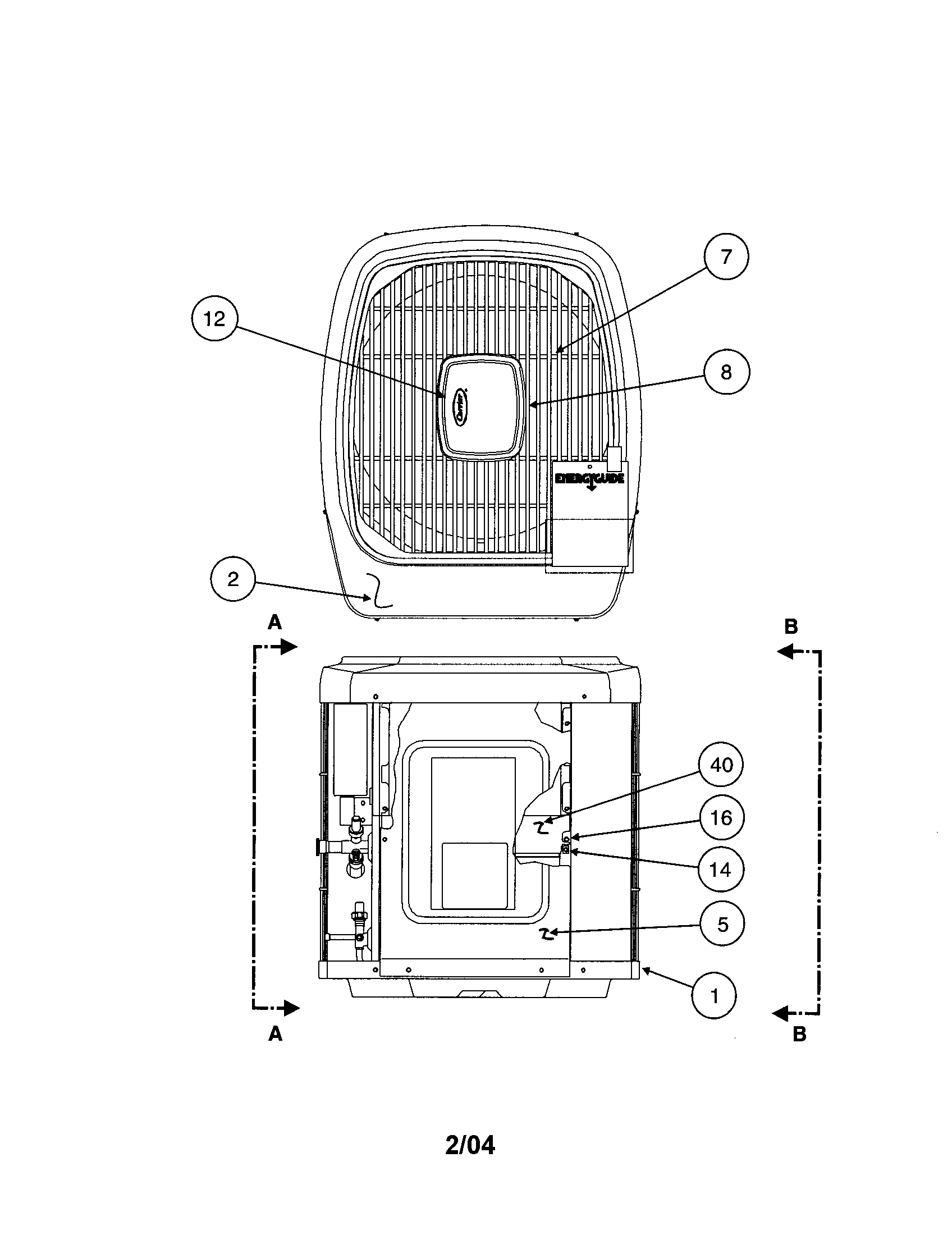

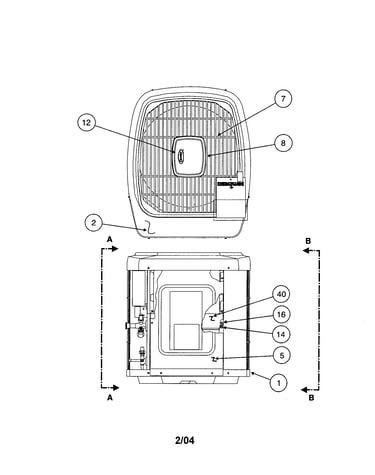

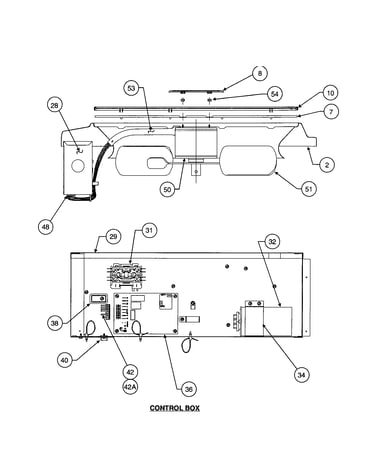

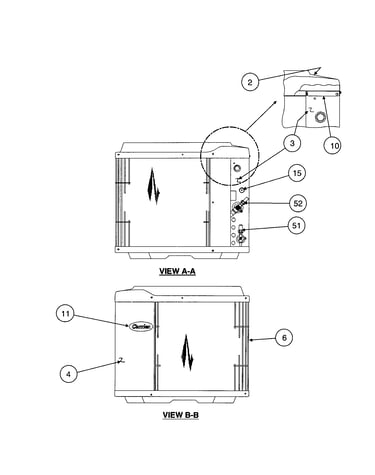

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |

Valve Piston EA52PH082

#57

All parts diagram

Valve piston

Part #EA52PH082

In Stock
Central Air Conditioner Condenser Sound Blanket 318477-402

#25

All parts diagram

Central air conditioner condenser sound blanket

Part #318477-402

In Stock
Central Air Conditioner Capacitor Strap 317739-302

#34

All parts diagram

Central air conditioner capacitor strap

Part #317739-302

In Stock
Relay CESO130062-00

#87A

All parts diagram

Relay

Part #CESO130062-00

In Stock
Switch HK02ZA225

#94C

All parts diagram

Switch

Part #HK02ZA225

In Stock
Heater P041-4443

#82A

All parts diagram

Heater

Part #P041-4443

In Stock
Central Air Conditioner Start Capacitor (replaces Hc95de088, P281-8805) P281-8806

#79C

All parts diagram

Central air conditioner start capacitor (replaces hc95de088, p281-8805)

Part #P281-8806

In Stock
Grommet KA56GR140

#15

All parts diagram

Grommet

Part #KA56GR140

This item is not returnable
In Stock
Valve Cap EN99ZF028

#53

All parts diagram

Valve cap

Part #EN99ZF028

In Stock
Panel 312226-762

#5

All parts diagram

Panel

Part #312226-762

In Stock
