Whirlpool WFE515S0JS1 electric range Parts

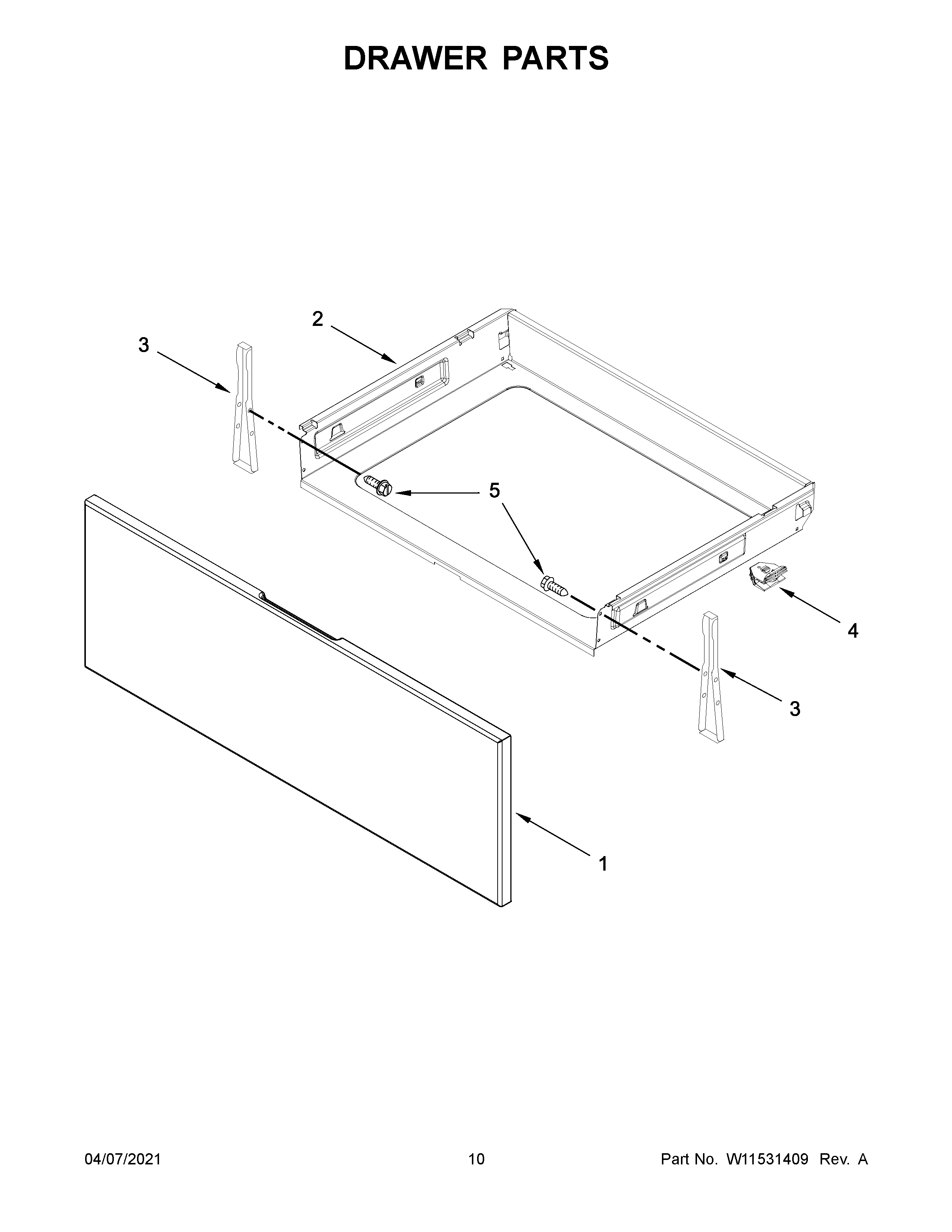

On the Whirlpool WFE515S0JS1 electric range, the model number is typically on the frame behind the storage drawer (warming drawer area). Pull the bottom drawer straight out and look for a rating label on the oven frame, usually along the left or right side.

• Turn the range light on (or use a flashlight) so the label is easy to read
• Pull the storage drawer out fully; lift slightly and keep pulling if it stops
• Look on the oven frame rails and side panels just behind the drawer opening
• Check both sides; labels are often on the left, but can be on the right
• Write down the full model number and the serial number exactly as shown

We use the exact model number to match the correct Whirlpool parts and diagrams for your range. Even small model variations can change which bake element, oven temperature sensor, or electronic control fits.

• Check the other locations in the table above
• Use the serial number (if readable) to narrow the model family
• Match parts by diagram and description; for example, the bake element W11182108 is a common replacement item on this model family

Last updated: February 2026

On the Whirlpool WFE515S0JS1 electric range, incorrect oven temperature is usually caused by a weak bake or broil heating circuit, a drifting oven temperature sensor, or a control issue that is not regulating heat correctly. We start by confirming actual temperature with an oven thermometer, then test the most common parts.

• Verify you are using Bake (not Keep Warm or Delay Start).
• Preheat fully; most electric ovens need 15 to 25 minutes depending on set temp.
• Place an oven thermometer in the center of the middle rack and compare readings.
• Avoid opening the door during preheat; it drops temperature fast.
• Check for heavy foil on racks or the oven bottom; it can block airflow and heat.

1. Set Bake to 350°F.
2. After preheat, record the thermometer reading every 5 minutes for 20 minutes.
3. Average the readings.

Typical normal behavior is cycling above and below the setpoint; what matters is the average temperature over time.

Accurate temperature control prevents undercooked food, overbrowning, and long cook times. On an electric range like the WFE515S0JS1, the sensor and heating elements are the core feedback loop; when one drifts, the oven cannot regulate correctly.

If the display shows an error, use Whirlpool freestanding range error codes to match the code to the most likely circuit or part.

Last updated: February 2026

The average lifespan of a Whirlpool electric range like model WFE515S0JS1 is 13 to 15 years with normal household use. Keeping the oven temperature accurate and fixing heating issues early helps you get the full life from key components.

• Heavy daily cooking and frequent self-clean cycles
• Power supply issues (loose cord connections, overheating at the terminal block)
• Worn heating parts (bake element, broil element, surface elements)

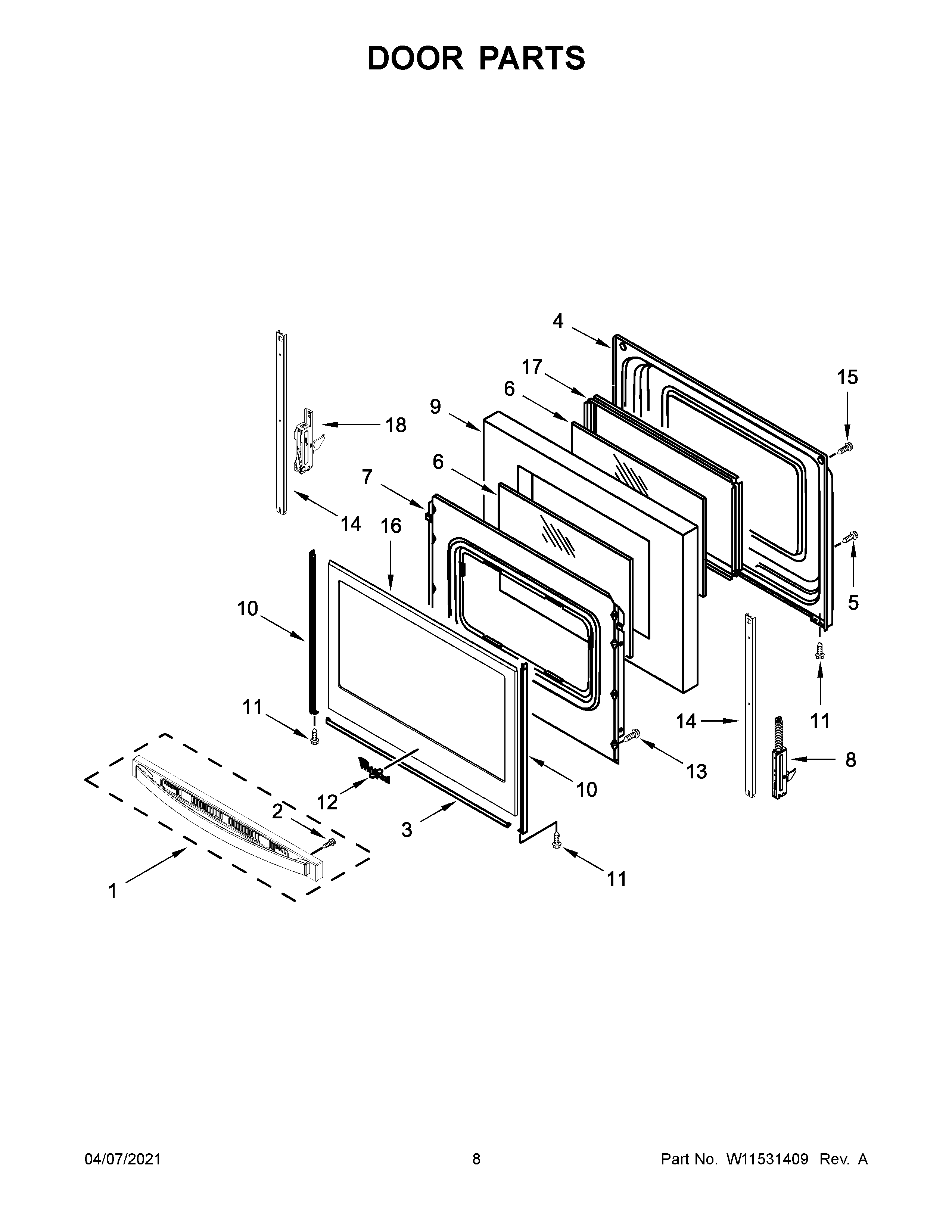

• Door seal and hinge wear that lets heat escape
• Spills and moisture that damage wiring and controls

If performance drops, these are the parts we see most often tied to uneven baking, no-heat, or burner problems on electric ranges:

Knowing the typical 13 to 15 year lifespan helps you plan: a straightforward repair (like a sensor or element) often restores normal cooking, while repeated control or wiring failures can signal it is time to evaluate overall condition.

• Wipe up spills quickly to protect the cooktop and wiring
• Avoid slamming the oven door; it stresses hinges and the door seal
• Use cookware that matches the burner size to reduce element strain
• If you smell hot plastic or see discoloration at the back, stop using the range and inspect the power connection area

Last updated: March 2026
