Bosch WAP24202UC/05 washer Parts

Here are the diagrams and repair parts for Bosch WAP24202UC/05 washer, as well as links to manuals and error code tables, if available.

Bosch WAP24202UC/05 washer
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forWAP24202UC/05 Washer

  • Washer Drain Pump for Bosch WAP24202UC/05 - Part 144977

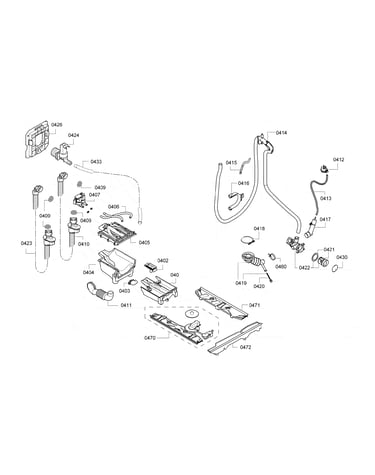

    Hose & valve assy diagram

    Washer Drain Pump

    Part #144977

    The manufacturer no longer makes this part, and there's no substitute part

  • Washer Drain Hose for Bosch WAP24202UC/05 - Part 00656689

    Hose & valve assy diagram

    Hose

    Part #656689

    Replaced by #00656689

    Info Icon
    Manufacturer substitution
    This part replaces 656689. Substitute parts can look different from the original.
    In Stock
    $39.50
    13% OFF Phone Price : $45.50Info Icon
    Minus Item
    Qty
    Plus Item
  • Bosch Washer Tub Bearing Kit for Bosch WAP24202UC/05 - Part 00619808

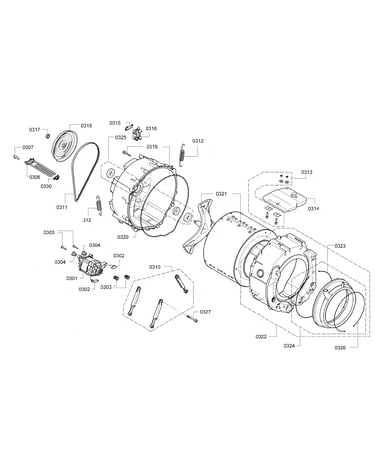

    Drum assy diagram

    Bearing

    Part #619808

    Replaced by #00619808

    Info Icon
    Manufacturer substitution
    This part replaces 619808. Substitute parts can look different from the original.
    In Stock
    $100.30
    Minus Item
    Qty
    Plus Item
  • Bosch Washer Water Inlet Valve for Bosch WAP24202UC/05 - Part 00611703

    Hose & valve assy diagram

    Washer Water Inlet Valve

    Part #611703

    Replaced by #00611703

    Info Icon
    Manufacturer substitution
    This part replaces 611703. Substitute parts can look different from the original.
    In Stock
    $90.56
    6% OFF Phone Price : $96.56Info Icon
    Minus Item
    Qty
    Plus Item
  • Bosch Washer Suspension Spring for Bosch WAP24202UC/05 - Part 00605140

    Drum assy diagram

    Spring

    Part #605140

    Replaced by #00605140

    Info Icon
    Manufacturer substitution
    This part replaces 605140. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $145.39
    Minus Item
    Qty
    Plus Item
  • Washer Door Assembly for Bosch WAP24202UC/05 - Part 00744556

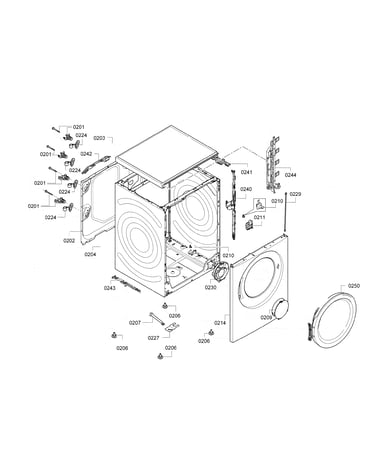

    Base assy diagram

    Washer Window

    Part #744556

    Replaced by #00744556

    Info Icon
    Manufacturer substitution
    This part replaces 744556. Substitute parts can look different from the original.
    In Stock
    $383.58
    $12.00 OFF Phone Price : $395.58Info Icon
    Minus Item
    Qty
    Plus Item
  • Bosch Pulley for Bosch WAP24202UC/05 - Part 00668431

    Drum assy diagram

    Pulley

    Part #668431

    Replaced by #00668431

    Info Icon
    Manufacturer substitution
    This part replaces 668431. Substitute parts can look different from the original.
    In Stock
    $199.91
    Minus Item
    Qty
    Plus Item
  • Op Module for Bosch WAP24202UC/05 - Part 746881

    Control panel diagram

    Op Module

    Part #746881

    The manufacturer no longer makes this part, and there's no substitute part

  • Fixture for Bosch WAP24202UC/05 - Part 00171272

    Drum assy diagram

    Bushing

    Part #171272

    Replaced by #00171272

    Info Icon
    Manufacturer substitution
    This part replaces 171272. Substitute parts can look different from the original.
    In Stock
    $43.96
    Minus Item
    Qty
    Plus Item
  • Bosch Washer Water Inlet Valve for Bosch WAP24202UC/05 - Part 00611702

    Hose & valve assy diagram

    Washer Water Inlet Valve

    Part #611702

    Replaced by #00611702

    Info Icon
    Manufacturer substitution
    This part replaces 611702. Substitute parts can look different from the original.
    In Stock
    $72.56
    8% OFF Phone Price : $78.56Info Icon
    Minus Item
    Qty
    Plus Item
