Frigidaire FCRG3052ASC gas range Parts

To remove the main top on your Frigidaire FCRG3052ASC gas range, we start by shutting off the gas supply and disconnecting power, then remove the grates and burner pieces so the cooktop can be lifted or released per the fasteners shown in the FCRG3052ASC installation guide.

Safety first (do this before touching the cooktop)

• Turn all surface burner knobs to OFF.
• Shut off the external manual gas shut-off valve.
• Unplug the range (or switch off the circuit breaker).
• Let the range cool completely.
• If you moved the range, pull it out only as far as needed to access connections.

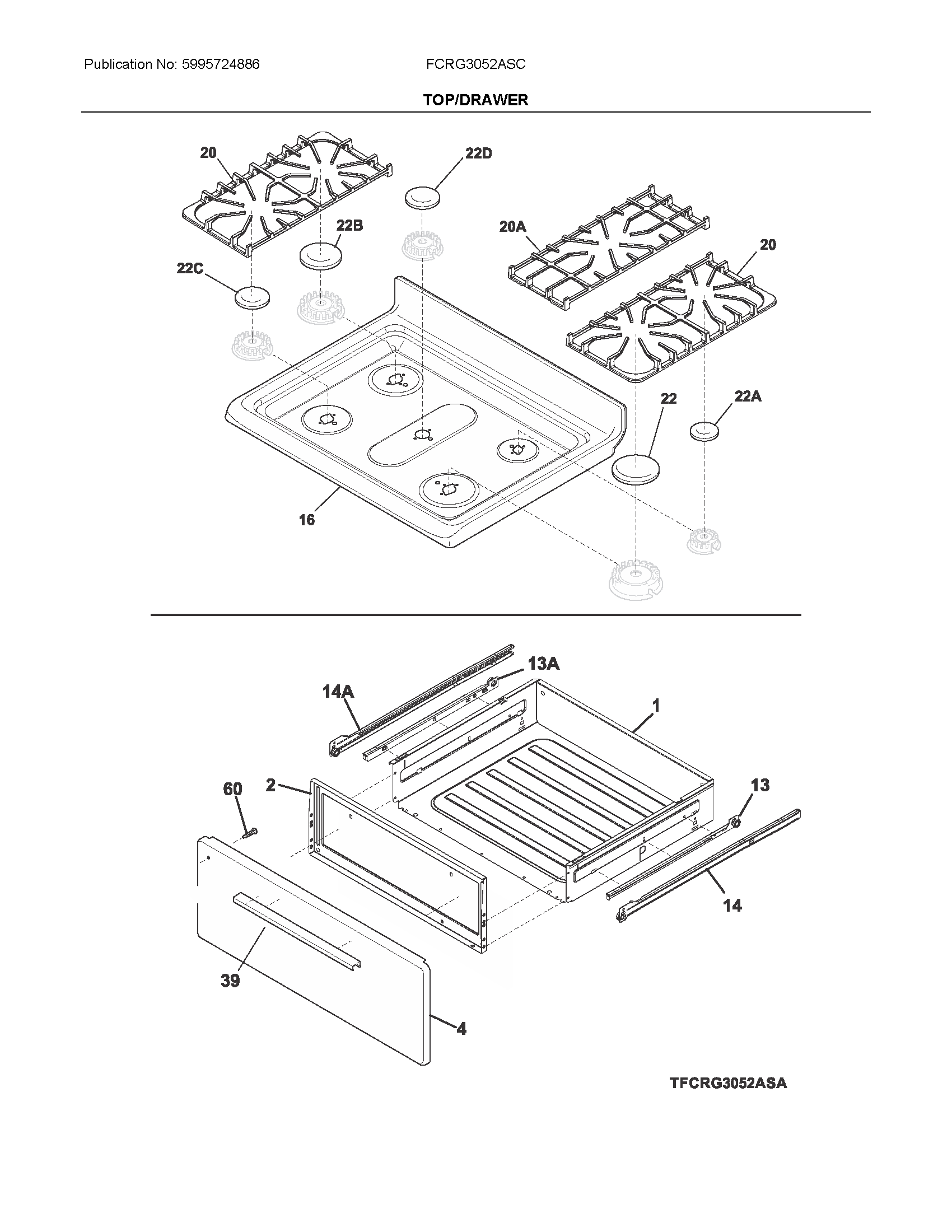

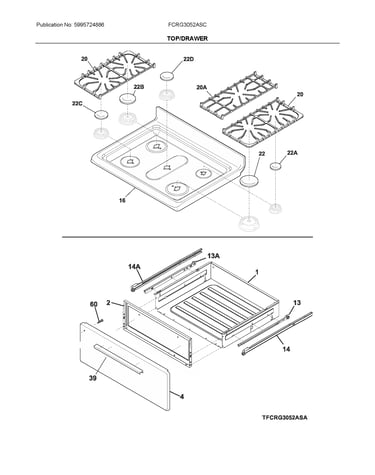

Main-top removal: typical steps for this model style

Most Frigidaire freestanding gas ranges remove the top after the burner components are off and any retaining screws or clips are released.

• Remove all burner grates.
• Lift off burner caps.
• Remove burner heads/bases (some lift off; some are secured).
• Look for screws at the front lip (under the cooktop edge) or near burner openings.
• Release any rear clips, then lift the main top up (support it so you do not strain wiring or gas components).

Helpful parts to know while you are in there

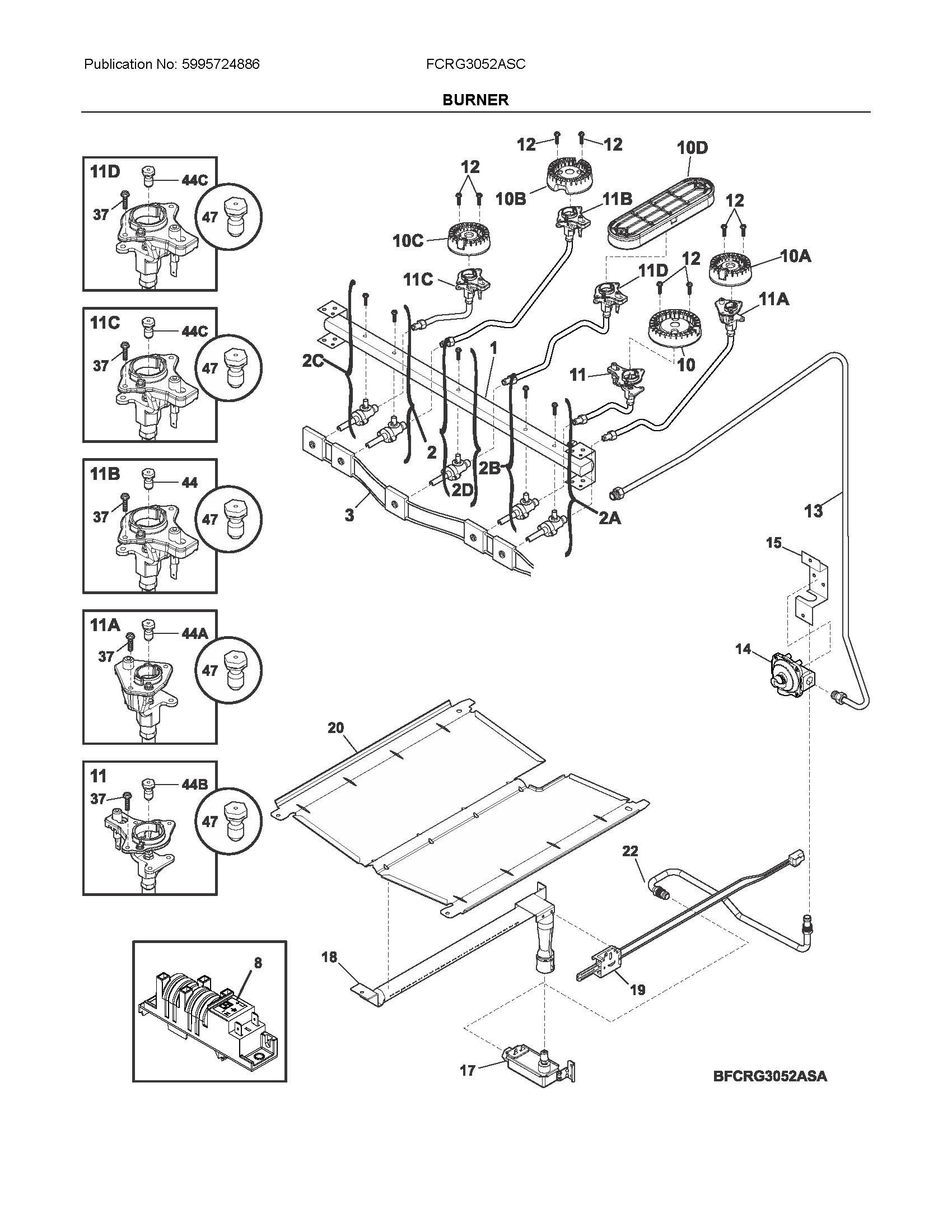

If you are removing the top because a burner will not spark or light, these are common related parts for this model:

Symptom	Common area under the top	Example part for FCRG3052ASC
No clicking spark on one burner	Igniter wiring/igniter mount	Range surface burner igniter and orifice holder 316536623
Burner clicks but will not light	Burner head clogged/misaligned	Range surface burner head 316559300
Weak bake or no bake ignition (oven)	Oven igniter (not under main top)	Bake igniter 316489403

After reassembly (critical)

Any time the range is moved or gas connections are disturbed:

• Turn the gas back on and check for gas leaks using a liquid leak detector.
• Confirm all controls are left in the OFF position.
• Re-level the range if needed.

Why it matters

Removing the main top gives access to igniters, orifice holders, and wiring. Doing the shutoff and leak-check steps prevents gas leaks and ignition problems after the repair.

Last updated: February 2026

On the Frigidaire FCRG3052ASC gas range, most “burner replacement” tasks mean removing the grate and burner cap, lifting the burner head (if removable), then reinstalling everything so the cap sits level and centered for reliable ignition (see the FCRG3052ASC owner’s manual).

Before you start (safety)

• Turn all surface knobs to OFF and let the cooktop cool.
• Unplug the range or switch off the breaker (spark ignition needs power).
• Remove cookware; lift off grates.
• Work one burner at a time so caps and heads do not get mixed.

Remove and reinstall the surface burner parts

1. Lift off the burner grate.
2. Lift off the burner cap.
3. Lift the burner head straight up if your burner head is removable; keep the ignitor/electrode area dry and undamaged.
4. Clean burner head slots and the ignition port with a small-gauge wire or needle if clogged.
5. Reinstall the burner head (if removed).
6. Set the burner cap back on; it must sit flat and snug.

Quick fit and flame check

What to check	Correct result	Fix if not correct
Burner cap seating	Level, centered	Reseat until it rests flat
Flame pattern	Even, steady	Clean ports; reseat cap
Knob use	Not left on LITE	Turn to a flame setting after ignition

Restore power and test

• Turn power back on.
• Push in and turn the knob to LITE until the burner ignites.
• After it lights, turn the knob out of LITE to the desired flame.

When it is actually a parts replacement

If the burner is clean and assembled correctly but still will not ignite, the surface ignitor or holder can be the issue. One example part used on this model is the range surface burner igniter and orifice holder 316536623; match the part to the correct burner position.

Why it matters

Correct cap placement and clear burner ports control gas flow and ignition. When the cap is off-center or ports are clogged, you get delayed ignition, uneven flame, or a burner that will not light.

Last updated: February 2026

On the Frigidaire gas range model FCRG3052ASC, the model number is on the serial plate label inside the lower drawer area. Pull out and open the lower oven drawer or storage drawer and look for the model and serial number tag on the frame. See the FCRG3052ASC owner's manual for the exact serial plate location notes.

Quick steps to locate the tag

• Make sure the range is cool and the oven is off.
• Pull the lower drawer straight out until it stops.
• Look along the drawer opening frame and side rails for a white or silver label.
• Record both the model number and serial number.
• Take a clear photo of the label for parts ordering.

Common places you might check (and why they are usually wrong)

The serial plate is typically not on the cooktop surface or control panel. For this style of Frigidaire range, the lower drawer area is the most reliable spot.

Location checked	Likelihood	What you will find
Lower oven drawer or storage drawer opening	High	Model and serial plate label
Oven door frame area	Medium	Sometimes a rating label on other designs
Back panel	Low	Often hard to access, not the primary label

Why it matters

We use the model number to match the correct Frigidaire parts and diagrams for your exact configuration (burners, igniters, oven controls, and trim). Even small model variations can change which parts fit.

Last updated: February 2026
