Model #R-1870 Sharp microwave

Here are the diagrams and repair parts for Sharp R-1870 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 142 parts

    Wall Template

    #NI

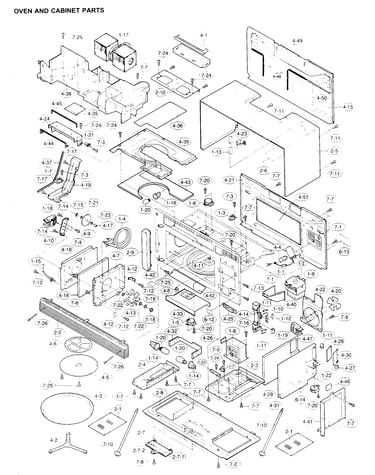

    Cabinet parts Diagram

    Wall template

    Part #TINSKB019MRR0

    The manufacturer no longer makes this part, and there's no substitute part

    Bracket

    #271

    Cabinet parts Diagram

    Bracket

    Part #LANGQB033MRP0

    The manufacturer no longer makes this part, and there's no substitute part

    Coupling

    #4-8

    Cabinet parts Diagram

    Coupling

    Part #NCPL-B007MRF0

    The manufacturer no longer makes this part, and there's no substitute part

    Microwave Keypad

    #321A

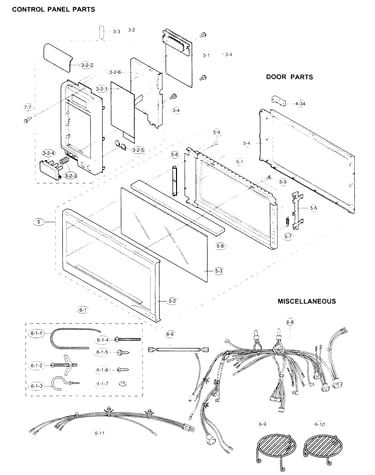

    Control panel,door,miscellaneous Diagram

    Microwave keypad

    Part #FUNTKB323MRE0

    The manufacturer no longer makes this part, and there's no substitute part

    Microwave/Hood Lamp Cover

    #4-35

    Cabinet parts Diagram

    Microwave/hood lamp cover

    Part #PCOVPB047MRP0

    The manufacturer no longer makes this part, and there's no substitute part

    Plate

    #4-30

    Cabinet parts Diagram

    Plate

    Part #PFTA-B003MRP0

    The manufacturer no longer makes this part, and there's no substitute part

    Microwave Door Latch Lever

    #5-5

    Control panel,door,miscellaneous Diagram

    Microwave door latch lever

    Part #LSTPPB025MRF0

    The manufacturer no longer makes this part, and there's no substitute part

    Convection Fan

    #4-13

    Cabinet parts Diagram

    Convection fan

    Part #NFANMB004MRP0

    The manufacturer no longer makes this part, and there's no substitute part

    Cord Bushing

    #4-23

    Cabinet parts Diagram

    Cord bushing

    Part #LBSHC0037WRE0

    The manufacturer no longer makes this part, and there's no substitute part

    Main Harness

    #6-11

    Control panel,door,miscellaneous Diagram

    Main harness

    Part #FW-VZB077MRE0

    The manufacturer no longer makes this part, and there's no substitute part
