Model # JVM6175SK5SS Official GE microwave/hood combo

Here are the diagrams and repair parts for Official GE JVM6175SK5SS microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

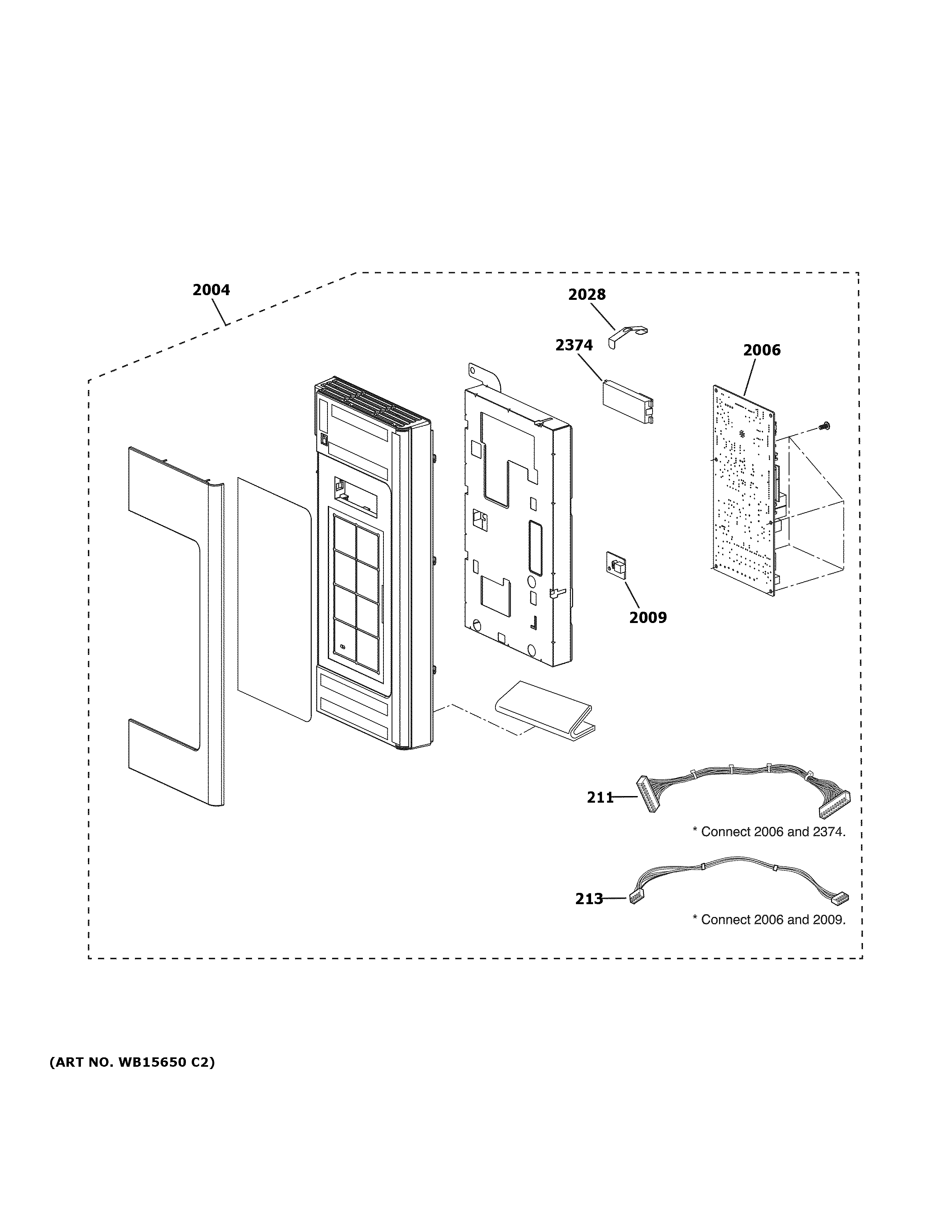

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |

Microwave Light Bulb (replaces Wb36x10292) WB36X10328
#3028

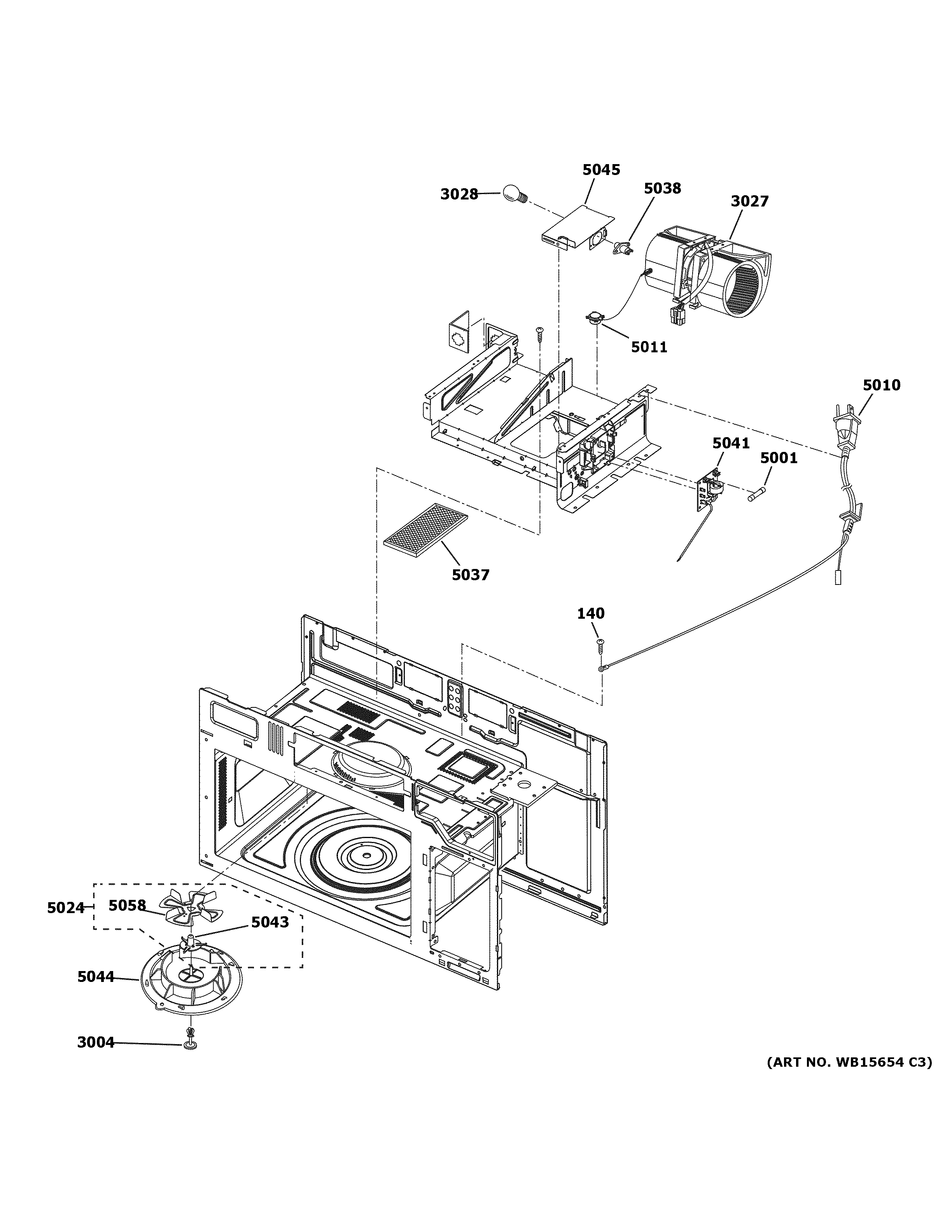

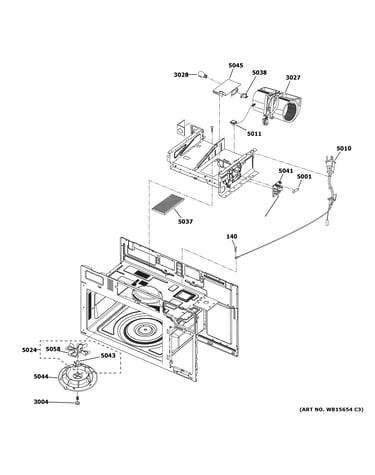

Interior parts (2) diagram

Microwave light bulb (replaces wb36x10292)

Part #WB36X10328

$15.30
12% OFF Phone Price : $17.30
In Stock
Microwave Charcoal Filter WB02X35687
#5037

Interior parts (2) diagram

Microwave charcoal filter

Part #WB02X35687

This item is not returnable
$13.42
13% OFF Phone Price : $15.42
In Stock
Microwave Door Interlock Switch (replaces Wb24x817) WB24X25397
#4003

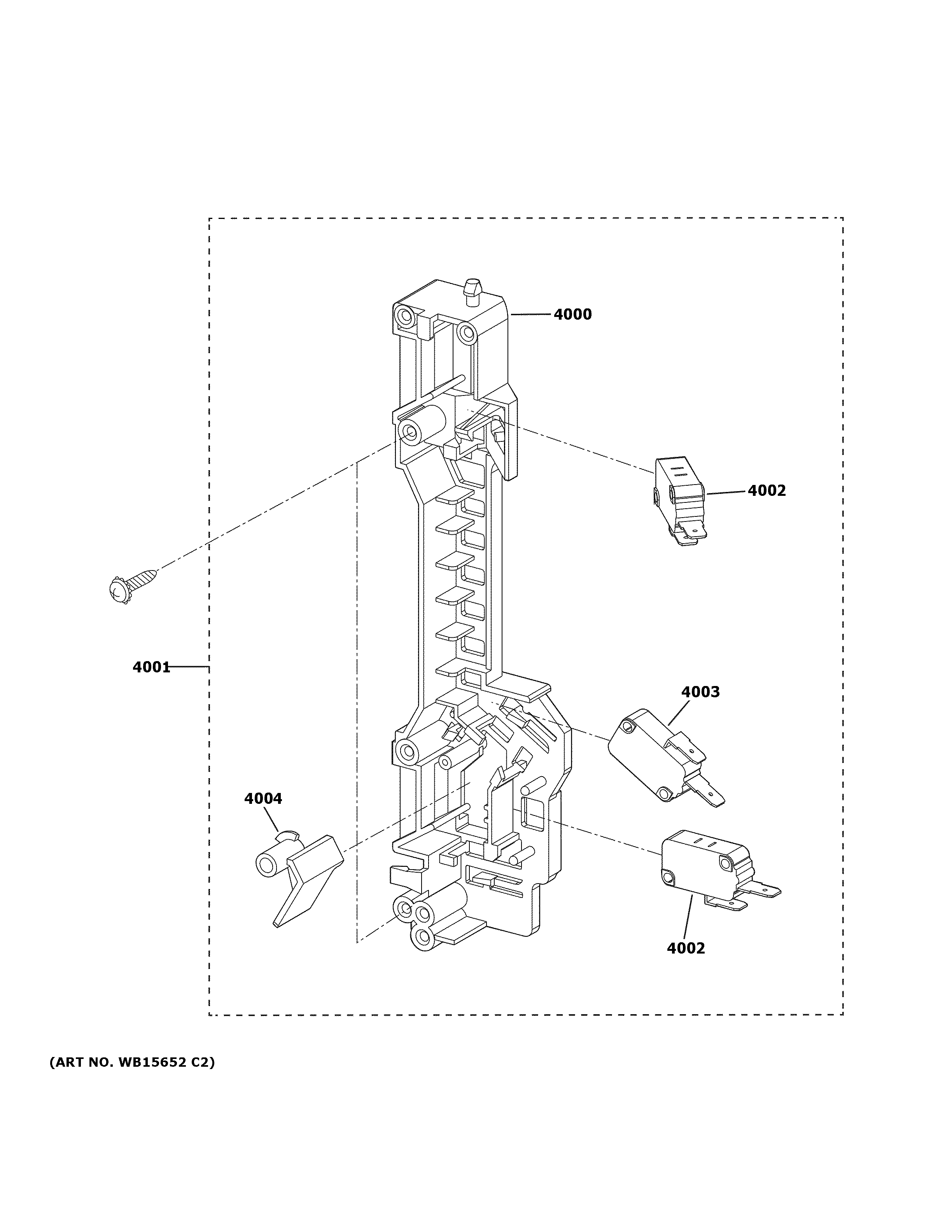

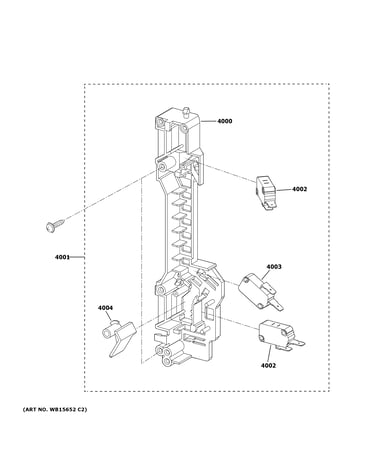

Latch board parts diagram

Microwave door interlock switch (replaces wb24x817)

Part #WB24X25397

$22.56
18% OFF Phone Price : $27.56
In Stock
Microwave Turntable Shaft WB06X10873
#3012

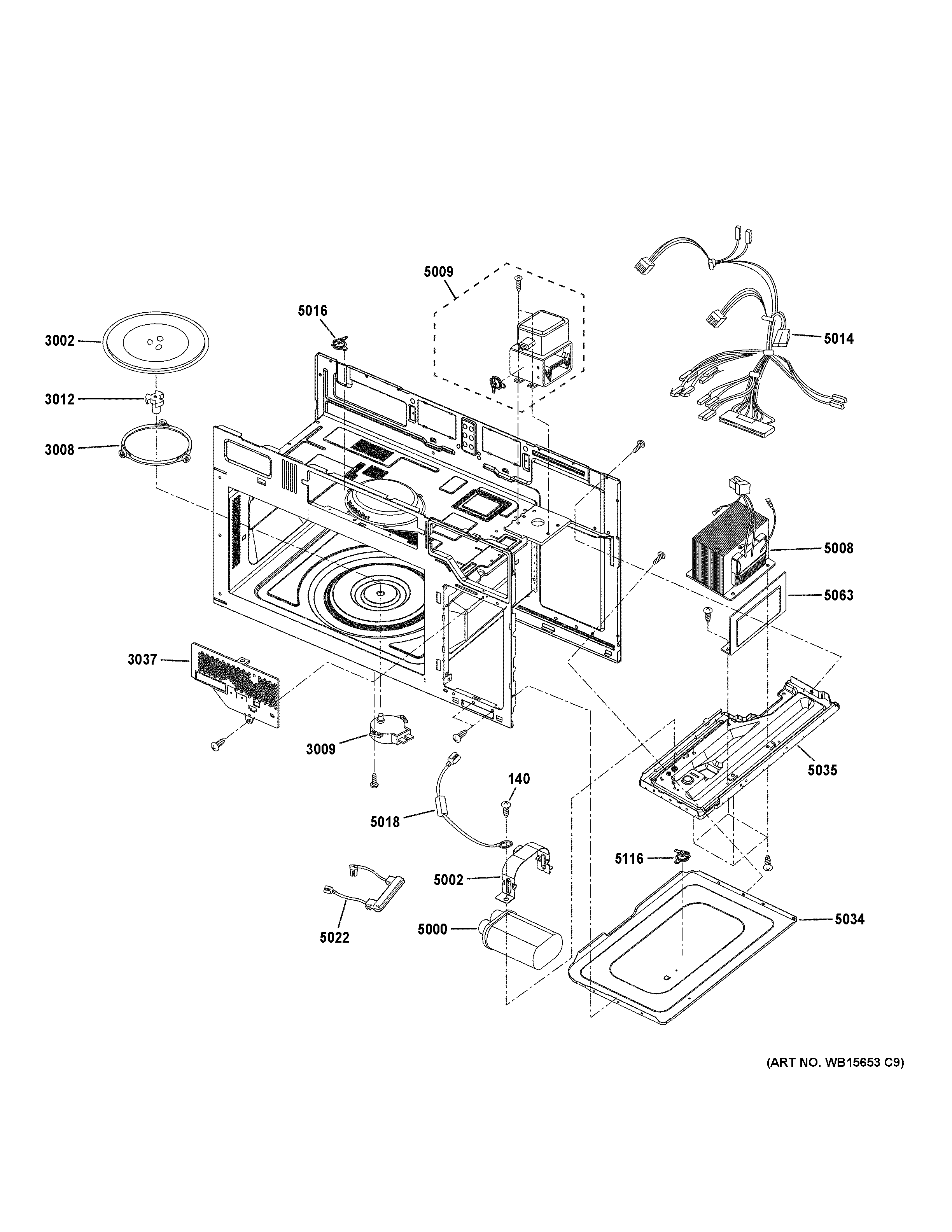

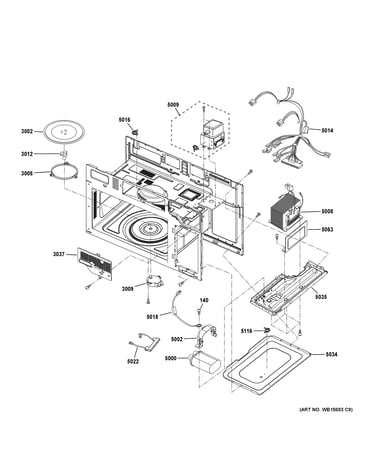

Interior parts (1) diagram

Microwave turntable shaft

Part #WB06X10873

This item is not returnable
$13.42
13% OFF Phone Price : $15.42
In Stock
Microwave Stirrer Fan Cover Clip WB01X10055
#3004

Interior parts (2) diagram

Microwave stirrer fan cover clip

Part #WB01X10055

This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
Microwave Glass Turntable Tray (replaces 1b71961a, Wb49x10061, Wb49x10067, Wb49x10225) WB49X10129
#3002

Interior parts (1) diagram

Microwave glass turntable tray (replaces 1b71961a, wb49x10061, wb49x10067, wb49x10225)

Part #WB49X10129

$91.09
5% OFF Phone Price : $96.09
In Stock
Microwave Vent Grille WB63X35497
#3024

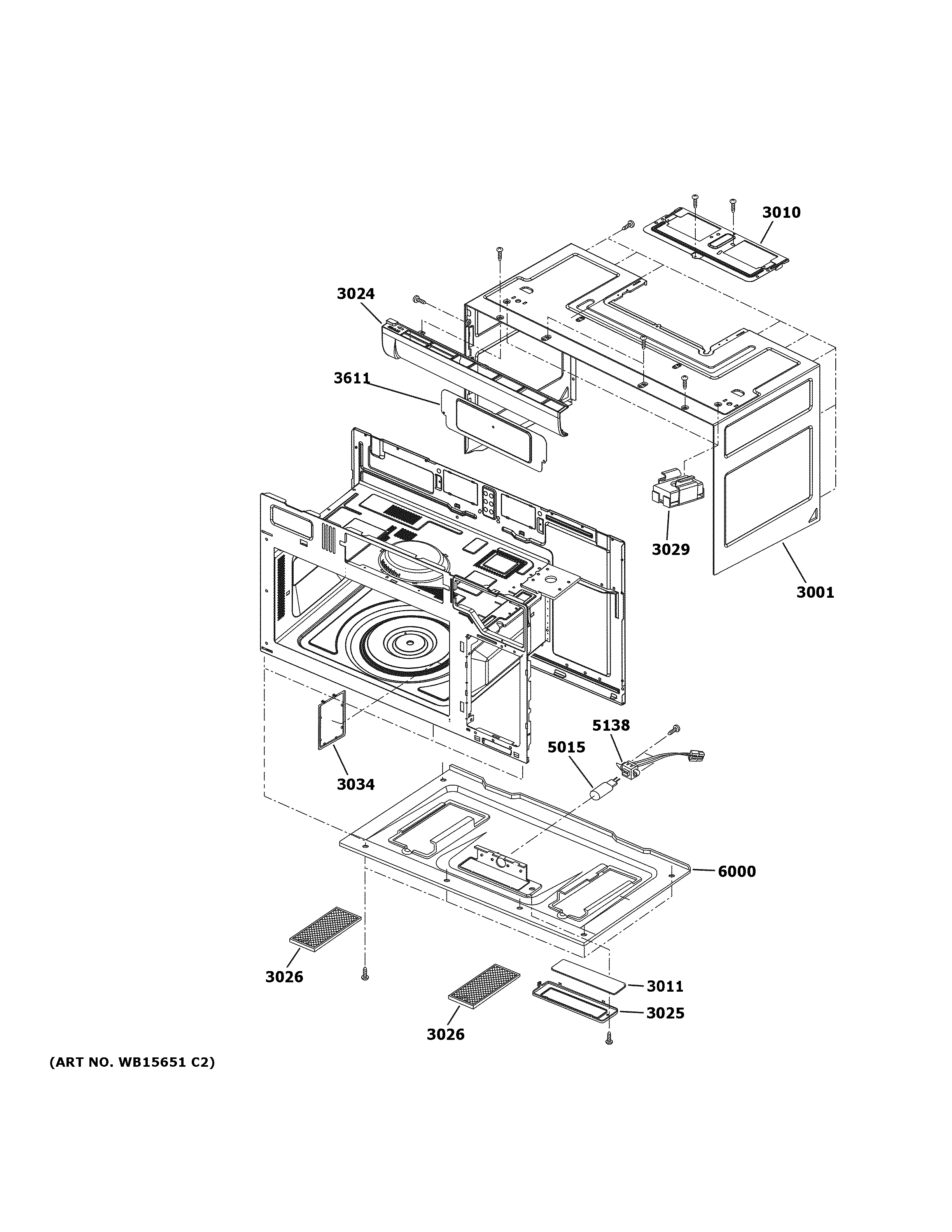

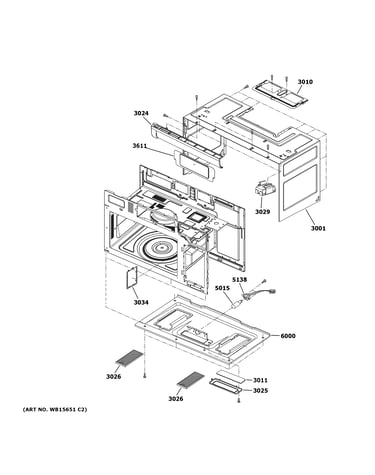

Oven cavity parts diagram

Microwave vent grille

Part #WB63X35497

$51.24
9% OFF Phone Price : $56.24
In Stock
Microwave Installation Hardware Kit WB02X35527
#6009

Installation parts diagram

Microwave installation hardware kit

Part #WB02X35527

$22.23
18% OFF Phone Price : $27.23
In Stock
Microwave Light Lens WB36X10293
#3011

Oven cavity parts diagram

Microwave light lens

Part #WB36X10293

$27.25
16% OFF Phone Price : $32.25
In Stock
Microwave Nut WB01X10124
#3029

Oven cavity parts diagram

Microwave nut

Part #WB01X10124

$7.83
11% OFF Phone Price : $8.83
In Stock
