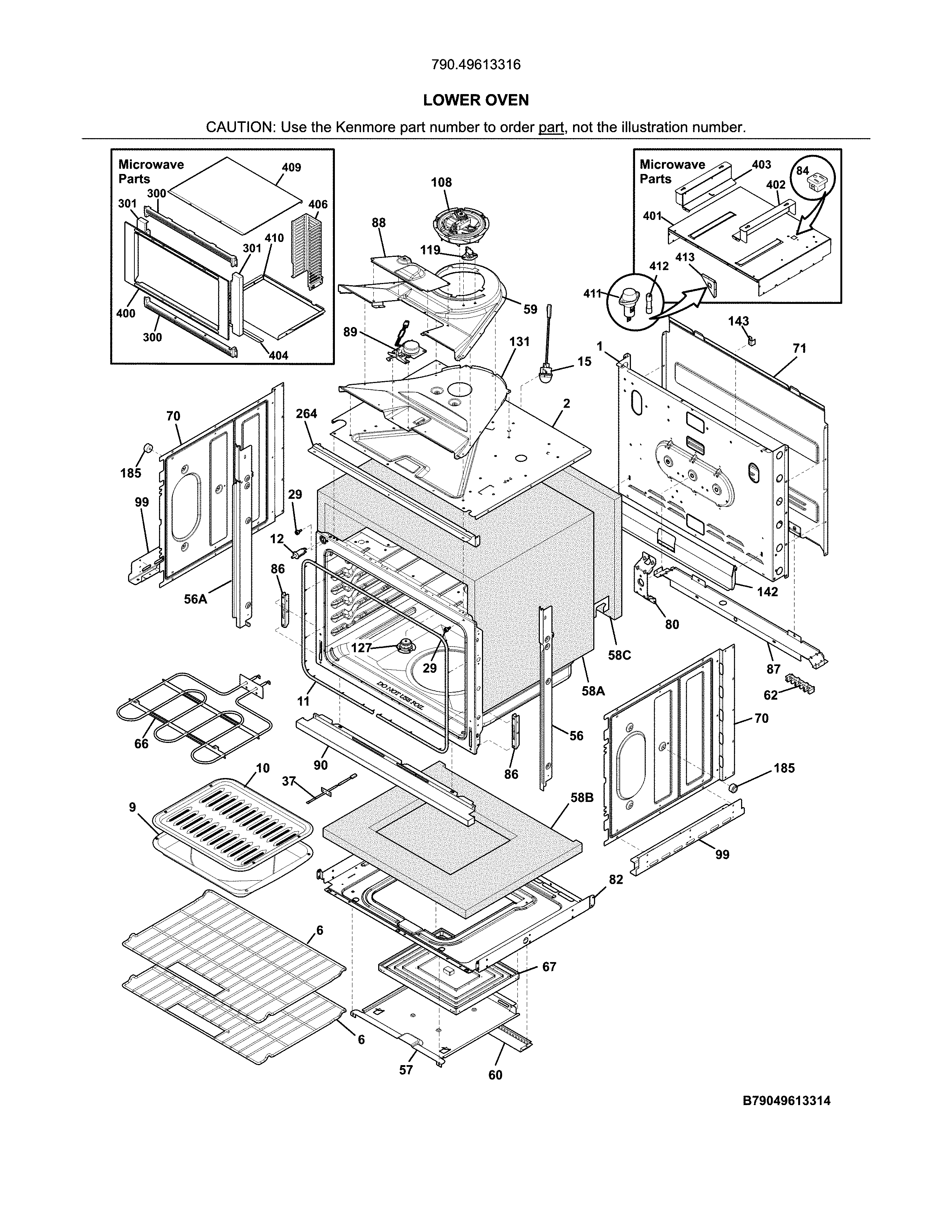

Kenmore 79049613316 wall oven/microwave combo Parts

A “standard” wall oven is usually 24, 27, or 30 inches wide, but the right size is the one that matches your cabinet cutout. For Kenmore 79049613316, the installation guide lists specific product and cutout dimensions you should measure and match before ordering or installing.

Most single wall ovens are sold in these nominal widths:

• 24-inch (common in smaller kitchens)
• 27-inch (very common replacement size)
• 30-inch (most common in new installs)

Heights and depths vary by design (single vs. double ovens, trim style, convection fan layout), so we always recommend sizing by cutout dimensions, not just the advertised width.

Your combo unit needs the cabinet opening sized correctly. The installation guide emphasizes measuring your existing cutout and comparing it to the cutout-dimensions chart for your model.

Key fit points called out in the guide:

• The base must support 225 lb (102 kg).
• Allow at least 21 inches of clearance in front for the door when open.
• Cutout depth is critical so the decorative trim sits correctly.
• The oven should be centered (spacers, if equipped, help prevent heat buildup).

• Measure cutout width, cutout height, and cutout depth (in multiple spots)
• Confirm you have the required front clearance for door swing
• Verify the cabinet base is level and strong enough
• Check electrical requirements on the unit’s serial plate (breaker/fuse sizing)
• Compare your measurements to the chart in the installation guide

If the cutout is even slightly off, the oven may not sit centered, the trim may not meet the cabinet face, and airflow and heat management can suffer. Measuring first prevents cabinet rework and installation delays.

If you also need replacement parts while you measure and plan, you can order model-specific parts from the list for Kenmore 79049613316 or search by model on Sears PartsDirect.

Last updated: February 2026

No. “30-inch” wall ovens are not all the same size; 30 inches is a nominal width, and the actual cabinet cutout width, height, and depth vary by model. For Kenmore model 79049613316, you should match your cabinet cutout to the dimensions listed in the installation guide.

“30-inch” typically describes the approximate overall width of the oven front, not the exact opening your cabinet needs. Installations fail most often because the cutout depth or cutout width is slightly off.

Common differences between brands and models include:

• Cutout width (often around 28 1/2 to 30 1/8 inches)
• Cutout height (single vs. double cavity, trim styles)
• Cutout depth (critical for trim to sit flush)
• Required clearance in front for the door swing
• Electrical junction box location and cable routing space

Your installation instructions call out that the oven is designed to fit a limited variety of cutout sizes and that you should measure your existing cutout and compare it to the cutout chart for your model. It also notes that cutout depth is critical so the decorative trim butts against the cabinet correctly.

• Measure cutout width, height, and depth in multiple spots
• Confirm the base can support 225 lb
• Allow at least 21 inches clearance in front for the door when open
• Keep any factory spacers in place (they help center the oven)
• Verify electrical requirements on the serial plate (breaker/fuse sizing)

Use this as a comparison guide, then confirm with your model’s documentation.

Even a small mismatch can prevent the oven from sliding in fully, cause the trim not to sit flush, or create heat buildup around the cabinet. Matching the cutout chart and clearances helps the oven install safely and look right.

You can also order model-correct replacement parts for Kenmore 79049613316 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

For your Kenmore wall oven/microwave combo model 79049613316, you determine whether it is a 27-inch or 30-inch unit by measuring the cabinet cutout width (inside edge to inside edge). The installation specs list different minimum cutout widths for 27-inch versus 30-inch models; match your measurement to those ranges using the installation guide.

Use a tape measure and measure the opening, not the oven door or trim.

• Measure cutout width: left inside cabinet wall to right inside cabinet wall
• Measure cutout height: bottom support surface to the top of the opening
• Measure cutout depth: front cabinet face to the back wall (depth is critical for trim fit)
• Measure in multiple spots (top, middle, bottom) in case the cabinet is out of square
• Record the smallest width and depth you find; that is the limiting dimension

The installation instructions show these typical minimum cutout widths:

If your cutout width is around 29 inches, you are in 30-inch territory. If it is closer to 25 to 27 inches, you are in 27-inch territory.

Wall ovens are sized by the cabinet opening they fit. Getting the cutout width right prevents gaps, trim not sitting flush, and installation issues (especially when the decorative trim does not butt against the cabinet because the depth or width is off).

These points from the installation specs help avoid surprises during measuring and fit-up:

• Plan at least 21 inches of clearance in front for the door when open
• The base/support surface must support 225 lb (102 kg)
• Cutout depth must be correct so the trim sits properly against the cabinet

For the exact diagram and the dimension letters used in the chart, follow the measurements shown in the installation guide.

You can also look up replacement parts for model 79049613316 on this page, or search by model number on Sears PartsDirect.

Last updated: February 2026

Measure the cabinet cutout for your Kenmore 79049613316 wall oven/microwave combo (not the oven door). You will compare your cutout width, height, and depth to the cutout chart in the installation guide to confirm the replacement will fit safely and allow proper trim alignment.

Take measurements in at least 3 places (top, middle, bottom) and use the smallest number.

• Cutout width: inside left cabinet wall to inside right cabinet wall
• Cutout height: cabinet floor (support surface) to the underside of the top rail
• Cutout depth (critical): front cabinet face to the back wall (this affects whether the decorative trim sits flush)
• Front clearance: allow room for the door to open; most installs need at least 21 inches of clear space in front
• Support capacity: the base should support 225 lb

Use this list to avoid common fit and installation problems.

• Confirm the cutout is square (measure diagonals if possible)
• Check that the oven can be centered; do not remove any factory spacers if equipped
• Verify the cutout depth so the trim butts against the cabinet face
• Confirm you have enough front clearance for the door swing
• Plan for leveling; installers often use wood shims under the oven

Cutout dimensions are the cabinet opening; appliance dimensions include the trim and door.

A wall oven/microwave combo must fit the cutout correctly so it can be centered, trimmed properly, and cooled as designed. Incorrect depth is a common issue; it can keep the trim from sitting flush and can contribute to excess heat buildup in the cabinet.

If you need replacement parts during the install (for example, wiring connections), you can order parts for model 79049613316 from the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

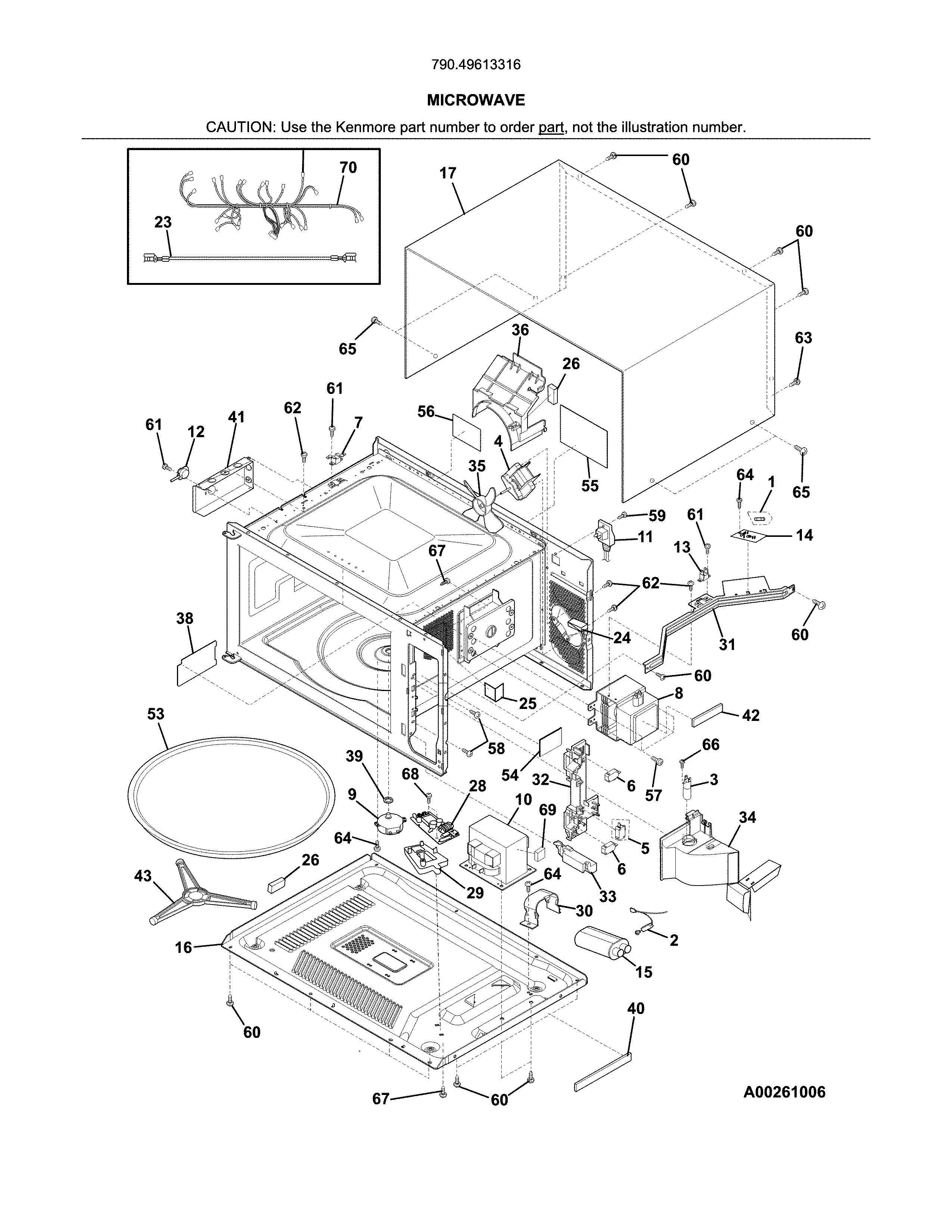

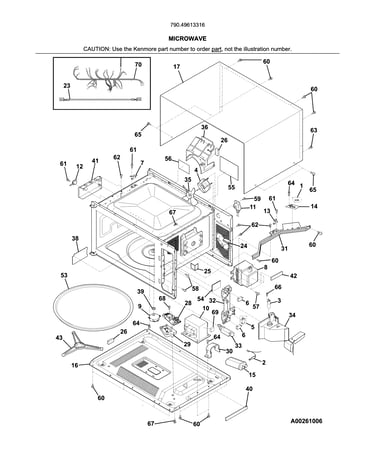

On the Kenmore 79049613316 wall oven/microwave combo, the microwave section is built into the combination appliance, so you typically do not replace the microwave as a separate, standalone unit. In most cases, you either repair the microwave components or replace the entire combo assembly; see the installation guide for how the unit is designed to be installed as one combination oven.

• Repair the microwave side by replacing failed components (switches, fuses, latch parts, control boards).
• Diagnose door and safety interlock issues first; many “dead microwave” symptoms start at the door.
• Check for an overheat or no-power condition that can be caused by a blown thermal fuse.
• Replace the full combo only when repair is not cost-effective.
• Confirm electrical requirements on the unit’s serial plate before any major replacement work.

If your microwave won’t run, won’t heat, or stops when the door moves, these model-compatible parts are common fixes:

• This combination oven is installed as a single appliance and is not approved for stackable or side-by-side installation.
• Power must be shut off while making line connections.
• The unit must be properly grounded and on an individual branch circuit.

(These points are outlined in the installation guide.)

Because the microwave and wall oven share a cabinet, mounting, and electrical installation, replacing “just the microwave” usually is not practical. Targeted repairs (interlock switch, thermal fuse, latch parts, control board) often restore operation at a much lower cost than replacing the entire combo.

You can order replacement parts for your Kenmore 79049613316 from the parts list for this model, or search by model number on Sears PartsDirect.
