Model # JGD8348ADP Official Jenn-Air gas counter unit

Here are the diagrams and repair parts for Official Jenn-Air JGD8348ADP gas counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

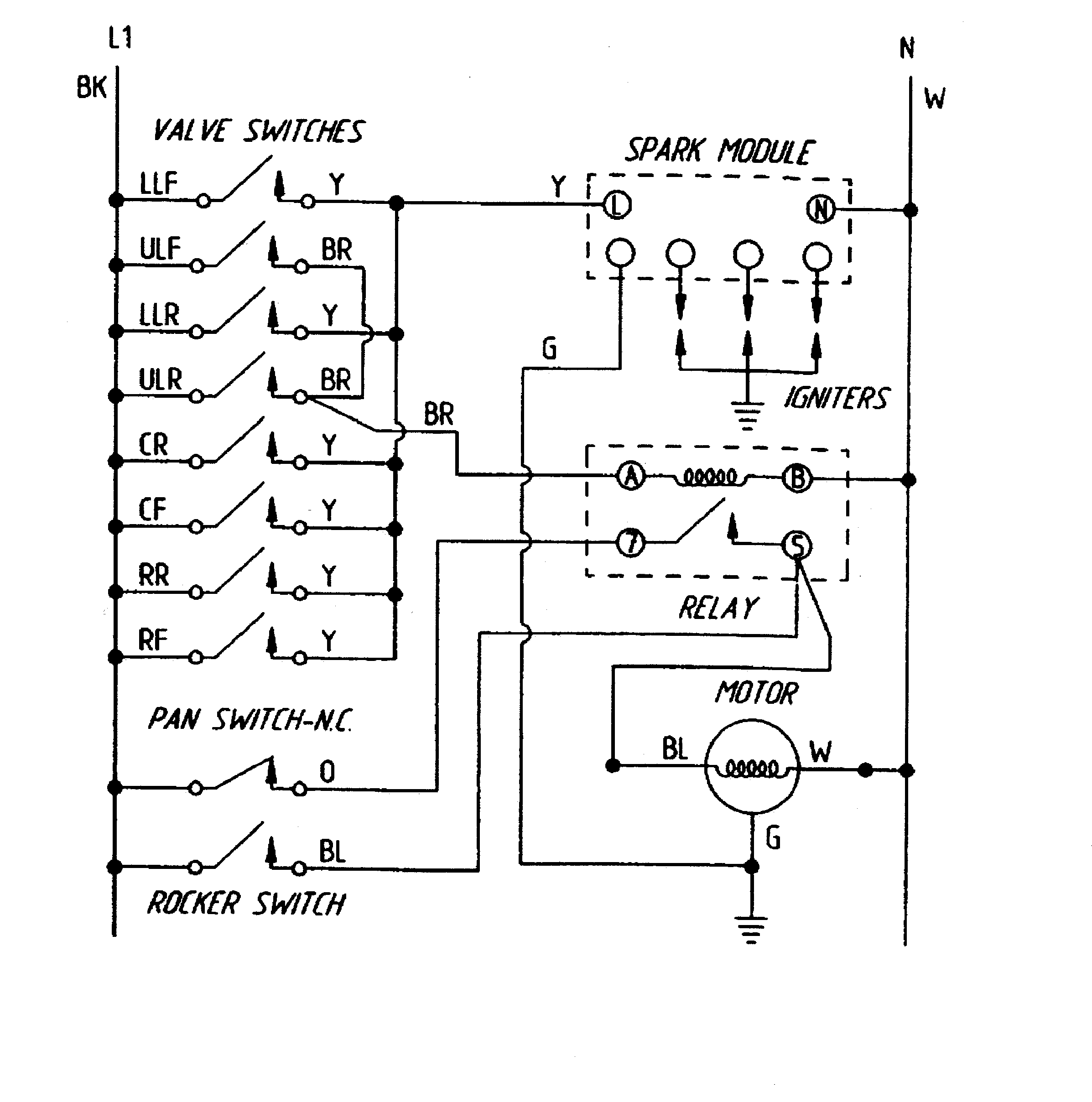

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Range Downdraft Vent Grease Filter 707929
#25

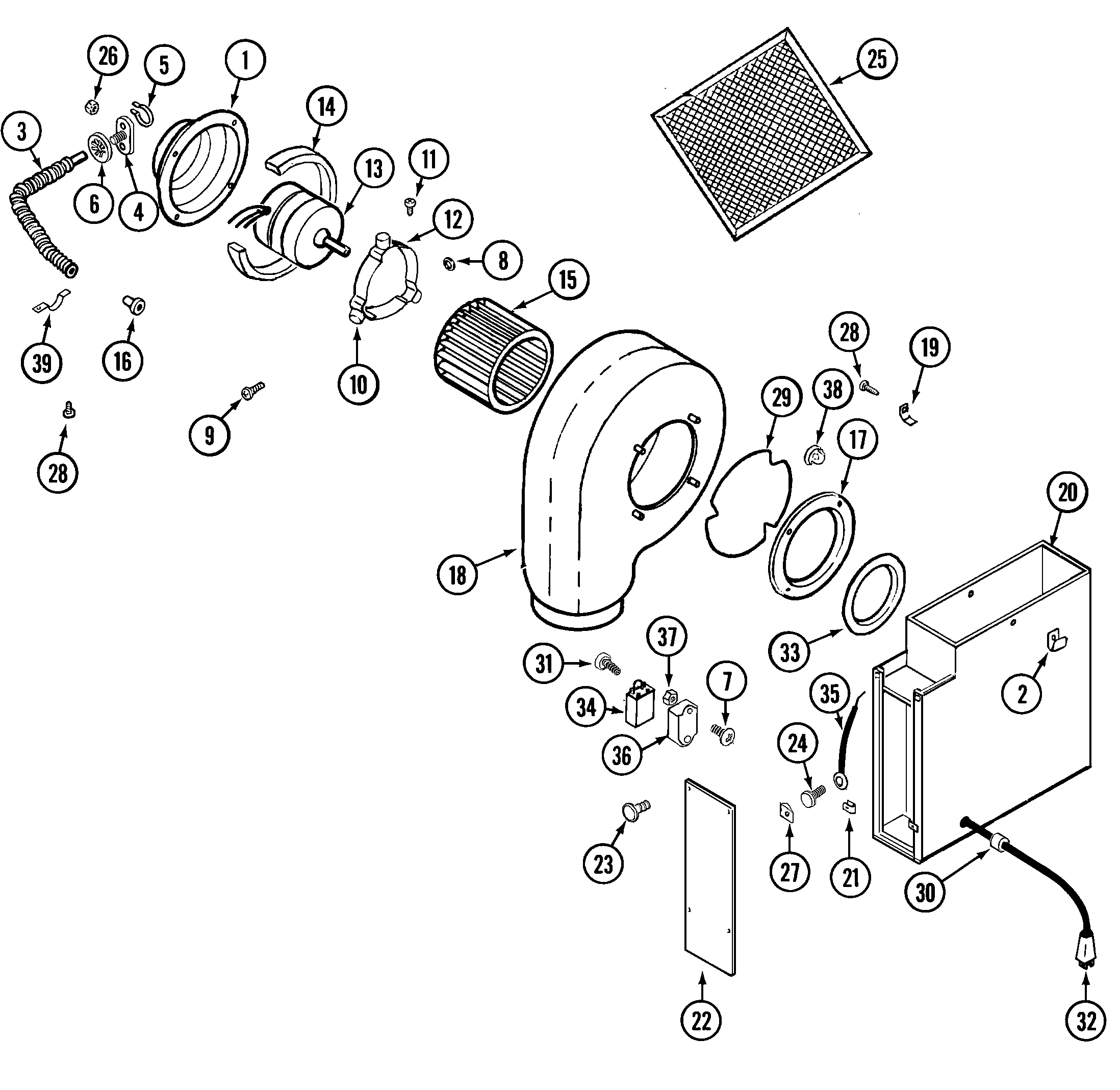

Blower assembly-plenum diagram

Range downdraft vent grease filter

Part #707929

Replaced by #WP707929

?
Manufacturer substitution
This part replaces 707929. Substitute parts can look different from the original.
$25.09 |
17% OFF Phone Price : $30.09
In Stock
Spark Module 74004283
#36

Blower assembly-plenum diagram

Spark module

Part #74004283

Replaced by #8215557

?
Manufacturer substitution
This part replaces 74004283. Substitute parts can look different from the original.
$101.39 |
9% OFF Phone Price : $111.39
In Stock
Burner 74005001
#8

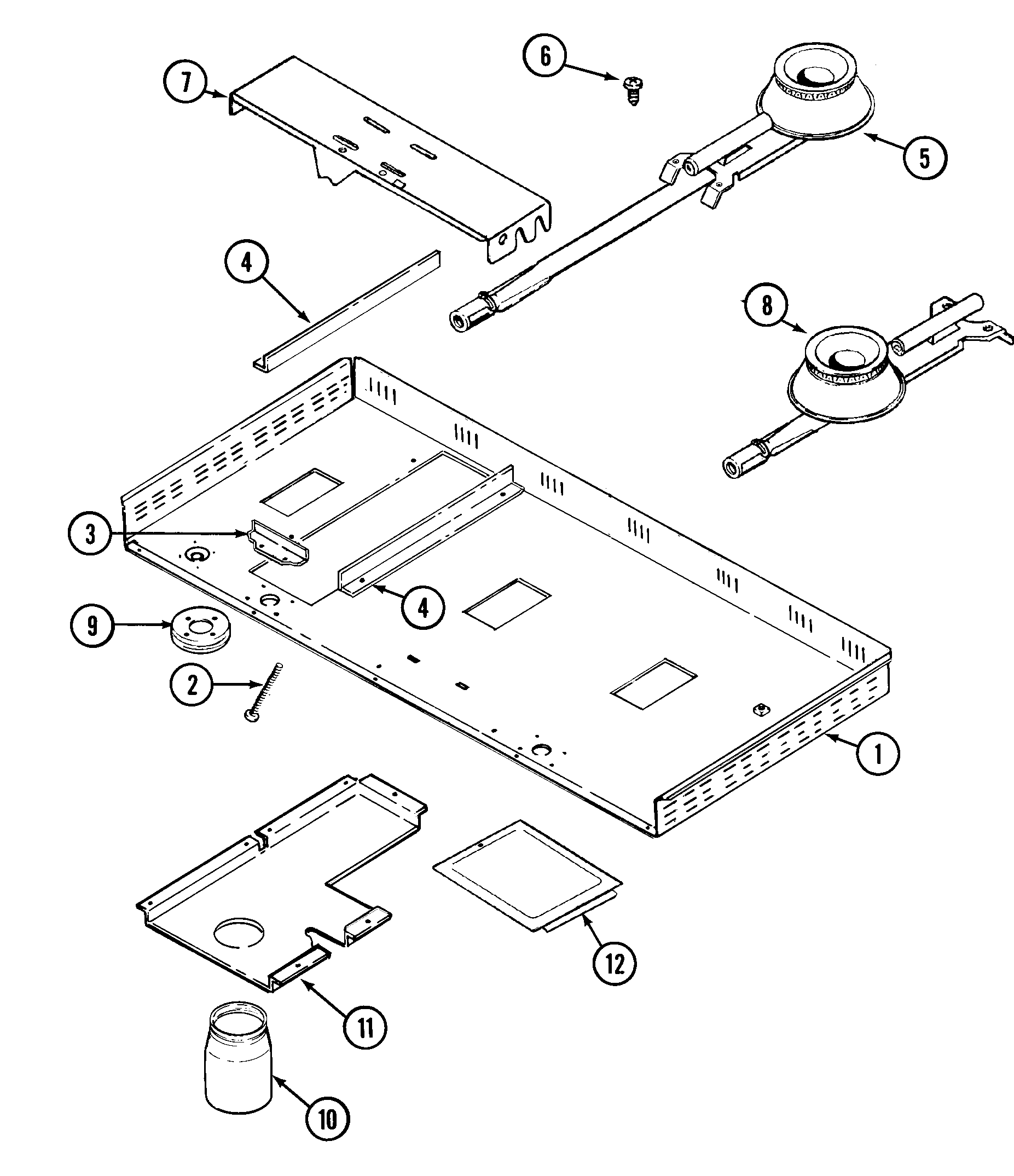

Body diagram

Burner

Part #74005001

Replaced by #WP7505P283-60

?
Manufacturer substitution
This part replaces 74005001. Substitute parts can look different from the original.
$150.73 |
21% OFF MSRP : $190.00
In Stock
Lock Nut 707702
#26

Blower assembly-plenum diagram

Lock nut

Part #707702

Replaced by #WPY707702

?
Manufacturer substitution
This part replaces 707702. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Cooktop Burner Assembly, Rear (replaces 71001934, 7505p284-60, 8189688, Y705402) 74005189
#5

Body diagram

Cooktop burner assembly, rear (replaces 71001934, 7505p284-60, 8189688, y705402)

Part #74005189

$154.11 |
6% OFF Phone Price : $164.11
In Stock
Isolator 708926
#10

Blower assembly-plenum diagram

Isolator

Part #708926

Replaced by #WP71003558

?
Manufacturer substitution
This part replaces 708926. Substitute parts can look different from the original.
This item is not returnable
$9.19 |
10% OFF Phone Price : $10.19
In Stock
Screw 707172
#23

Blower assembly-plenum diagram

Screw

Part #707172

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 707172. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Aeration Pan 712274
#3

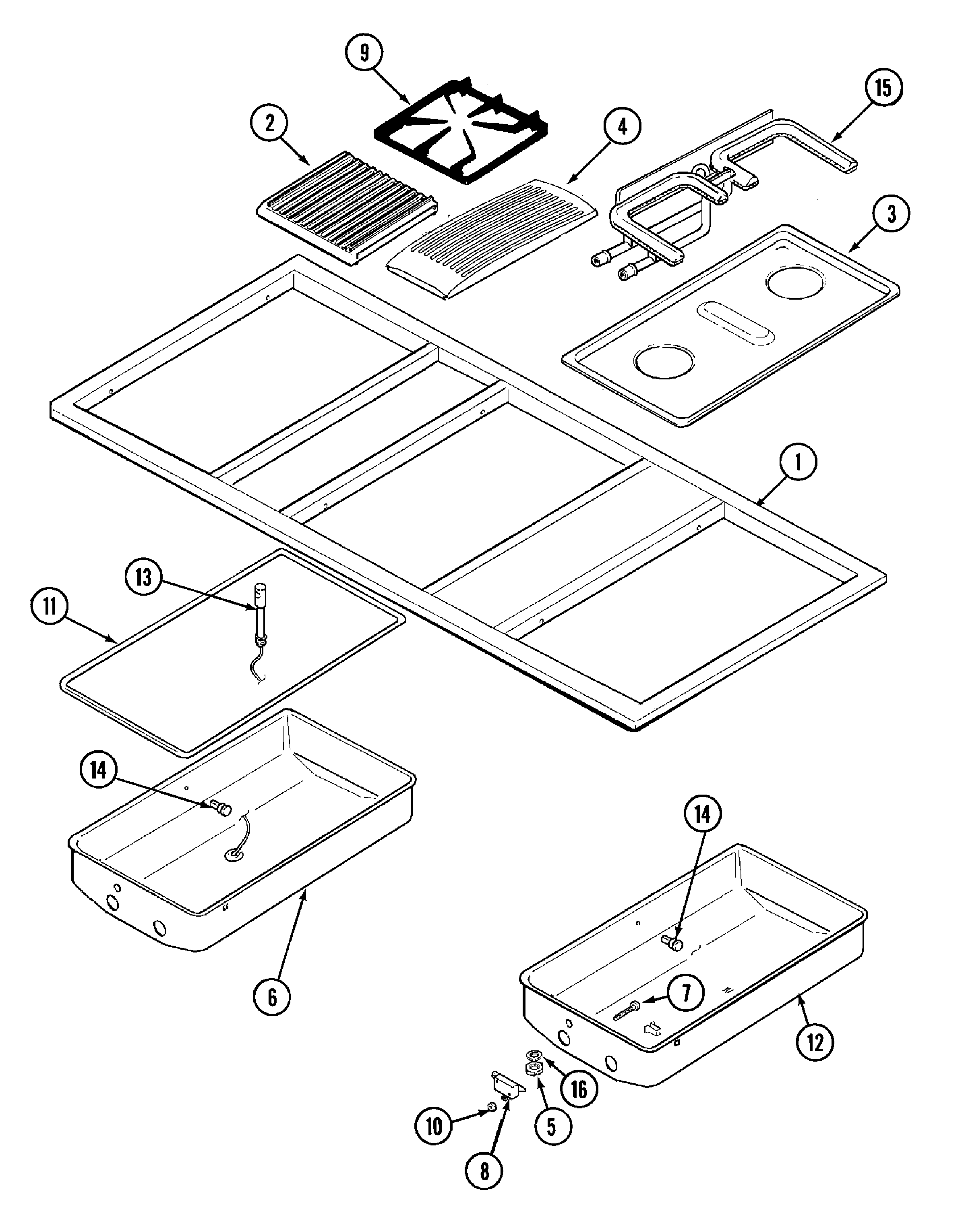

Top assembly diagram

Aeration pan

Part #712274

Replaced by #3401X055-09

?
Manufacturer substitution
This part replaces 712274. Substitute parts can look different from the original.
$146.35 |
6% OFF Phone Price : $156.35
In Stock
Valve Switch 704513
#6

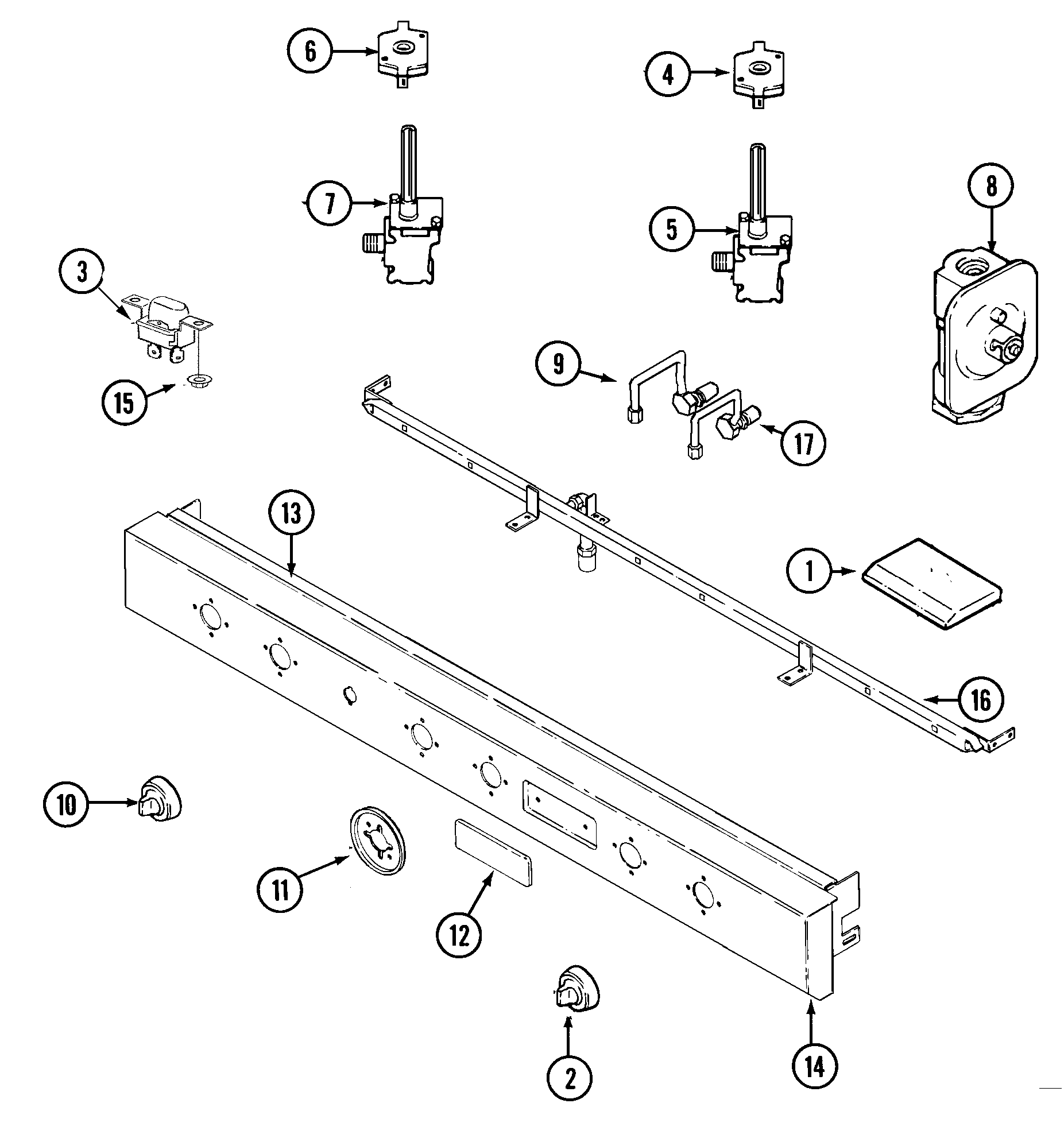

Control panel diagram

Valve switch

Part #704513

Replaced by #WPY704513

?
Manufacturer substitution
This part replaces 704513. Substitute parts can look different from the original.
$93.45 |
5% OFF Phone Price : $98.45
In Stock
Screw (#8ab) 71001183
#11A

Control panel diagram

Screw (#8ab)

Part #71001183

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 71001183. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
