Model # AFNE9BSP115TN13 Official Speed Queen washer

Here are the diagrams and repair parts for Official Speed Queen AFNE9BSP115TN13 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

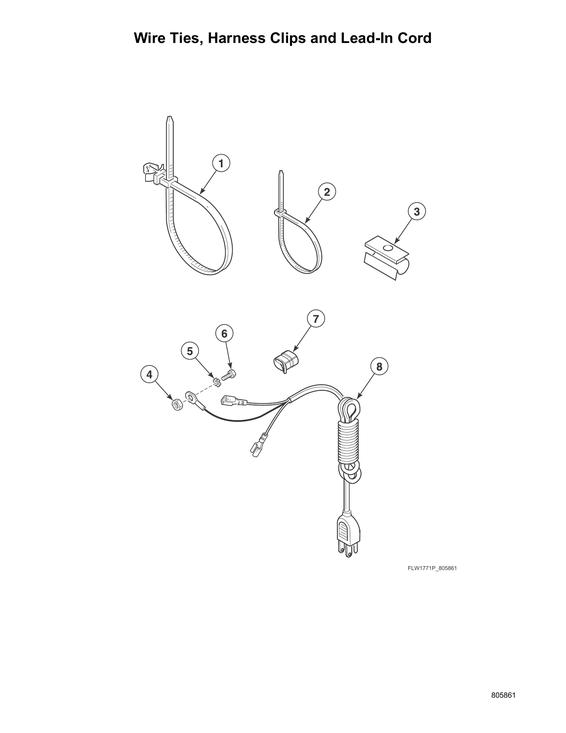

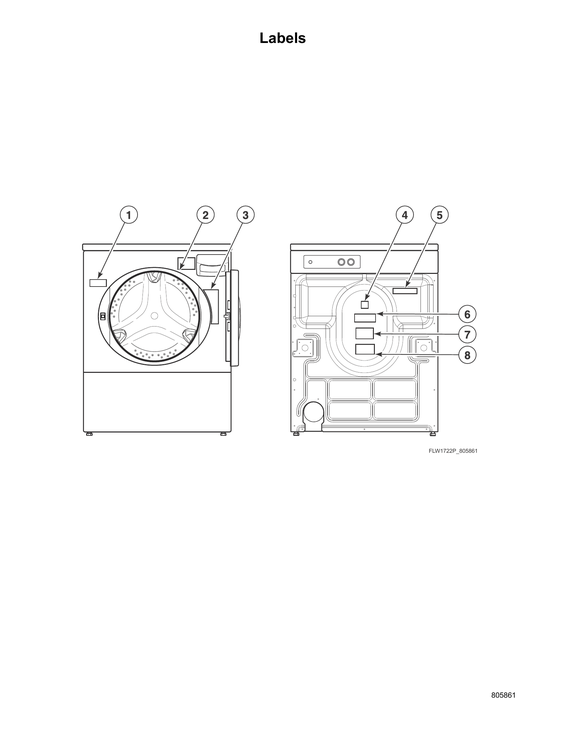

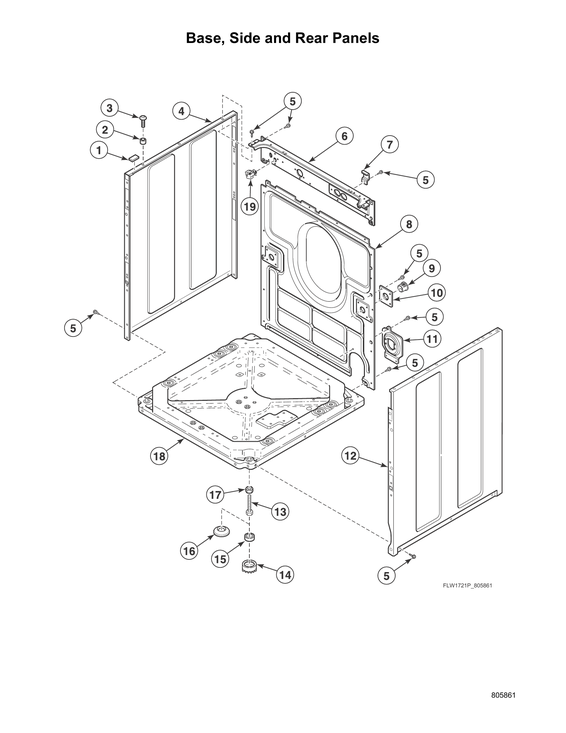

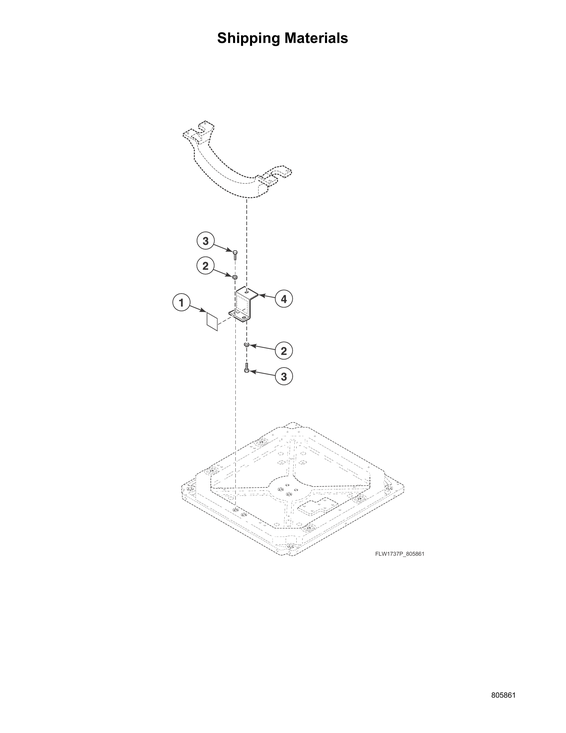

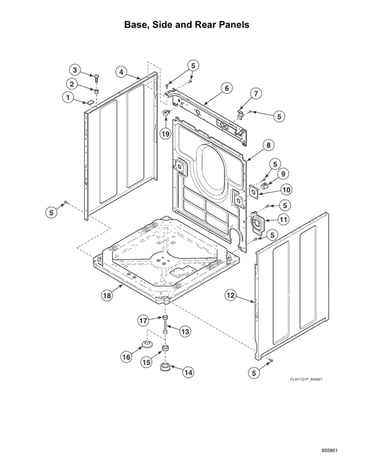

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 222 parts  |
Inner Basket Assy Kit (includes Items 1-3 And 5-9) 804376P
#4

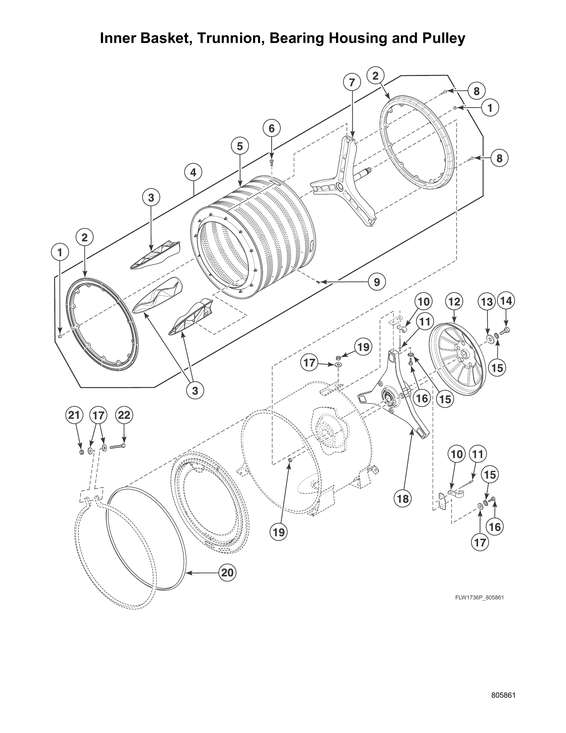

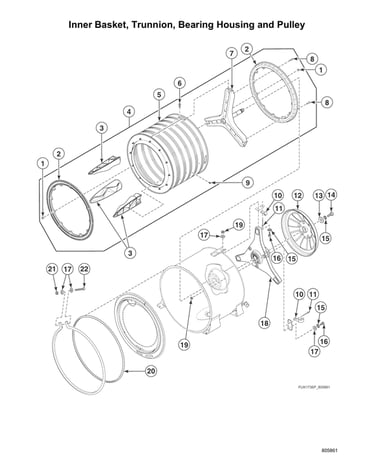

Inner basket/trunnion/bearing housing/pulley diagram

Inner basket assy kit (includes items 1-3 and 5-9)

Part #804376P

The manufacturer no longer makes this part, and there's no substitute part

Housing 802428
#15

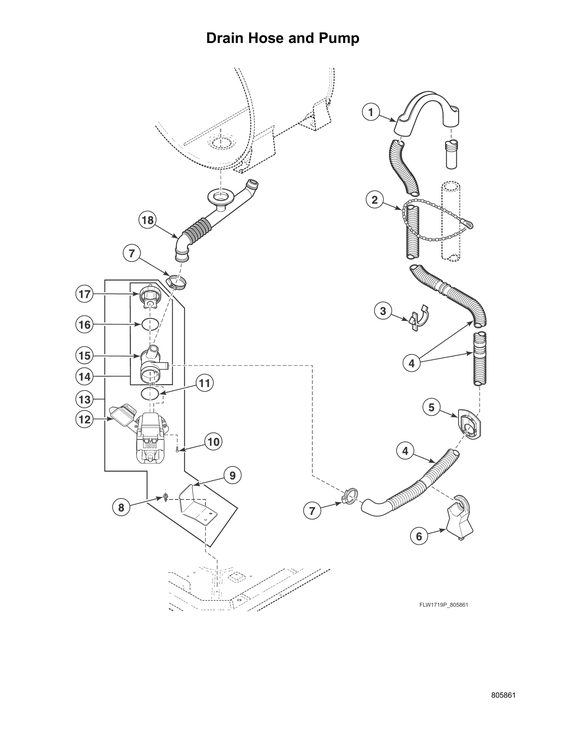

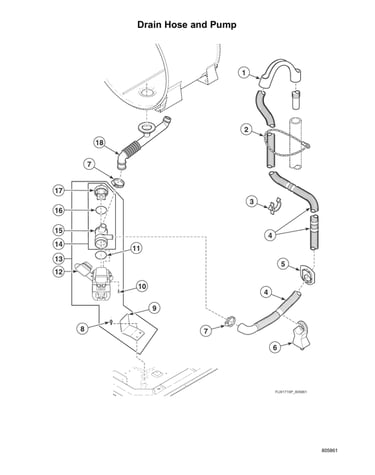

Drain hose/pump diagram

Housing

Part #802428

The manufacturer no longer makes this part, and there's no substitute part

Door Lock Harness Assy 806028
#3

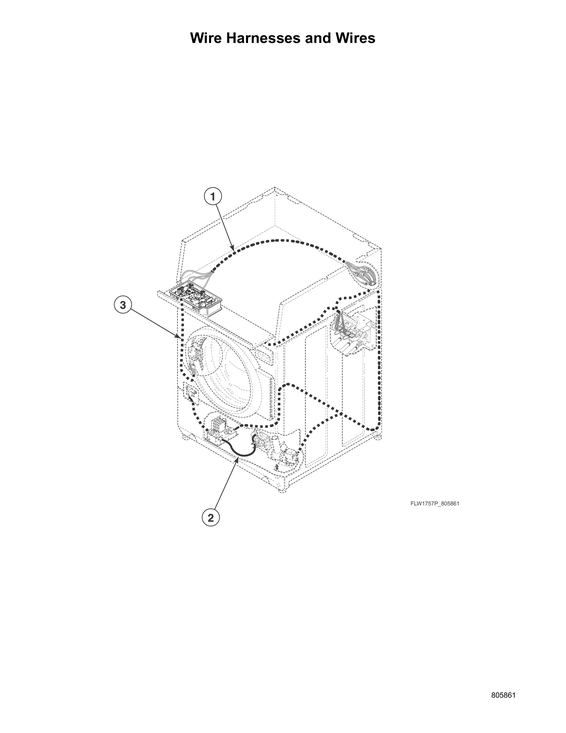

Wire harnesses/wires diagram

Door lock harness assy

Part #806028

The manufacturer no longer makes this part, and there's no substitute part

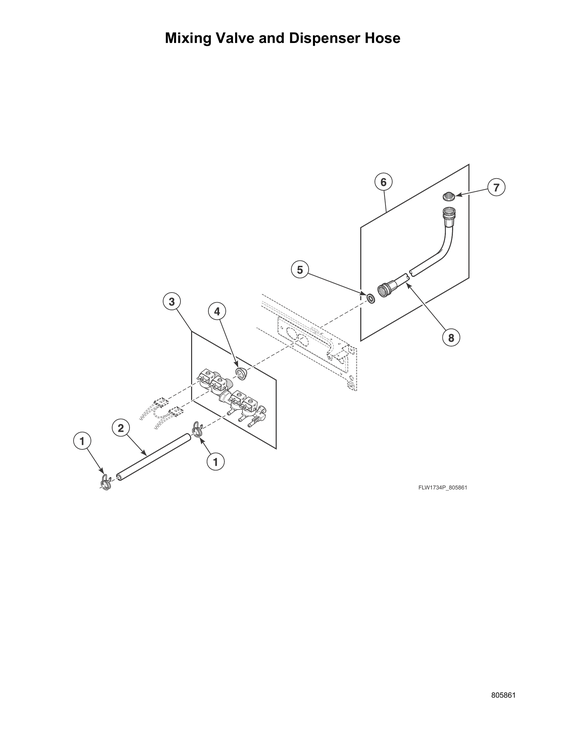

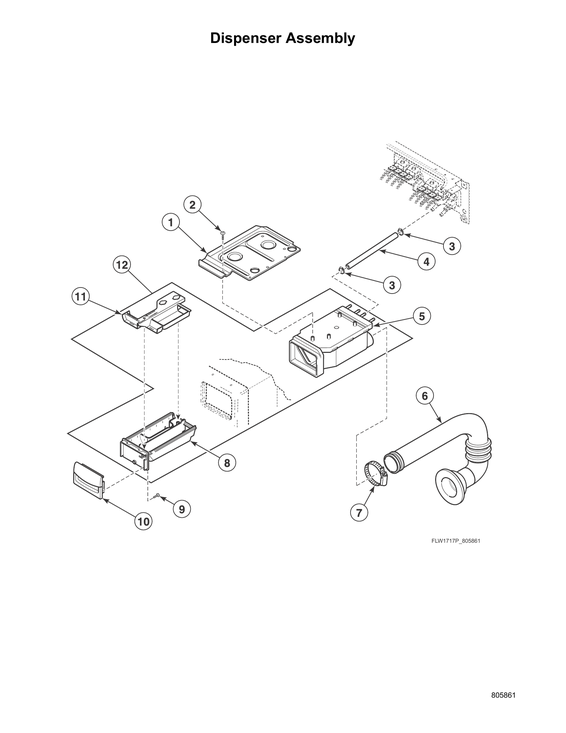

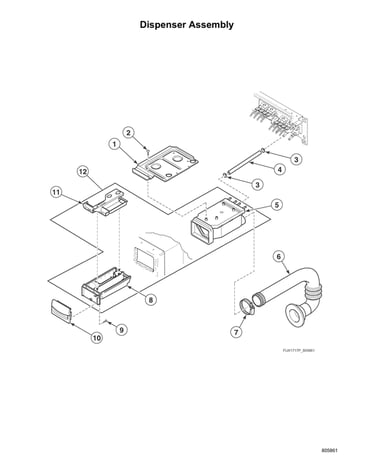

Dispenser Inlet Hose 803849
Dispenser inlet hose

Part #803849

The manufacturer no longer makes this part, and there's no substitute part

Counterweight 803810
#14

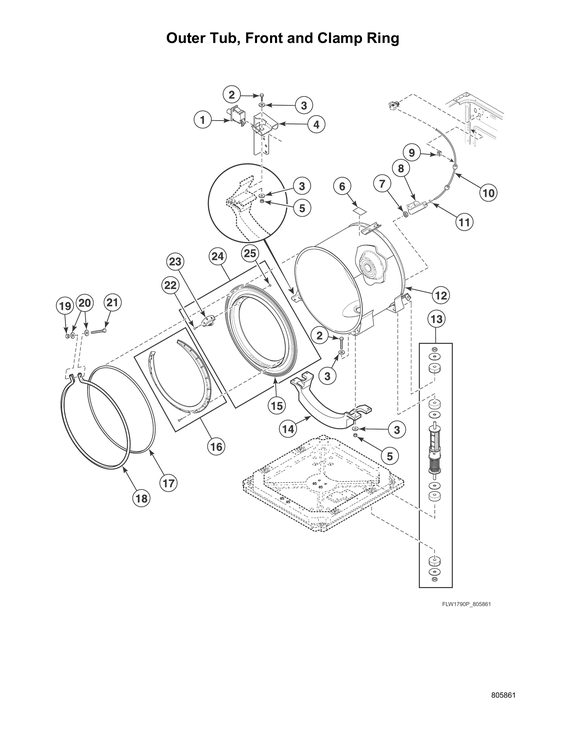

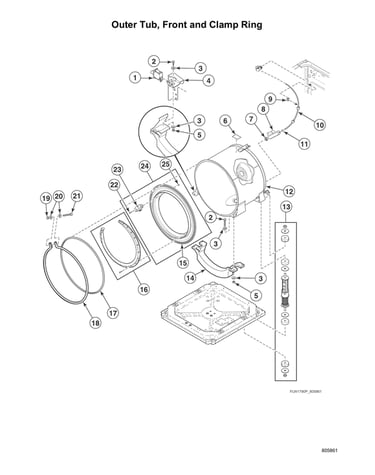

Outer tub/front & clamp ring diagram

Counterweight

Part #803810

The manufacturer no longer makes this part, and there's no substitute part

Door Glass Mounting Plate 804239
#3

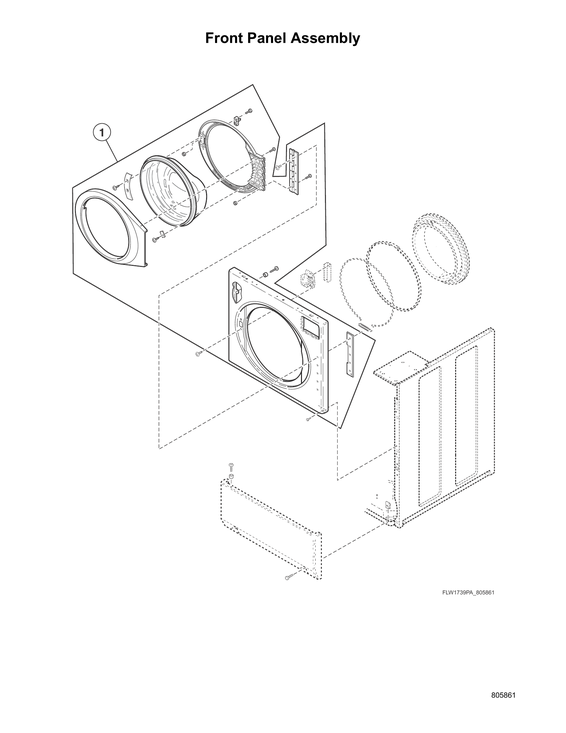

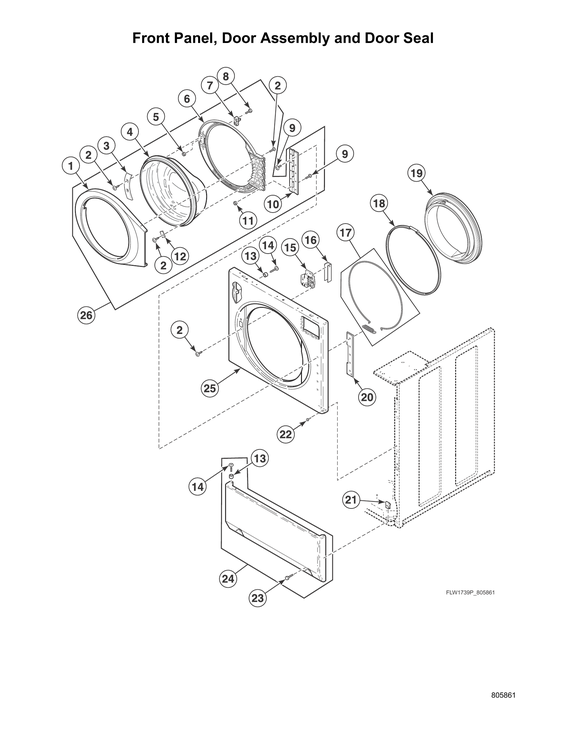

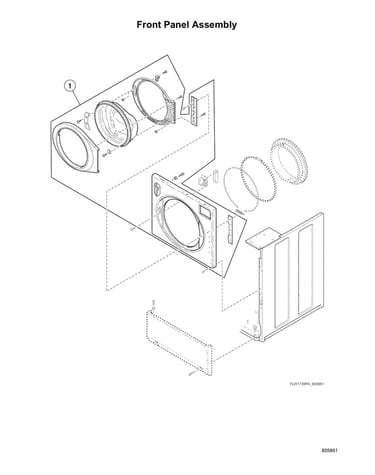

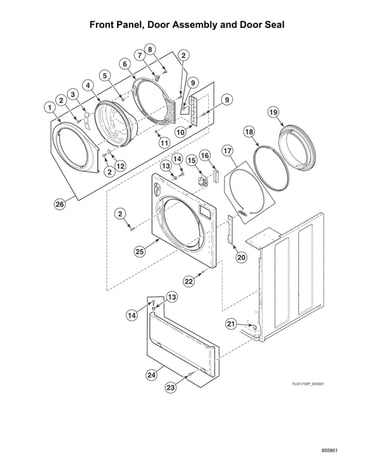

Front panel/door assy/door seal diagram

Door glass mounting plate

Part #804239

The manufacturer no longer makes this part, and there's no substitute part

Outer Door Bezel (white) 803710WP
#1

Front panel/door assy/door seal diagram

Outer door bezel (white)

Part #803710WP

The manufacturer no longer makes this part, and there's no substitute part

Pull Bolt 802336
#1

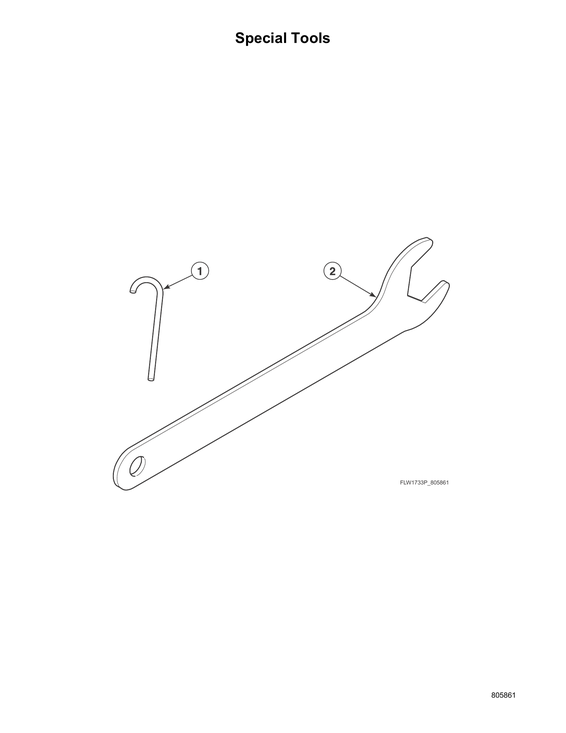

Special tools diagram

Pull bolt

Part #802336

The manufacturer no longer makes this part, and there's no substitute part

Screw (starting Serial No. 2011000001) 2916
#5

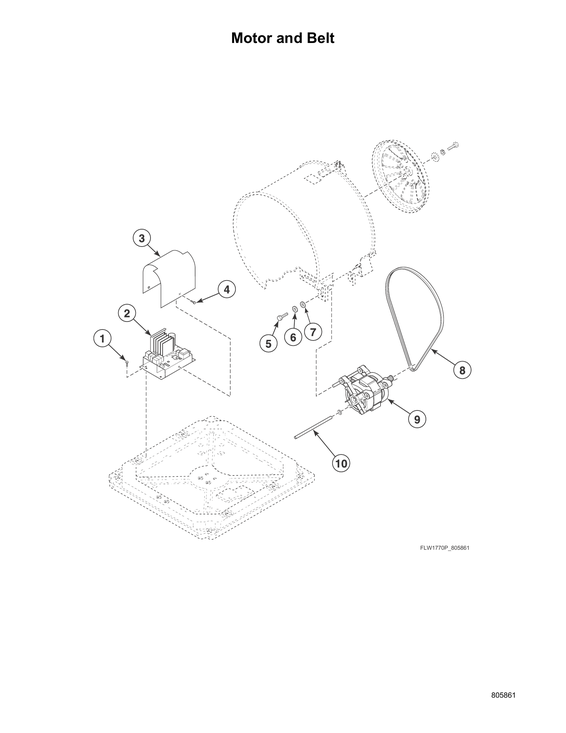

Motor/belt diagram

Screw (starting serial no. 2011000001)

Part #2916

The manufacturer no longer makes this part, and there's no substitute part

Rear Wrapper Brace 805345
#16

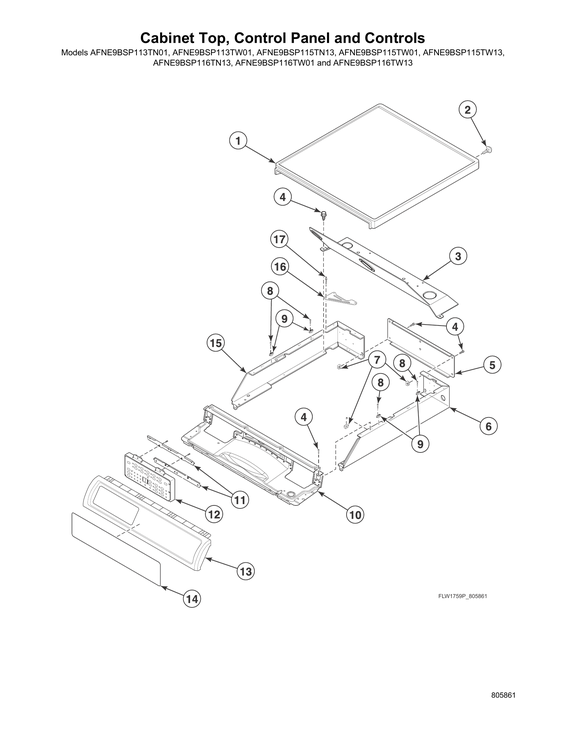

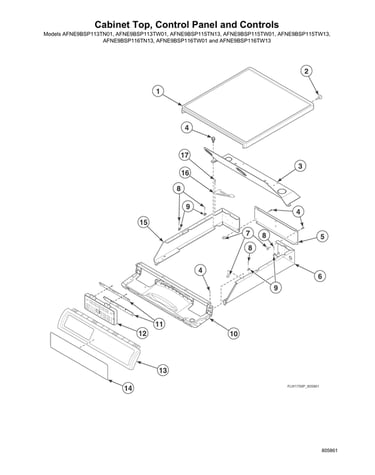

Cabinet top/control panel/controls diagram

Rear wrapper brace

Part #805345

The manufacturer no longer makes this part, and there's no substitute part
