GE JBS23BY1AD electric range Parts
Here are the diagrams and repair parts for GE JBS23BY1AD electric range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part

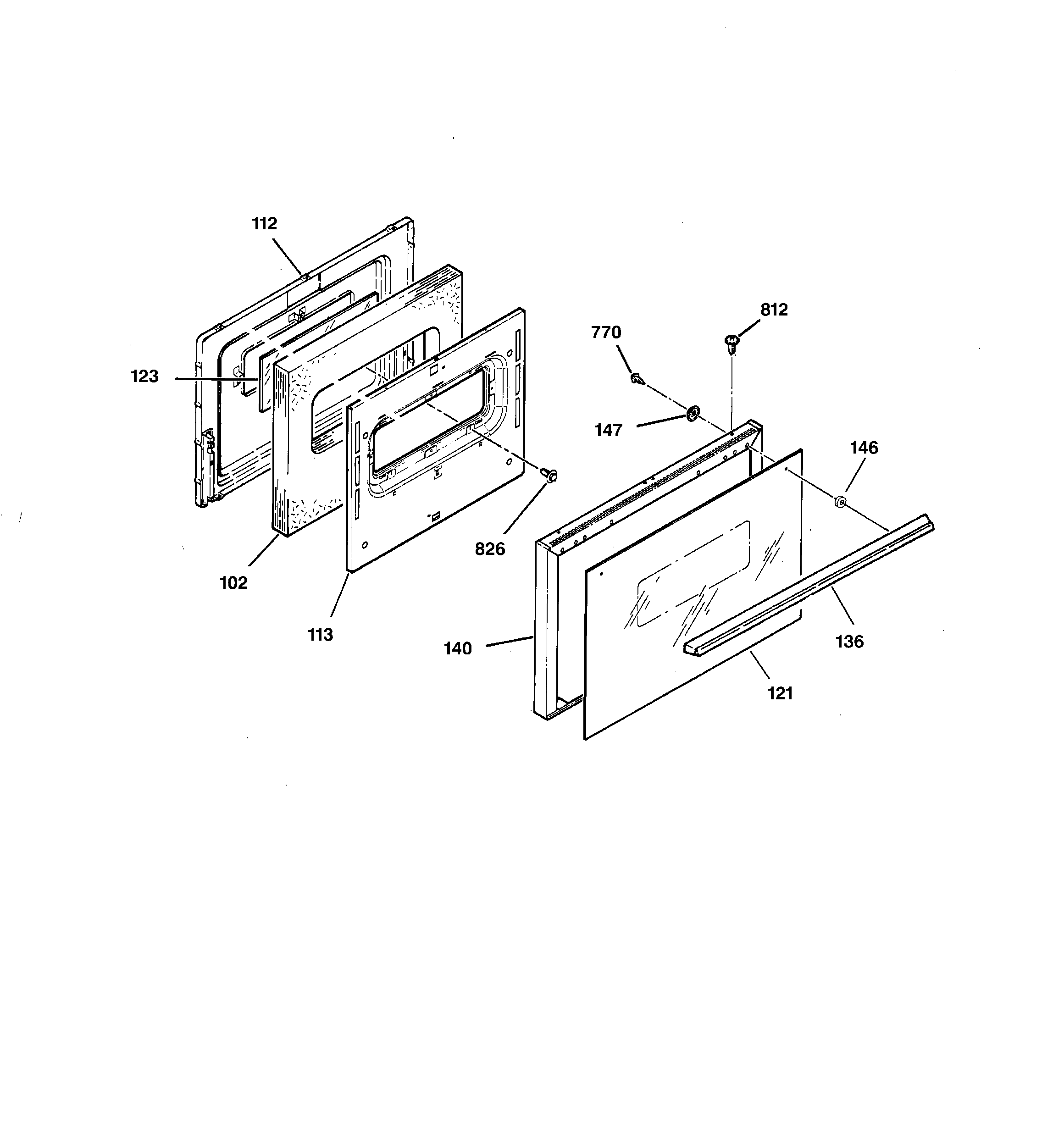

SELECT DIAGRAM
Browse Parts for JBS23BY1AD Ranges

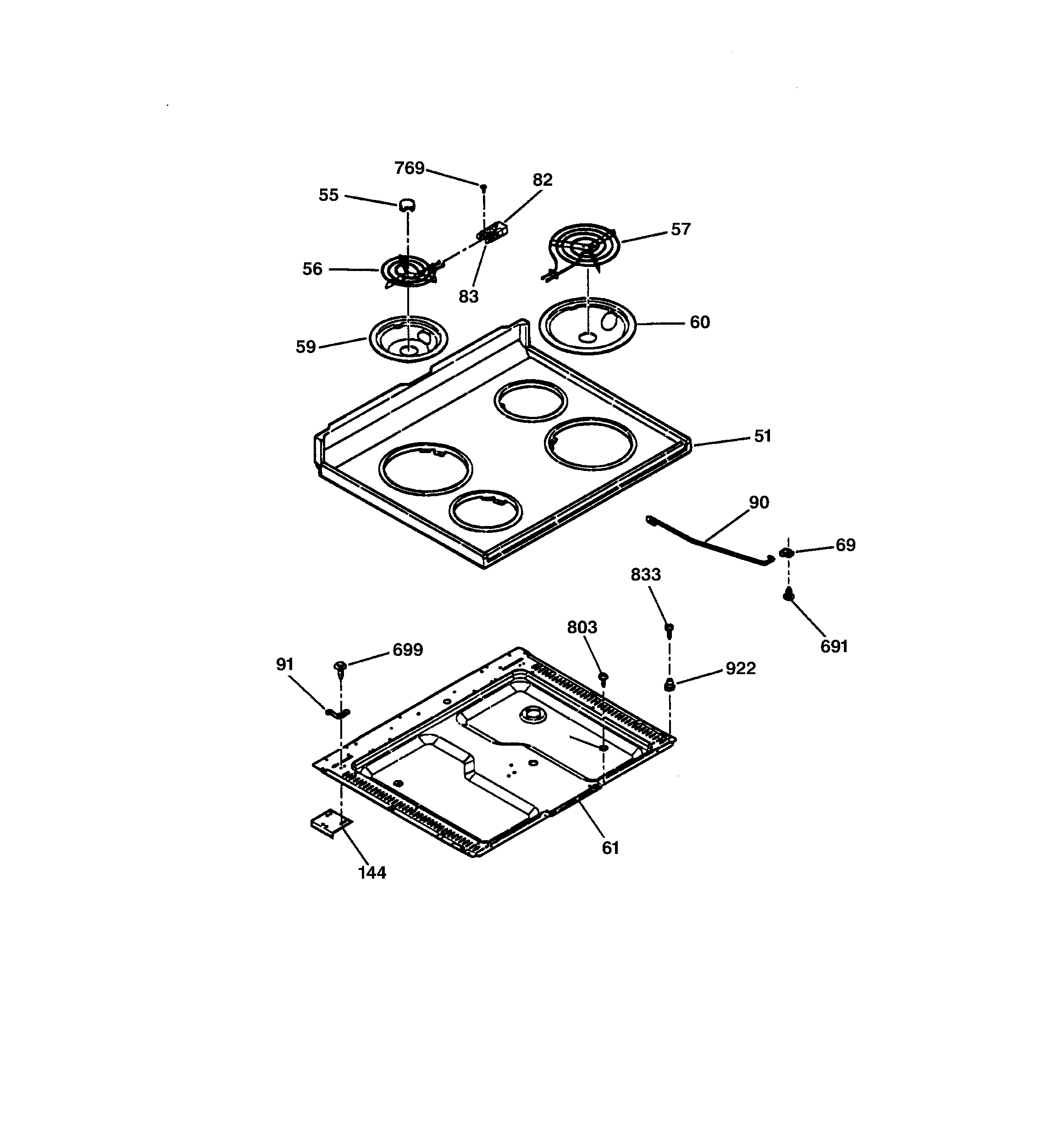

Cooktop diagram
Support Rod
Part #WB02X9419Replaced by #WB2X9419
Manufacturer substitutionThis part replaces WB02X9419. Substitute parts can look different from the original.In Stock$34.79
Qty

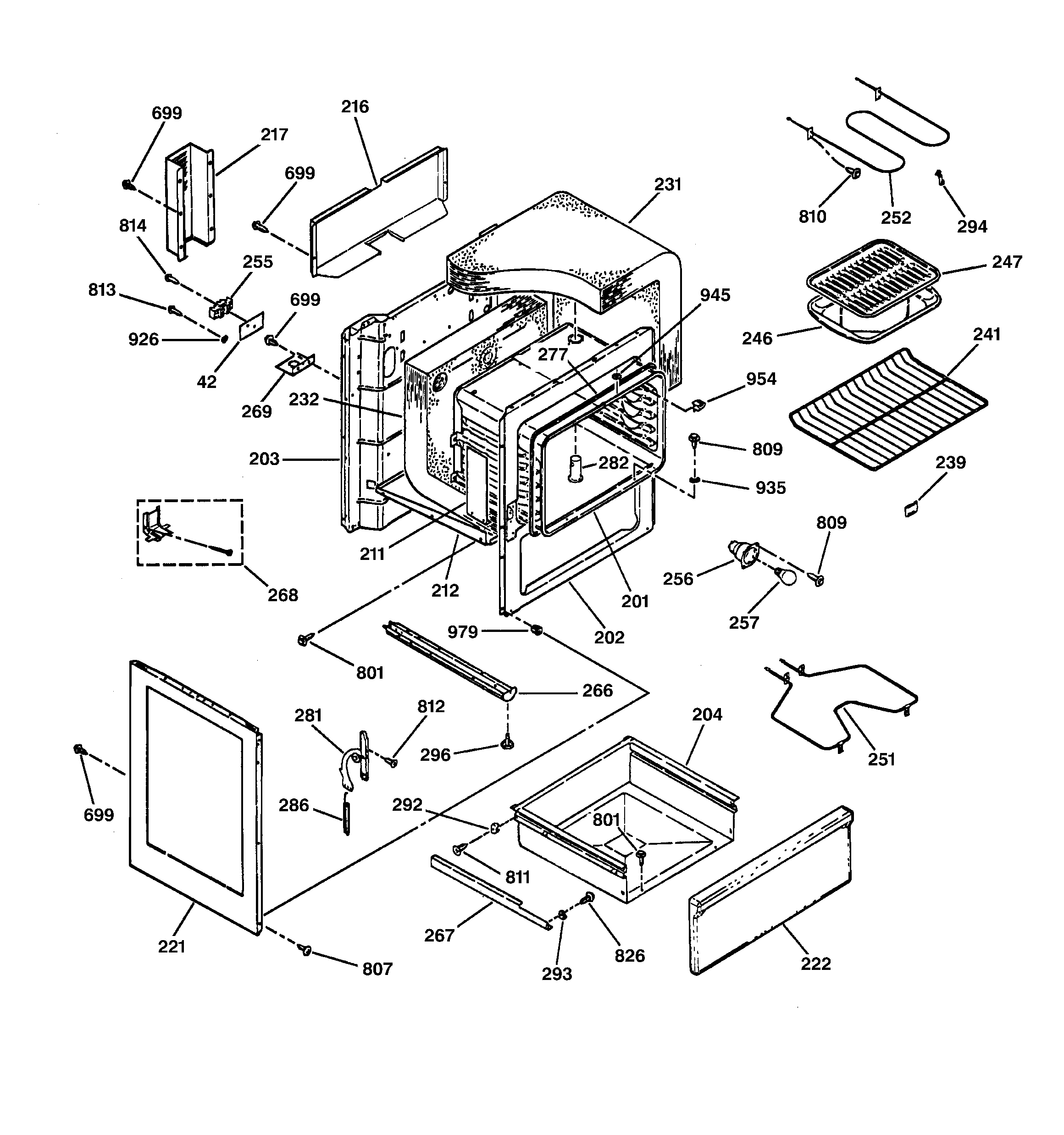

Body parts diagram
Br Pan Grid
Part #WB48T10001Replaced by #WB48X10056
Manufacturer substitutionThis part replaces WB48T10001. Substitute parts can look different from the original.In Stock$36.1114% OFF Phone Price : $42.11
QtyCooktop diagram
Screw - Black
Part #WB01K5162Replaced by #WB1K5162
Manufacturer substitutionThis part replaces WB01K5162. Substitute parts can look different from the original.This item is not returnableIn Stock$9.0110% OFF Phone Price : $10.01QtyCooktop diagram
Surf Unit 8"
Part #WB30X0253Replaced by #WB30X253
Manufacturer substitutionThis part replaces WB30X0253. Substitute parts can look different from the original.In Stock$71.338% OFF Phone Price : $77.33QtyBody parts diagram
Screw
Part #WB01X1137Replaced by #WB1X1137
Manufacturer substitutionThis part replaces WB01X1137. Substitute parts can look different from the original.In Stock$9.0110% OFF Phone Price : $10.01QtyBody parts diagram
Broiler Pan
Part #WB48T10002Replaced by #WB48X10056
Manufacturer substitutionThis part replaces WB48T10002. Substitute parts can look different from the original.In Stock$36.1114% OFF Phone Price : $42.11QtyCooktop diagram
Clamp Rod
Part #WB02X9420Replaced by #WB2X9420

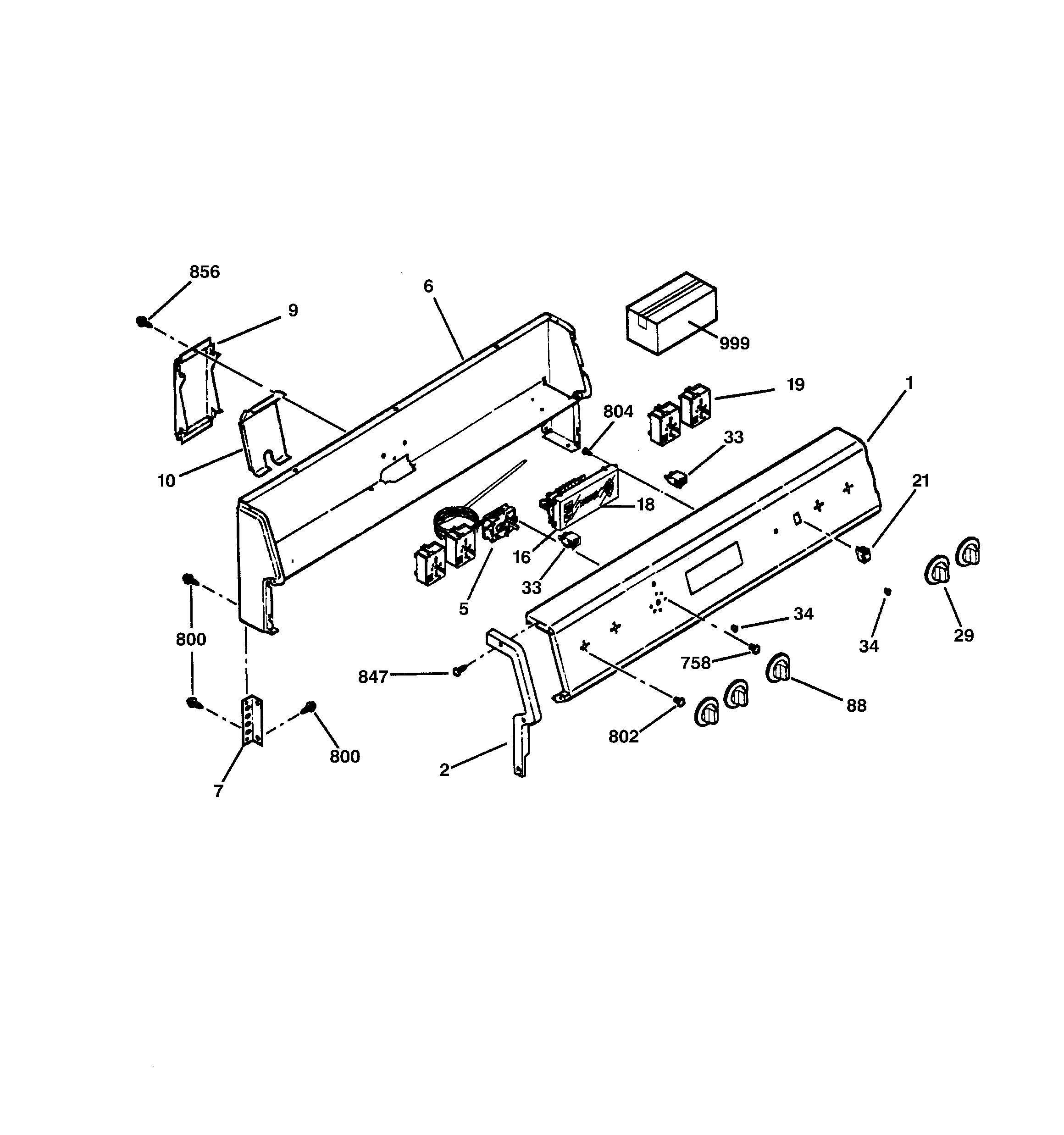

Manufacturer substitutionThis part replaces WB02X9420. Substitute parts can look different from the original.In Stock$31.88QtyControl panel diagram
Screw
Part #WD02X0323Replaced by #WD2X323D
Manufacturer substitutionThis part replaces WD02X0323. Substitute parts can look different from the original.In Stock$57.90QtyControl panel diagram
Infinite Knob
Part #WB03K5240Replaced by #WB3K5240
Manufacturer substitutionThis part replaces WB03K5240. Substitute parts can look different from the original.In Stock$28.5817% OFF Phone Price : $34.58QtyBody parts diagram
Screw
Part #WB01X1174Replaced by #WB01X32746
Manufacturer substitutionThis part replaces WB01X1174. Substitute parts can look different from the original.In Stock$32.52Qty
