Bosch HGS3023UC/01 gas range

Bosch HGS3023UC/01 gas range Parts

Here are the diagrams and repair parts for Bosch HGS3023UC/01 gas range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

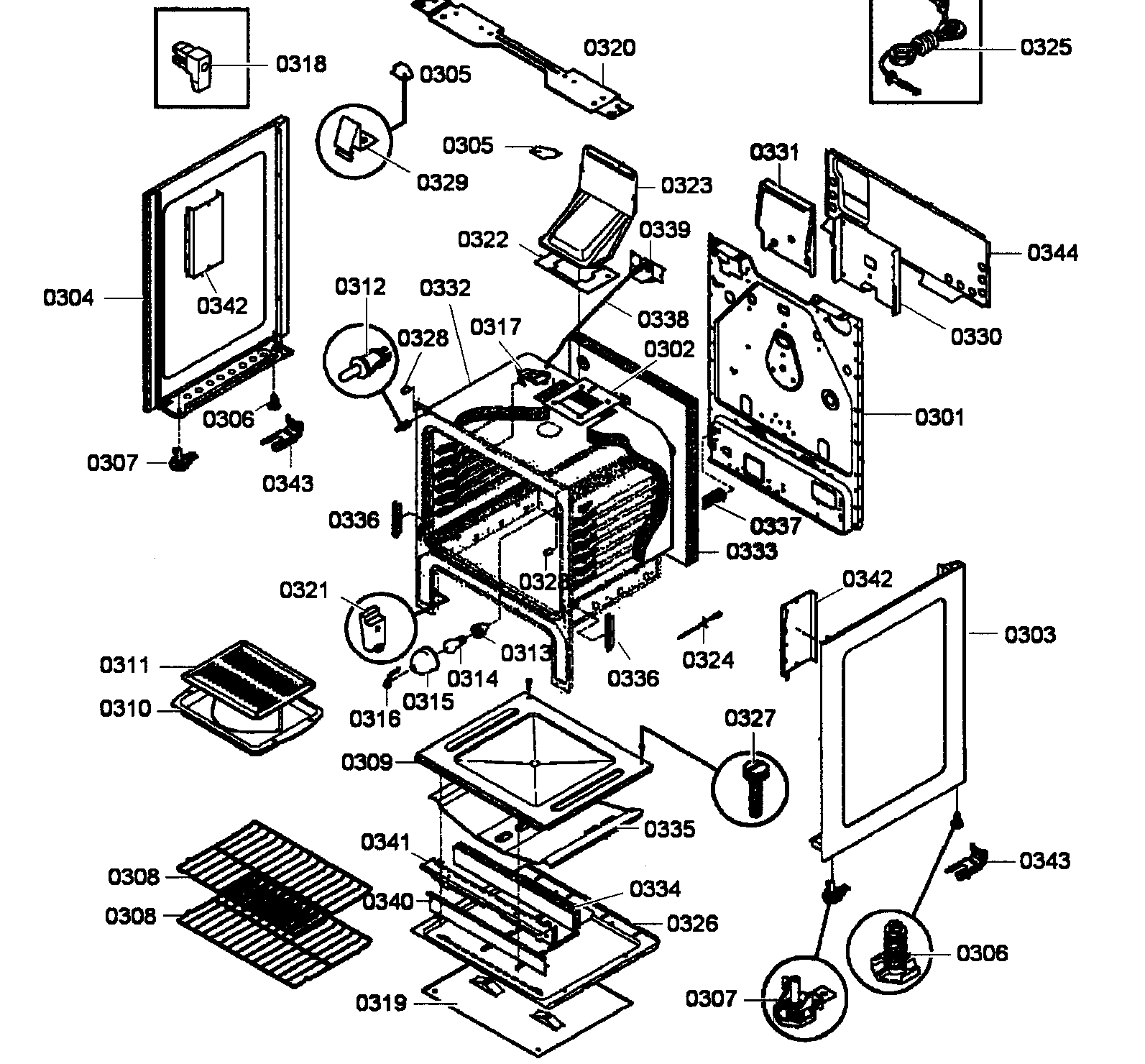

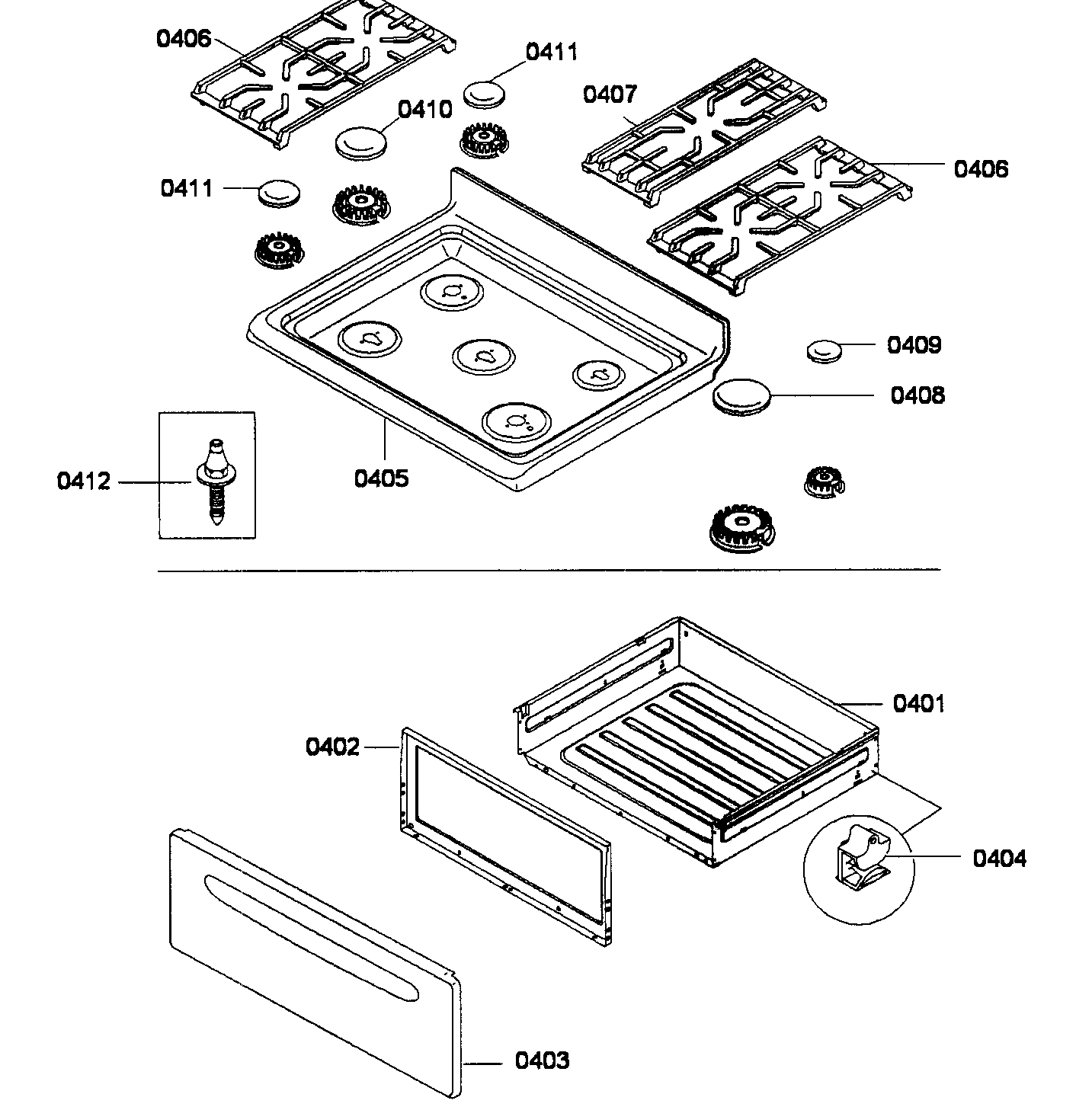

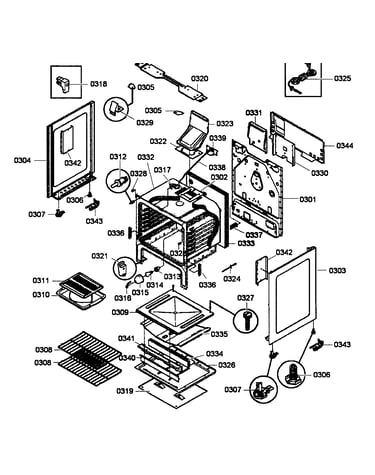

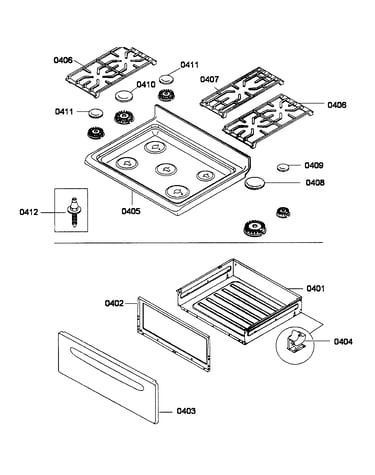

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for HGS3023UC/01 Ranges

  • Range Oven Control Board for Bosch HGS3023UC/01 - Part 00676846

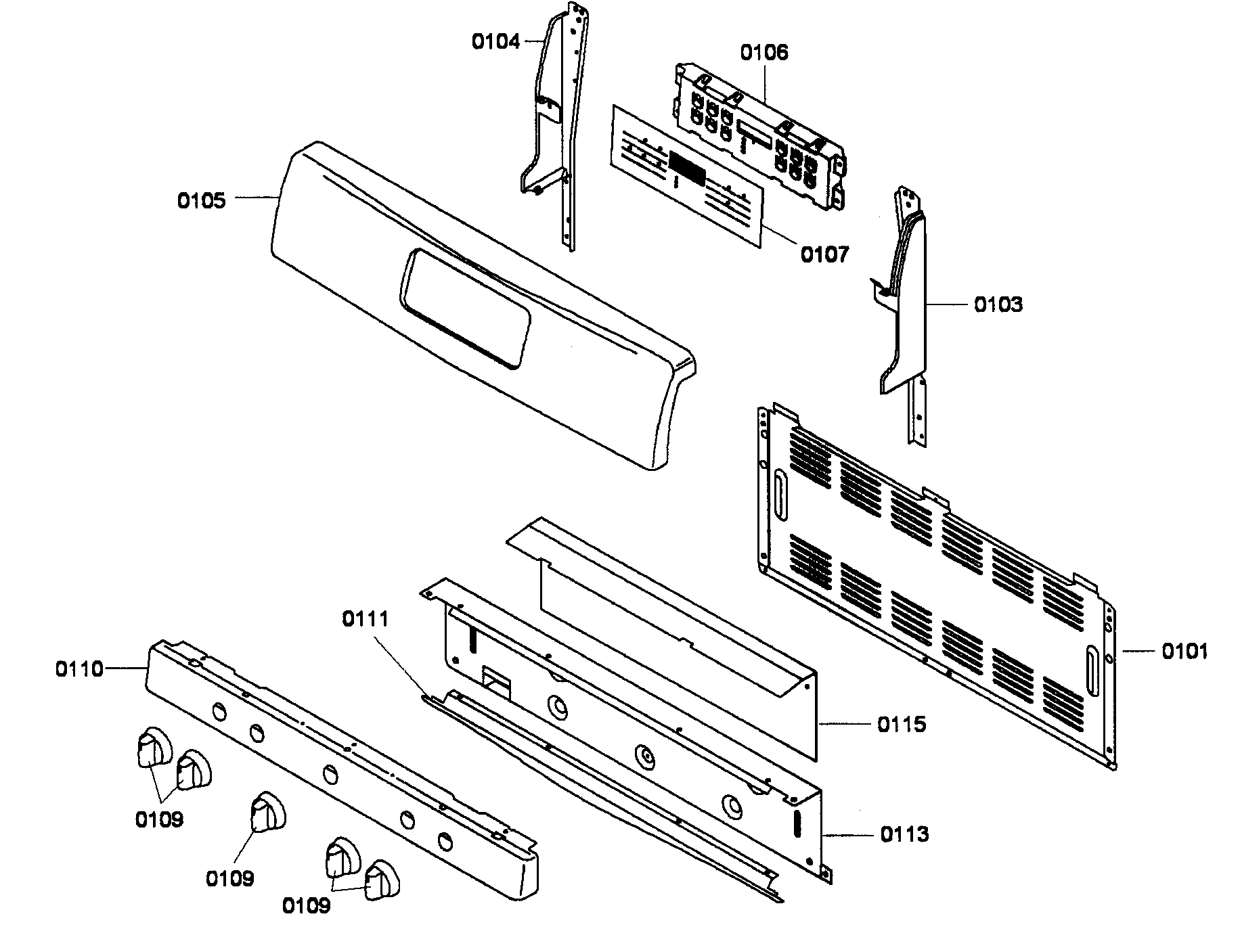

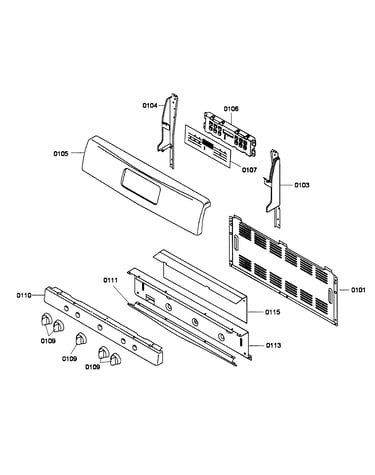

    Controls diagram

    Control Unit

    Part #676846

    Replaced by #00676846

    Info Icon
    Manufacturer substitution
    This part replaces 676846. Substitute parts can look different from the original.
    In Stock
    $436.90
    Minus Item
    Qty
    Plus Item
  • Burner for Bosch HGS3023UC/01 - Part 00617834

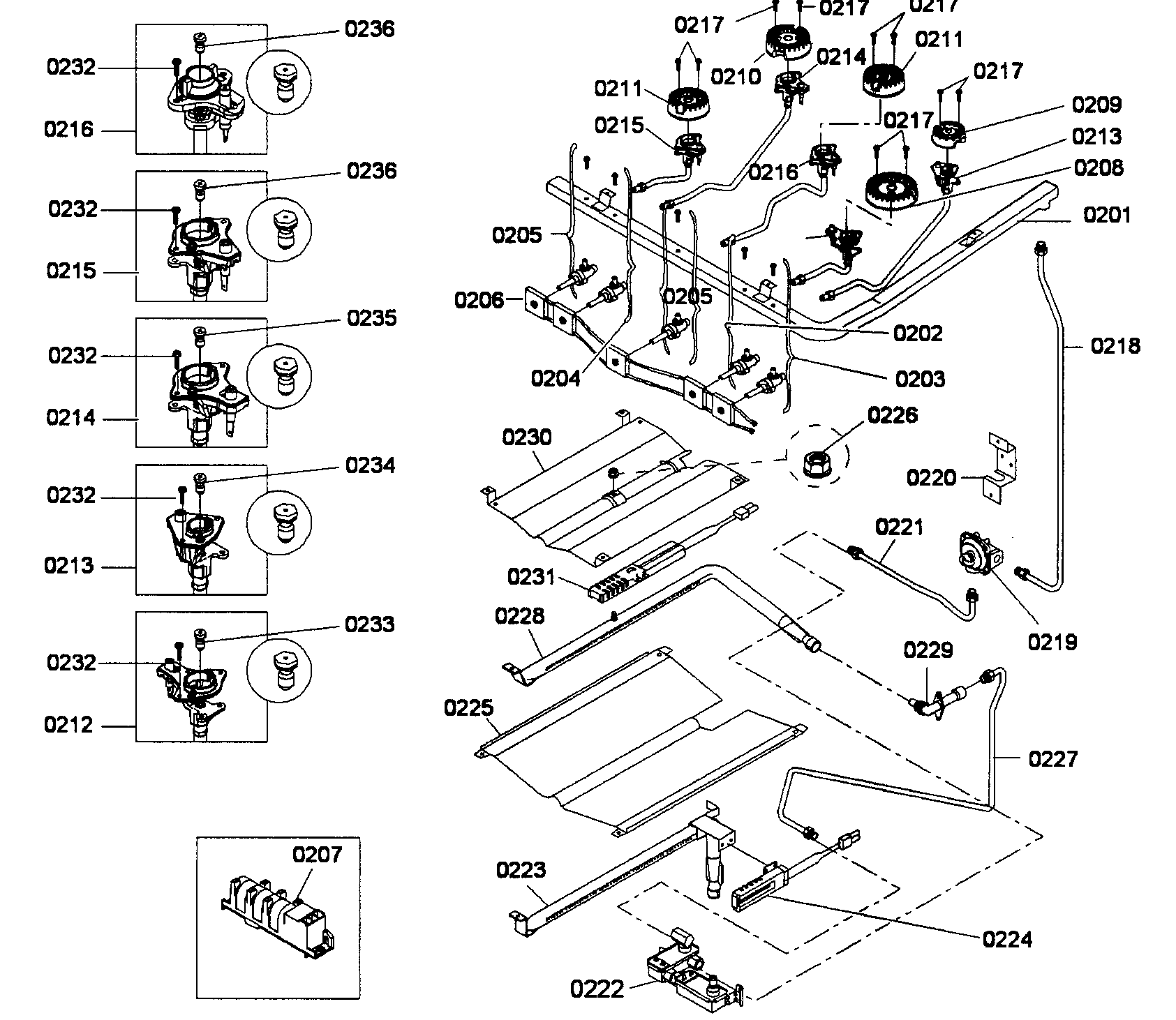

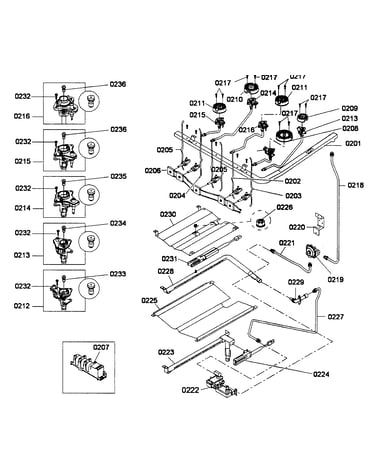

    Burners assy diagram

    Burner Tip

    Part #617834

    Replaced by #00617834

    Info Icon
    Manufacturer substitution
    This part replaces 617834. Substitute parts can look different from the original.
    In Stock
    $104.61
    Minus Item
    Qty
    Plus Item
  • Ignition for Bosch HGS3023UC/01 - Part 00649233

    Burners assy diagram

    Device Igniter

    Part #649233

    Replaced by #00649233

    Info Icon
    Manufacturer substitution
    This part replaces 649233. Substitute parts can look different from the original.
    In Stock
    $288.69
    Minus Item
    Qty
    Plus Item
  • Ignition for Bosch HGS3023UC/01 - Part 00649254

    Burners assy diagram

    Burner

    Part #649254

    Replaced by #00649254

    Info Icon
    Manufacturer substitution
    This part replaces 649254. Substitute parts can look different from the original.
    In Stock
    $342.12
    Minus Item
    Qty
    Plus Item
  • Ignition for Bosch HGS3023UC/01 - Part 00651718

    Burners assy diagram

    Burner

    Part #649255

    Replaced by #00651718

    Info Icon
    Manufacturer substitution
    This part replaces 649255. Substitute parts can look different from the original.
    In Stock
    $218.74
    5% OFF Phone Price : $230.74Info Icon
    Minus Item
    Qty
    Plus Item
  • Oven Burner for Bosch HGS3023UC/01 - Part 00649236

    Burners assy diagram

    Burner

    Part #649236

    Replaced by #00649236

    Info Icon
    Manufacturer substitution
    This part replaces 649236. Substitute parts can look different from the original.
    In Stock
    $253.71
    Minus Item
    Qty
    Plus Item
  • Ignition for Bosch HGS3023UC/01 - Part 00652469

    Burners assy diagram

    Burner

    Part #649258

    Replaced by #00652469

    Info Icon
    Manufacturer substitution
    This part replaces 649258. Substitute parts can look different from the original.
    In Stock
    $388.94
    Minus Item
    Qty
    Plus Item
  • Cover for Bosch HGS3023UC/01 - Part 00248769

    Controls diagram

    Cover

    Part #248769

    Replaced by #00248769

    Info Icon
    Manufacturer substitution
    This part replaces 248769. Substitute parts can look different from the original.
    In Stock
    $196.01
    Minus Item
    Qty
    Plus Item
  • Range Bake Igniter for Bosch HGS3023UC/01 - Part 00676872

    Burners assy diagram

    Oven Burner

    Part #676872

    Replaced by #00676872

    Info Icon
    Manufacturer substitution
    This part replaces 676872. Substitute parts can look different from the original.
    In Stock
    $377.83
    $12.00 OFF Phone Price : $389.83Info Icon
    Minus Item
    Qty
    Plus Item
  • Frame for Bosch HGS3023UC/01 - Part 00676893

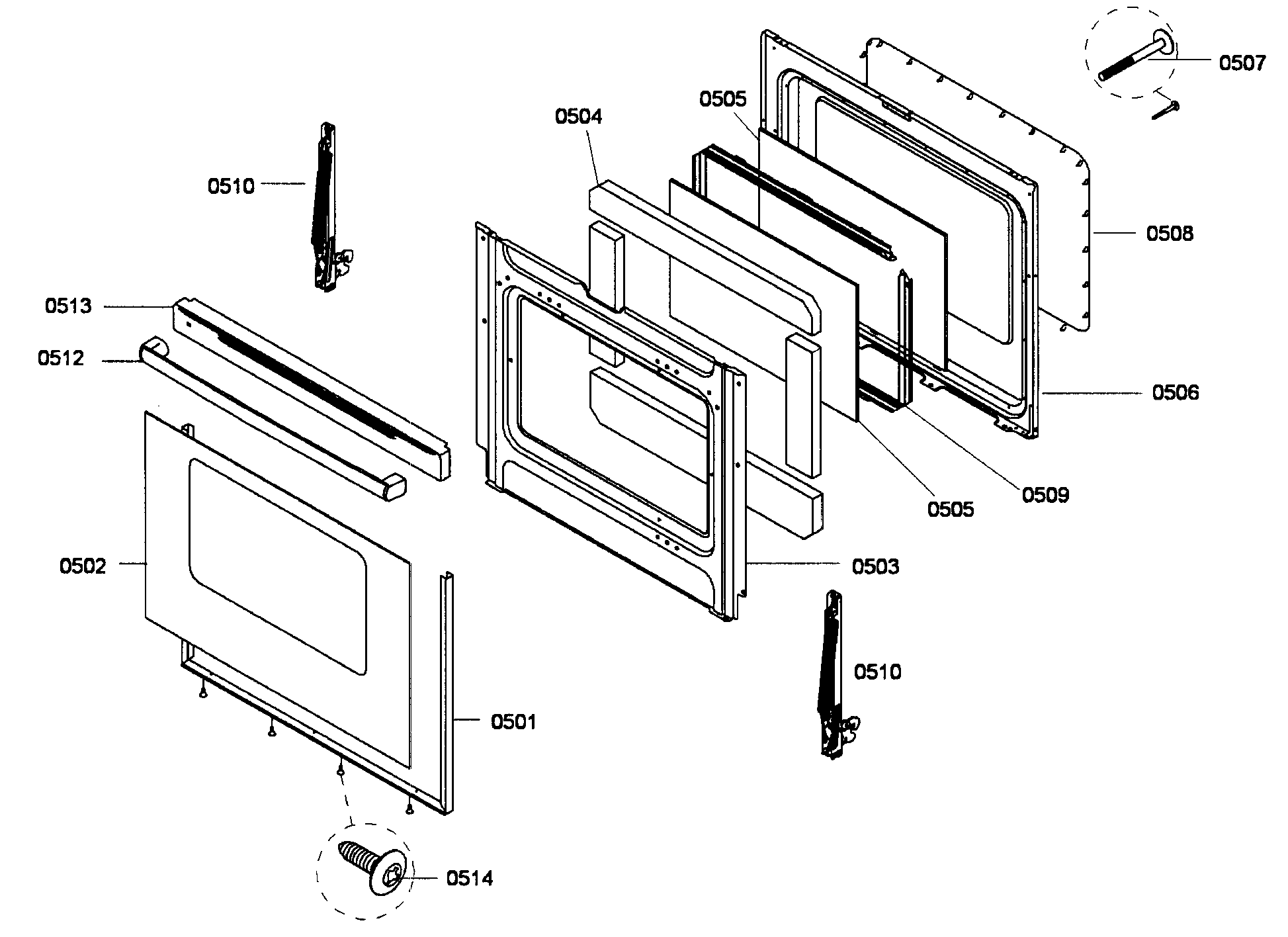

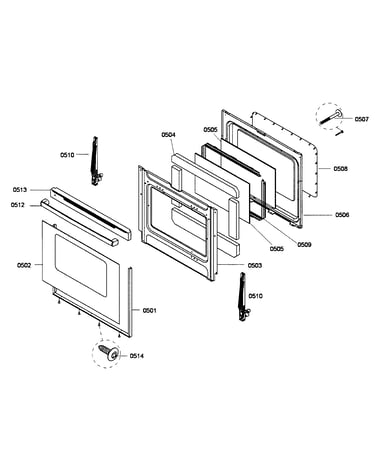

    Door assy diagram

    Frame

    Part #676893

    Replaced by #00676893

    Info Icon
    Manufacturer substitution
    This part replaces 676893. Substitute parts can look different from the original.
    In Stock
    $357.72
    Minus Item
    Qty
    Plus Item
