Kenmore 11024036301 washer Parts
Here are the diagrams and repair parts for Kenmore 11024036301 washer, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part

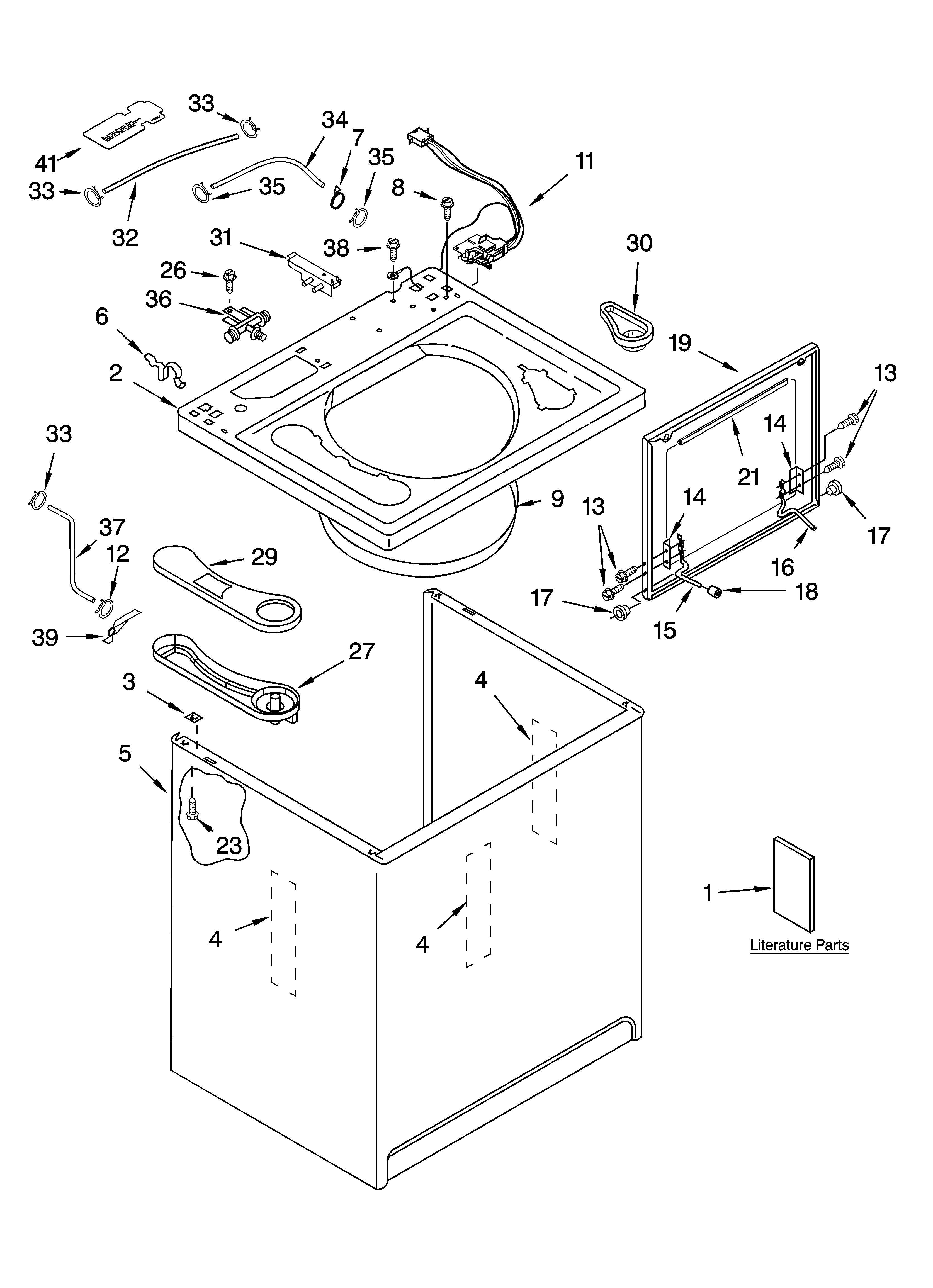

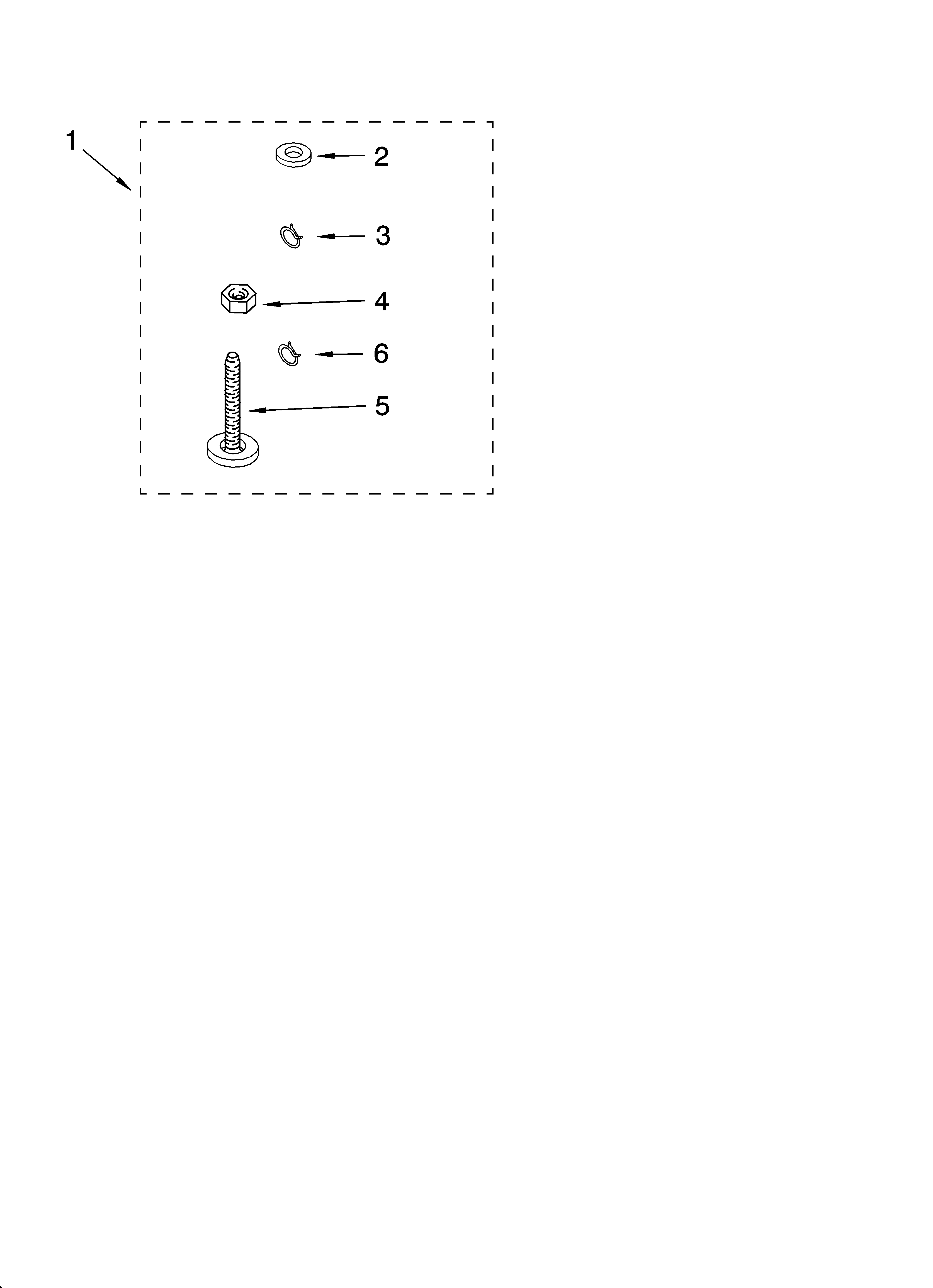

SELECT DIAGRAM
Browse Parts for 11024036301 Washer

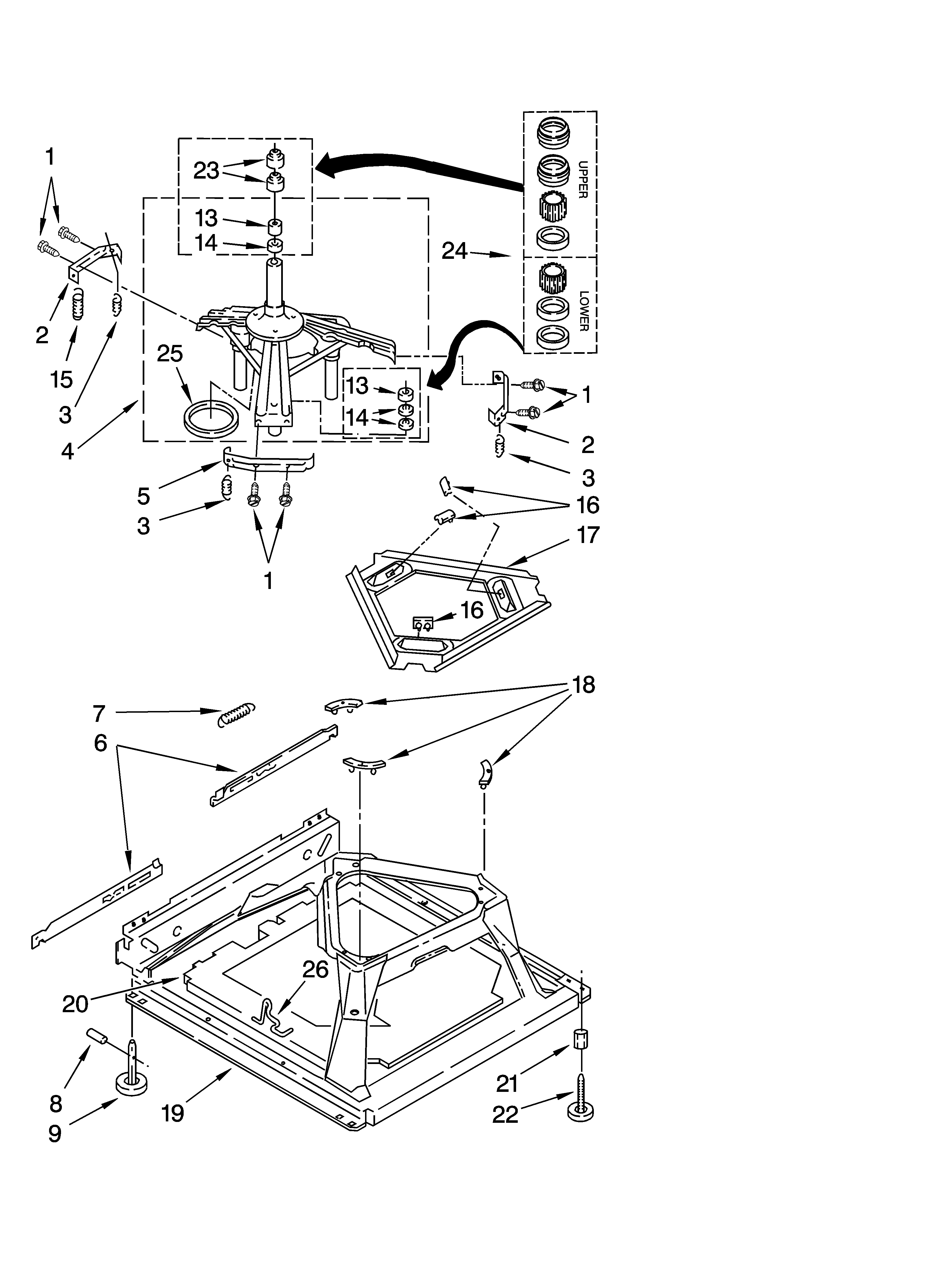

Machine base parts diagram
Washer Suspension Spring
Part #63907Replaced by #WP63907
Manufacturer substitutionThis part replaces 63907. Substitute parts can look different from the original.In Stock$7.2712% OFF Phone Price : $8.27
Qty

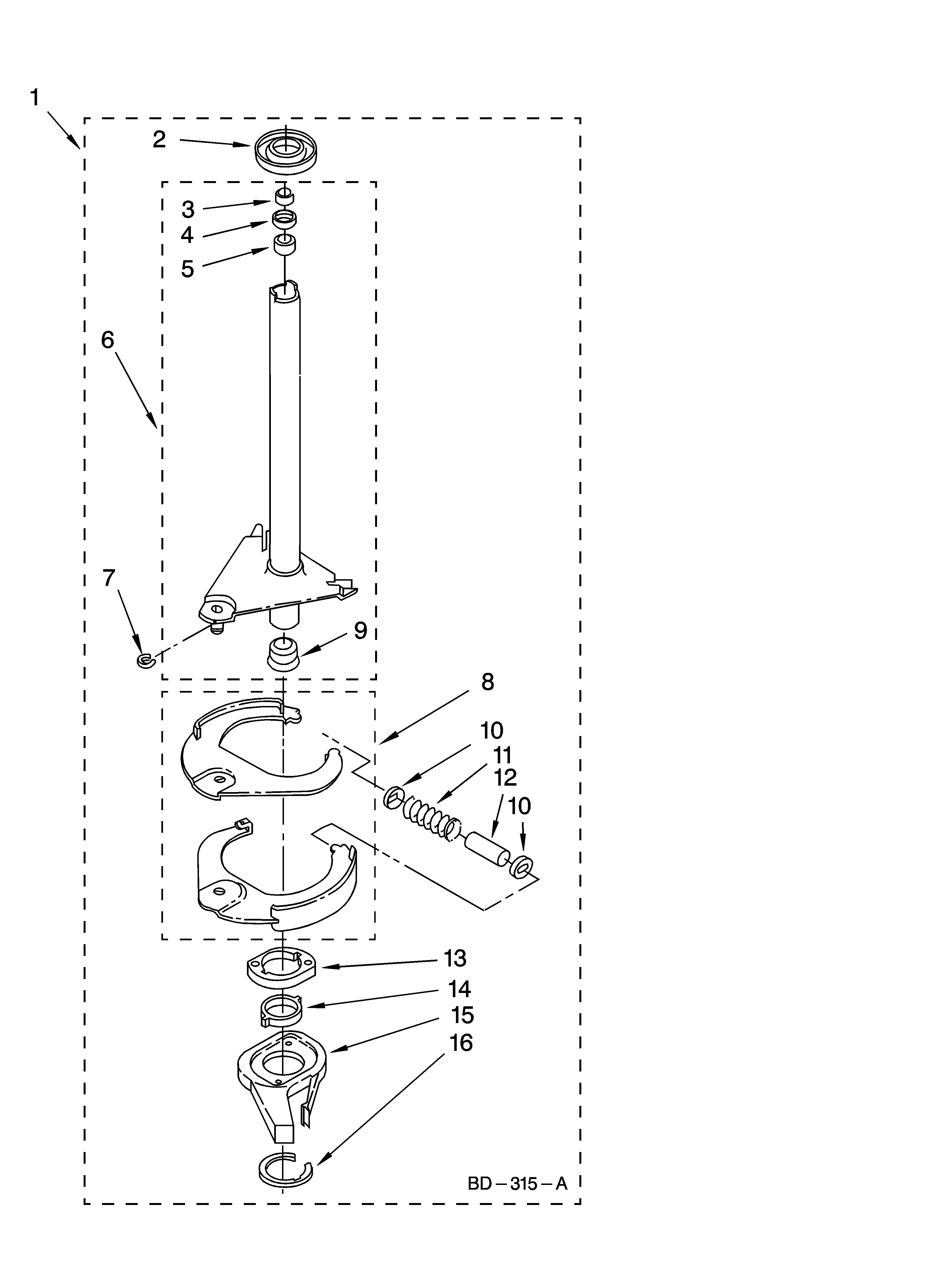

Brake, clutch, gearcase, motor and pump parts diagram
Clutch Washer
Part #8299642Replaced by #WP8299642

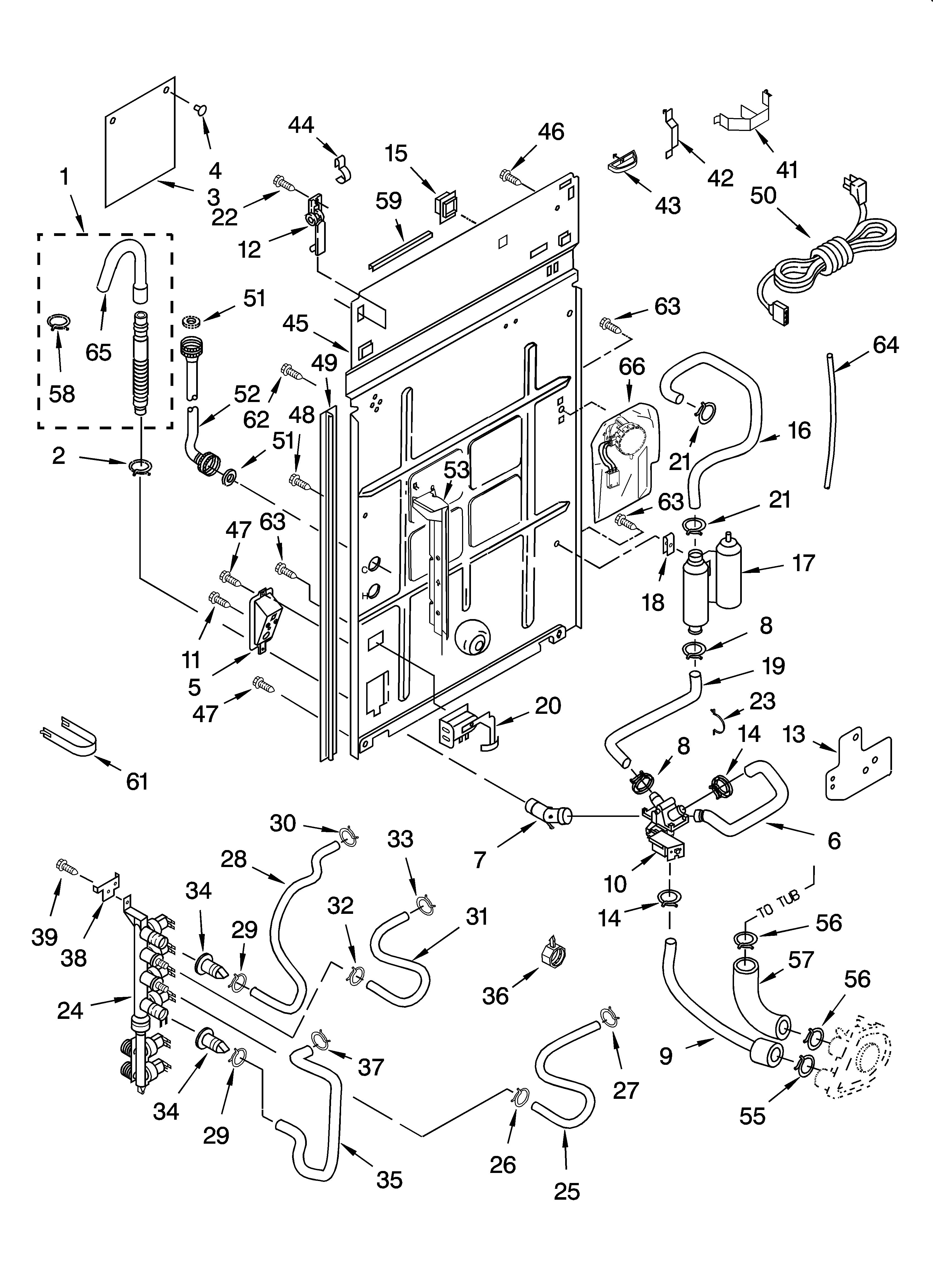

Manufacturer substitutionThis part replaces 8299642. Substitute parts can look different from the original.In Stock$71.298% OFF Phone Price : $77.29QtyRear panel parts diagram
Hose-wl
Part #3347781Replaced by #WP353244

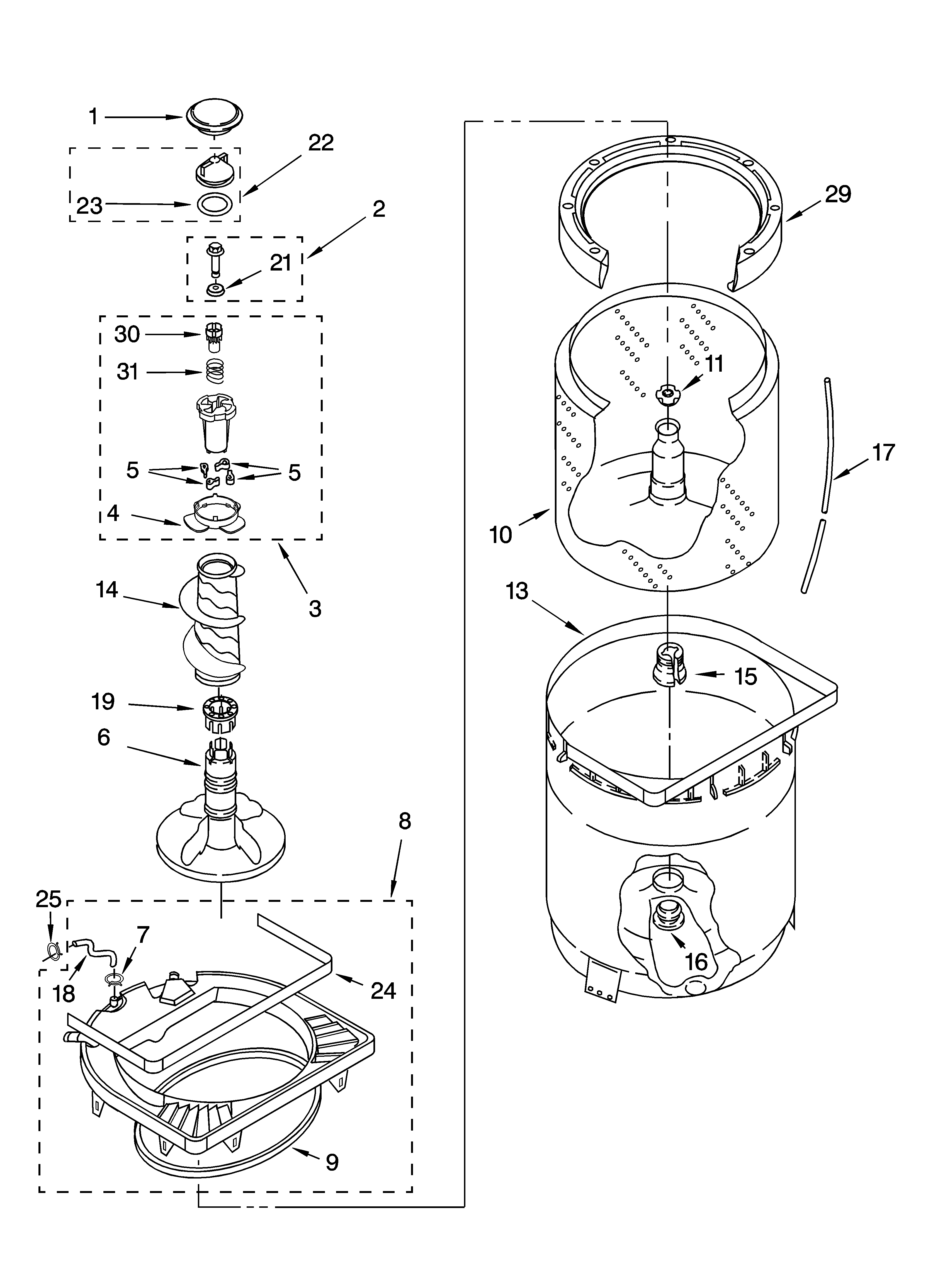

Manufacturer substitutionThis part replaces 3347781. Substitute parts can look different from the original.In Stock$49.7511% OFF Phone Price : $55.75QtyAgitator, basket and tub parts diagram
Hose-wl
Part #3347780Replaced by #WP353244
Manufacturer substitutionThis part replaces 3347780. Substitute parts can look different from the original.In Stock$49.7511% OFF Phone Price : $55.75QtyBrake, clutch, gearcase, motor and pump parts diagram
Capacitor
Part #661605Replaced by #WP8572720

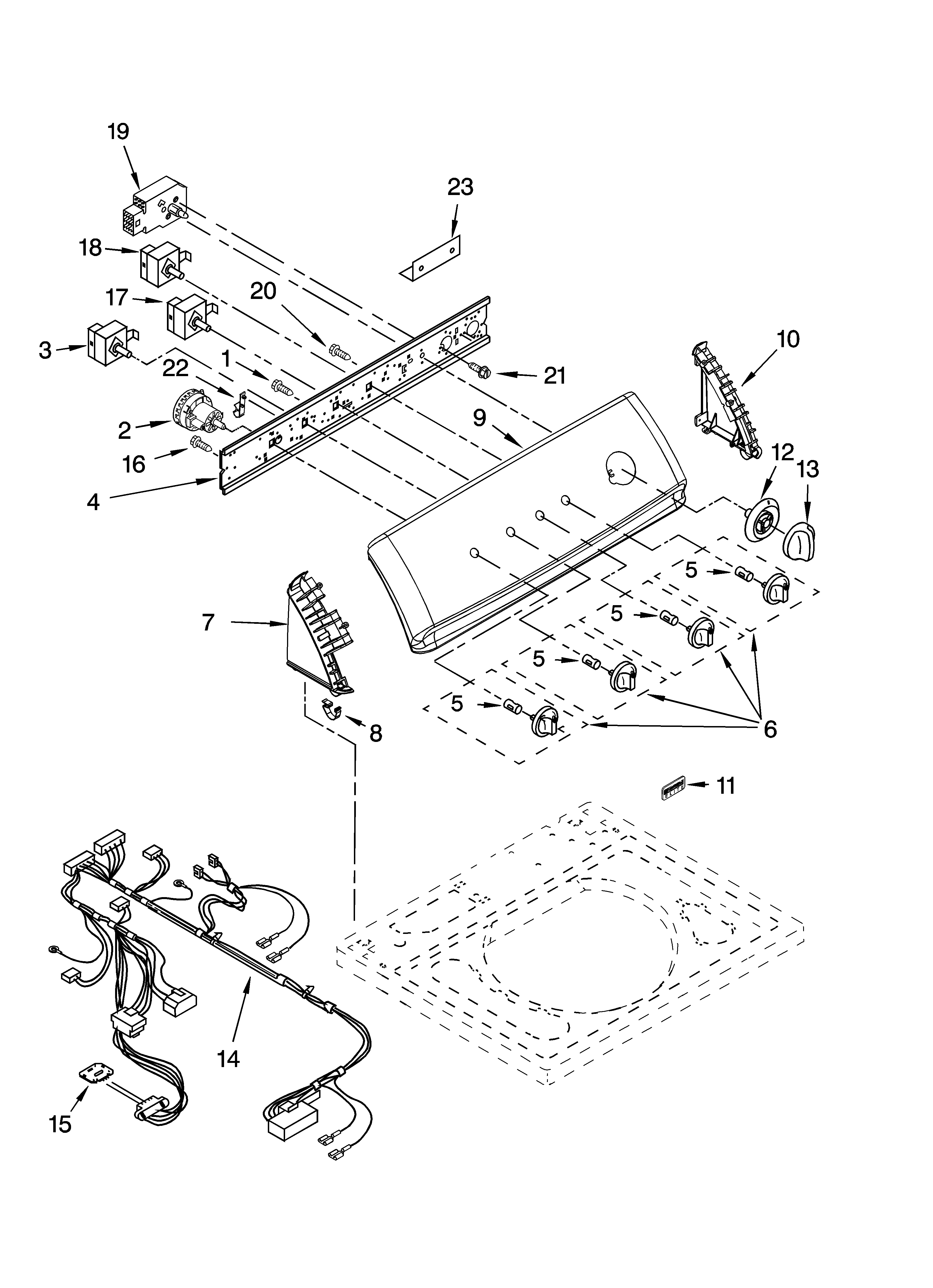

Manufacturer substitutionThis part replaces 661605. Substitute parts can look different from the original.In Stock$55.0210% OFF Phone Price : $61.02QtyControl panel parts diagram
Laundry Appliance Control Knob Clip
Part #8536939Replaced by #WP8536939
Manufacturer substitutionThis part replaces 8536939. Substitute parts can look different from the original.In Stock$8.1511% OFF Phone Price : $9.15QtyMachine base parts diagram
Pad
Part #62568Replaced by #285219
Manufacturer substitutionThis part replaces 62568. Substitute parts can look different from the original.In Stock$16.0811% OFF Phone Price : $18.08QtyMachine base parts diagram
Spring
Part #8318050Replaced by #285901
Manufacturer substitutionThis part replaces 8318050. Substitute parts can look different from the original.In Stock$42.4412% OFF Phone Price : $48.44QtyAgitator, basket and tub parts diagram
Washing Machine Washer
Part #3949550Replaced by #WP3949550
Manufacturer substitutionThis part replaces 3949550. Substitute parts can look different from the original.In Stock$10.4916% OFF Phone Price : $12.49QtyRear panel parts diagram
Clamp
Part #370449Replaced by #WP285655
Manufacturer substitutionThis part replaces 370449. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21Qty
