Countertop Microwave

Model # JE1221K01 Official GE countertop microwave

Here are the diagrams and repair parts for Official GE JE1221K01 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

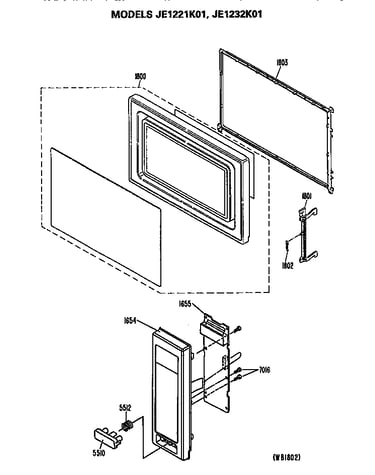

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Microwave High-voltage Diode WB27X608

#1439

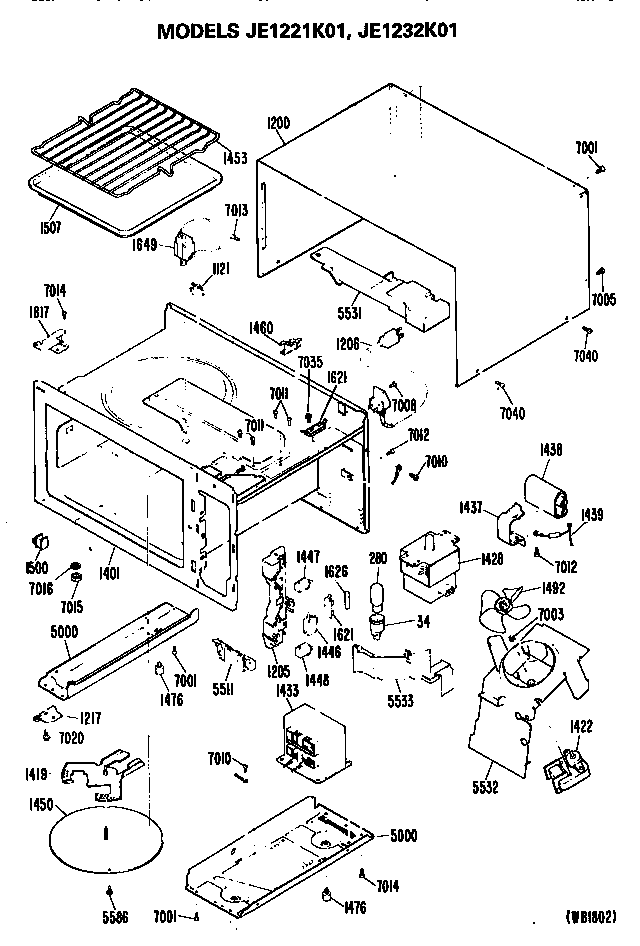

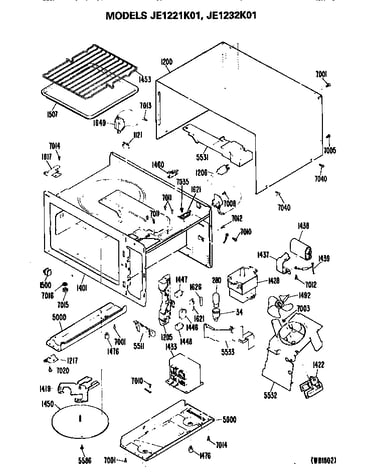

All parts diagram

Microwave high-voltage diode

Part #WB27X608

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X608. Substitute parts can look different from the original.
BEST SELLER
$84.28 |
6% OFF Phone Price : $89.28
In Stock
Use And Care Guide 49-8233

#1

All parts diagram

Use and care guide

Part #49-8233

$8.49
In Stock
Mini Manual 31-1023

#1

All parts diagram

Mini manual

Part #31-1023

$21.99
In Stock
Microwave Bulb WB2X9251

#280

All parts diagram

Microwave bulb

Part #WB2X9251

The manufacturer no longer makes this part, and there's no substitute part

Screw WB1X1235

#7005

All parts diagram

Screw

Part #WB1X1235

The manufacturer no longer makes this part, and there's no substitute part

Latch Hoo WB6X225

#1205

All parts diagram

Latch hoo

Part #WB6X225

The manufacturer no longer makes this part, and there's no substitute part

High-voltage Capacitor WB27X755

#1438

All parts diagram

High-voltage capacitor

Part #WB27X755

The manufacturer no longer makes this part, and there's no substitute part

Screw WB1X1447

#7035

All parts diagram

Screw

Part #WB1X1447

The manufacturer no longer makes this part, and there's no substitute part

Screw WB1X1240

#7010

All parts diagram

Screw

Part #WB1X1240

The manufacturer no longer makes this part, and there's no substitute part

Duct Fan WB6X226

#5532

All parts diagram

Duct fan

Part #WB6X226

The manufacturer no longer makes this part, and there's no substitute part
