Kenmore
Upright Vacuum

Model # 10063180 Official Kenmore kwik-sweep vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 10063180 kwik-sweep vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |

Line Cord 30196P1046
#7

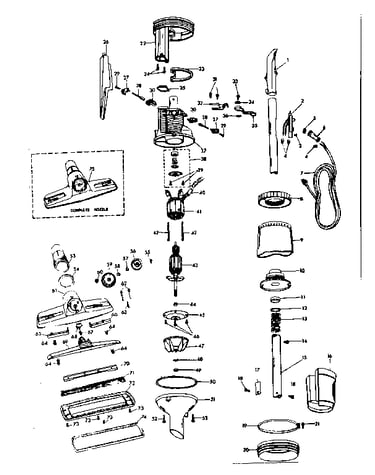

Unit parts diagram

Line cord

Part #30196P1046

The manufacturer no longer makes this part, and there's no substitute part

Dry Mop Ay 924366G1
#70

Unit parts diagram

Dry mop ay

Part #924366G1

The manufacturer no longer makes this part, and there's no substitute part

Brush Spring 24358P1
#28

Unit parts diagram

Brush spring

Part #24358P1

The manufacturer no longer makes this part, and there's no substitute part

Screw 03114
#18

Unit parts diagram

Screw

Part #03114

The manufacturer no longer makes this part, and there's no substitute part

Screw 03371
#46

Unit parts diagram

Screw

Part #03371

The manufacturer no longer makes this part, and there's no substitute part

Knob Shaft 21408
#60

Unit parts diagram

Knob shaft

Part #21408

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 924279G1
#75

Unit parts diagram

Nozzle

Part #924279G1

The manufacturer no longer makes this part, and there's no substitute part

Screw 03377
#55

Unit parts diagram

Screw

Part #03377

The manufacturer no longer makes this part, and there's no substitute part

Knob 21402P2046
#59

Unit parts diagram

Knob

Part #21402P2046

The manufacturer no longer makes this part, and there's no substitute part

Slide 50545P1152
#65

Unit parts diagram

Slide

Part #50545P1152

The manufacturer no longer makes this part, and there's no substitute part
