Model # 9911 Official Makita 3 x 18" belt sander

Here are the diagrams and repair parts for Official Makita 9911 3 x 18" belt sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Wear Plate 344586-7
#52

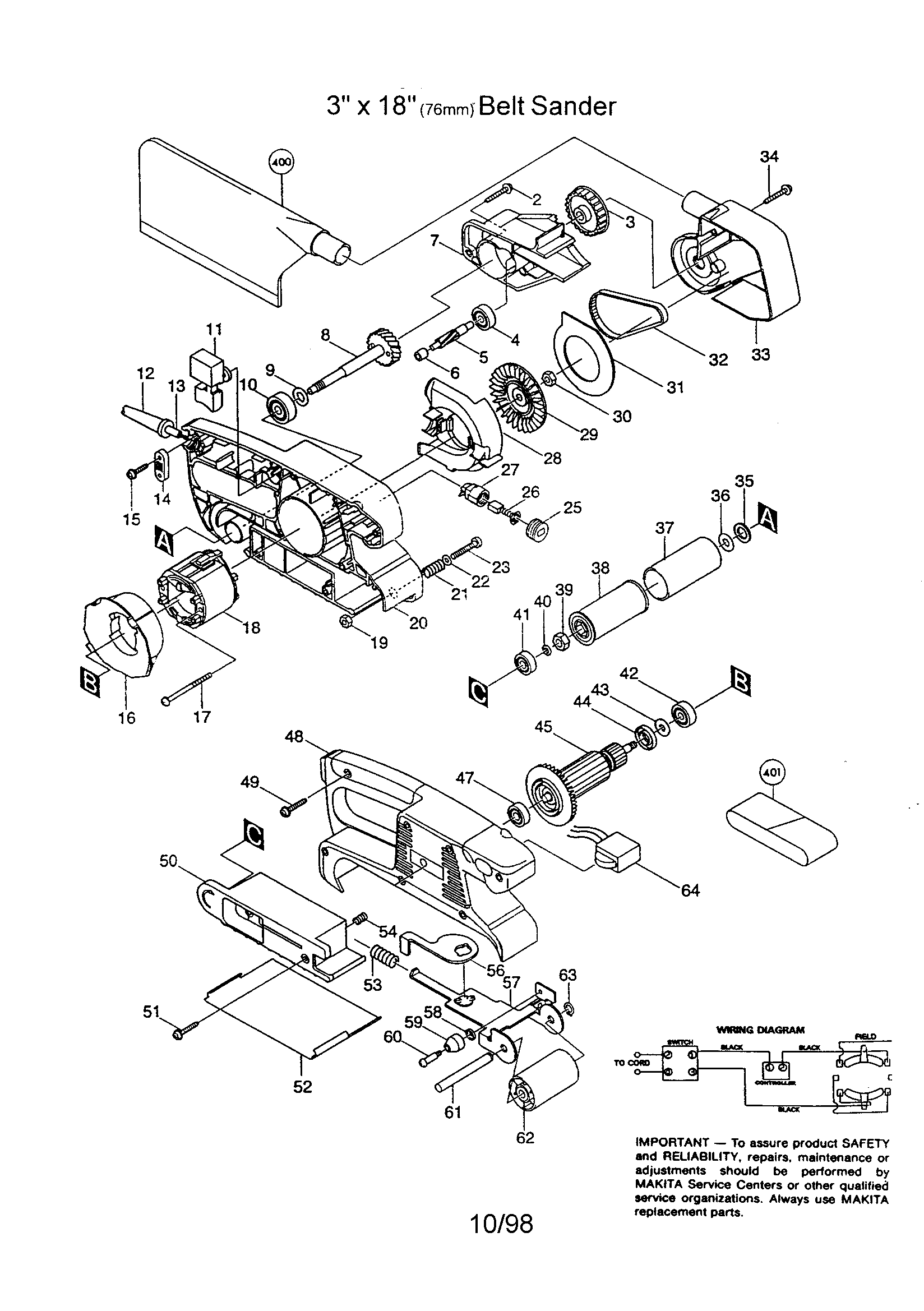

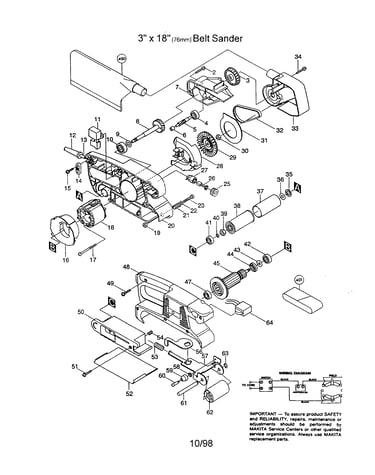

3" x 18" belt sander diagram

Wear plate

Part #344586-7

The manufacturer no longer makes this part, and there's no substitute part

Armature 517241-6
#45

3" x 18" belt sander diagram

Armature

Part #517241-6

The manufacturer no longer makes this part, and there's no substitute part

Belt 794551-A
#401

3" x 18" belt sander diagram

Belt

Part #794551-A

The manufacturer no longer makes this part, and there's no substitute part

Roller 316971-4
#38

3" x 18" belt sander diagram

Roller

Part #316971-4

The manufacturer no longer makes this part, and there's no substitute part

Gear 153252-3
#8

3" x 18" belt sander diagram

Gear

Part #153252-3

The manufacturer no longer makes this part, and there's no substitute part

Lever 344585-9
#56

3" x 18" belt sander diagram

Lever

Part #344585-9

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord Strain Relief 682502-4
#12

3" x 18" belt sander diagram

Power tool power cord strain relief

Part #682502-4

The manufacturer no longer makes this part, and there's no substitute part

Plate 416418-9
#16

3" x 18" belt sander diagram

Plate

Part #416418-9

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 422032-1
#37

3" x 18" belt sander diagram

Sleeve

Part #422032-1

The manufacturer no longer makes this part, and there's no substitute part

Housing L, 150958-4
#20

3" x 18" belt sander diagram

Housing l,

Part #150958-4

The manufacturer no longer makes this part, and there's no substitute part
