Skil
Power Drill

Model # 6550 TYPE 1 Official Skil drill

Here are the diagrams and repair parts for Official Skil 6550-TYPE-1 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Housing 348585
#30

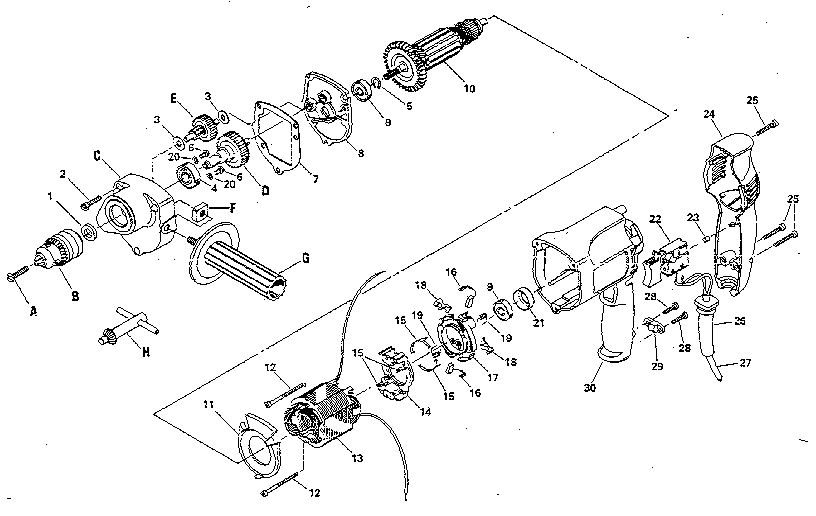

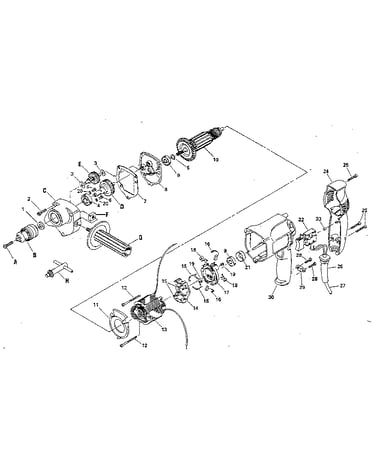

Unit parts diagram

Housing

Part #348585

The manufacturer no longer makes this part, and there's no substitute part

Cover 348584
#24

Unit parts diagram

Cover

Part #348584

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 348596
#33

Unit parts diagram

Housing assembly

Part #348596

The manufacturer no longer makes this part, and there's no substitute part

Plate Assembly 348599
#8

Unit parts diagram

Plate assembly

Part #348599

The manufacturer no longer makes this part, and there's no substitute part

Holder 348614
#17

Unit parts diagram

Holder

Part #348614

The manufacturer no longer makes this part, and there's no substitute part

Washer 350946
#20

Unit parts diagram

Washer

Part #350946

The manufacturer no longer makes this part, and there's no substitute part

Gear Assembly 348580
#35

Unit parts diagram

Gear assembly

Part #348580

The manufacturer no longer makes this part, and there's no substitute part

Screw 348607
#6

Unit parts diagram

Screw

Part #348607

The manufacturer no longer makes this part, and there's no substitute part

Screw 348550
#12

Unit parts diagram

Screw

Part #348550

The manufacturer no longer makes this part, and there's no substitute part

Shaft Assembly 348577
#34

Unit parts diagram

Shaft assembly

Part #348577

The manufacturer no longer makes this part, and there's no substitute part
