Model # 7920 Official Bissell deep cleaner proheat perfect pass

Here are the diagrams and repair parts for Official Bissell 7920 deep cleaner proheat perfect pass, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 109 parts |

#10

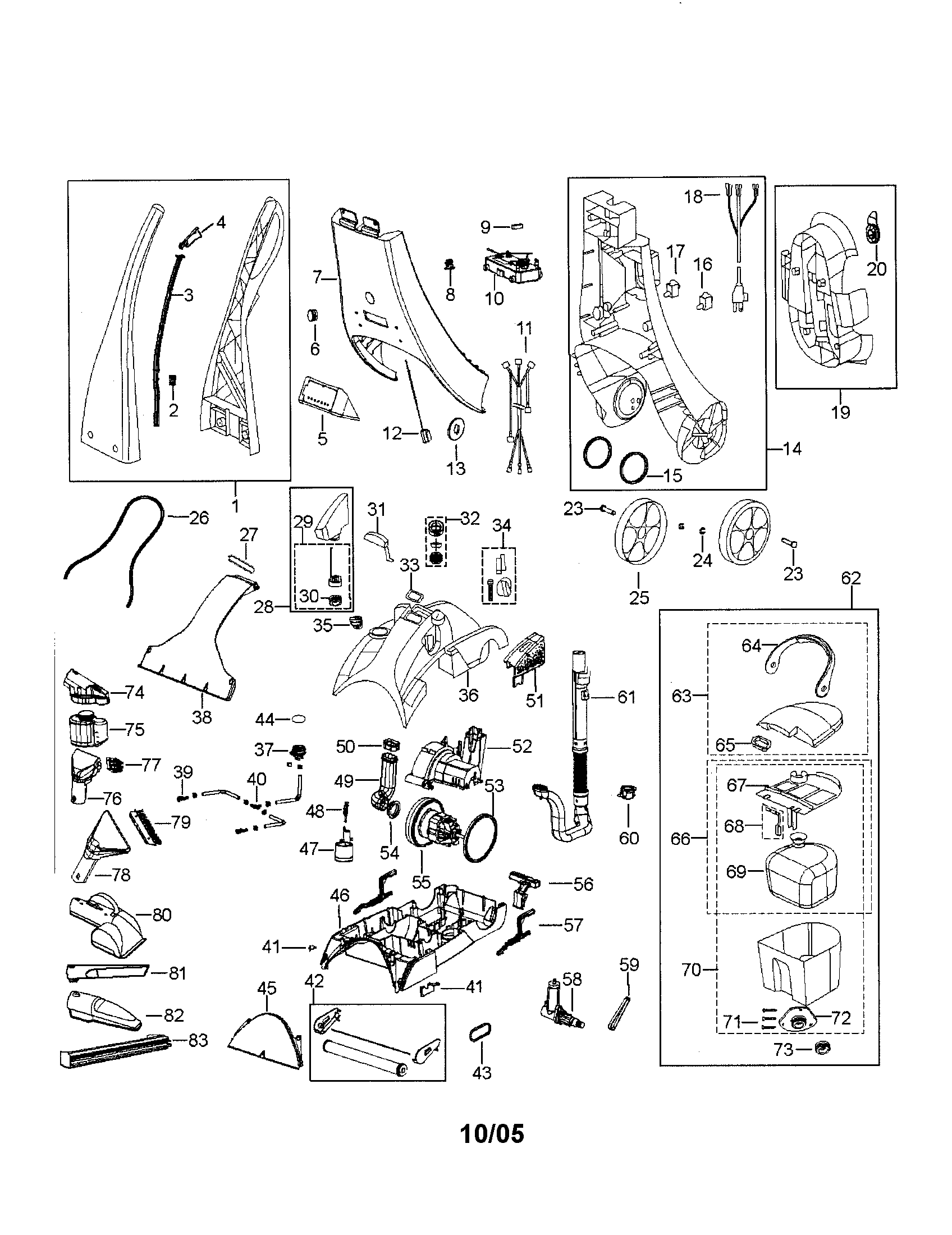

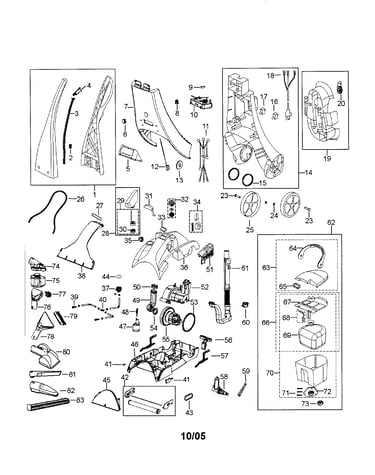

Proheat cleaner diagram

Carpet cleaner heater

Part #2104513

The manufacturer no longer makes this part, and there's no substitute part

#62

Proheat cleaner diagram

Tank

Part #015-9043

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Suction Diverter Flap 2136988

#31

Proheat cleaner diagram

Carpet cleaner suction diverter flap

Part #2136988

The manufacturer no longer makes this part, and there's no substitute part

#70

Proheat cleaner diagram

Carpet cleaner solution tank

Part #015-9041

The manufacturer no longer makes this part, and there's no substitute part

#41

Proheat cleaner diagram

Carpet cleaner retainer bracket

Part #5559113

The manufacturer no longer makes this part, and there's no substitute part

#7C

Proheat cleaner diagram

Lower handle

Part #2144402

The manufacturer no longer makes this part, and there's no substitute part

#72

Proheat cleaner diagram

Auto load

Part #2107041

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Upholstery Nozzle 2159155

#76

Proheat cleaner diagram

Carpet cleaner upholstery nozzle

Part #2159155

The manufacturer no longer makes this part, and there's no substitute part

#44

Proheat cleaner diagram

O-ring

Part #2106214

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Beater Bar Assembly 2101128

#42

Proheat cleaner diagram

Carpet cleaner beater bar assembly

Part #2101128

The manufacturer no longer makes this part, and there's no substitute part
