Amana 1009.000 countertop microwave Parts

Here are the diagrams and repair parts for Amana 1009.000 countertop microwave, as well as links to manuals and error code tables, if available.

Amana 1009.000 countertop microwave
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for1009.000 Microwaves

  • Nut for Amana 1009.000 - Part M1D239

    Nut

    Part #M1D239

    The manufacturer no longer makes this part, and there's no substitute part

  • Hole Plug for Amana 1009.000 - Part M1D612

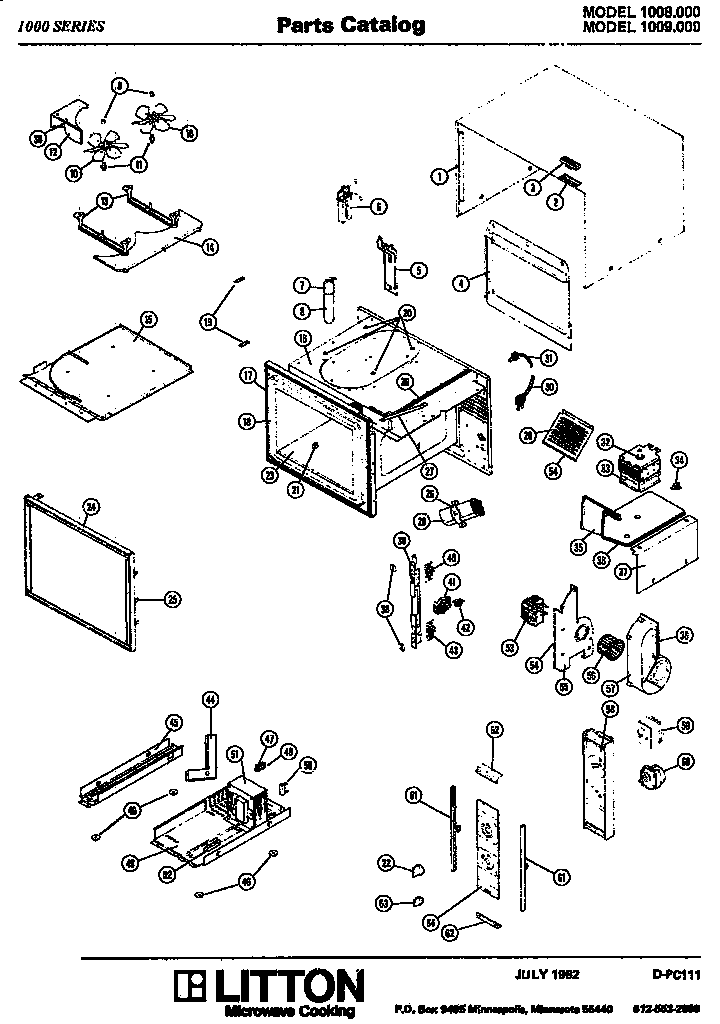

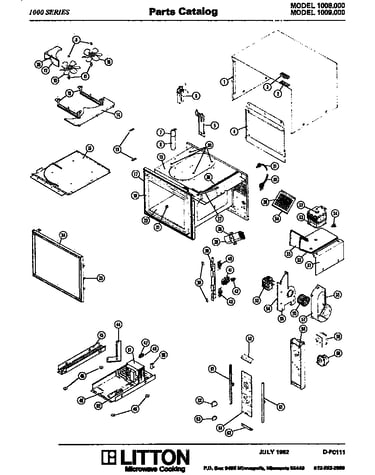

    (1008.000) (1009.000) diagram

    Hole Plug

    Part #M1D612

    The manufacturer no longer makes this part, and there's no substitute part

  • Stirrer Support Bar (includes Ref. No. 20) for Amana 1009.000 - Part M20D149

    (1008.000) (1009.000) diagram

    Stirrer Support Bar (includes Ref. No. 20)

    Part #M20D149

    The manufacturer no longer makes this part, and there's no substitute part

  • Left Base for Amana 1009.000 - Part M79D73

    (1008.000) (1009.000) diagram

    Left Base

    Part #M79D73

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw, Cord Cording for Amana 1009.000 - Part M1D368

    (1008.000) (1009.000) diagram

    Screw, Cord Cording

    Part #M1D368

    The manufacturer no longer makes this part, and there's no substitute part

  • Monitor Switch for Amana 1009.000 - Part M14D220

    (1008.000) (1009.000) diagram

    Monitor Switch

    Part #M14D220

    The manufacturer no longer makes this part, and there's no substitute part

  • Gasket, R.f. (magnetron) for Amana 1009.000 - Part M2D296

    (1008.000) (1009.000) diagram

    Gasket, R.f. (magnetron)

    Part #M2D296

    The manufacturer no longer makes this part, and there's no substitute part

  • Timer Knob for Amana 1009.000 - Part M6D282

    (1008.000) (1009.000) diagram

    Timer Knob

    Part #M6D282

    The manufacturer no longer makes this part, and there's no substitute part

  • Surge Resistor for Amana 1009.000 - Part M3D36

    (1008.000) (1009.000) diagram

    Surge Resistor

    Part #M3D36

    The manufacturer no longer makes this part, and there's no substitute part

  • E Ring, Front for Amana 1009.000 - Part M1D853

    (1008.000) (1009.000) diagram

    E Ring, Front

    Part #M1D853

    The manufacturer no longer makes this part, and there's no substitute part
