Dacor
Built-In Microwave

Model #PCOR30B Dacor microwave

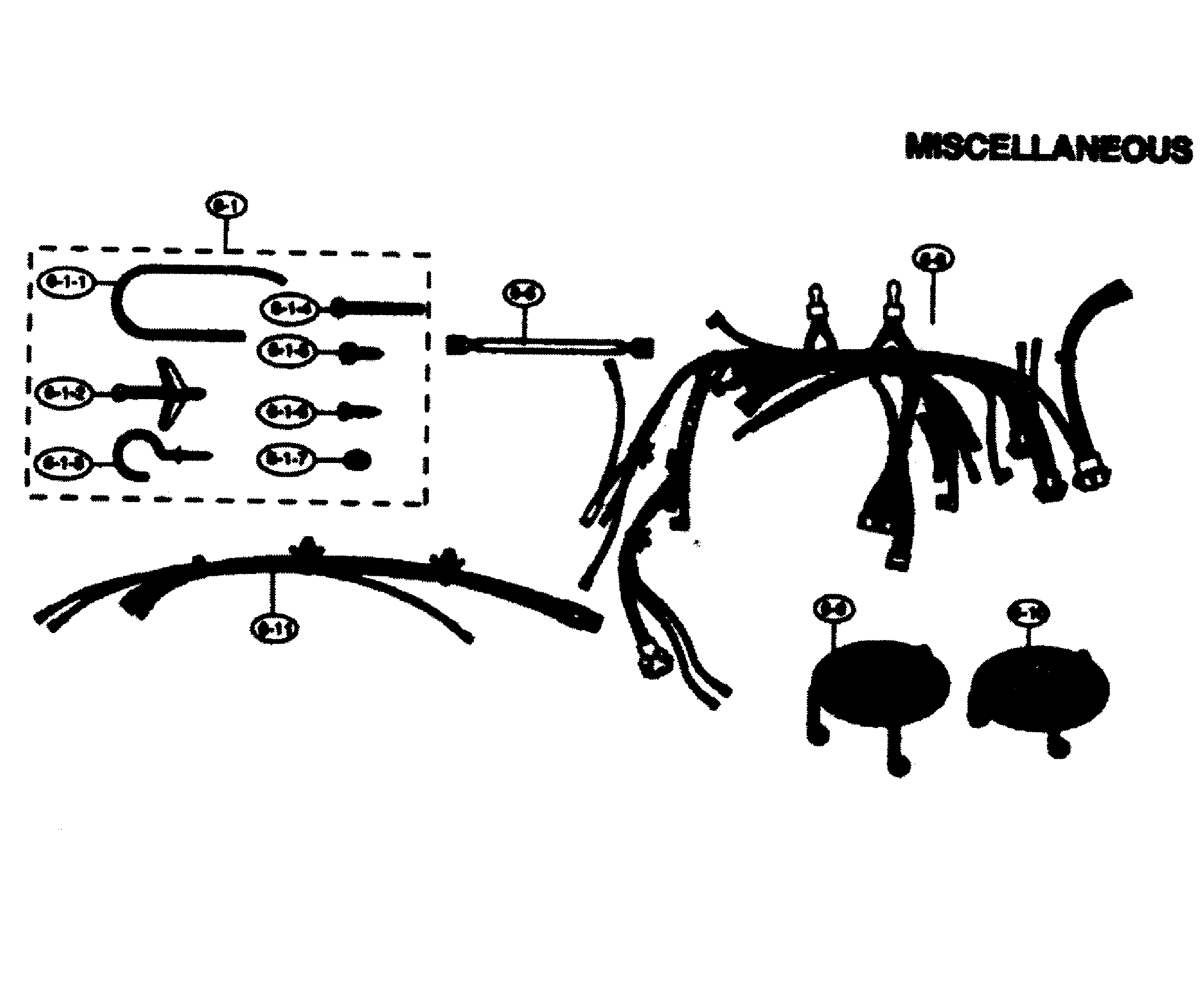

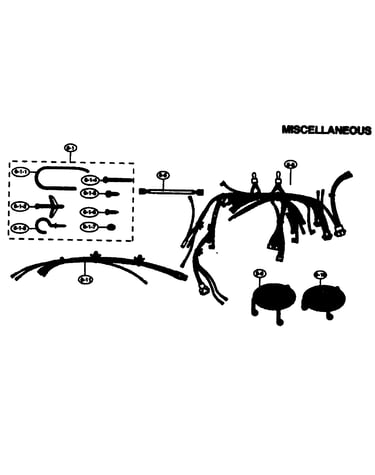

Here are the diagrams and repair parts for Dacor PCOR30B microwave, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 142 parts

Screw

#7-4

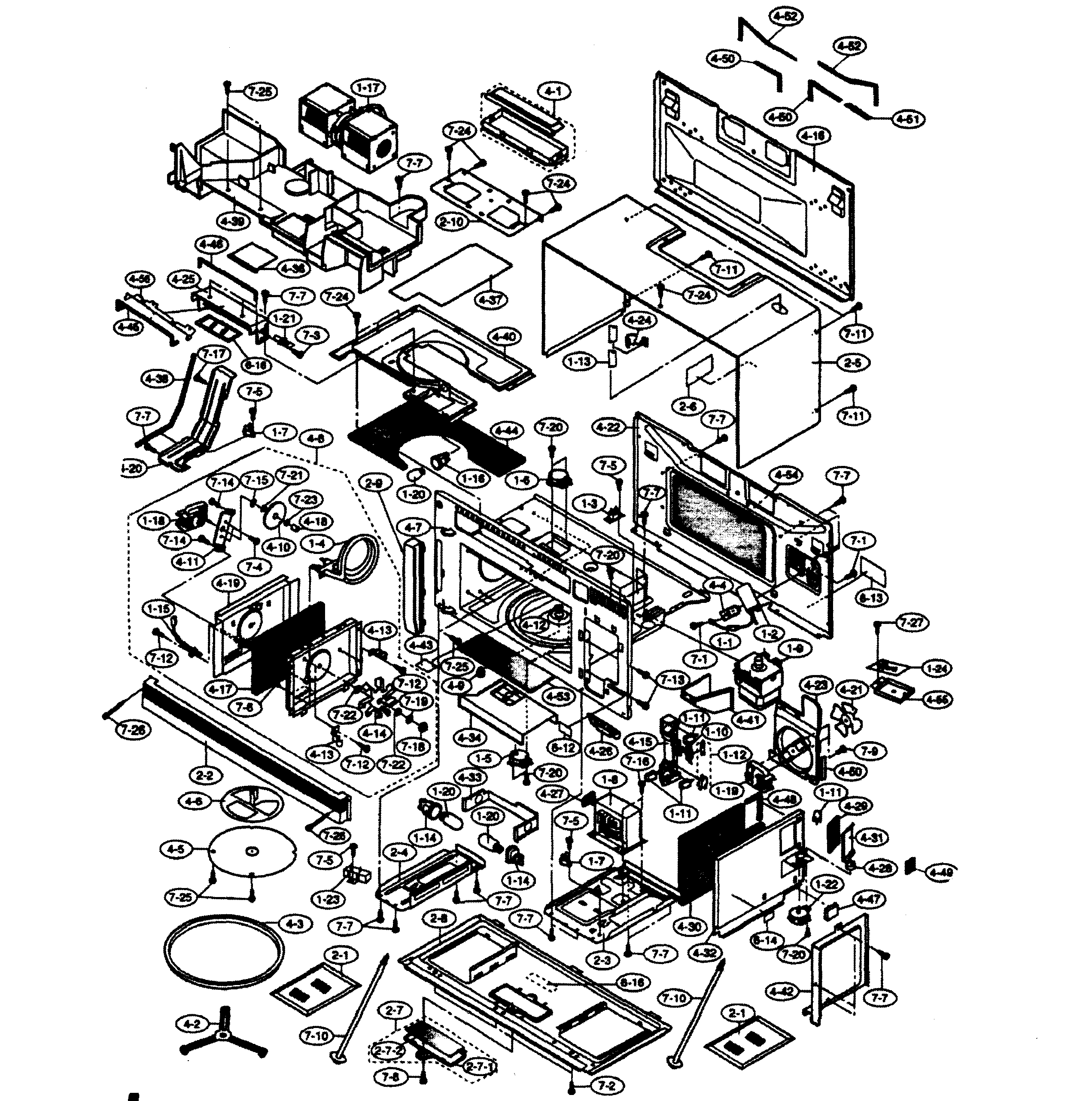

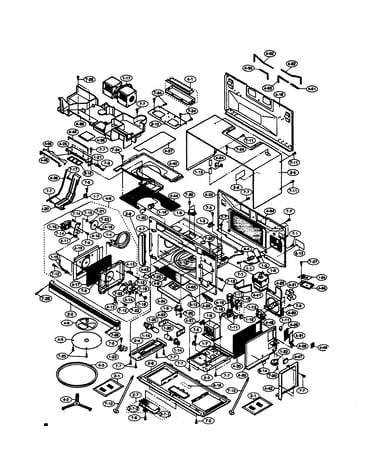

Cabinet parts Diagram

Screw

Part #66774

The manufacturer no longer makes this part, and there's no substitute part

Screw

#7-6

Cabinet parts Diagram

Screw

Part #66775

The manufacturer no longer makes this part, and there's no substitute part

Screw

#717

Cabinet parts Diagram

Screw

Part #66780

The manufacturer no longer makes this part, and there's no substitute part

Screw

#714

Cabinet parts Diagram

Screw

Part #66781

The manufacturer no longer makes this part, and there's no substitute part

Screw 4x10

#7-2

Cabinet parts Diagram

Screw 4x10

Part #66024

The manufacturer no longer makes this part, and there's no substitute part

Microwave Grease Filter

#2-1

Cabinet parts Diagram

Microwave grease filter

Part #66225

The manufacturer no longer makes this part, and there's no substitute part

Door Assembly

#5-1

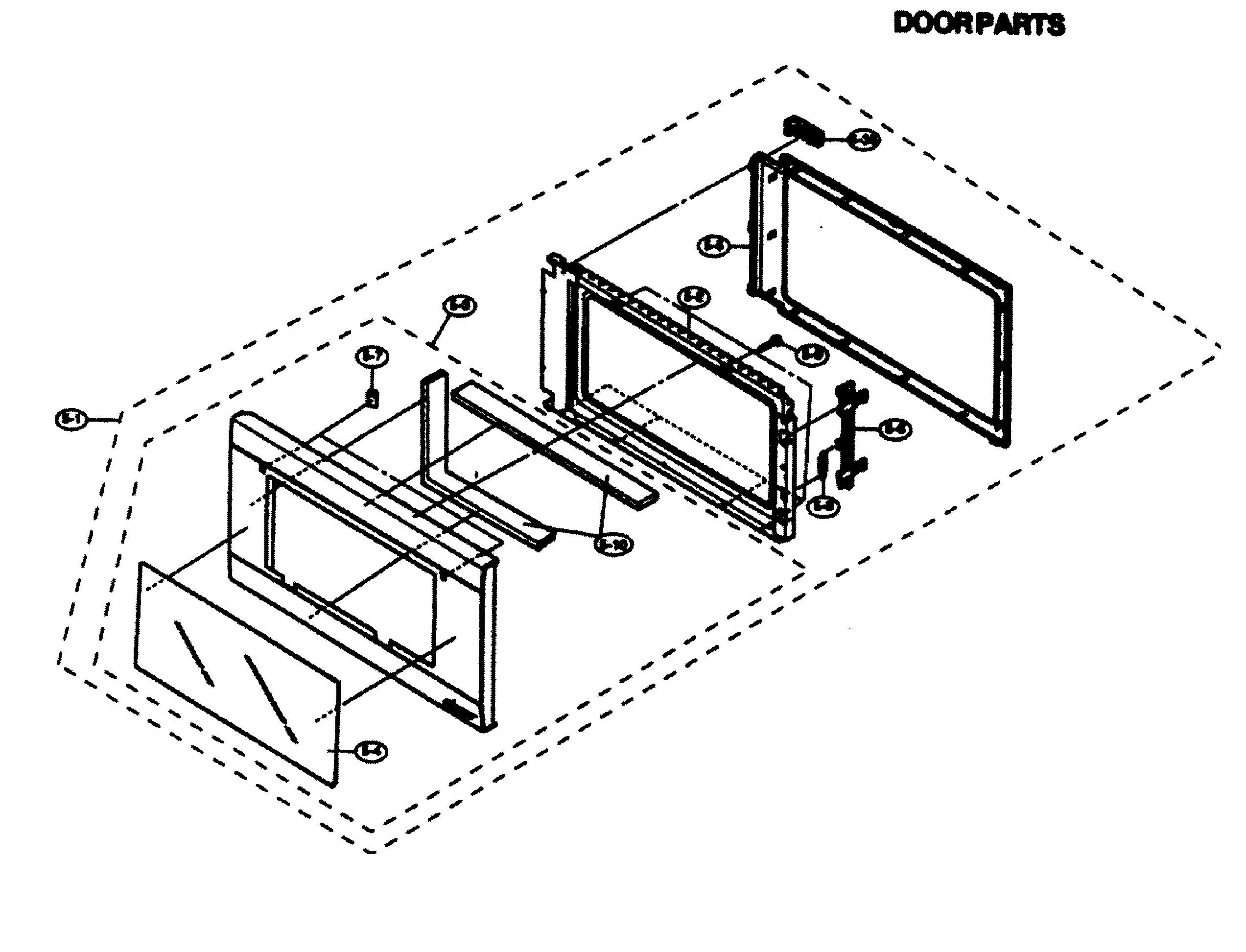

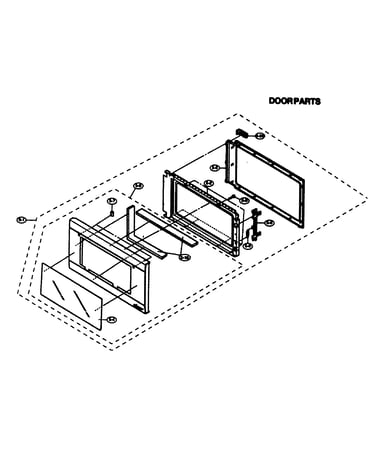

Door assy Diagram

Door assembly

Part #66656B

The manufacturer no longer makes this part, and there's no substitute part

Microwave Power Control Board

#3-1

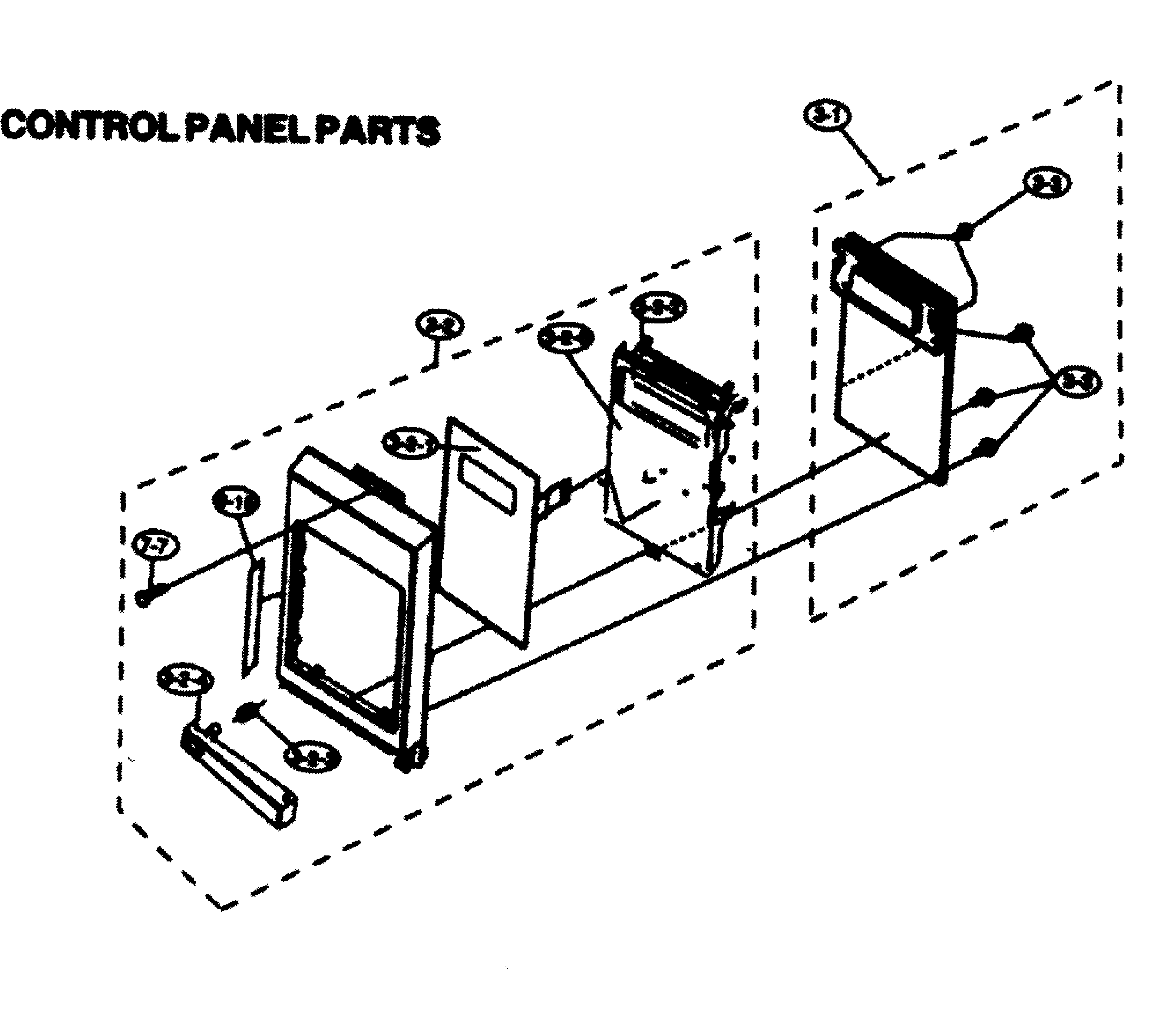

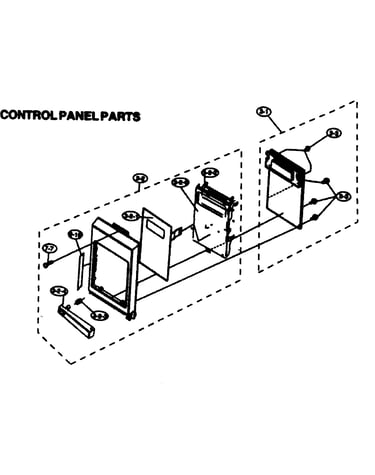

Control panel Diagram

Microwave power control board

Part #66660

The manufacturer no longer makes this part, and there's no substitute part

Cabinet

#2-5

Cabinet parts Diagram

Cabinet

Part #66666B

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Frame

#5-3

Door assy Diagram

Microwave door frame

Part #66667B

The manufacturer no longer makes this part, and there's no substitute part
