Gas Walk-Behind Mower

Model # 917378620 Official Craftsman gas walk-behind lawn mower

Here are the diagrams and repair parts for Official Craftsman 917378620 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Lock Nut 83923
#43

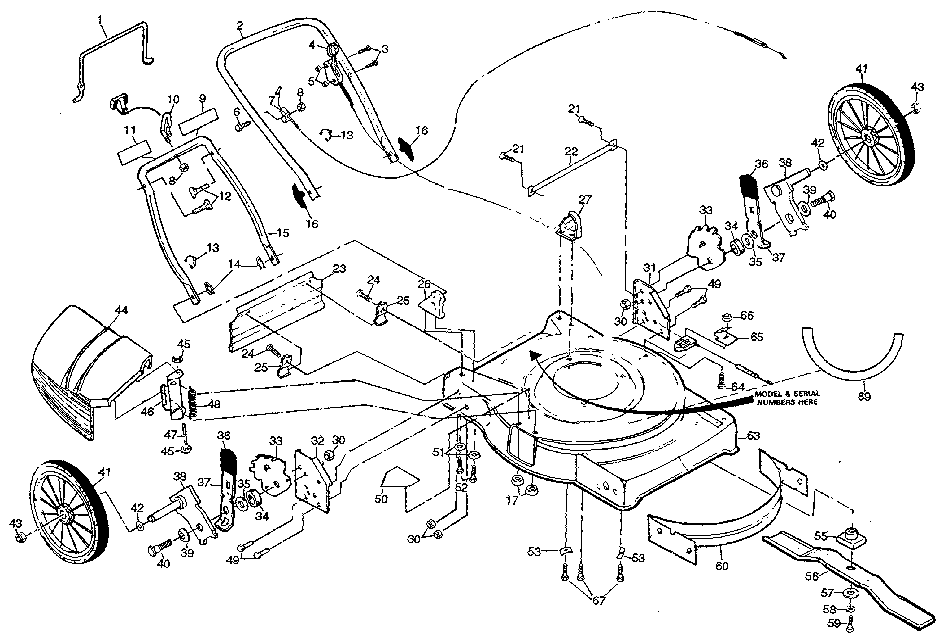

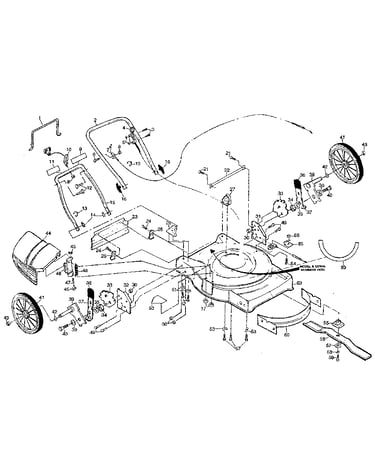

Main frame diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.74 |
17% OFF Phone Price : $5.74
In Stock
Lawn Mower 22-in Deck Mulching Blade 850973
Lawn mower 22-in deck mulching blade

Part #850973

Replaced by #532406713

?
Manufacturer substitution
This part replaces 850973. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$12.71 |
36% OFF MSRP : $20.00
In Stock
Lawn & Garden Equipment Screw 851084
#59

Main frame diagram

Lawn & garden equipment screw

Part #851084

Replaced by #532435345

?
Manufacturer substitution
This part replaces 851084. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.49 |
22% OFF Phone Price : $4.49
In Stock
Lawn Mower Blade Adapter 851514
Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$13.96 |
13% OFF Phone Price : $15.96
In Stock
Washer 67725
#26

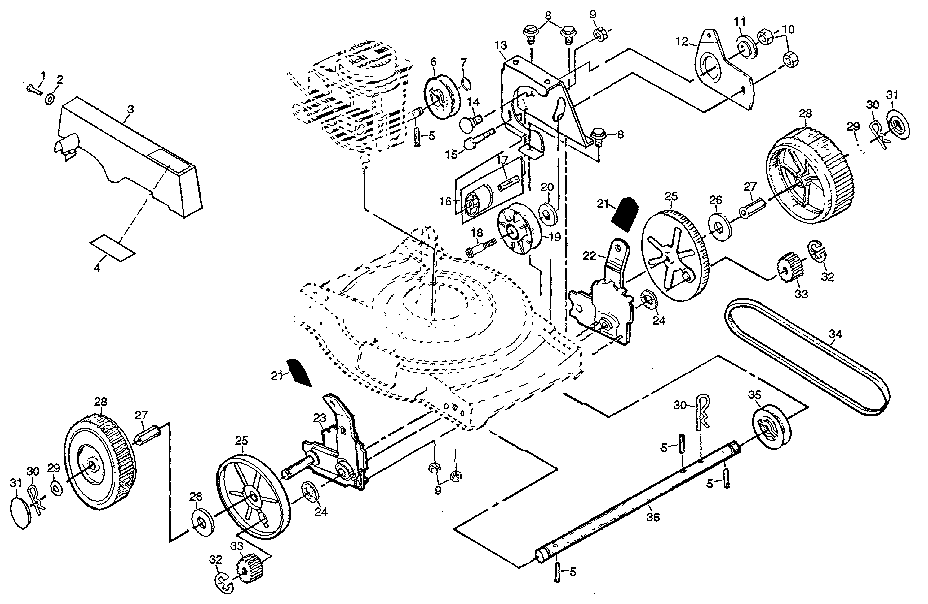

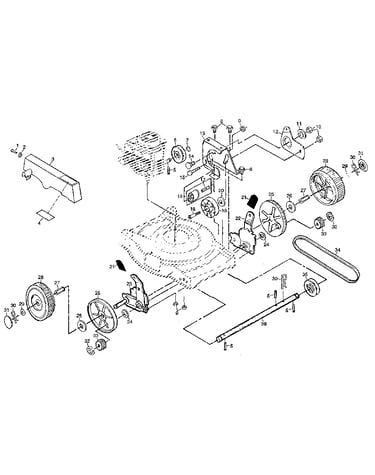

Drive assembly diagram

Washer

Part #67725

Replaced by #532067725

?
Manufacturer substitution
This part replaces 67725. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.20 |
19% OFF Phone Price : $5.20
In Stock
Lawn & Garden Equipment Washer (replaces 532088343, 532088348, 5320883-48, 532-088348, 532088384) 88348
#35

Main frame diagram

Lawn & garden equipment washer (replaces 532088343, 532088348, 5320883-48, 532-088348, 532088384)

Part #88348

This item is not returnable
$4.19 |
19% OFF Phone Price : $5.19
In Stock
Screw 850998
#67

Main frame diagram

Screw

Part #850998

Replaced by #150406

?
Manufacturer substitution
This part replaces 850998. Substitute parts can look different from the original.
This item is not returnable
$4.89 |
17% OFF Phone Price : $5.89
In Stock
Bolt 72907
#14

Drive assembly diagram

Bolt

Part #72907

The manufacturer no longer makes this part, and there's no substitute part

Bolt 58714
#12

Main frame diagram

Bolt

Part #58714

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58714. Substitute parts can look different from the original.
This item is not returnable
$7.29 |
12% OFF Phone Price : $8.29
In Stock
Handle Knob 63688
#16

Main frame diagram

Handle knob

Part #63688

Replaced by #532183724

?
Manufacturer substitution
This part replaces 63688. Substitute parts can look different from the original.
This item is not returnable
$7.29 |
12% OFF Phone Price : $8.29
In Stock
