Model # 41ADT2EC063 Official Troybilt trimmer

Here are the diagrams and repair parts for Official Troybilt 41ADT2EC063 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

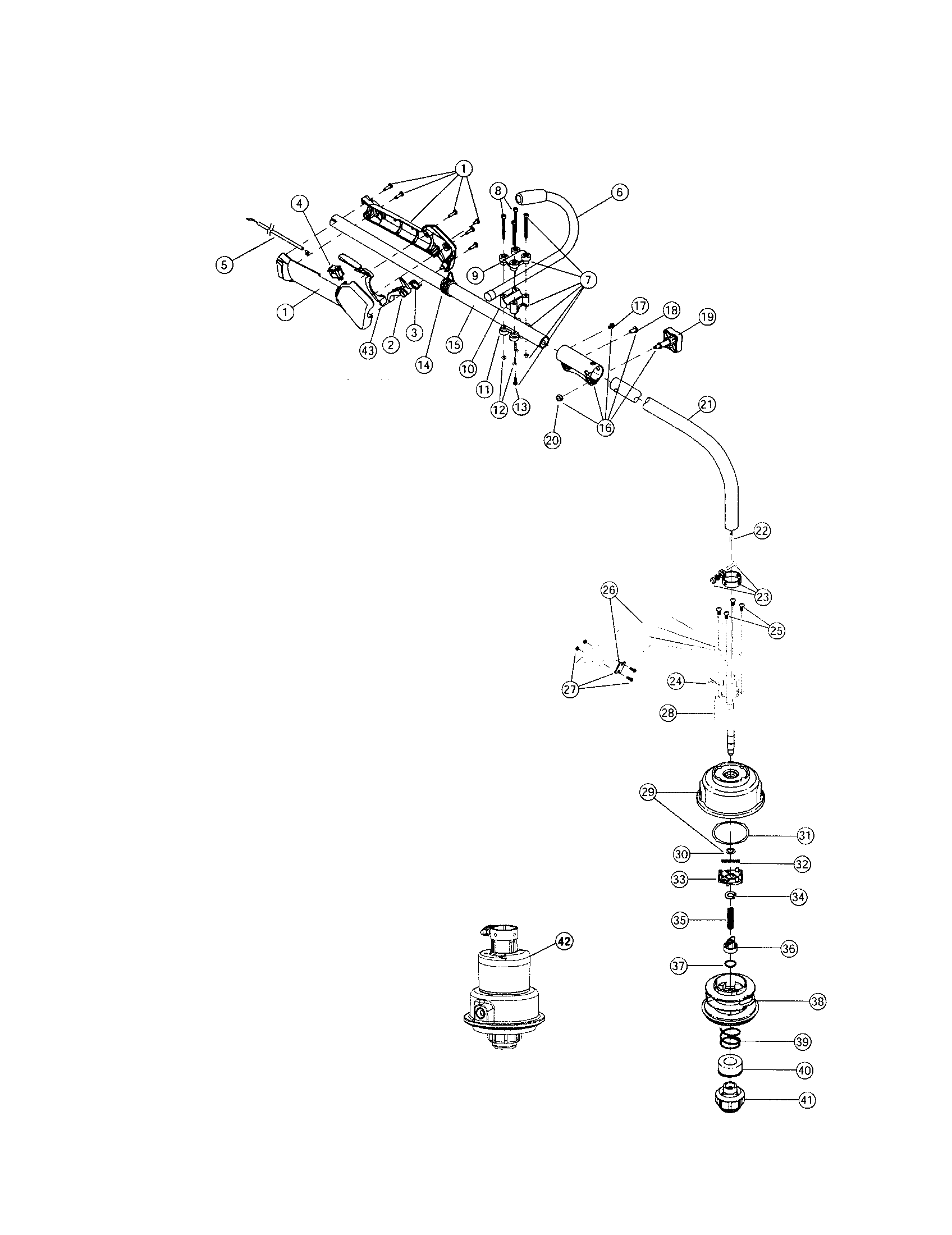

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 125 parts |

#27

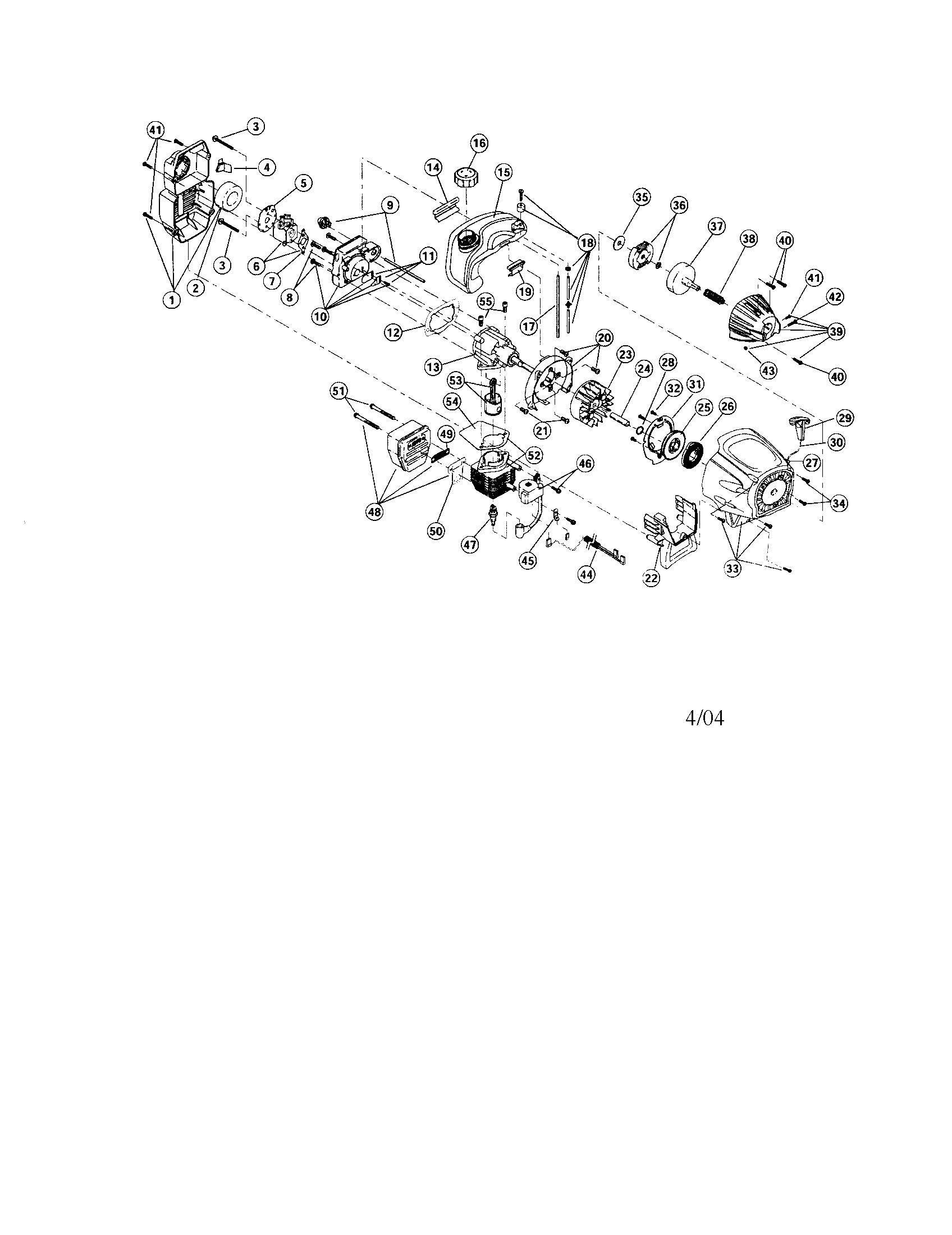

Engine parts diagram

Rope guide

Part #753-1200

$20.63

In Stock

Qty

#19

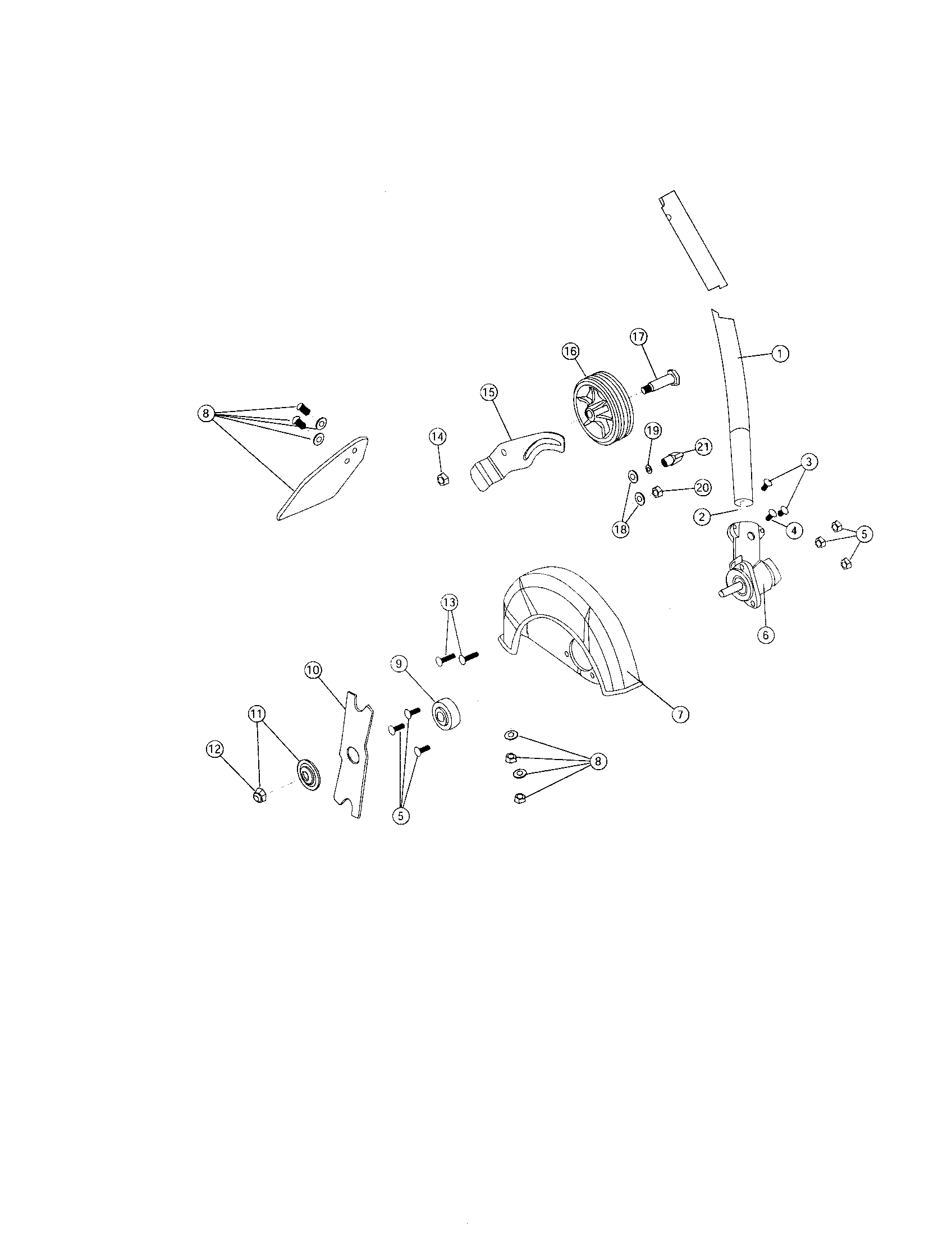

2 cycle gas trimmer add -on diagram

Lock washer

Part #791-182215

The manufacturer no longer makes this part, and there's no substitute part

#15

Engine parts diagram

Fuel tank assembly

Part #753-04307

The manufacturer no longer makes this part, and there's no substitute part

#NI06

All parts diagram

Line

Part #791-180120

The manufacturer no longer makes this part, and there's no substitute part

#16

2 cycle gas trimmer add -on diagram

Wheel

Part #791-181242

The manufacturer no longer makes this part, and there's no substitute part

2 cycle gas trimmer add -on diagram

Boom assembly

Part #753-04259

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Engine Spark Arrestor 791-182747

#49

Engine parts diagram

Lawn & garden equipment engine spark arrestor

Part #791-182747

The manufacturer no longer makes this part, and there's no substitute part

Engine parts diagram

Choke extension

Part #753-1193

The manufacturer no longer makes this part, and there's no substitute part

#11

2 cycle gas trimmer add -on diagram

Kit

Part #791-180014B

The manufacturer no longer makes this part, and there's no substitute part

2 cycle gas trimmer add -on diagram

Hardware gauge assembly

Part #753-1217

The manufacturer no longer makes this part, and there's no substitute part
