Kenmore 867736763 gas-fired direct vent counterflow wall furnace

Kenmore 867736763 gas-fired direct vent counterflow wall furnace Parts

Here are the diagrams and repair parts for Kenmore 867736763 gas-fired direct vent counterflow wall furnace, as well as links to manuals and error code tables, if available.

By Schematic

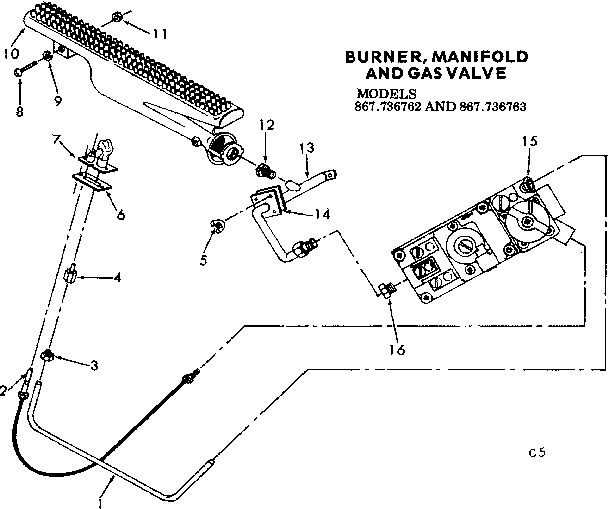

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 867736763 Gas-Fired Direct Vent Counterflow Wall Furnace

  • Screw for Kenmore 867736763 - Part 111100

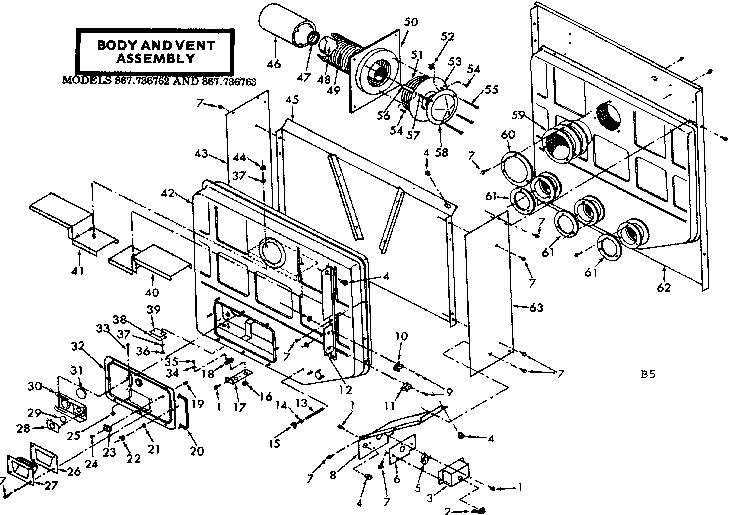

    Body and vent assembly diagram

    Screw

    Part #111100

    The manufacturer no longer makes this part, and there's no substitute part

  • Spacer for Kenmore 867736763 - Part 506115

    Body and vent assembly diagram

    Spacer

    Part #506115

    The manufacturer no longer makes this part, and there's no substitute part

  • Fan Blade for Kenmore 867736763 - Part 506049

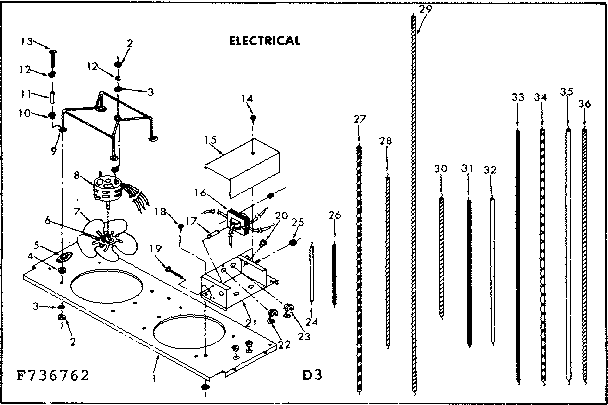

    Electrical diagram

    Fan Blade

    Part #506049

    The manufacturer no longer makes this part, and there's no substitute part

  • Hinge Pin for Kenmore 867736763 - Part 48205

    Body and vent assembly diagram

    Hinge Pin

    Part #48205

    The manufacturer no longer makes this part, and there's no substitute part

  • Mounting Plate for Kenmore 867736763 - Part 506167

    Body and vent assembly diagram

    Mounting Plate

    Part #506167

    The manufacturer no longer makes this part, and there's no substitute part

  • Tube Body for Kenmore 867736763 - Part 506023

    Body and vent assembly diagram

    Tube Body

    Part #506023

    The manufacturer no longer makes this part, and there's no substitute part

  • Bushing Wire for Kenmore 867736763 - Part 504096

    Bushing Wire

    Part #504096

    The manufacturer no longer makes this part, and there's no substitute part

  • Support for Kenmore 867736763 - Part 506070

    Body and vent assembly diagram

    Support

    Part #506070

    The manufacturer no longer makes this part, and there's no substitute part

  • Limit Switch for Kenmore 867736763 - Part 506127

    Body and vent assembly diagram

    Limit Switch

    Part #506127

    The manufacturer no longer makes this part, and there's no substitute part

  • Medallion for Kenmore 867736763 - Part 500215

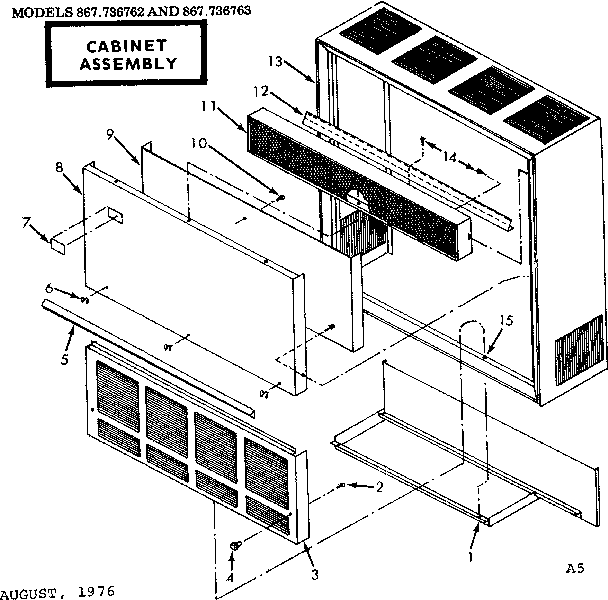

    Cabinet assembly diagram

    Medallion

    Part #500215

    The manufacturer no longer makes this part, and there's no substitute part
