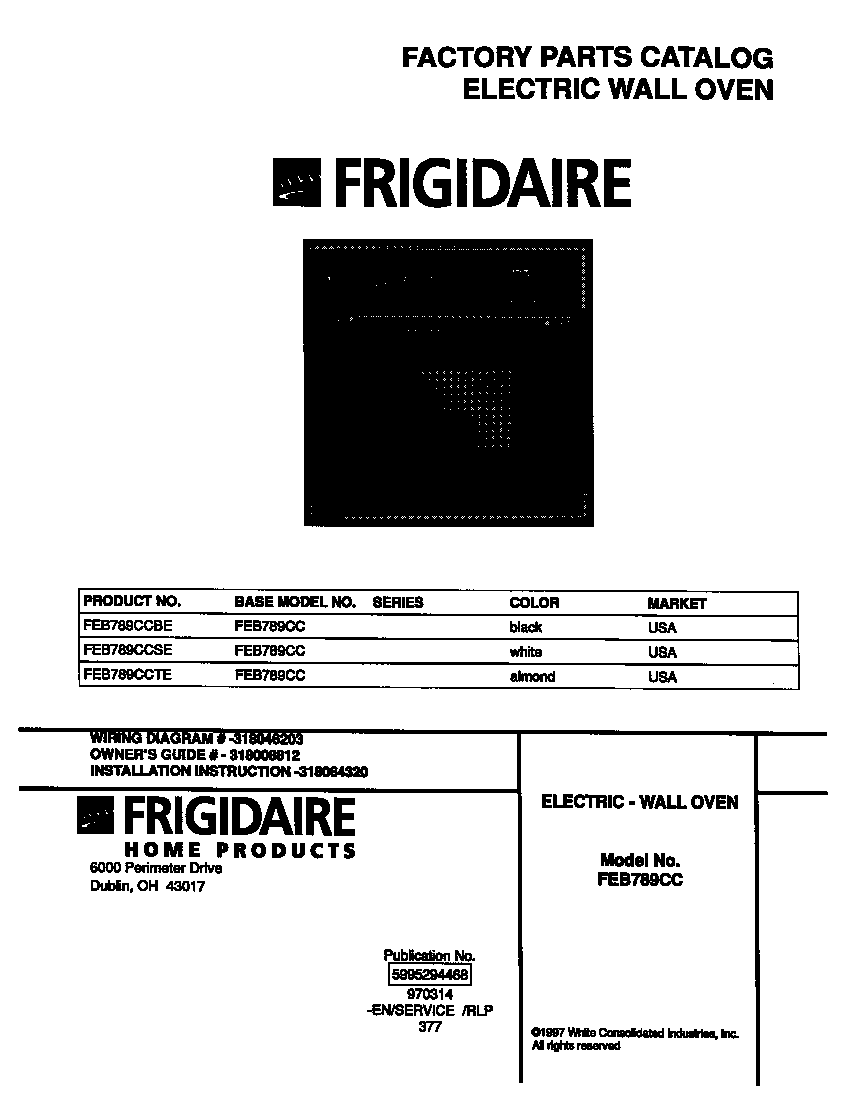

Model # FEB789CCTE Official Frigidaire electric wall oven - 5995294468

Here are the diagrams and repair parts for Official Frigidaire FEB789CCTE electric wall oven - 5995294468, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

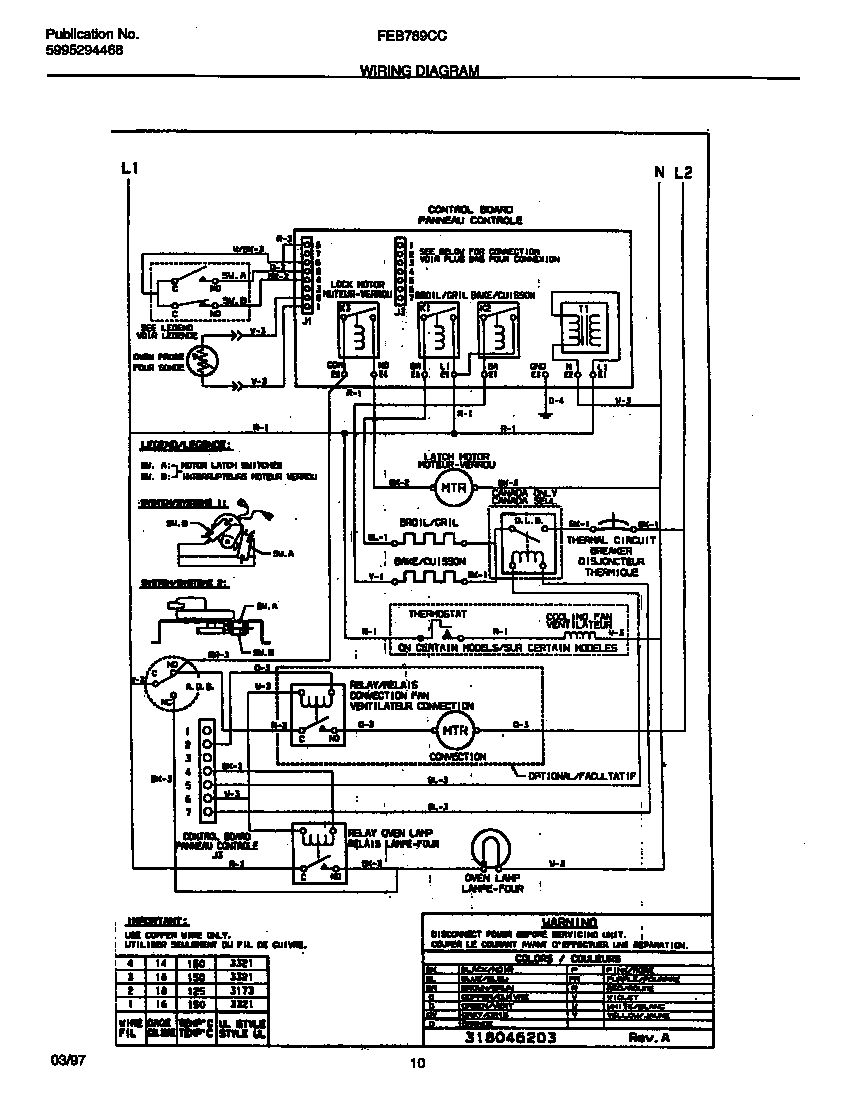

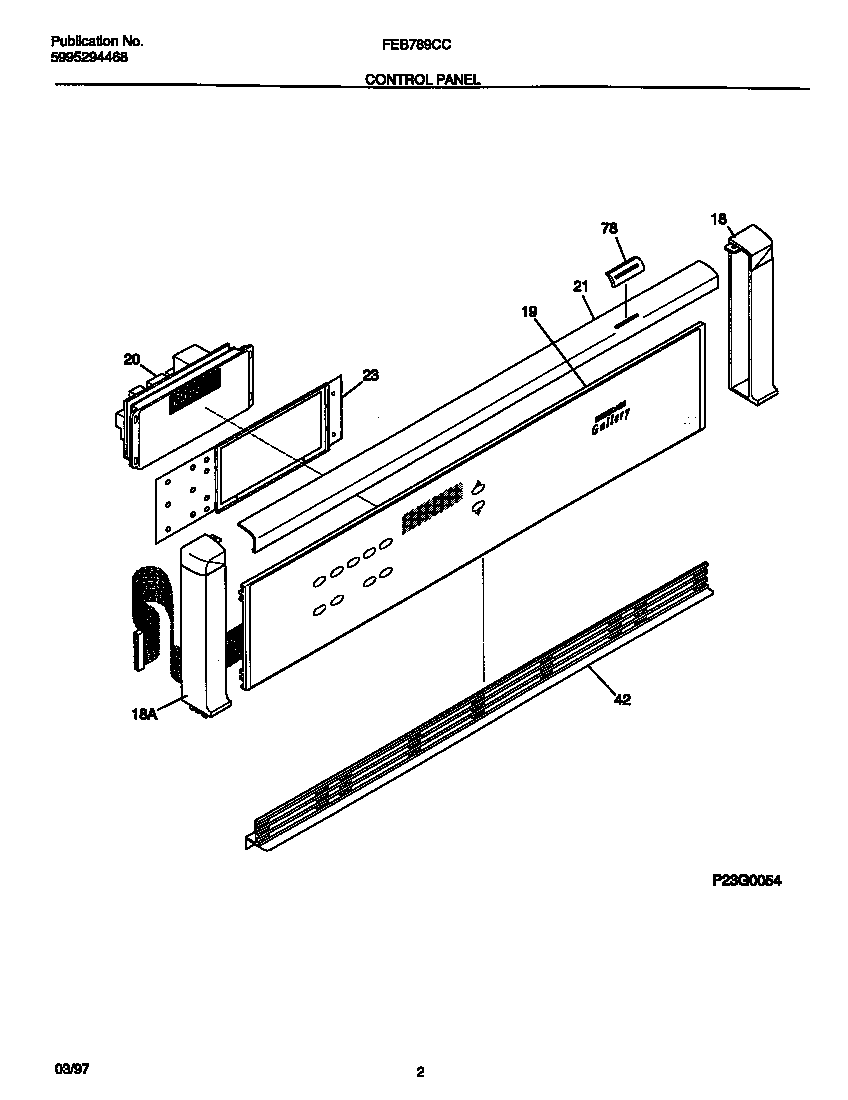

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |

Bulb 3201908
#15

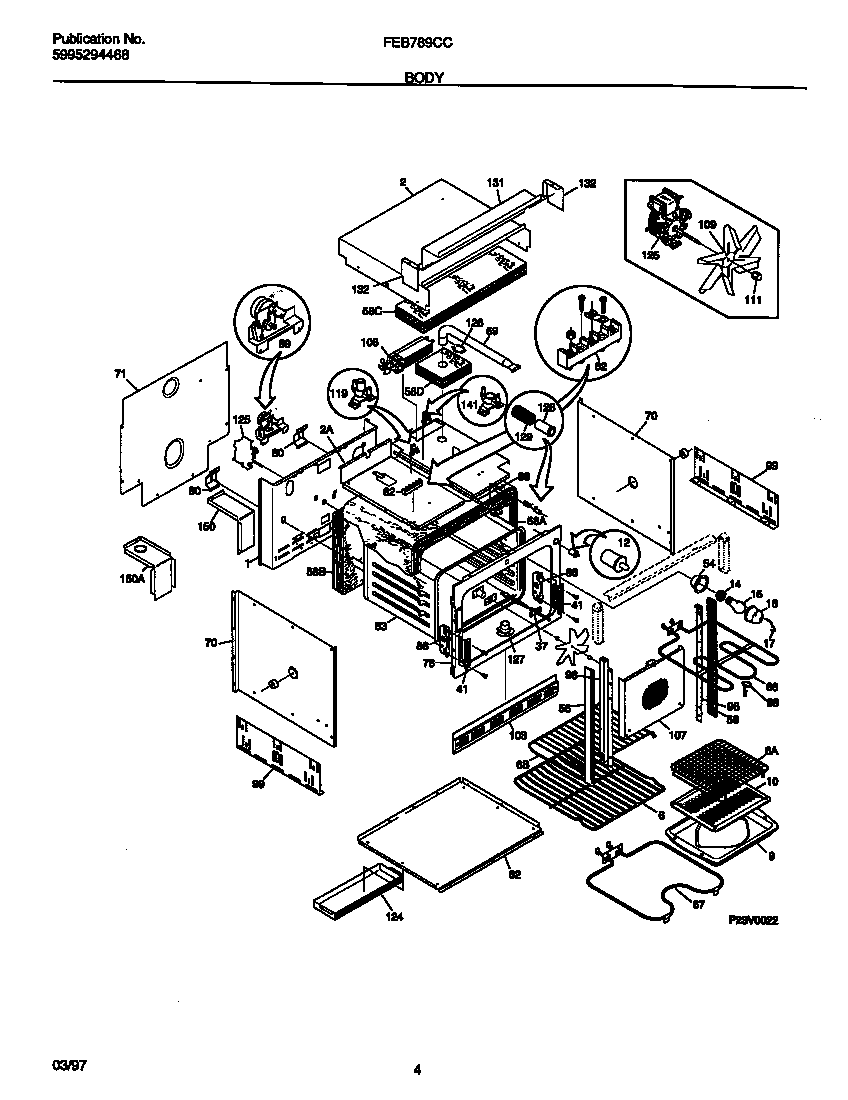

Body diagram

Bulb

Part #3201908

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3201908. Substitute parts can look different from the original.
BEST SELLER
$14.76
12% OFF Phone Price : $16.76
In Stock
Sensor Probe 5303208888
#37A

Body diagram

Sensor probe

Part #5303208888

Replaced by #316217002

?
Manufacturer substitution
This part replaces 5303208888. Substitute parts can look different from the original.
BEST SELLER
$43.55
12% OFF Phone Price : $49.55
In Stock
Terminal Block 5303310518
#62

Body diagram

Terminal block

Part #5303310518

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303310518. Substitute parts can look different from the original.
BEST SELLER
$9.64
9% OFF Phone Price : $10.64
In Stock
Wall Oven Thermal Fuse 318004900
#119

Body diagram

Wall oven thermal fuse

Part #318004900

BEST SELLER
$57.43
9% OFF Phone Price : $63.43
In Stock
Receptacle 5308011085
#14

Body diagram

Receptacle

Part #5308011085

Replaced by #316116400

?
Manufacturer substitution
This part replaces 5308011085. Substitute parts can look different from the original.
BEST SELLER
$42.01
12% OFF Phone Price : $48.01
In Stock
Nut 5303311205
#111A

Body diagram

Nut

Part #5303311205

Replaced by #316136600

?
Manufacturer substitution
This part replaces 5303311205. Substitute parts can look different from the original.
BEST SELLER
$19.99
9% OFF Phone Price : $21.99
In Stock
Cover 3201911
#16

Body diagram

Cover

Part #3201911

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 3201911. Substitute parts can look different from the original.
BEST SELLER
$13.90
13% OFF Phone Price : $15.90
In Stock
Oven Light Switch 318089910
#12

Body diagram

Oven light switch

Part #318089910

Replaced by #318394803

?
Manufacturer substitution
This part replaces 318089910. Substitute parts can look different from the original.
$35.19
15% OFF Phone Price : $41.19
In Stock
Range Screw 5303300265

#NI

All parts diagram

Range screw

Part #5303300265

This item is not returnable
In Stock
Bake Element 5303299718
#67

Body diagram

Bake element

Part #5303299718

Replaced by #318255100

?
Manufacturer substitution
This part replaces 5303299718. Substitute parts can look different from the original.
$135.41
8% OFF Phone Price : $147.41
In Stock

Most common symptoms to help you fix your wall oven

Choose a symptom to see related wall oven repairs.

Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…

Main causes: broken broil element, faulty broil burner igniter, control system failure…

Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…

Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…

Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…

Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
