Model # 845287511 Official Lifestyler rowing exerciser

Here are the diagrams and repair parts for Official Lifestyler 845287511 rowing exerciser, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

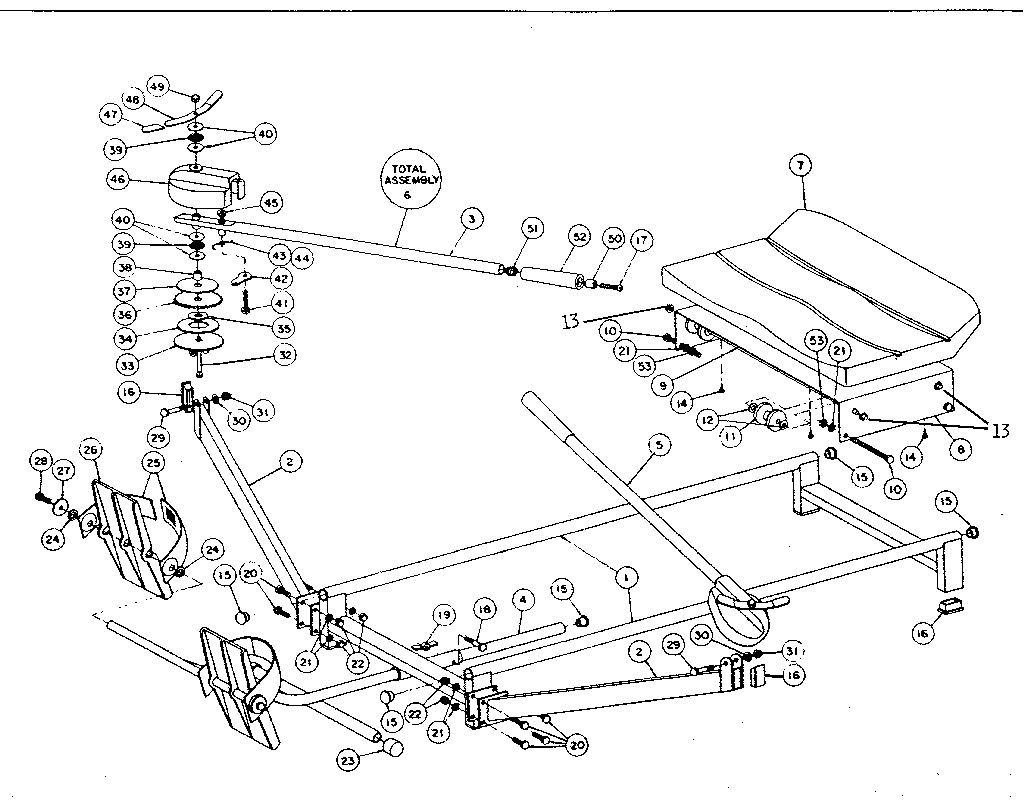

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |

5/16 Fl Wshr 1178
#12

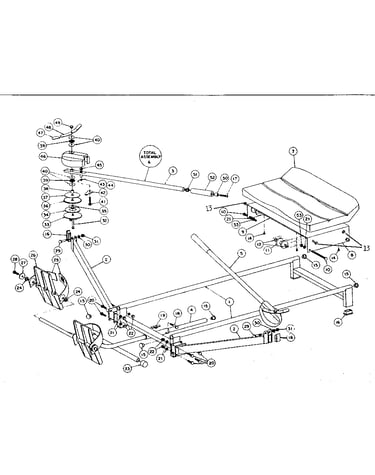

Unit parts diagram

5/16 fl wshr

Part #1178

The manufacturer no longer makes this part, and there's no substitute part

Bolt 1154
#20

Unit parts diagram

Bolt

Part #1154

The manufacturer no longer makes this part, and there's no substitute part

Washre 1164
#21

Unit parts diagram

Washre

Part #1164

The manufacturer no longer makes this part, and there's no substitute part

5/16-18 Bolt 1160
#10

Unit parts diagram

5/16-18 bolt

Part #1160

The manufacturer no longer makes this part, and there's no substitute part

Nut 1153
#45

Unit parts diagram

Nut

Part #1153

The manufacturer no longer makes this part, and there's no substitute part

Seat 8126
#7

Unit parts diagram

Seat

Part #8126

The manufacturer no longer makes this part, and there's no substitute part

Washer 8130
#40

Unit parts diagram

Washer

Part #8130

The manufacturer no longer makes this part, and there's no substitute part

Foot 8862
#23

Unit parts diagram

Foot

Part #8862

The manufacturer no longer makes this part, and there's no substitute part

Roller/seat 8820
#11

Unit parts diagram

Roller/seat

Part #8820

The manufacturer no longer makes this part, and there's no substitute part

Spacer 5180
#35

Unit parts diagram

Spacer

Part #5180

The manufacturer no longer makes this part, and there's no substitute part
