Model # 152213290 Official Craftsman air cleaner

Here are the diagrams and repair parts for Official Craftsman 152213290 air cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |

Owner's Manual OR91321
#NI

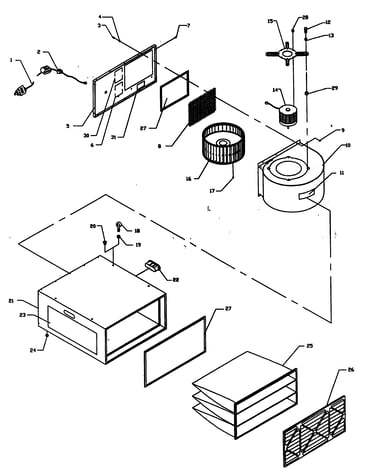

Air cleaner diagram

Owner's manual

Part #OR91321

The manufacturer no longer makes this part, and there's no substitute part

Flange Nut OR91328
#9

Air cleaner diagram

Flange nut

Part #OR91328

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly OR91331
#14

Air cleaner diagram

Motor assembly

Part #OR91331

The manufacturer no longer makes this part, and there's no substitute part

Guard OR91327
#8

Air cleaner diagram

Guard

Part #OR91327

The manufacturer no longer makes this part, and there's no substitute part

Label OR91326
#6

Air cleaner diagram

Label

Part #OR91326

The manufacturer no longer makes this part, and there's no substitute part

Seal OR91345
#27

Air cleaner diagram

Seal

Part #OR91345

The manufacturer no longer makes this part, and there's no substitute part

Flange Nut OR91346
#28

Air cleaner diagram

Flange nut

Part #OR91346

The manufacturer no longer makes this part, and there's no substitute part

Screw OR90716
#7

Air cleaner diagram

Screw

Part #OR90716

The manufacturer no longer makes this part, and there's no substitute part

Screw OR91337
#20

Air cleaner diagram

Screw

Part #OR91337

The manufacturer no longer makes this part, and there's no substitute part

Cap OR91325
#5

Air cleaner diagram

Cap

Part #OR91325

The manufacturer no longer makes this part, and there's no substitute part
