Magic Chef W10AN1 washer/dryer Parts
Here are the diagrams and repair parts for Magic Chef W10AN1 washer/dryer, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

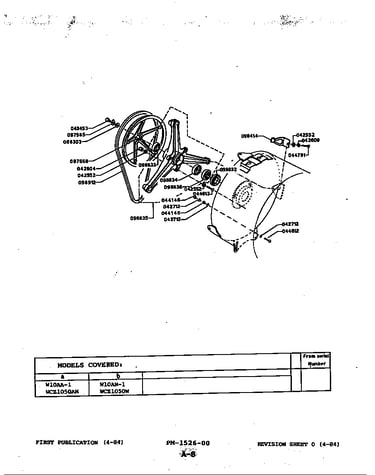

Browse Parts for W10AN1 Washer/Dryer

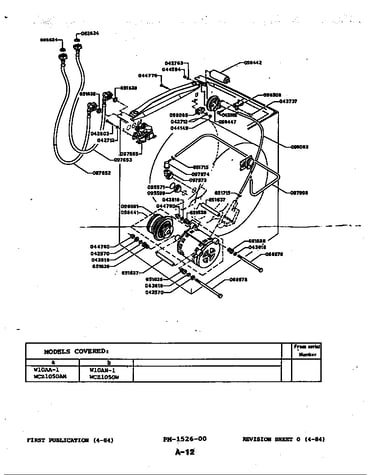

Motor & water valve diagram
Cold Water P
Part #097652Replaced by #W11629055
Manufacturer substitutionThis part replaces 097652. Substitute parts can look different from the original.In Stock$54.44
Qty
Motor & water valve diagram
Solenoid Valve
Part #097665Replaced by #35-2374N
Manufacturer substitutionThis part replaces 097665. Substitute parts can look different from the original.In Stock$279.49QtyCabinet & door diagram
Screw
Part #044778Replaced by #74002481
Manufacturer substitutionThis part replaces 044778. Substitute parts can look different from the original.In Stock$31.12QtyControl panel diagram
Timer
Part #097660
The manufacturer no longer makes this part, and there's no substitute part
"on" Light
Part #N/P
The manufacturer no longer makes this part, and there's no substitute part

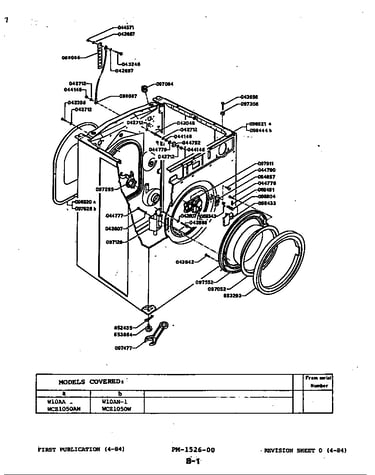

Cabinet & door diagram
Lock Washer
Part #042697
The manufacturer no longer makes this part, and there's no substitute part

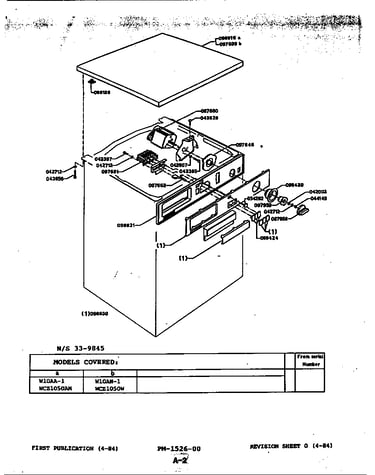

Control panel diagram
Keyboard
Part #097661
The manufacturer no longer makes this part, and there's no substitute part

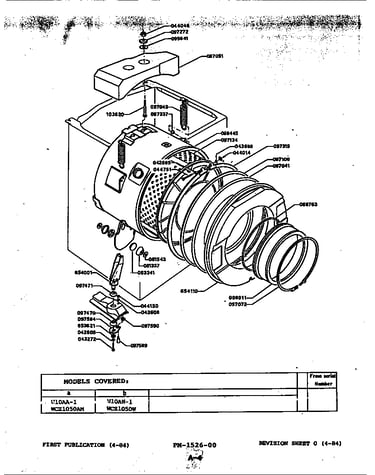

Cylinder diagram
Gasket
Part #098911
The manufacturer no longer makes this part, and there's no substitute part

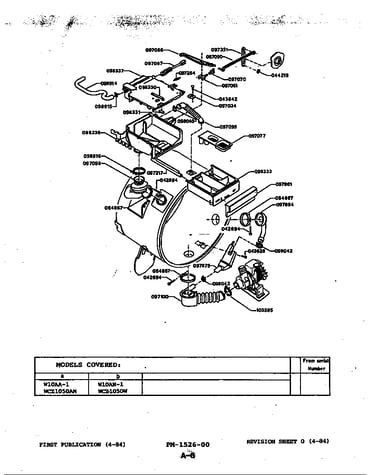

Dispenser diagram
Detergnt Dra
Part #098333
The manufacturer no longer makes this part, and there's no substitute part

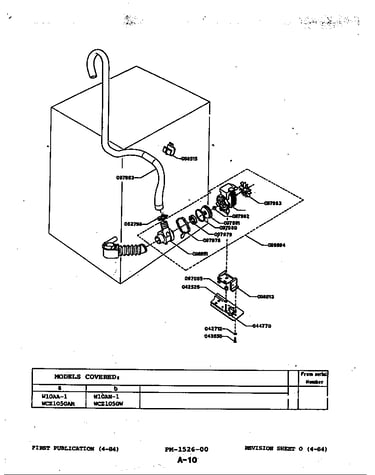

Pump assy. diagram
Pump Impeller
Part #097979
The manufacturer no longer makes this part, and there's no substitute part
