GE JKP77G*J1 wall oven/microwave combo

GE JKP77G*J1 wall oven/microwave combo Parts

Here are the diagrams and repair parts for GE JKP77G*J1 wall oven/microwave combo, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JKP77G*J1 Microwaves

  • G.e. Appliance Light Bulb, 40-watt for GE JKP77G*J1 - Part 40A15

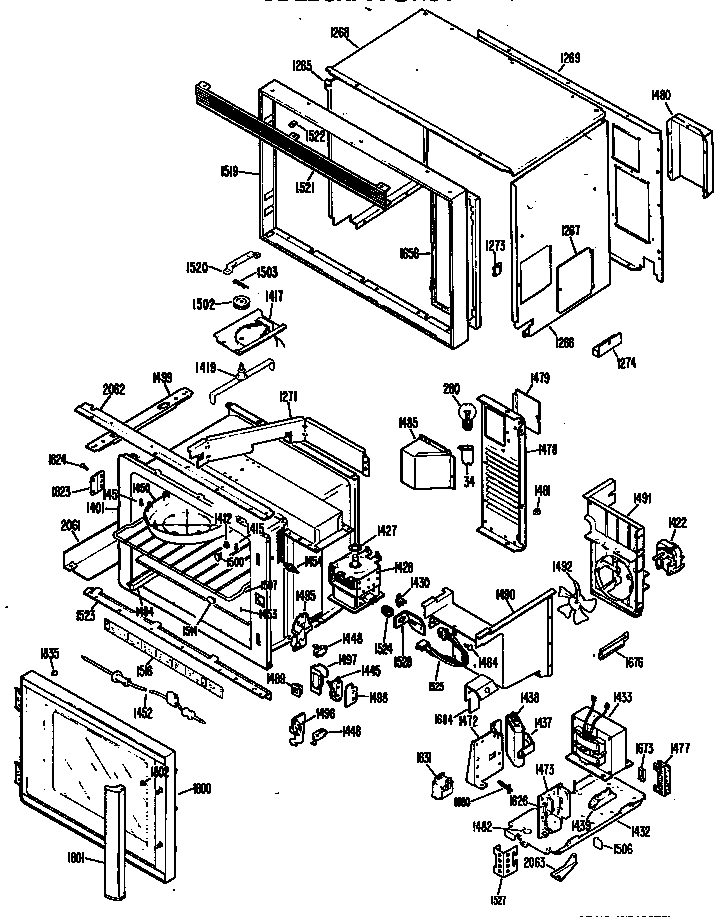

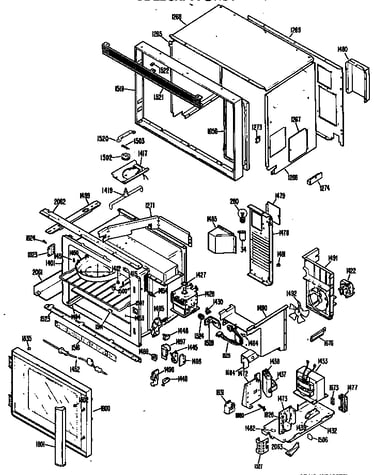

    Microwave diagram

    Range Oven Light Bulb

    Part #WX12X1510

    Replaced by #40A15

    Info Icon
    Manufacturer substitution
    This part replaces WX12X1510. Substitute parts can look different from the original.
    In Stock
    $15.40
    11% OFF Phone Price : $17.40Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Bake Element for GE JKP77G*J1 - Part WB44X200

    #NI

    All parts diagram

    Range Bake Element

    Part #WB44X200
    In Stock
    $33.15
    15% OFF Phone Price : $39.15Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Element for GE JKP77G*J1 - Part WB44X173

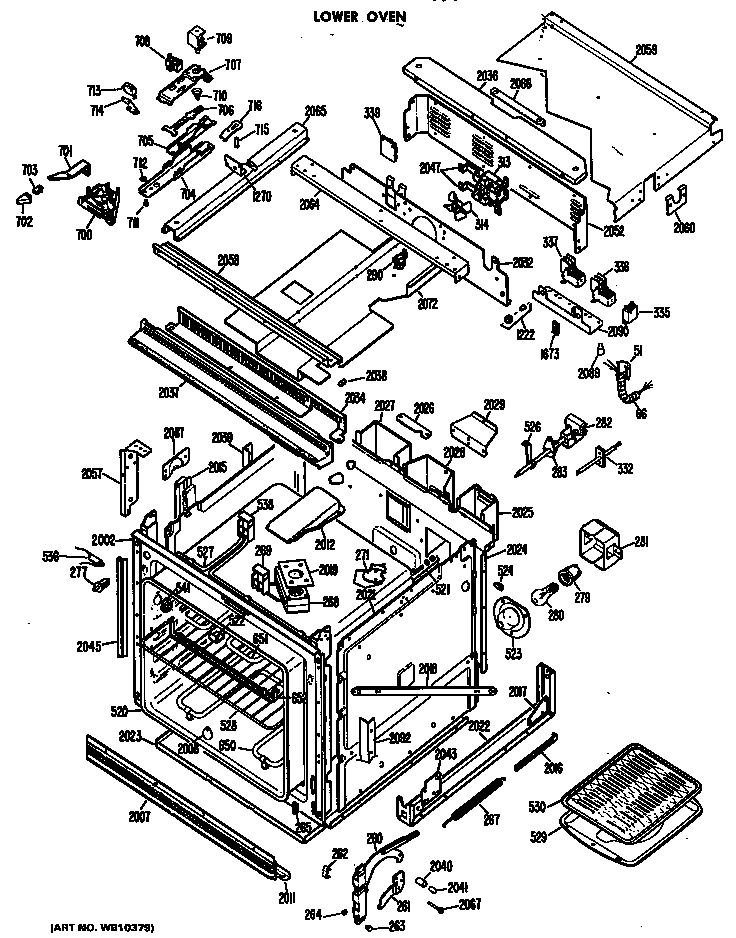

    Lower oven diagram

    Broil Unit

    Part #WB44X185

    Replaced by #WB44X173

    Info Icon
    Manufacturer substitution
    This part replaces WB44X185. Substitute parts can look different from the original.
    In Stock
    $36.19
    14% OFF Phone Price : $42.19Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Light Lens for GE JKP77G*J1 - Part WB36X192

    #NI

    All parts diagram

    Range Oven Light Lens

    Part #WB36X192
    This item is not returnable
    In Stock
    $15.39
    12% OFF Phone Price : $17.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Light Lens for GE JKP77G*J1 - Part WB36X192

    #NI

    All parts diagram

    Lamp Cover

    Part #WB36X389

    Replaced by #WB36X192

    Info Icon
    Manufacturer substitution
    This part replaces WB36X389. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $15.39
    12% OFF Phone Price : $17.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for GE JKP77G*J1 - Part WB1X536

    #NI

    All parts diagram

    Screw

    Part #WB1X593

    Replaced by #WB1X536

    Info Icon
    Manufacturer substitution
    This part replaces WB1X593. Substitute parts can look different from the original.
    In Stock
    $10.32
    16% OFF Phone Price : $12.32Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Gasket for GE JKP77G*J1 - Part WB2X3138

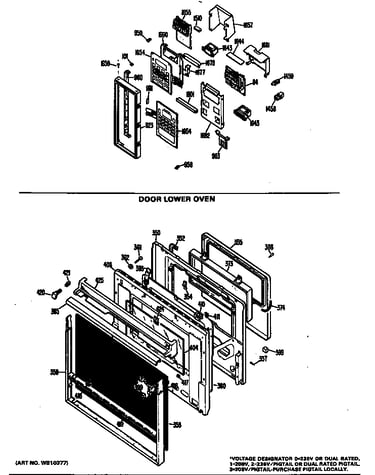

    Door lower oven diagram

    Range Oven Door Gasket

    Part #WB2X3138
    In Stock
    $157.15
    7% OFF Phone Price : $169.15Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Pan And Insert, 12-3/4 X 16-1/2-in for GE JKP77G*J1 - Part WB48X10056

    Lower oven diagram

    Broil Pan Rack

    Part #WB48X5002

    Replaced by #WB48X10056

    Info Icon
    Manufacturer substitution
    This part replaces WB48X5002. Substitute parts can look different from the original.
    In Stock
    $36.11
    14% OFF Phone Price : $42.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Pan And Insert, 12-3/4 X 16-1/2-in for GE JKP77G*J1 - Part WB48X10056

    Lower oven diagram

    Broiler Pan

    Part #WB49X5380

    Replaced by #WB48X10056

    Info Icon
    Manufacturer substitution
    This part replaces WB49X5380. Substitute parts can look different from the original.
    In Stock
    $36.11
    14% OFF Phone Price : $42.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Middle Pa for GE JKP77G*J1 - Part WB55X419

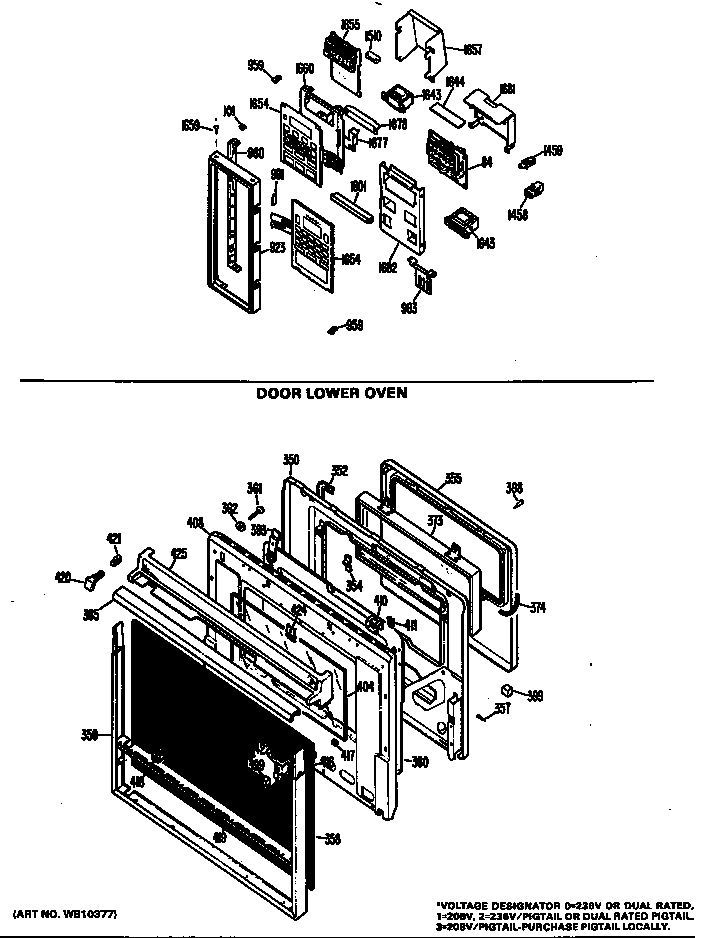

    Door lower oven diagram

    Middle Pa

    Part #WB55X419
    In Stock
    $127.56
    Minus Item
    Qty
    Plus Item
