On an LG LFXS28596S refrigerator, IF E (often shown as 1F E) points to a problem with the ice fan (the fan that moves cold air through the ice maker area). The most common causes are an airflow blockage from frost or an electrical issue such as a loose connection.

What to check first (safe, no tools)

• Make sure the doors fully close and stay closed; warm air leaks can cause frost buildup.
• Look for heavy frost or ice around the ice room or vents; frost can stop the ice fan.
• Power reset: unplug the refrigerator (or turn off the breaker) for 5 minutes, then restore power.
• If the dispenser acts oddly (dispenses unexpectedly), turn off the water supply as a safety step.
• Review the display and feature behavior in the owner's manual.

Quick troubleshooting path

1. Clear airflow restrictions: remove ice clumps in the bin and make sure nothing blocks vents.
2. Defrost if needed: if you see thick frost, a full manual defrost (power off, doors open) can restore airflow.
3. Listen for the fan: after cooling resumes, you should typically hear a small fan running near the ice maker area.
4. If the code returns: the issue is usually the fan circuit (fan motor, wiring, or control).

Parts that commonly relate to ice and airflow symptoms

These parts are not guaranteed fixes for IF E, but they are commonly involved when ice production or dispenser operation is affected:

Symptom you notice	What it often points to	Example part on this model page
No ice, warm ice room, IF E returns	Ice room airflow or fan-related issue	Ice maker assembly AEQ72909602
Ice clumping, poor ice delivery	Ice door not sealing or chute issue	Refrigerator dispenser ice chute door motor EAU59551204
Water not filling ice maker	Water supply to ice maker restricted	LG refrigerator water inlet valve AJU72992601

Why it matters

The ice fan keeps the ice maker compartment cold and stable. When airflow is blocked by frost or the fan circuit is interrupted, ice production drops and the refrigerator may show IF E (or 1F E) to prevent ongoing performance problems.

Last updated: February 2026

For LG refrigerators like model LFXS28596S, the most common service issue we see is a cooling failure (refrigerator or freezer not staying cold). The most frequent root causes are problems in the sealed system or airflow, including a failing compressor, a fan issue, or a control/temperature-sensing problem; use the LFXS28596S owner's manual troubleshooting section to narrow it down safely.

What “not cooling” usually looks like

• Fresh food section warm but freezer still partly cold
• Freezer warm and ice production stops
• Clicking/buzzing near the back, then the unit never cools down
• Temperatures drift even though settings look normal
• Unit appears to run constantly or cycles oddly

Quick checks we recommend first (no tools)

1. Confirm power: check the breaker or GFCI outlet, then verify the control is not set to OFF.
2. Rule out Demo/Display Mode: if the refrigerator is in display mode, it can look “on” but not cool.
3. Check door sealing: gaps or a torn gasket can cause warm temps and heavy frost.
4. Listen for fans: lack of airflow often points to a fan or airflow restriction.
5. Look for error codes: LG error codes can quickly point to the system involved.

Parts that commonly relate to cooling problems on this model

If your diagnosis points to a component failure, these are common cooling-related parts listed for LFXS28596S:

Symptom	Common suspect	Example part on this model
Warm temps, poor heat removal	Condenser fan not running	Refrigerator condenser fan motor EAU63923602
Temps inaccurate, cycling odd	Temperature sensor issue	Refrigerator temperature sensor 6500JB2002X
No/weak cooling, sealed system concern	Compressor problem	LG refrigerator compressor TCA36811409

Why it matters

Cooling problems can lead to food spoilage and can also cause secondary issues like ice maker stoppage and excess frost. Catching the cause early (airflow, sensor, fan, or compressor) prevents repeat failures and unnecessary part replacement.

Helpful DIY resources

• LG bottom freezer refrigerator error codes

If you need to purchase replacement parts for your LG LFXS28596S, order from the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

On LG model LFXS28596S, a lower ice maker that is not producing ice is usually caused by the icemaker being turned OFF, the freezer temperature being set too warm (normal ice production needs 0 °F / -18 °C), a blocked ice-detecting sensor, or a water supply problem such as a closed shutoff valve or restricted flow.

Quick checks that fix most “no ice” problems

• Confirm the icemaker ON/OFF control is set to ON.
• Set the freezer to 0 °F (-18 °C) and keep it there.
• Make sure doors close fully and the gasket seals all the way around.
• Clear frost or debris from the ice-detecting sensor area.
• Verify the house shutoff valve is fully open and the water line is not kinked.

Timing and water flow basics

The manual notes normal “start up” and refill times that can look like a failure.

• After installation or reconnecting water, allow up to 24 hours for temperatures to stabilize.
• The icemaker begins producing ice about 48 hours after initial installation.
• After the bin is emptied, allow up to 90 minutes for more ice and about 24 hours to refill the bin.

Situation	What to expect
New install	Ice production starts around 48 hours
Bin emptied	90 minutes for more ice; 24 hours to refill
Freezer above 0 °F	Slow or no ice production

When a part is likely the cause

If temperature, doors, and water supply are correct, these parts commonly stop ice production:

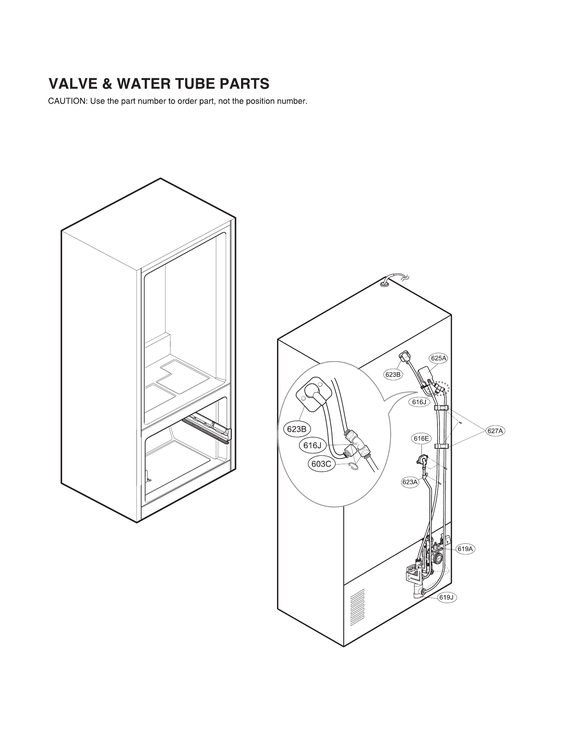

• LG refrigerator water inlet valve AJU72992601 (restricted or not opening fully)

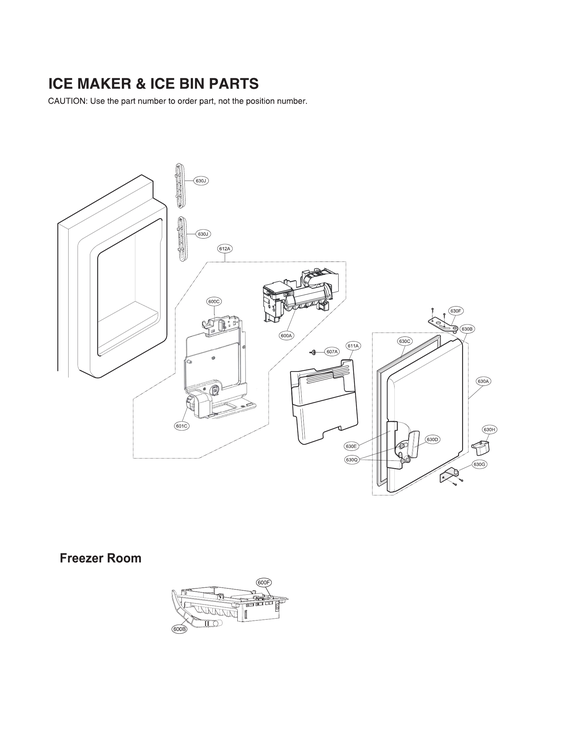

• Ice maker assembly (AEQ72909602) - refrigerator ice maker part by LG AEQ72909602 (not cycling or not filling)

Why it matters

The lower ice maker depends on steady water pressure and a consistently cold freezer. Fixing the root cause prevents small cubes, clumping, and long recovery times.

For model-specific operating steps and troubleshooting, use the LFXS28596S owner's manual. If you need to order parts, use the parts list for this model or search by model number on Sears PartsDirect.
