Craftsman
Reel Walk-Behind Mower

Model # 15137664 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 15137664 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |

Wave Spring GB955-12
#14

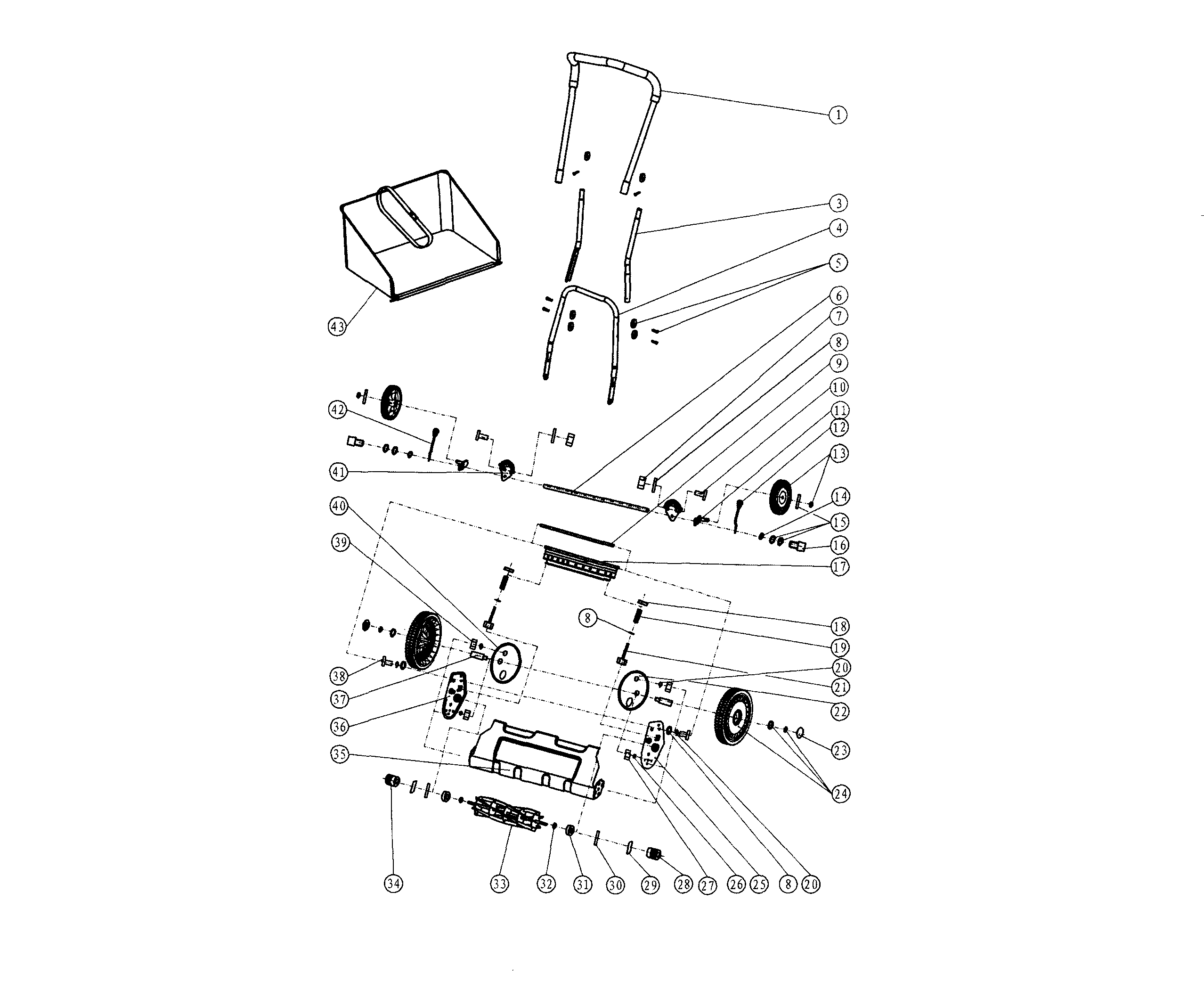

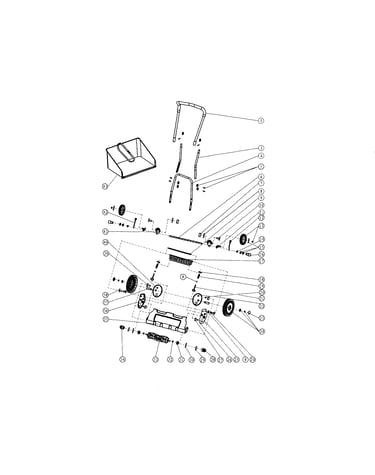

Main assy diagram

Wave spring

Part #GB955-12

The manufacturer no longer makes this part, and there's no substitute part

Bracket 100105950-01
#11

Main assy diagram

Bracket

Part #100105950-01

The manufacturer no longer makes this part, and there's no substitute part

Washer GB/T7244-8
#20

Main assy diagram

Washer

Part #GB/T7244-8

The manufacturer no longer makes this part, and there's no substitute part

Gear 100101205-01
#28

Main assy diagram

Gear

Part #100101205-01

The manufacturer no longer makes this part, and there's no substitute part

Bracket 100104857-01
#41

Main assy diagram

Bracket

Part #100104857-01

The manufacturer no longer makes this part, and there's no substitute part

Washer 23013415012
#30

Main assy diagram

Washer

Part #23013415012

The manufacturer no longer makes this part, and there's no substitute part

Pin 100101208-01
#29

Main assy diagram

Pin

Part #100101208-01

The manufacturer no longer makes this part, and there's no substitute part

Support 100104830-01
#36

Main assy diagram

Support

Part #100104830-01

The manufacturer no longer makes this part, and there's no substitute part

Shaft 100104321-01
#37

Main assy diagram

Shaft

Part #100104321-01

The manufacturer no longer makes this part, and there's no substitute part

Cover 100106520-01
#35

Main assy diagram

Cover

Part #100106520-01

The manufacturer no longer makes this part, and there's no substitute part
