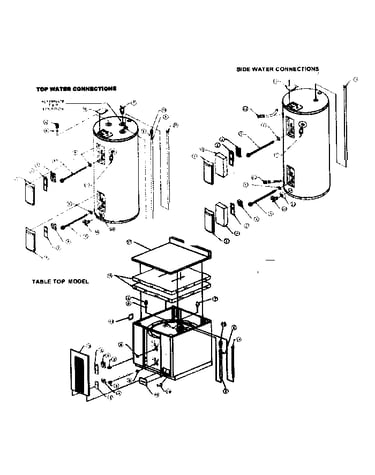

American Water Heaters E2F40LD045V water heater Parts

Water leakage is usually the most common water heater problem, and it is expected over the life of an American E2F40LD045V tank because normal corrosion eventually leads to seepage or leaks. Just as often, the “leak” is actually from a connection, the drain valve, or condensation; use the owner's manual to confirm the correct inspection points and safe setup.

Quick checks to pinpoint the source

Before assuming the tank has failed, we recommend checking these common leak sources:

• Cold and hot water connections at the top of the heater (look for slow drips and mineral tracks)
• Temperature and pressure (T&P) relief valve discharge line (intermittent dripping can look like a tank leak)
• Drain valve at the bottom (a worn valve can seep; see drain valve 100109106)
• Element access covers (moisture can come from a gasket or element area)
• Condensation on the tank during heavy hot-water use or humid conditions

What the manual says (and why it matters)

Your E2F40LD045V manual explains that, due to normal corrosive action, the tank will eventually leak after extended use. It also recommends installing a drain pan under the heater and piping it to an adequate drain to help prevent property damage.

Drain pan basics (typical requirements)

Item	Typical guidance from the manual	Why it matters
Pan depth limit	Max water level about 2-1/2 in.	Helps prevent overflow before you notice a leak
Pan size	About 2 in. wider than the heater	Catches drips from fittings and the tank
Drain line	About 3/4 in. ID, pitched to drain	Reduces standing water and overflow risk

When it is likely a tank leak vs. a part leak

• More likely a part/connection leak: water appears only after heating cycles, dripping from piping, or pooling near the drain valve.
• More likely a tank leak: water seeps from the tank body or bottom seam and persists even after drying the area.

Related troubleshooting help

If your heater has a display or diagnostic indicator, use American electric water heater error codes to match symptoms to likely causes.

Why this matters

A true tank leak typically means the heater is at end of life, while a valve, thermostat area, or connection leak is often repairable. Catching the difference early helps prevent water damage and avoids unnecessary part replacement.

You can order model-matched replacement parts for the E2F40LD045V from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

A new 40-gallon electric water heater typically costs about $500 to $1,200 for the unit, with installed totals commonly around $1,000 to $2,500 depending on labor rates, code upgrades, and disposal. For your American E2F40LD045V, repairing with the right parts can often restore hot water for far less than replacement; use the E2F40LD045V owner's manual to confirm specs and service steps.

What changes the price the most

• Tank type and efficiency: standard electric vs. higher-efficiency models
• Electrical work: new breaker, wiring, or disconnect upgrades
• Plumbing changes: shutoff valve, expansion tank, piping updates
• Code requirements: seismic strapping, drain pan, T&P discharge piping
• Access and labor time: tight closets, attic installs, long runs
• Disposal and haul-away: old tank removal fees

Repair vs. replace: quick comparison

If the tank is sound, common “no hot water” or “not enough hot water” problems are often element or thermostat related.

Option	Typical cost range	Best when
Replace heating element	Lower	Water is lukewarm or runs out fast; element tests open/grounded
Replace thermostat	Lower	Water temp is erratic; thermostat will not regulate properly
Replace entire heater	Higher	Tank is leaking or heavily corroded; repeated major failures

Parts that commonly apply to this model include the element 100108290, top t-stat 100108683, and lwr t-stat 100108421.

Why it matters

A 40-gallon electric water heater price is only part of the story; installation variables can double the total. Checking your E2F40LD045V symptoms first helps you decide whether a targeted repair (element, thermostat, drain valve) is the most cost-effective path.

Practical next steps for E2F40LD045V owners

• Confirm your model and serial from the data plate near the element door
• Review thermostat adjustment and safety notes in the E2F40LD045V owner's manual
• If you see fault indicators, use American electric water heater error codes
• Compare repair part pricing on this model’s parts list, or search by model at Sears PartsDirect

Last updated: February 2026

For an American E2F40LD045V electric water heater, it’s usually cheaper to repair when the problem is a serviceable part (like a thermostat, heating element, or drain valve). Replacement makes more sense when the tank itself is failing or the heater has been flooded or submerged.

When repair is usually the better value

We typically recommend repair when the issue is isolated to common, replaceable components and the tank is sound.

• No hot water or slow recovery caused by a failed heating element
• Water temperature swings caused by an out-of-calibration or failed thermostat
• A leaking drain valve that won’t seal
• Sediment noise that improves after draining and flushing
• A tripped high-limit reset (after the cause is corrected)

Model-relevant parts you can replace include the element 100108290, top t-stat 100108683, lwr t-stat 100108421, and drain valve 100109106. For model-specific procedures and safety steps, follow the owner's manual.

When replacement is the smarter choice

Some conditions point to replacing the entire water heater because repairs will not restore safe, reliable operation.

• The tank is leaking from the body of the heater (not a valve or fitting)
• The unit has been subjected to flood conditions or the thermostat area insulation has been exposed to water
• Repeated element failures caused by severe corrosion or chronic water-quality issues
• Heavy internal sediment leading to ongoing overheating, noise, or premature tank failure

Quick decision guide

Situation	Usually best choice	Why
Failed element or thermostat	Repair	Parts are serviceable and targeted fixes restore heat
Leaking drain valve	Repair	Valve replacement is straightforward and low-impact
Tank leak	Replace	Tank failure is not a practical repair
Flooded/submerged controls	Replace	Safety risk; full unit replacement is required

Why it matters

Repairing a working tank saves money and downtime, but replacing a compromised tank or water-exposed controls protects your home and helps prevent unsafe overheating (the high-limit safety shut-off trips around 170°F).

Ordering parts

You can order replacement parts for your E2F40LD045V from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

Most residential electric water heaters typically last 10 to 15 years. For your American E2F40LD045V electric water heater, regular maintenance (especially checking the anode rod and flushing sediment) is what most directly determines whether you land closer to 10 years or closer to 15.

Typical lifespan at a glance

Water heater type	Typical lifespan	What usually ends its life
Electric tank water heater	10 to 15 years	Tank corrosion after anode rod depletion
Gas tank water heater	8 to 12 years	Tank corrosion, burner and venting wear

What extends the life of the E2F40LD045V

The manual explains that the anode rod protects the glass-lined tank and slowly depletes over time; once it is depleted, the tank begins to corrode and can eventually leak. We use that guidance as the main maintenance driver for lifespan. See the owner's manual.

• Inspect the anode rod about every 3 years; replace it if it is more than 50% depleted.
• Flush sediment from the tank periodically to reduce element stress and improve heating efficiency.
• Keep thermostat settings reasonable; excessively high settings can increase scaling and wear.
• Address water odor correctly; do not remove the anode rod permanently.
• Watch for early warning signs: rusty hot water, popping/rumbling, slow recovery, or recurring breaker trips.

Why it matters

Once the anode rod is used up, the tank itself becomes the “next sacrificial metal.” That is why anode inspection and replacement is one of the most cost-effective ways to push an electric water heater toward the upper end of the 10 to 15 year range.

When parts replacement makes sense

If the tank is sound but performance is poor, replacing common service parts can restore normal operation.

• Heating issues: consider the element 100108290.
• Temperature control issues: consider the top t-stat 100108683 or lwr t-stat 100108421.
• Leaking at the drain outlet: consider the drain valve 100109106.

You can order replacement parts for your E2F40LD045V from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

Most water heater parts are not universally interchangeable, even when the heaters look similar. For the American E2F40LD045V electric water heater, we recommend matching parts by model number and part ID because electrical ratings, mounting styles, and safety controls must match the original design; see the owner's manual.

What is usually interchangeable (and what is not)

Some items can be shared across multiple models, but only when the specs and fit match exactly.

• Sometimes interchangeable (with exact match): heating elements, thermostats, drain valves, dip tubes
• Usually not interchangeable: control assemblies, wiring, high-limit safety controls, tank-specific fittings
• Never “swap to test” parts: thermostats, elements, or electrical connections (incorrect parts can overheat or trip the high limit)

Model-specific examples for E2F40LD045V

If you are replacing a common service part, use the exact part listed for your model.

Part type	Example part on this model	Why matching matters
Heating element	Element 100108290	Wattage/voltage and thread style must match
Upper thermostat	Top t-stat 100108683	Must match temperature range and safety design
Lower thermostat	Lwr t-stat 100108421	Incorrect calibration can cause temperature swings
Drain valve	Drain valve 100109106	Thread type and sealing surfaces must fit

How we recommend you confirm compatibility

Use these checks before ordering or installing any replacement part:

• Match the model number: E2F40LD045V
• Match the part ID (best) and part number (also helpful)
• Compare voltage and wattage for elements (electric models)
• Confirm mounting style and wire terminal type
• Verify pipe thread size on plumbing parts (for example, drain valve)

Why it matters

Water heater components are safety-critical. The manual warns against tampering with thermostats, heater elements, electrical connections, or the temperature and pressure relief valve; using the wrong part can lead to overheating, nuisance shutdowns, or unsafe water temperatures.

You can order the correct replacement parts from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026
