Model # DW423 TYPE 1 Official DeWalt 5" palm grip sander

Here are the diagrams and repair parts for Official DeWalt DW423-TYPE-1 5" palm grip sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Field Nut 144956-00
#44

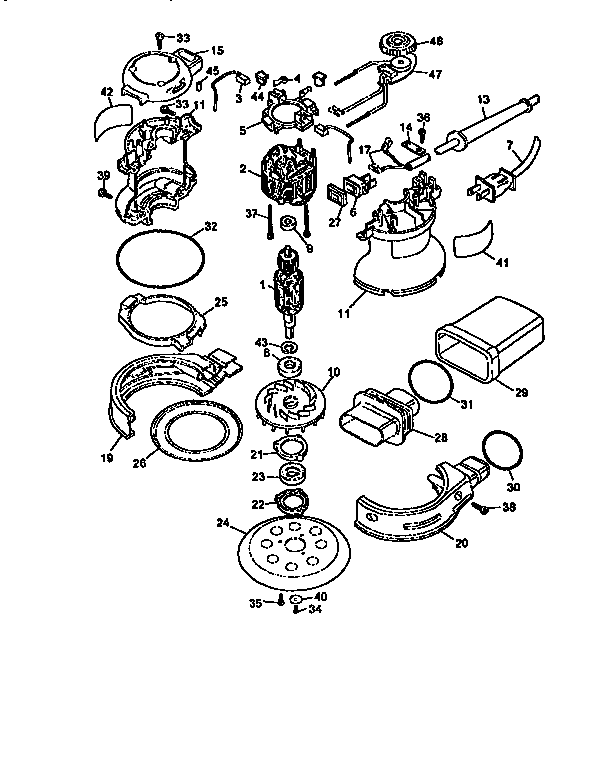

Unit parts diagram

Field nut

Part #144956-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 151652-00
#40

Unit parts diagram

Washer

Part #151652-00

The manufacturer no longer makes this part, and there's no substitute part

Plug 67356-00
#45

Unit parts diagram

Plug

Part #67356-00

The manufacturer no longer makes this part, and there's no substitute part

Knob 380027-00
#48

Unit parts diagram

Knob

Part #380027-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330019-02
#36

Unit parts diagram

Screw

Part #330019-02

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord Strain Relief 330005-01
#13

Unit parts diagram

Power tool power cord strain relief

Part #330005-01

The manufacturer no longer makes this part, and there's no substitute part

Clamshell 380382-00
#11

Unit parts diagram

Clamshell

Part #380382-00

The manufacturer no longer makes this part, and there's no substitute part

Drill Motor Brush Spring 445860-00
#4

Unit parts diagram

Drill motor brush spring

Part #445860-00

The manufacturer no longer makes this part, and there's no substitute part

Sander On/off Switch 144960-00
#6

Unit parts diagram

Sander on/off switch

Part #144960-00

The manufacturer no longer makes this part, and there's no substitute part

Sander Screw 98012-11
#34

Unit parts diagram

Sander screw

Part #98012-11

The manufacturer no longer makes this part, and there's no substitute part
