Whirlpool
Central Air Conditioner

Model #4ACE07LD0 Whirlpool air conditioner

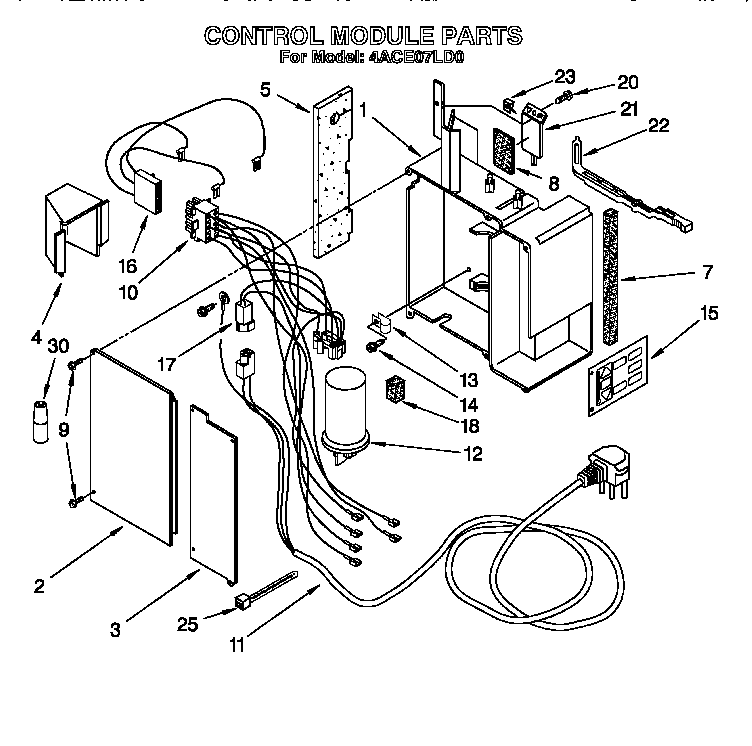

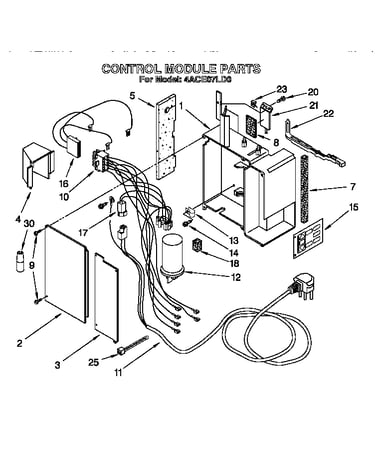

Here are the diagrams and repair parts for Whirlpool 4ACE07LD0 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 134 parts

    Appliance Silicone Sealant#10

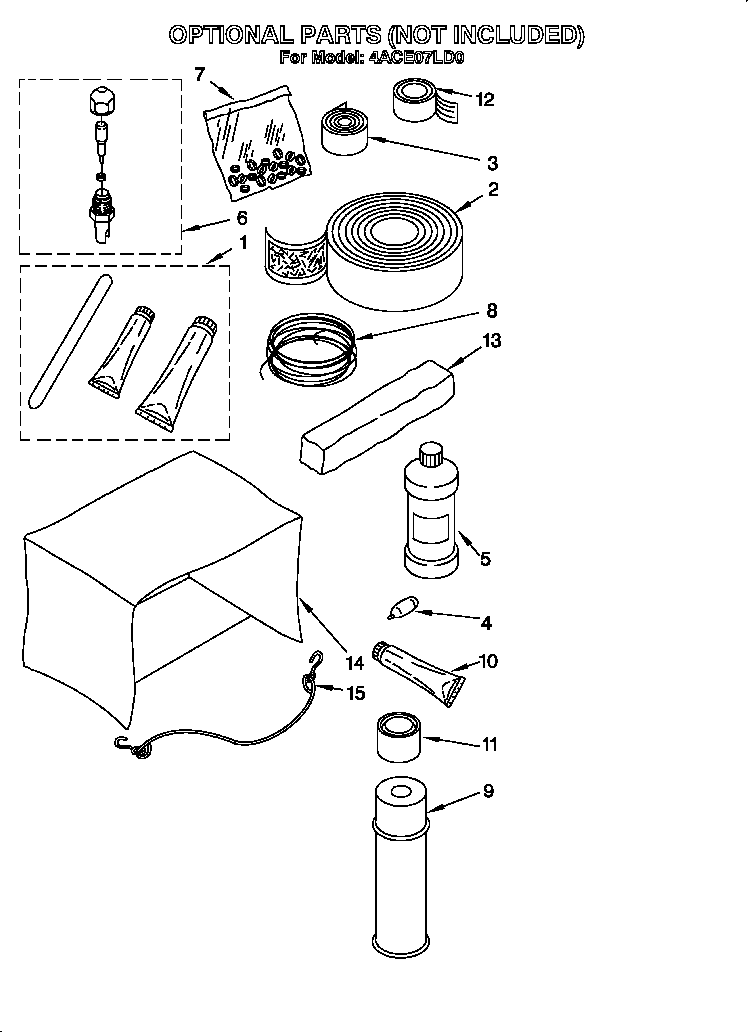

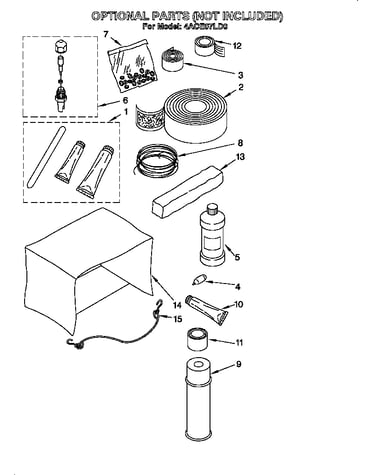

    Optional parts (not included) Diagram

    Cement

    Part #279368
    Replaced by #WP279368
    ?
    Manufacturer substitution
    This part replaces 279368. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $38.49 |
    8% OFF
    MSRP: $42.00
    Refrigerator Permagum Sealer#12

    Optional parts (not included) Diagram

    Sealer

    Part #212643
    Replaced by #212643
    ?
    Manufacturer substitution
    This part replaces 212643. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $50.09
    Refrigerator Vinyl Tape#3

    Optional parts (not included) Diagram

    Tape

    Part #479502
    Replaced by #W11238399
    ?
    Manufacturer substitution
    This part replaces 479502. Substitute parts can look different from the original.
    In Stock
    $55.36
    Refrigerator Service Valve#6A

    Optional parts (not included) Diagram

    Valve

    Part #876764
    Replaced by #876764
    ?
    Manufacturer substitution
    This part replaces 876764. Substitute parts can look different from the original.
    In Stock
    $32.87
    Refrigerator Service Valve#6C

    Optional parts (not included) Diagram

    Valve kit

    Part #978026
    Replaced by #978026
    ?
    Manufacturer substitution
    This part replaces 978026. Substitute parts can look different from the original.
    In Stock
    $34.19 |
    8% OFF
    MSRP: $37.00
    Refrigerator Service Valve#6F

    Optional parts (not included) Diagram

    Refrigerant access valve, 5/8-in

    Part #978029
    Replaced by #978029
    ?
    Manufacturer substitution
    This part replaces 978029. Substitute parts can look different from the original.
    In Stock
    $41.18
    Room Air Conditioner Outdoor Cover#14D

    Optional parts (not included) Diagram

    In Stock
    $54.51
    Seal#19

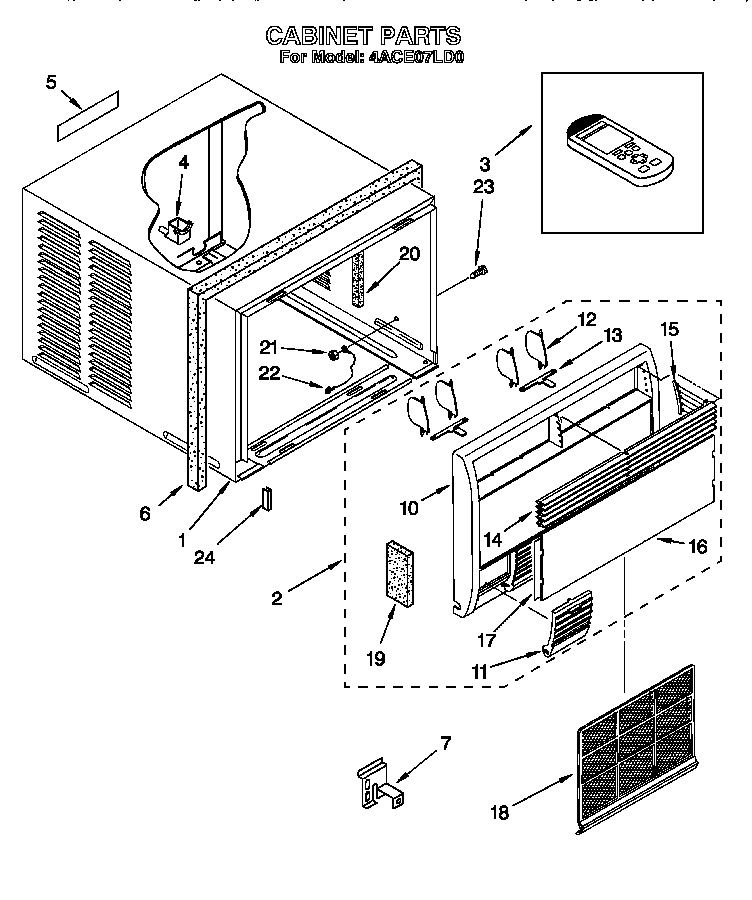

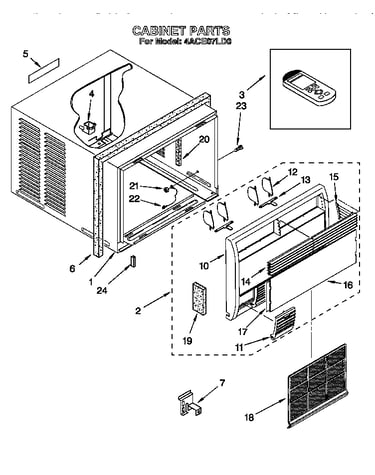

    Cabinet Diagram

    Seal

    Part #1163767
    In Stock
    $27.51
    Brkt-suprt#15

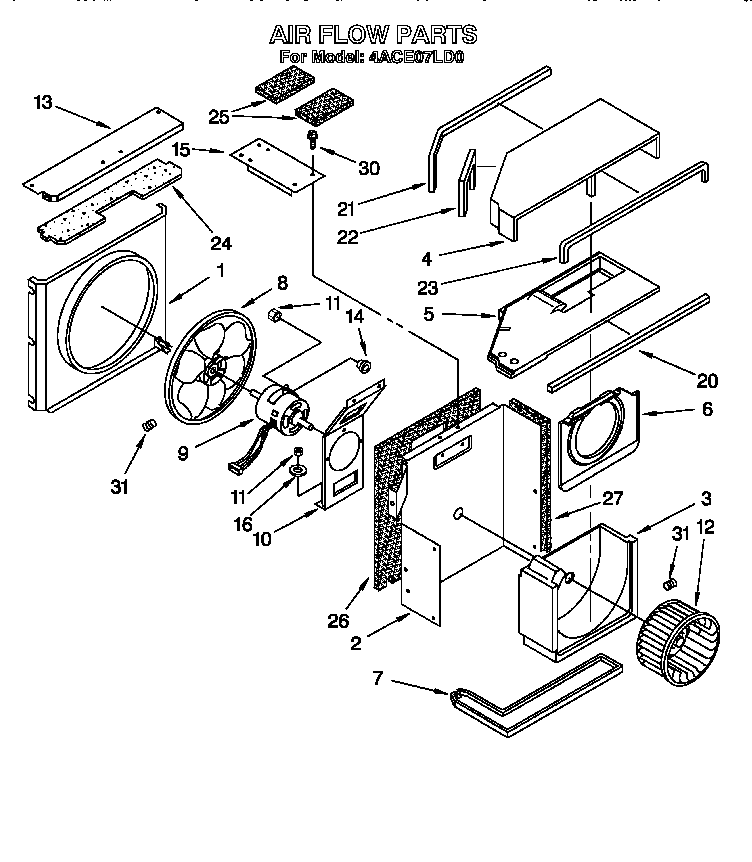

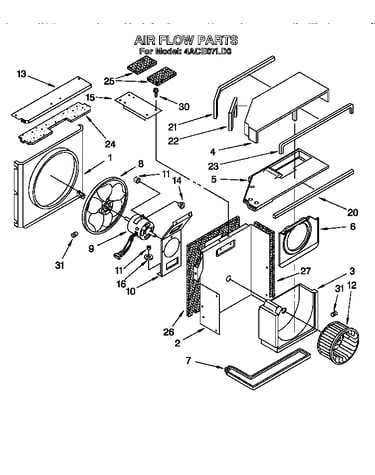

    Airflow Diagram

    Brkt-suprt

    Part #1181483
    This item is not returnable
    In Stock
    $3.29
    Anticipator#40

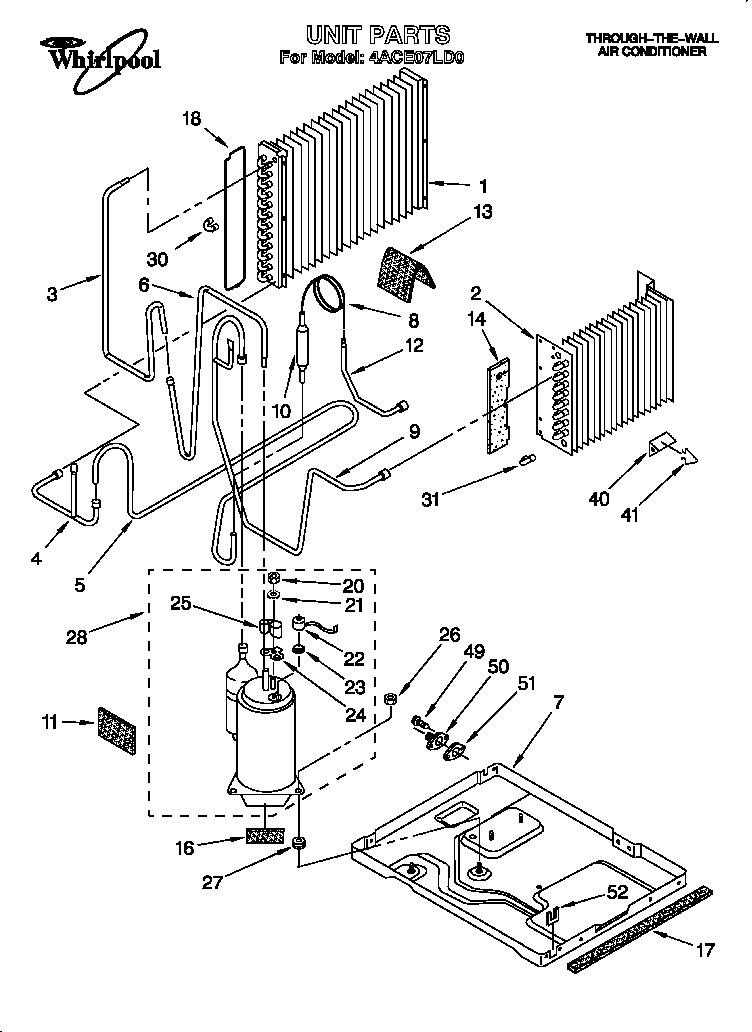

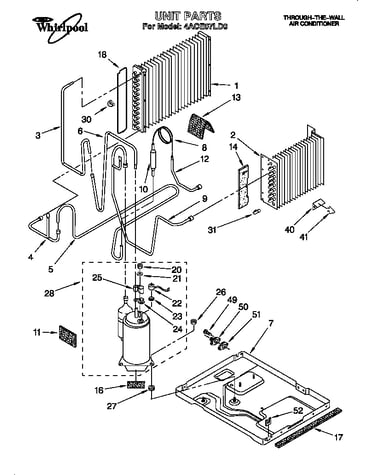

    Unit Diagram

    Anticipator

    Part #1164141
    This item is not returnable
    In Stock
    $3.29
