Model # 14921331 Official Craftsman multi-function drill press

Here are the diagrams and repair parts for Official Craftsman 14921331 multi-function drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |

Screw 4mm 5741-076-80
#76

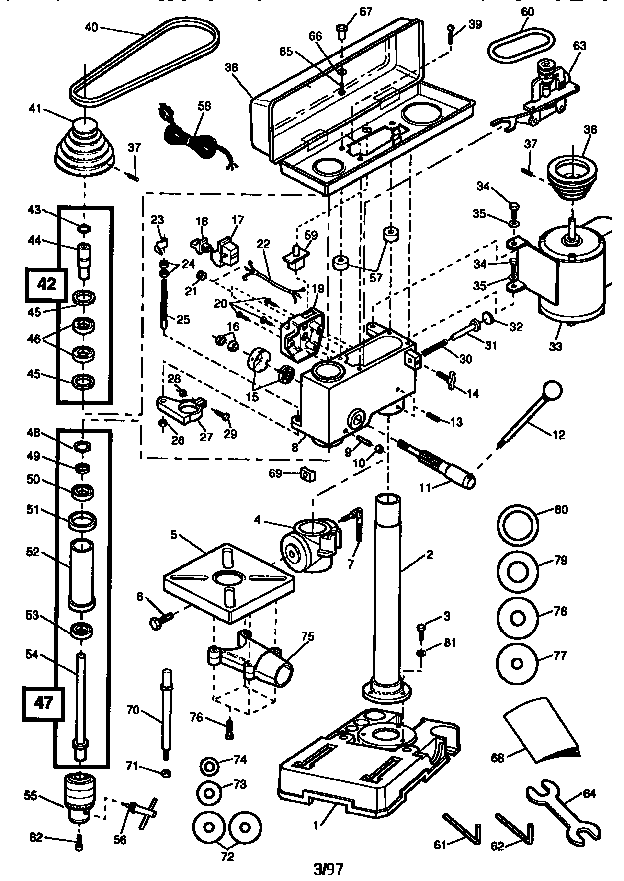

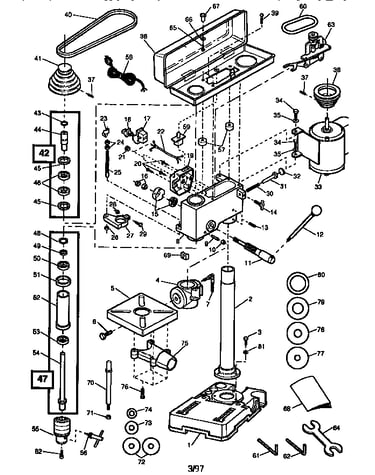

Unit parts diagram

Screw 4mm

Part #5741-076-80

The manufacturer no longer makes this part, and there's no substitute part

Quill Assembly 5741-047-80
#47

Unit parts diagram

Quill assembly

Part #5741-047-80

The manufacturer no longer makes this part, and there's no substitute part

Spring 5741-015-80
#15

Unit parts diagram

Spring

Part #5741-015-80

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 5741-048-80
#48

Unit parts diagram

Retaining ring

Part #5741-048-80

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 5741-042-80
#42

Unit parts diagram

Sleeve

Part #5741-042-80

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 5741-037-80
#37

Unit parts diagram

Set screw

Part #5741-037-80

The manufacturer no longer makes this part, and there's no substitute part

Pulley 5741-036-80
#36

Unit parts diagram

Pulley

Part #5741-036-80

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 5741-013-80
#13

Unit parts diagram

Set screw

Part #5741-013-80

The manufacturer no longer makes this part, and there's no substitute part

Bolt 5741-029-80
#29

Unit parts diagram

Bolt

Part #5741-029-80

The manufacturer no longer makes this part, and there's no substitute part

Rubber Pad 5741-032-80
#32

Unit parts diagram

Rubber pad

Part #5741-032-80

The manufacturer no longer makes this part, and there's no substitute part
