Model #RF23HCEDBSR/AA-10 Official Samsung refrigerator
Here are the diagrams and repair parts for Samsung RF23HCEDBSR-AA-10 refrigerator, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Showing 10 of 366 parts

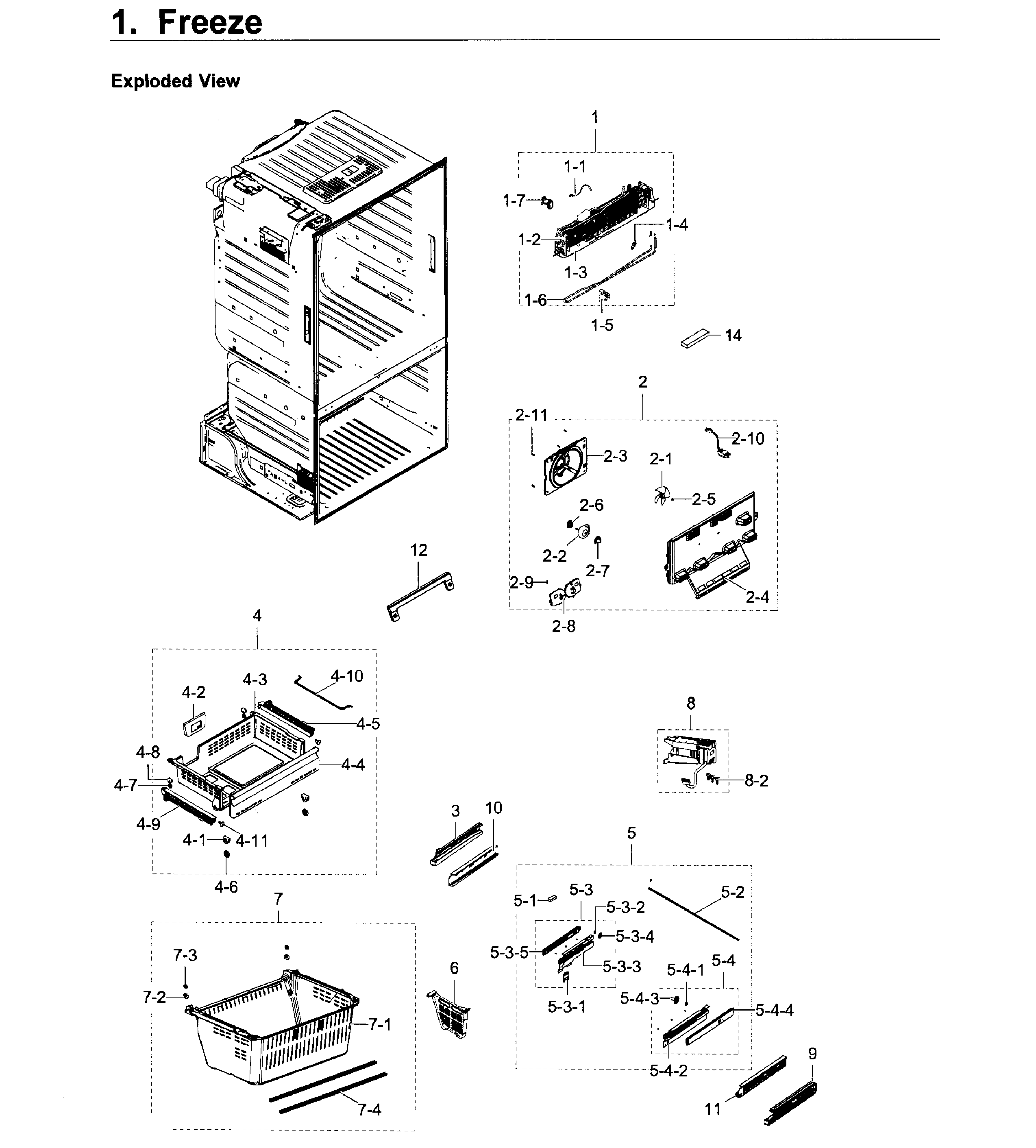

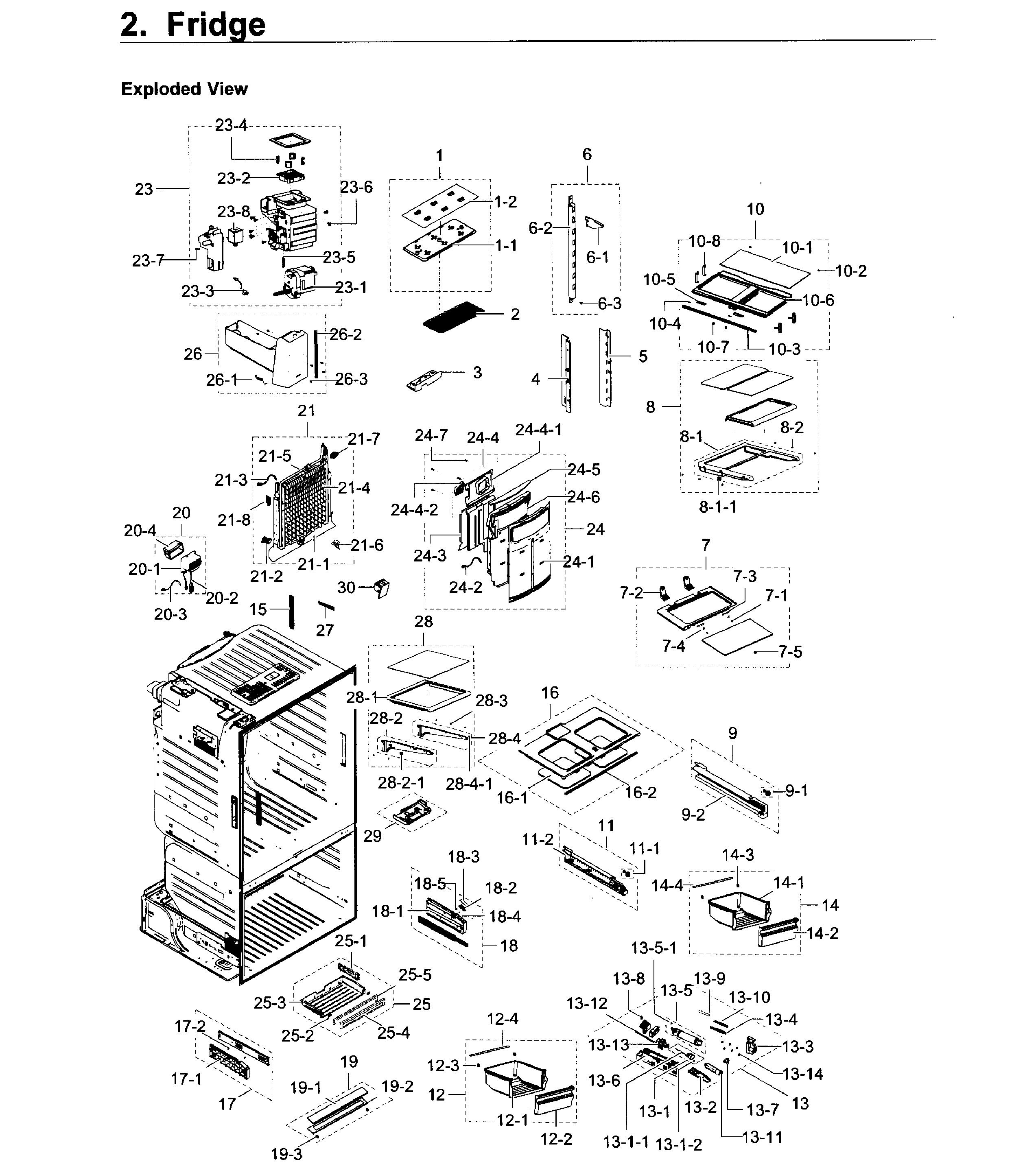

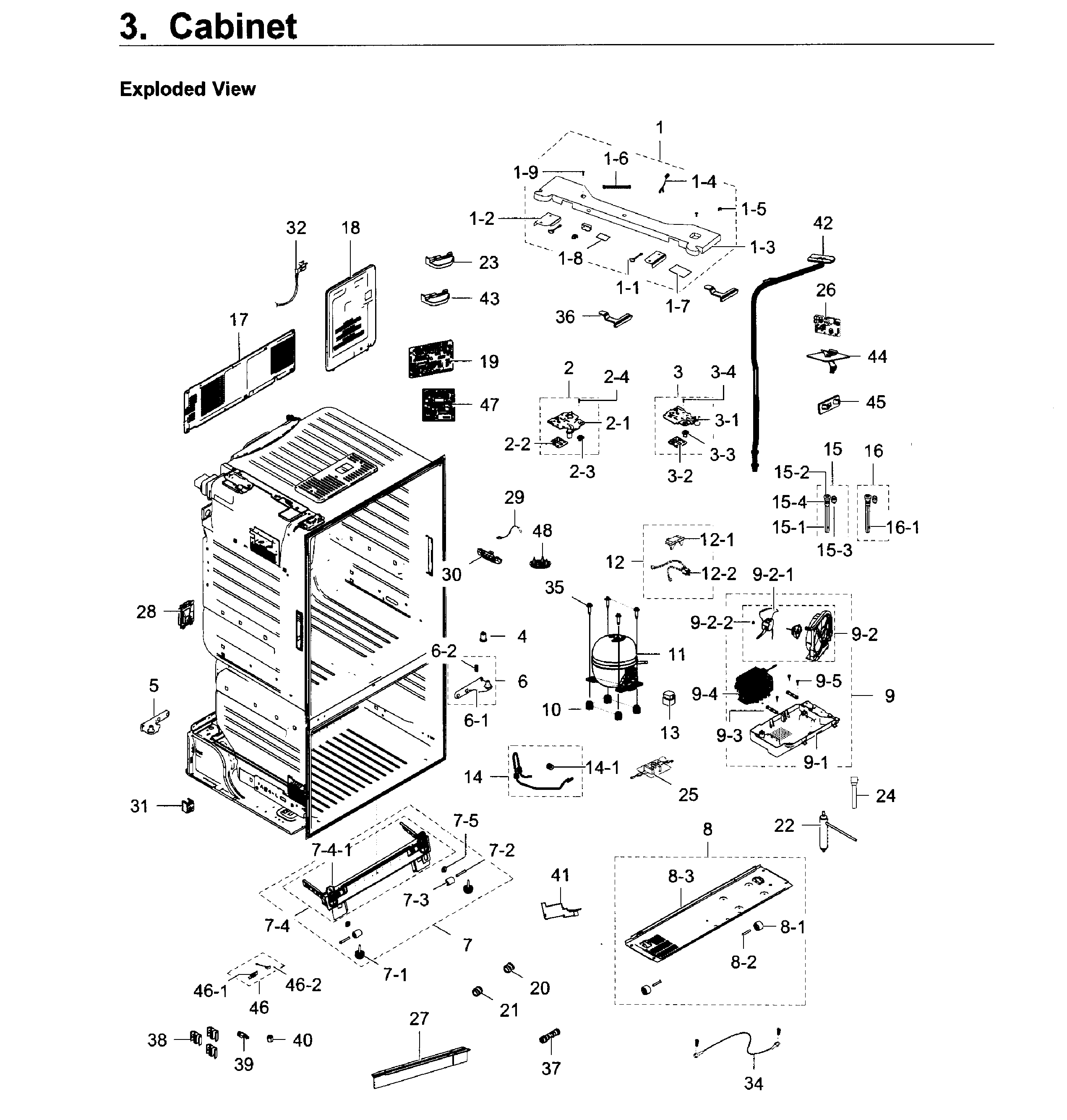

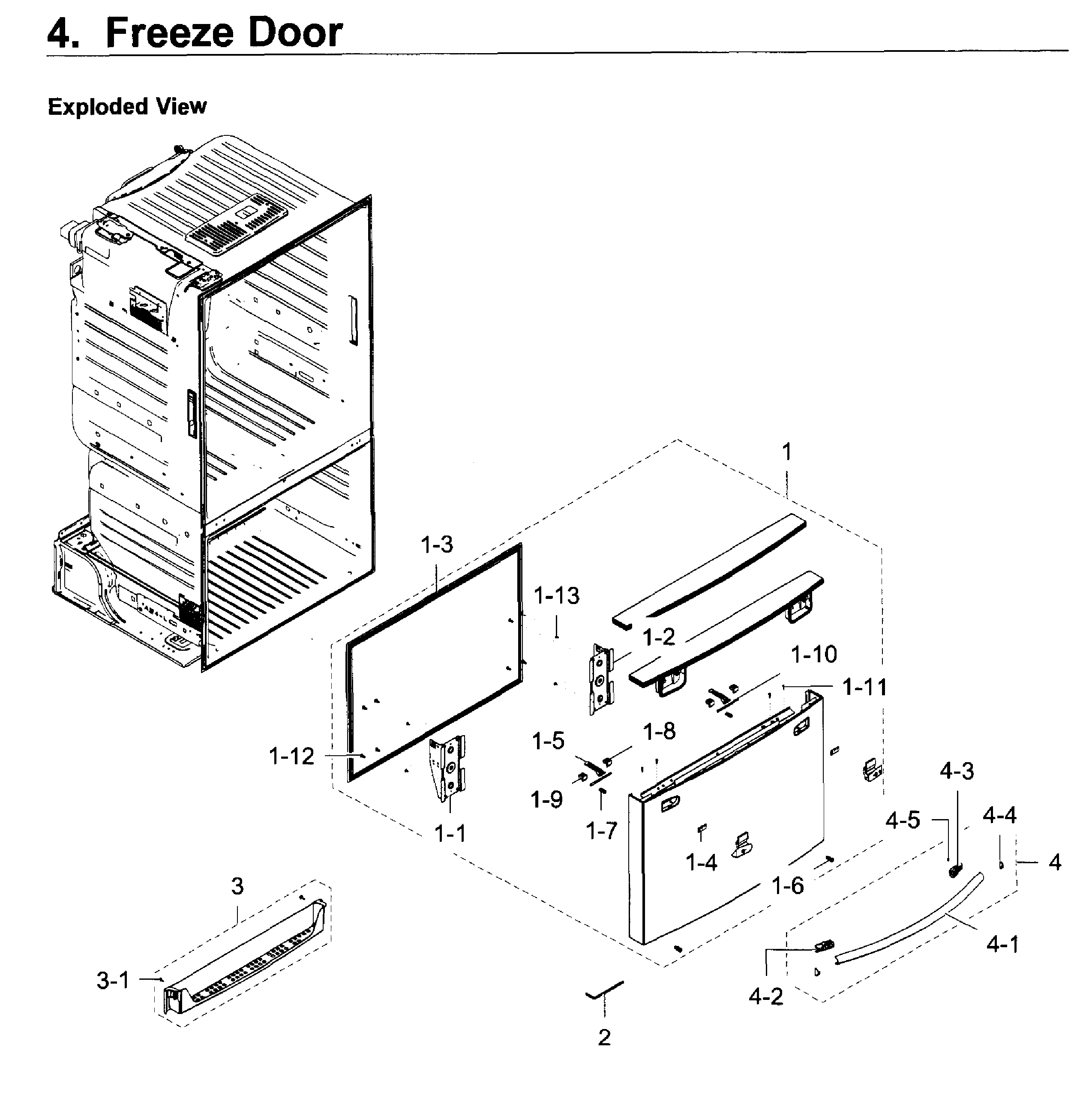

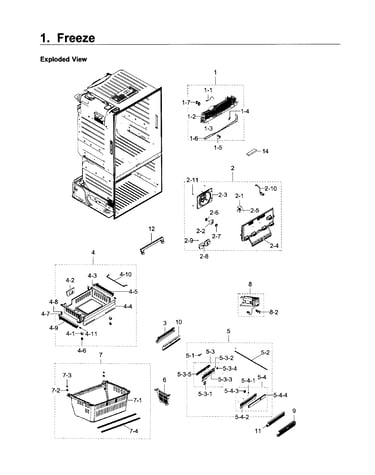

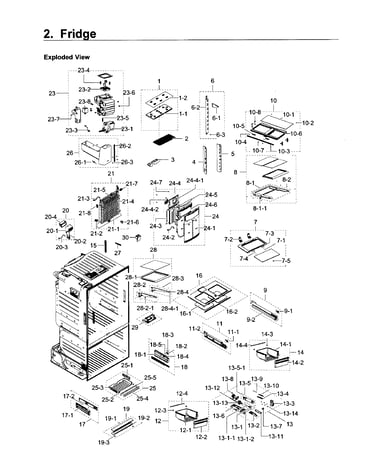

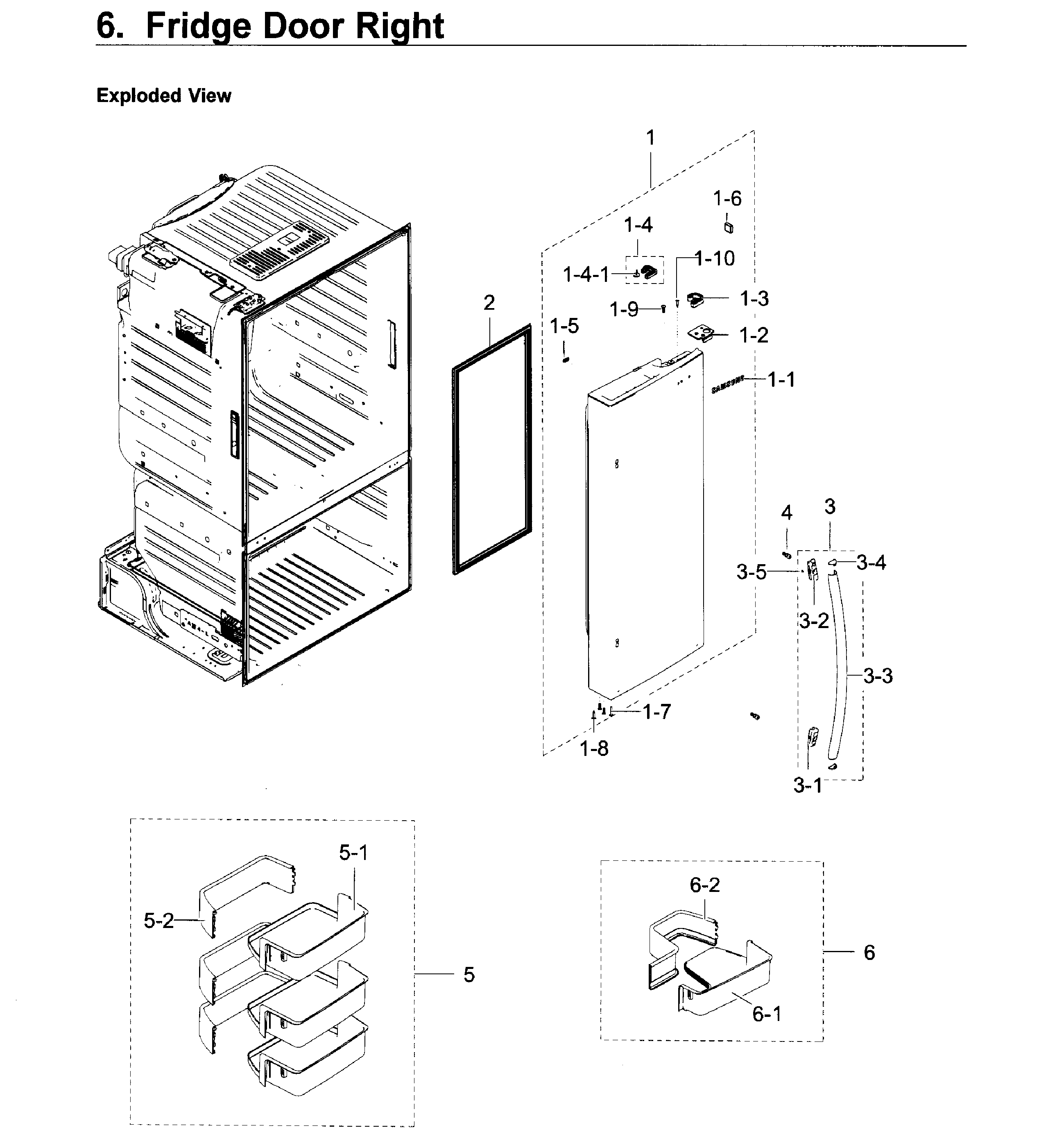

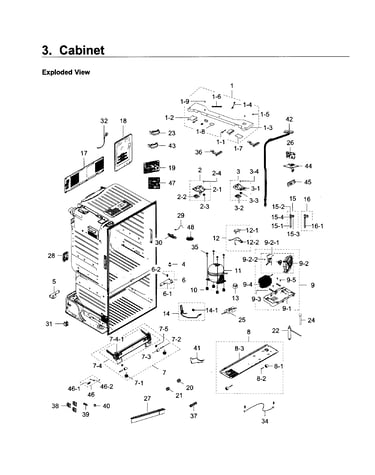

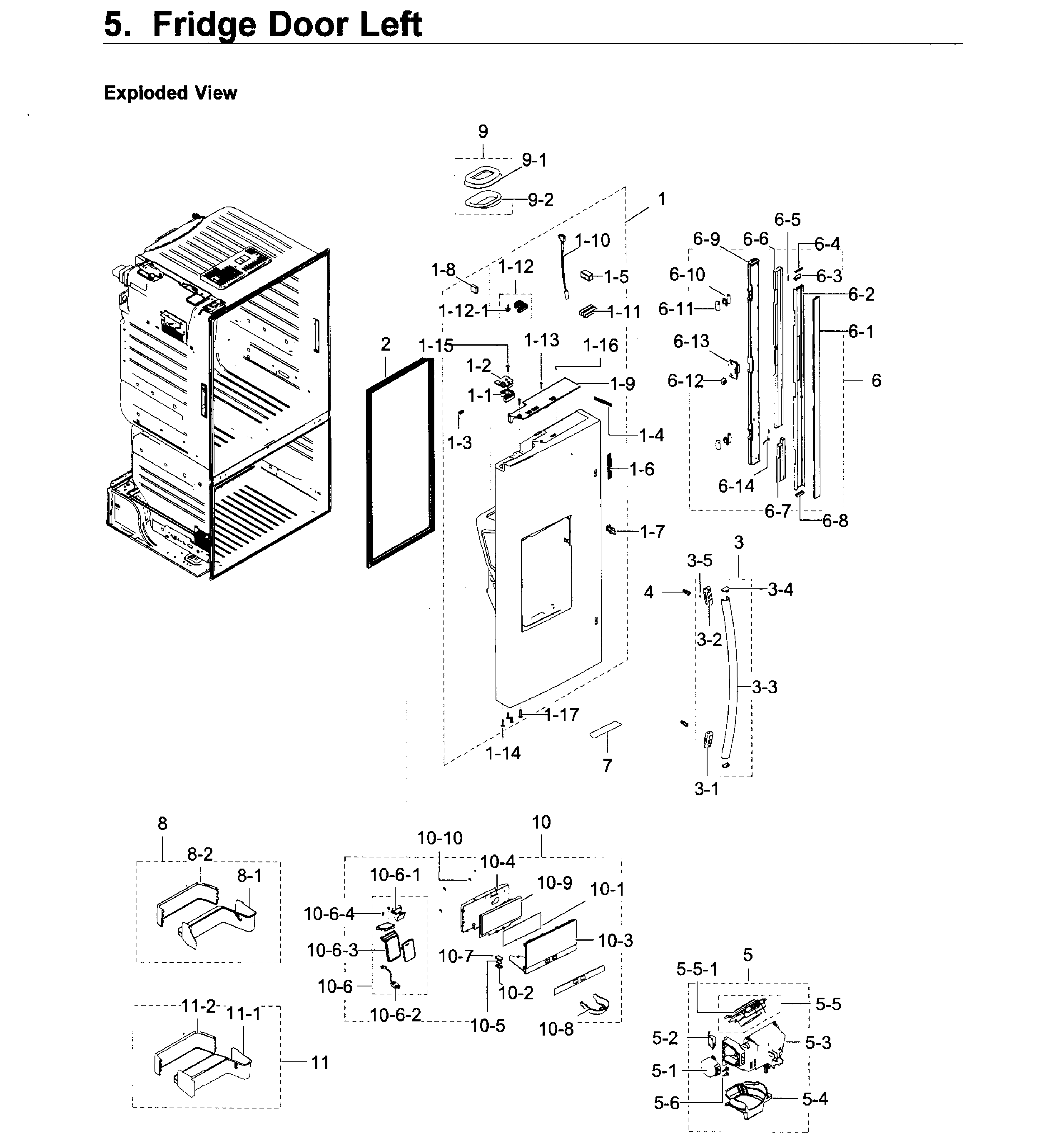

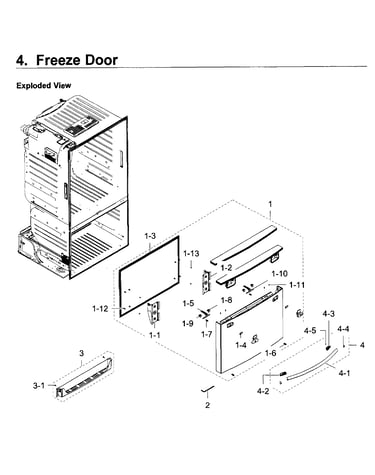

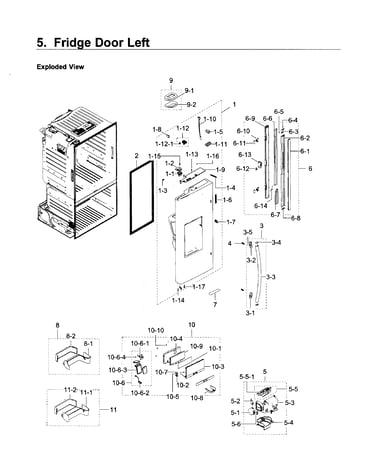

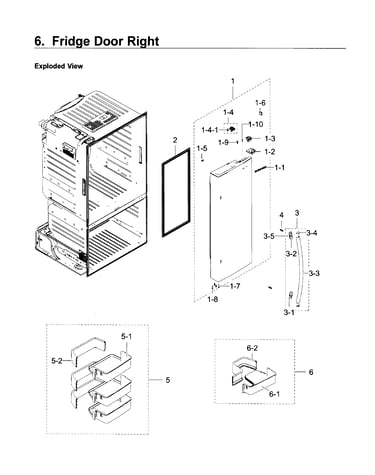

Fridge door l Diagram
Refrigerator dispenser ice chute cap and gasket assembly
See All Related Diagrams
Refrigerator door handle mounting stud
