Kenmore Elite
Wall Oven/Microwave Combo

Model # 79048809100 Official Kenmore Elite wall oven/microwave combo

Here are the diagrams and repair parts for Official Kenmore Elite 79048809100 wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

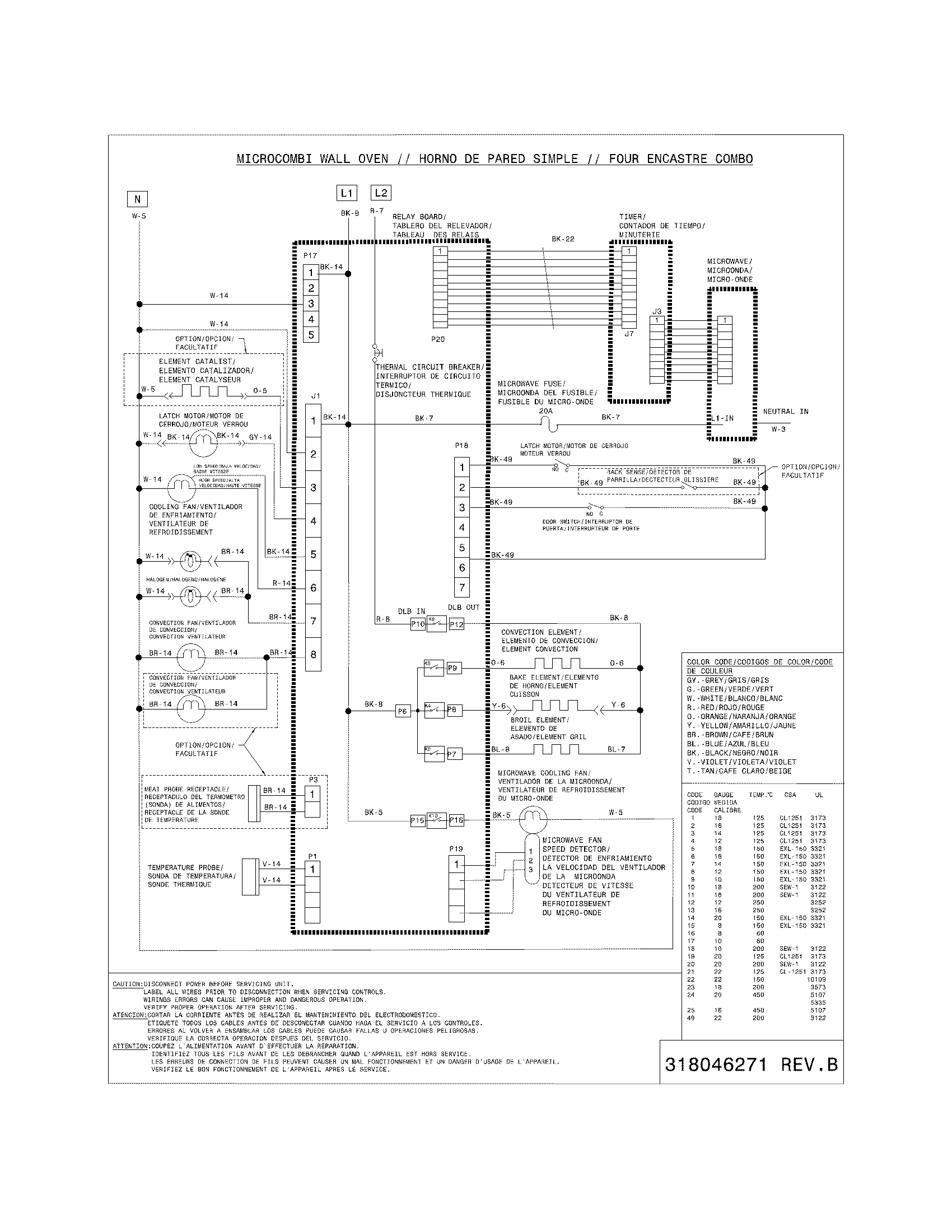

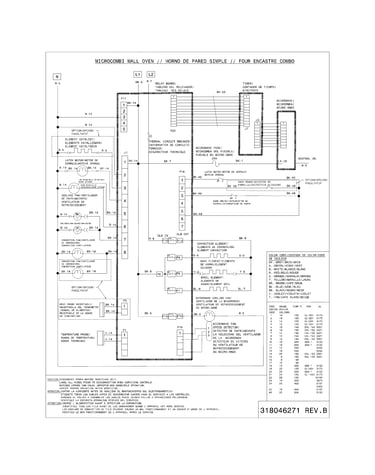

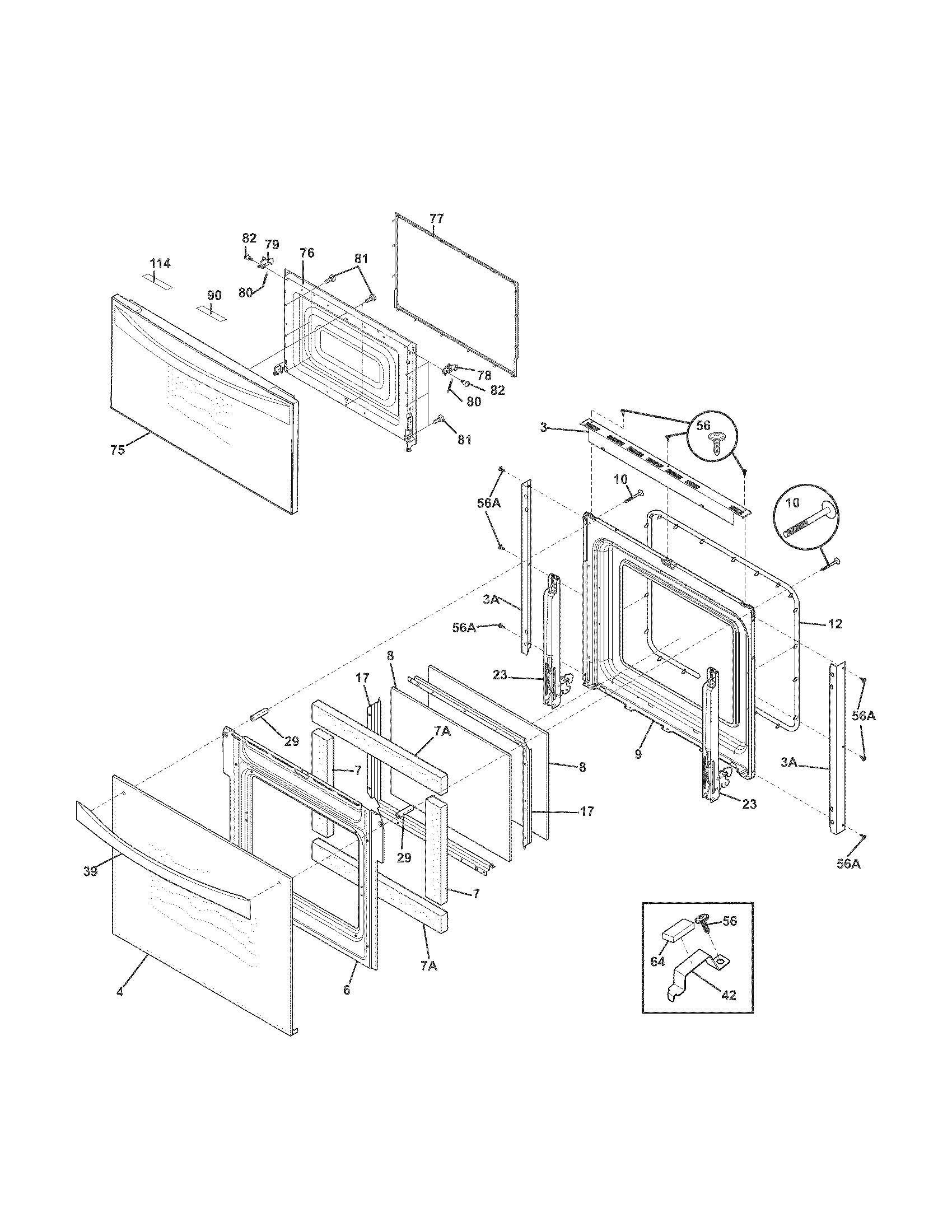

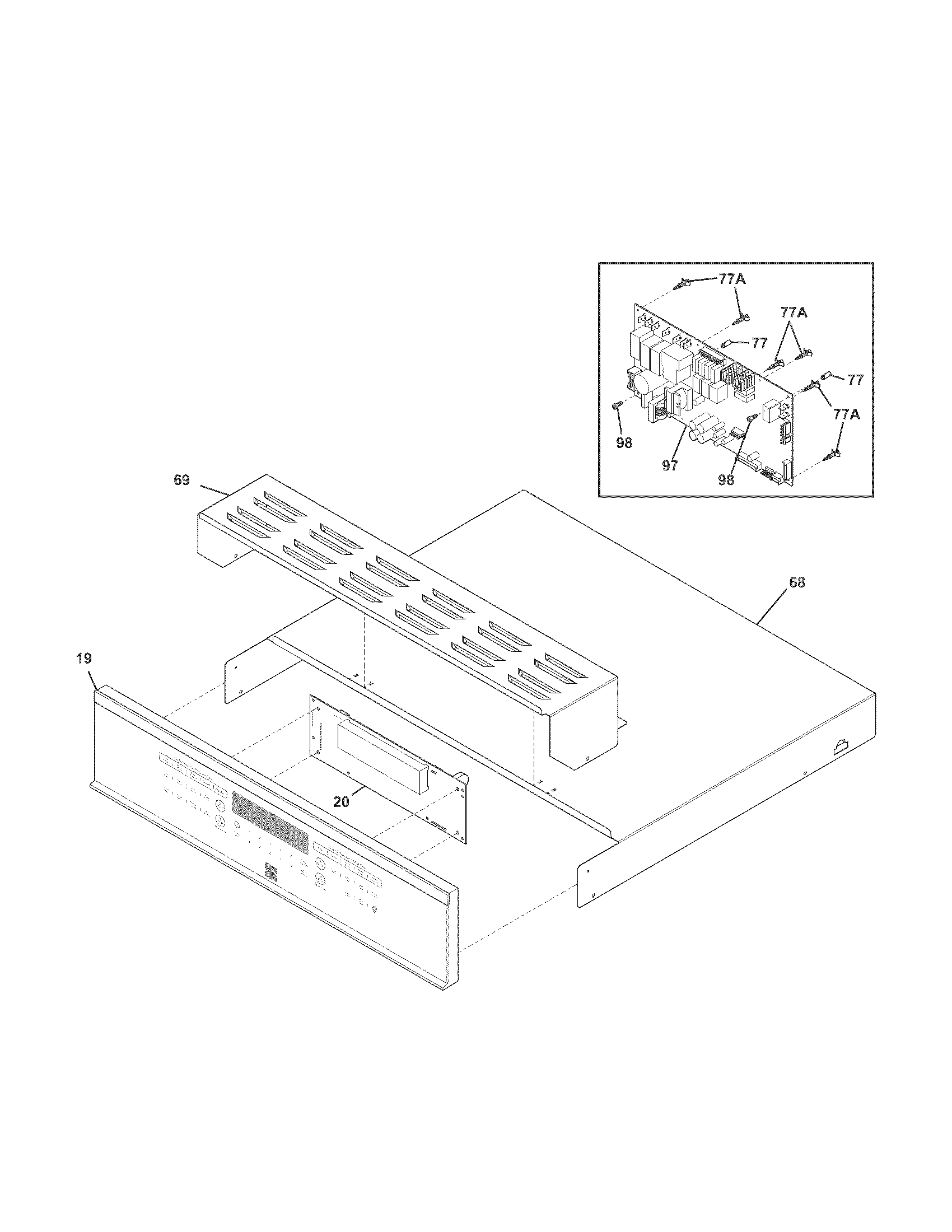

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 255 parts  |
Range Oven Temperature Sensor 318562500
#37

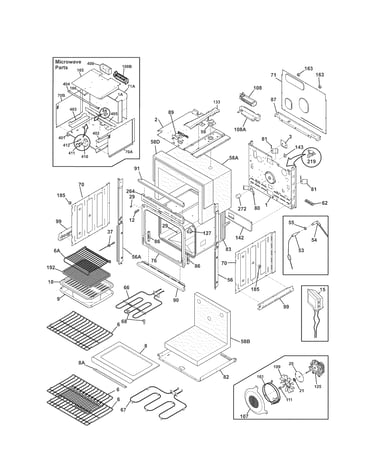

Lower oven diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$33.57 |
13% OFF Phone Price : $38.57
In Stock
Range Bake Element (replaces 318254908) 318254902
#67

Lower oven diagram

Range bake element (replaces 318254908)

Part #318254902

BEST SELLER
$160.73 |
6% OFF Phone Price : $170.73
In Stock
Microwave Door Interlock Switch 5304440026
#4

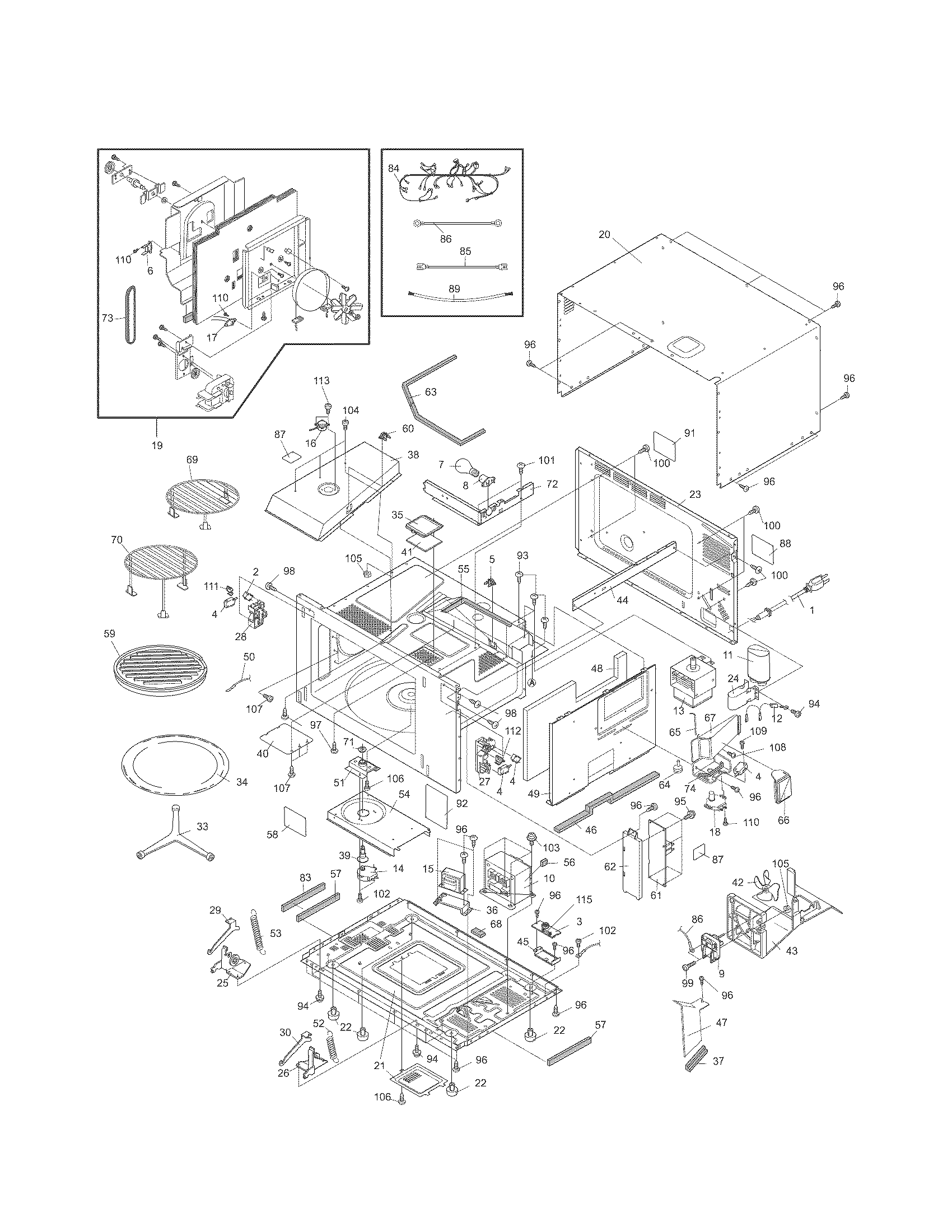

Microwave diagram

Microwave door interlock switch

Part #5304440026

BEST SELLER
$39.53 |
11% OFF Phone Price : $44.53
In Stock
Range Convection Fan Blade Nut (replaces 318399800, 5303311205, 7316136600) 316136600
#111

Lower oven diagram

Range convection fan blade nut (replaces 318399800, 5303311205, 7316136600)

Part #316136600

BEST SELLER
$19.99 |
9% OFF Phone Price : $21.99
In Stock
Lamp 318241005
#15

Lower oven diagram

Lamp

Part #318241005

Replaced by #318241008

?
Manufacturer substitution
This part replaces 318241005. Substitute parts can look different from the original.
BEST SELLER
$78.69 |
6% OFF Phone Price : $83.69
In Stock
Lamp 318241007
#15

Lower oven diagram

Lamp

Part #318241007

Replaced by #318241008

?
Manufacturer substitution
This part replaces 318241007. Substitute parts can look different from the original.
BEST SELLER
$78.69 |
6% OFF Phone Price : $83.69
In Stock
Microwave Magnetron (replaces 5303319556, 5304470540) 5304480636
#13

Microwave diagram

Microwave magnetron (replaces 5303319556, 5304470540)

Part #5304480636

$299.26 |
$10.00 OFF Phone Price : $309.26
In Stock
Microwave Rectifier 5304480635
#12

Microwave diagram

Microwave rectifier

Part #5304480635

$52.82
In Stock
Range Broil Element 318255601
#66

Lower oven diagram

Range broil element

Part #318255601

Replaced by #318255606

?
Manufacturer substitution
This part replaces 318255601. Substitute parts can look different from the original.
$158.01 |
6% OFF Phone Price : $168.01
In Stock
Range Broil Pan Insert 316082000
#10

Lower oven diagram

Range broil pan insert

Part #316082000

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 316082000. Substitute parts can look different from the original.
$59.77 |
8% OFF Phone Price : $64.77
In Stock
