Model # 3069123 Official Craftsman planer

Here are the diagrams and repair parts for Official Craftsman 3069123 planer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

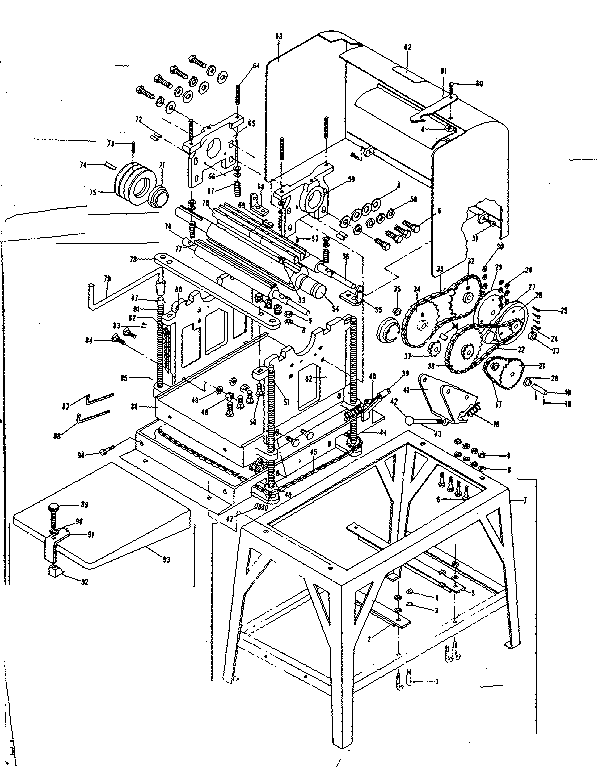

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Washer Z-57
#8

Unit parts diagram

Washer

Part #Z-57

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw Z-67
#6

Unit parts diagram

Cap screw

Part #Z-67

The manufacturer no longer makes this part, and there's no substitute part

Rol Chain-27 P-354A
#22

Unit parts diagram

Rol chain-27

Part #P-354A

The manufacturer no longer makes this part, and there's no substitute part

Nut Z-58
#9

Unit parts diagram

Nut

Part #Z-58

The manufacturer no longer makes this part, and there's no substitute part

Spring P-358
#28

Unit parts diagram

Spring

Part #P-358

The manufacturer no longer makes this part, and there's no substitute part

Cutter Head P-370A
#54

Unit parts diagram

Cutter head

Part #P-370A

The manufacturer no longer makes this part, and there's no substitute part

Nut Z-69
#48

Unit parts diagram

Nut

Part #Z-69

The manufacturer no longer makes this part, and there's no substitute part

Drive Pins Z-92
#83

Unit parts diagram

Drive pins

Part #Z-92

The manufacturer no longer makes this part, and there's no substitute part

L Brg Hsg H-104A
#65

Unit parts diagram

L brg hsg

Part #H-104A

The manufacturer no longer makes this part, and there's no substitute part

Wrench Z-54
#87

Unit parts diagram

Wrench

Part #Z-54

The manufacturer no longer makes this part, and there's no substitute part
