Model # GCWM3067ADB Official Frigidaire electric oven/microwave combo

Here are the diagrams and repair parts for Official Frigidaire GCWM3067ADB electric oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

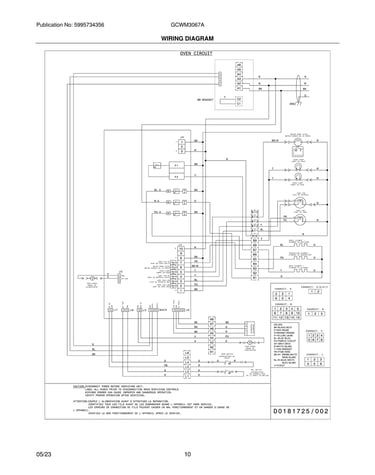

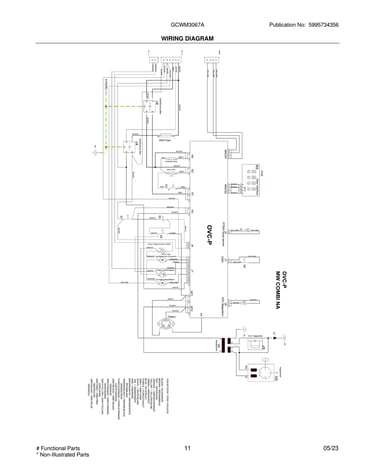

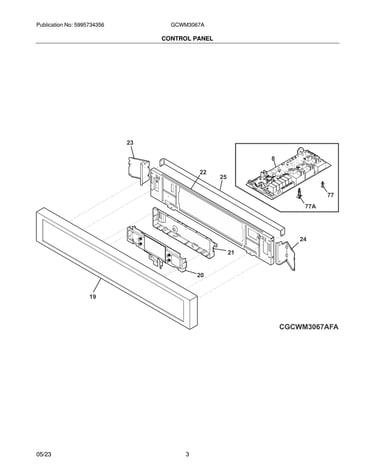

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 166 parts  |
Terminal Block 316056000
#62

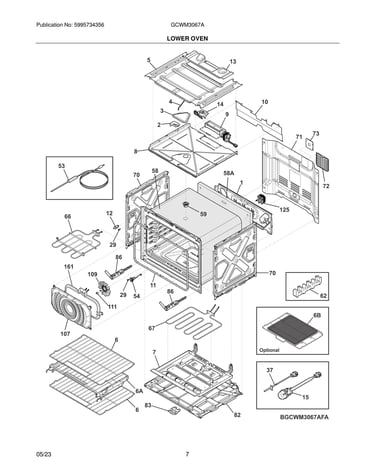

Lower oven diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Wall Oven Microwave Fuse And Holder 318647300
#44

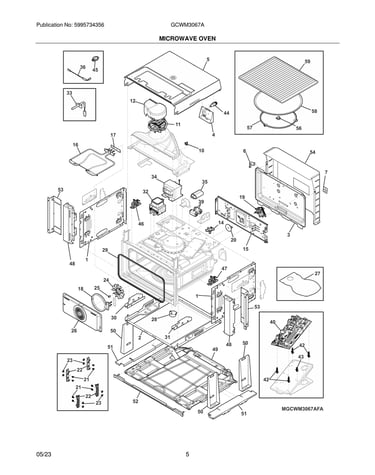

Microwave oven diagram

Wall oven microwave fuse and holder

Part #318647300

$112.88
In Stock
Interlock L A16919201
#46

Microwave oven diagram

Interlock l

Part #A16919201

Replaced by #A23242801

?
Manufacturer substitution
This part replaces A16919201. Substitute parts can look different from the original.
$86.24
In Stock
Wall Oven Microwave Electronic Control Board A18493801
#40

Microwave oven diagram

Wall oven microwave electronic control board

Part #A18493801

$232.35
In Stock
Range Door Light Switch 318394802
#12

Lower oven diagram

Range door light switch

Part #318394802

Replaced by #808136601

?
Manufacturer substitution
This part replaces 318394802. Substitute parts can look different from the original.
$32.29 |
13% OFF Phone Price : $37.29
In Stock
Wall Oven Door Outer Panel Assembly (stainless And Black) 5304526649
#4

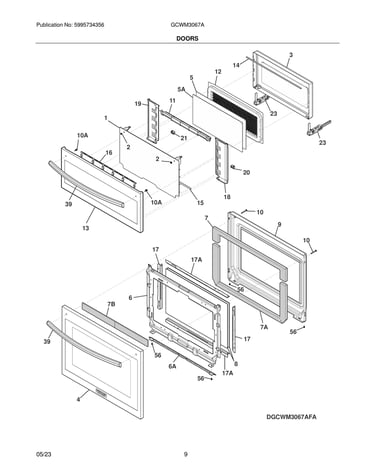

Door diagram

Wall oven door outer panel assembly (stainless and black)

Part #5304526649

$217.24
In Stock
Thermostat A01802605
#10

Microwave oven diagram

Thermostat

Part #A01802605

$25.17
In Stock
Magnetron 555030400
#32

Microwave oven diagram

Magnetron

Part #555030400

$165.88
In Stock
Screw 316433305
#10

Door diagram

Screw

Part #316433305

Replaced by #5304414648

?
Manufacturer substitution
This part replaces 316433305. Substitute parts can look different from the original.
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Elelemnt 5304526373
#67

Lower oven diagram

Elelemnt

Part #5304526373

$182.26
In Stock
