Model # GCWS3067AFB Official Frigidaire electric wall oven

Here are the diagrams and repair parts for Official Frigidaire GCWS3067AFB electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

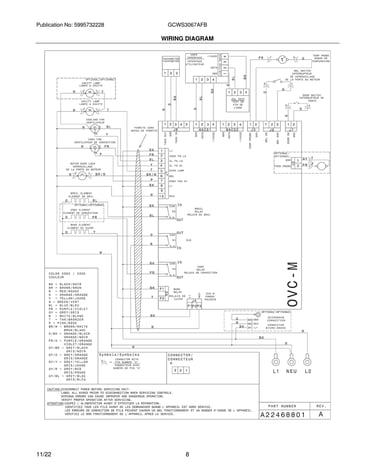

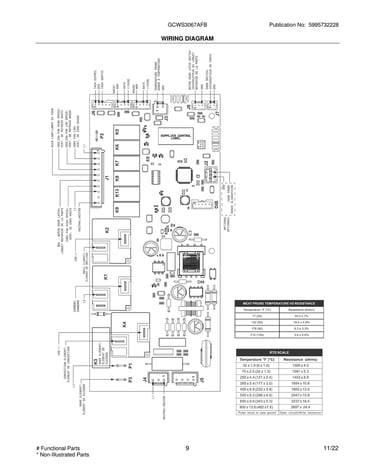

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Screws

Spacers

ALL PARTS

Showing 10 of 68 parts |

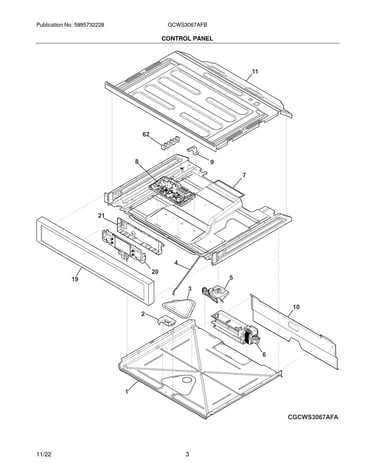

Control panel diagram

Board assemb

Part #5304526480

$131.30

In Stock

Qty

#37

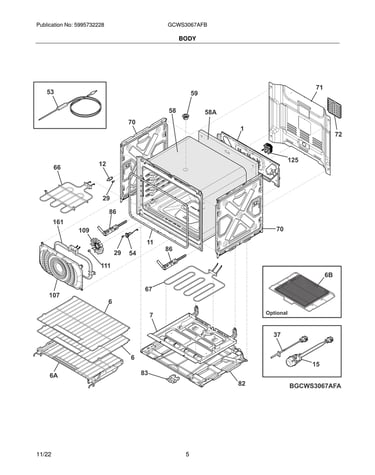

Body diagram

Probe

Part #5304526310

$29.93

In Stock

Qty

#NI

Control panel diagram

Range screw

Part #316001003

Replaced by #316001017

This item is not returnable

$2.16

In Stock

Qty

#15

Body diagram

Lamp assembl

Part #5304530343

$25.22

In Stock

Qty

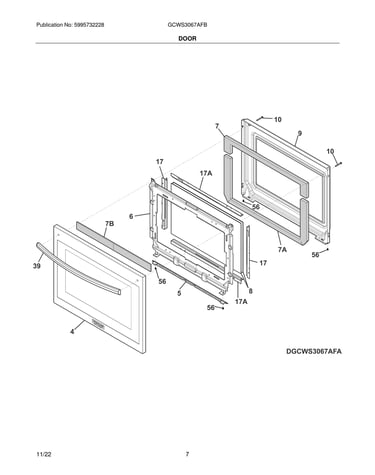

Door diagram

Insulation

Part #5304526656

$9.09

In Stock

Qty

#NI

Body diagram

Anti tip

Part #5304530450

$27.32

In Stock

Qty

Door diagram

Range oven door middle glass

Part #5304526387

$107.28

In Stock

Qty

#19

Control panel diagram

Wall oven control panel

Part #5304526476

$192.09

In Stock

Qty

Control panel diagram

Carrier plat

Part #5304526538

$113.04

In Stock

Qty

#6A

Body diagram

Rack assembl

Part #5304526506

$177.32

In Stock

Qty
