GE
Gas Cooktop

Model # JGP989KC1CC Official GE gas cooktop

Here are the diagrams and repair parts for Official GE JGP989KC1CC gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Range Oven Selector Switch Knob (replaces Wb03x10322, Wb3t10035) WB03T10035
#40

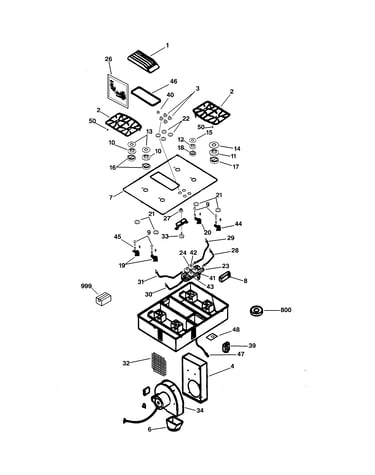

Control panel & cooktop diagram

Range oven selector switch knob (replaces wb03x10322, wb3t10035)

Part #WB03T10035

BEST SELLER
This item is not returnable
$7.69 |
12% OFF Phone Price : $8.69
In Stock
Grate Rubber Foot WB02T10101
#50

Control panel & cooktop diagram

Grate rubber foot

Part #WB02T10101

Replaced by #WB02T10461

?
Manufacturer substitution
This part replaces WB02T10101. Substitute parts can look different from the original.
BEST SELLER
$7.64 |
12% OFF Phone Price : $8.64
In Stock
Cooktop Burner Igniter WB13T10010
#9

Control panel & cooktop diagram

Cooktop burner igniter

Part #WB13T10010

Replaced by #WB13X27058

?
Manufacturer substitution
This part replaces WB13T10010. Substitute parts can look different from the original.
BEST SELLER
$59.88 |
8% OFF Phone Price : $64.88
In Stock
Burner Head WB16T10008
#10

Control panel & cooktop diagram

Burner head

Part #WB16T10008

Replaced by #WB16T10028

?
Manufacturer substitution
This part replaces WB16T10008. Substitute parts can look different from the original.
$66.92 |
7% OFF Phone Price : $71.92
In Stock
Cooktop Power Cord WB08X10018
#47

Control panel & cooktop diagram

Cooktop power cord

Part #WB08X10018

$41.30
In Stock
Cooktop Orifice Spud WB28X10030
#31

Control panel & cooktop diagram

Cooktop orifice spud

Part #WB28X10030

$49.24
In Stock
Cooktop Orifice Spud WB28X10027
#28

Control panel & cooktop diagram

Cooktop orifice spud

Part #WB28X10027

$37.30 |
12% OFF Phone Price : $42.30
In Stock
Cooktop Burner Valve WB21X10053
#43

Control panel & cooktop diagram

Cooktop burner valve

Part #WB21X10053

$81.58 |
6% OFF Phone Price : $86.58
In Stock
Guard Wire WB02X10652
#32

Control panel & cooktop diagram

Guard wire

Part #WB02X10652

$30.65 |
14% OFF Phone Price : $35.65
In Stock
Gasket Manif WB06X10276
#48

Control panel & cooktop diagram

Gasket manif

Part #WB06X10276

$52.04
In Stock
