Roper
Chest Freezer

Model # RH1000REW00 Official Roper chest freezer

Here are the diagrams and repair parts for Official Roper RH1000REW00 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |

Run Capacitor 4390503
#7

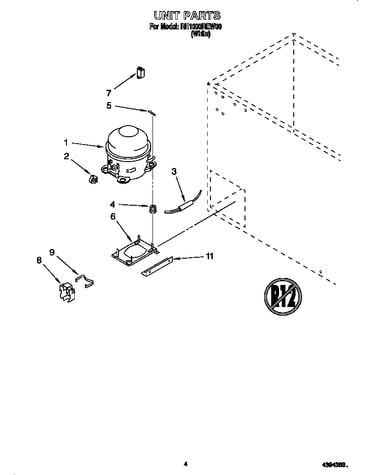

Unit diagram

Run capacitor

Part #4390503

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces 4390503. Substitute parts can look different from the original.
BEST SELLER
$63.29
7% OFF Phone Price : $68.29
In Stock
Drier Tube 4356675
#3

Unit diagram

Drier tube

Part #4356675

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4356675. Substitute parts can look different from the original.
BEST SELLER
$31.58
31% OFF MSRP : $46.00
In Stock
Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
Grommet 4356321
#4

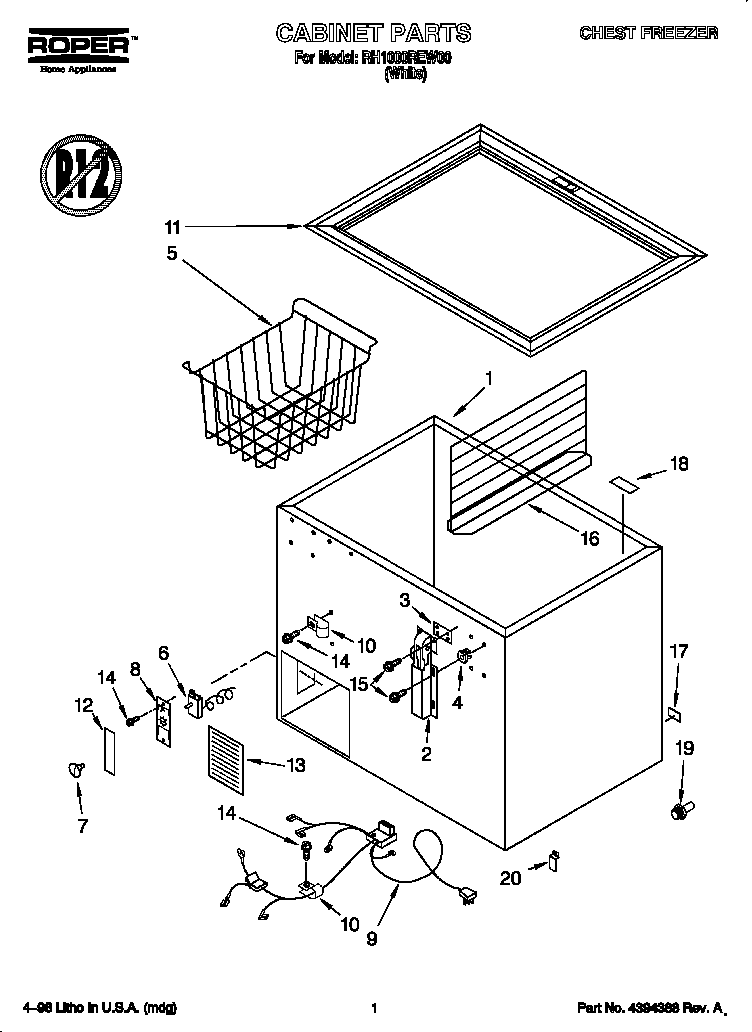

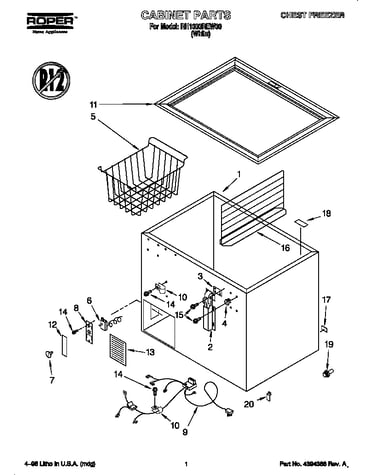

Cabinet diagram

Grommet

Part #4356321

$15.29
12% OFF Phone Price : $17.29
In Stock
Screw 4356491
#15

Cabinet diagram

Screw

Part #4356491

In Stock
Nameplate 4356372
#12

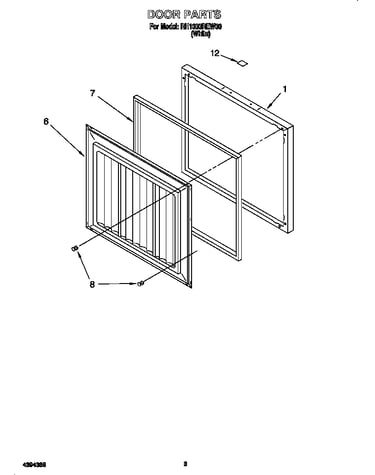

Door diagram

Nameplate

Part #4356372

In Stock
Panel 4356622
#13

Cabinet diagram

Panel

Part #4356622

In Stock
Appliance Porcelain Touch-up Paint, 1-qt (white) 799344

#NI

All parts diagram

Appliance porcelain touch-up paint, 1-qt (white)

Part #799344

$98.79
10% OFF MSRP : $110.00
In Stock
Spacer 4356369
#3

Cabinet diagram

Spacer

Part #4356369

Replaced by #1-17548-006

?
Manufacturer substitution
This part replaces 4356369. Substitute parts can look different from the original.
In Stock
Spray Paint 350942

#NI

All parts diagram

Spray paint

Part #350942

Replaced by #350942

?
Manufacturer substitution
This part replaces 350942. Substitute parts can look different from the original.
In Stock

Most common symptoms to help you fix your freestanding freezers

Choose a symptom to see related freezer repairs.

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
