Frigidaire
Microwave/Hood Combo

Model # FMV158FMB Official Frigidaire microwave

Here are the diagrams and repair parts for Official Frigidaire FMV158FMB microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

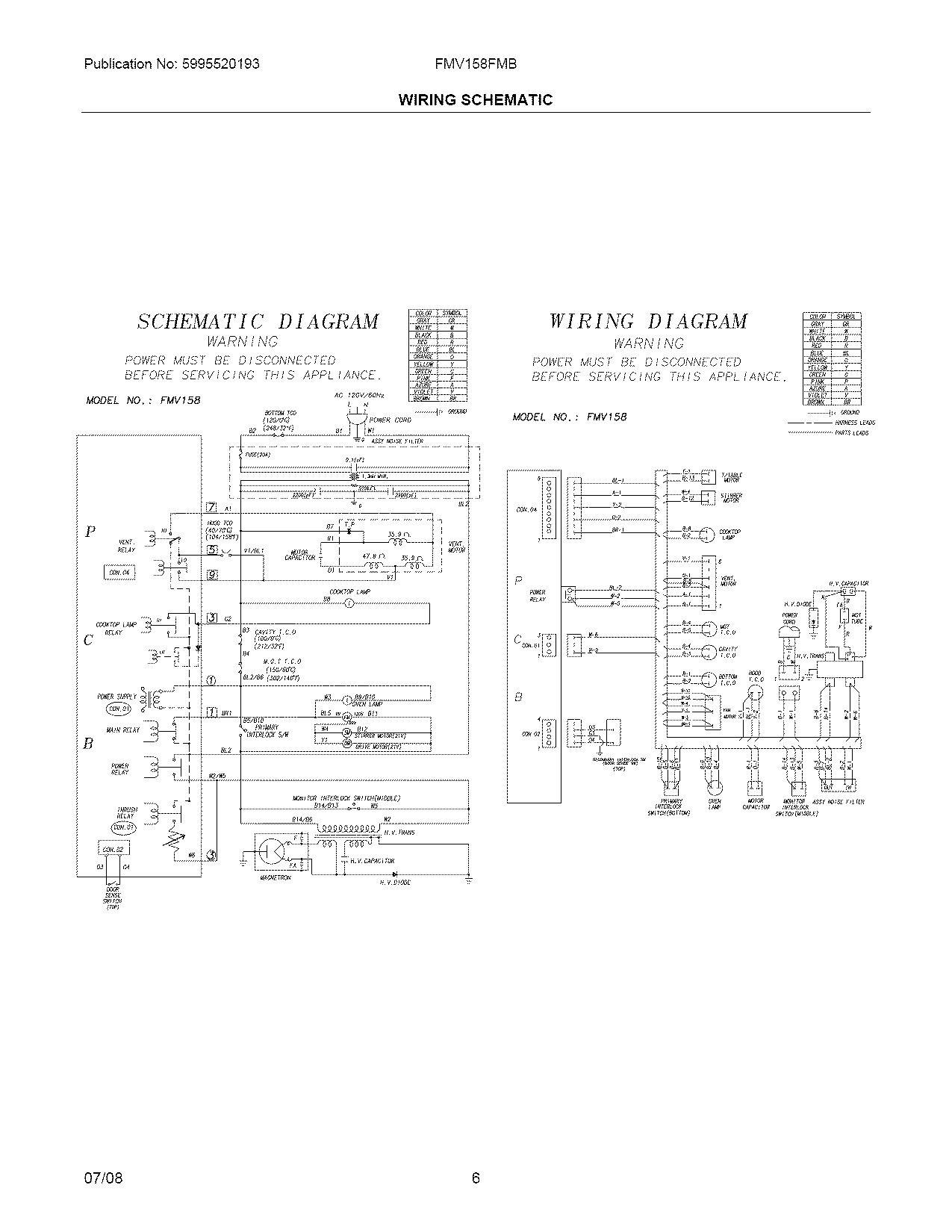

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |

Microwave Magnetron 5304456105
#73

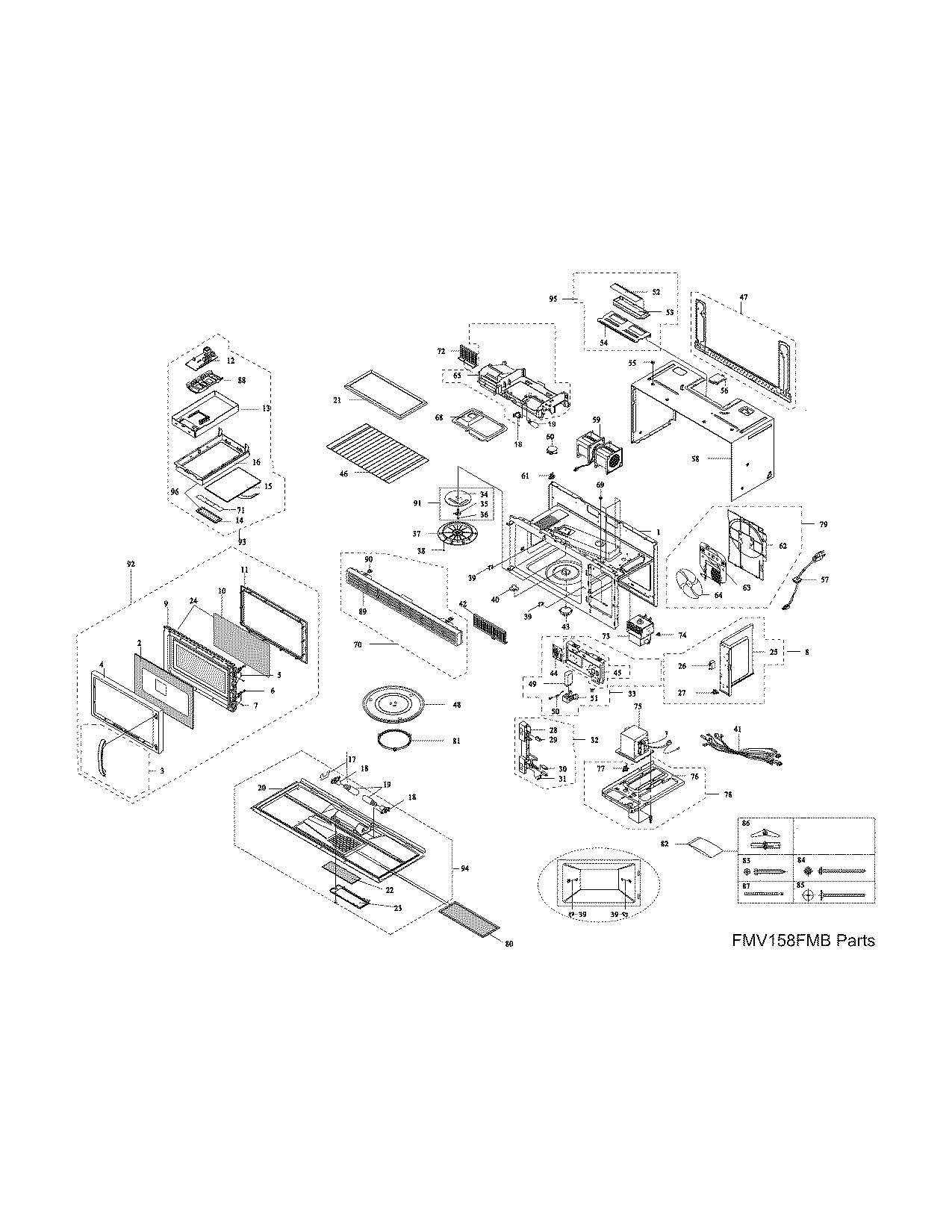

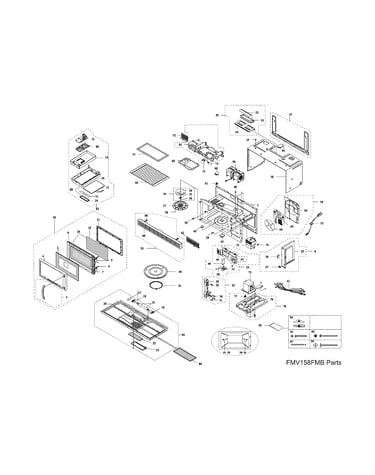

Recommended spare parts diagram

Microwave magnetron

Part #5304456105

In Stock
Clip 5304456216
#90

Recommended spare parts diagram

Clip

Part #5304456216

This item is not returnable
In Stock
Microwave Thermostat 5304456139
#77

Recommended spare parts diagram

Microwave thermostat

Part #5304456139

In Stock
Installation 316488506
#NI

Recommended spare parts diagram

Installation

Part #316488506

This item is not returnable
In Stock
Microwave Door Interlock Switch 5304456101
#30

Recommended spare parts diagram

Microwave door interlock switch

Part #5304456101

In Stock
Microwave Magnetron Thermostat 5304456106
#74

Recommended spare parts diagram

Microwave magnetron thermostat

Part #5304456106

The manufacturer no longer makes this part, and there's no substitute part

Microwave/hood Cooktop Use And Care Guide 316488512
#NI

Recommended spare parts diagram

Microwave/hood cooktop use and care guide

Part #316488512

This item is not returnable
In Stock
Transformer 5304456193
#75

Recommended spare parts diagram

Transformer

Part #5304456193

Replaced by #5304457670

?
Manufacturer substitution
This part replaces 5304456193. Substitute parts can look different from the original.
In Stock
Panel 5304468547
#9

Recommended spare parts diagram

Panel

Part #5304468547

The manufacturer no longer makes this part, and there's no substitute part

Duct 5304468546
#8

Recommended spare parts diagram

Duct

Part #5304468546

The manufacturer no longer makes this part, and there's no substitute part
