Dirt Devil
Carpet Cleaner

Model # CE7100C Official Dirt Devil easy steamer

Here are the diagrams and repair parts for Official Dirt Devil CE7100C easy steamer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

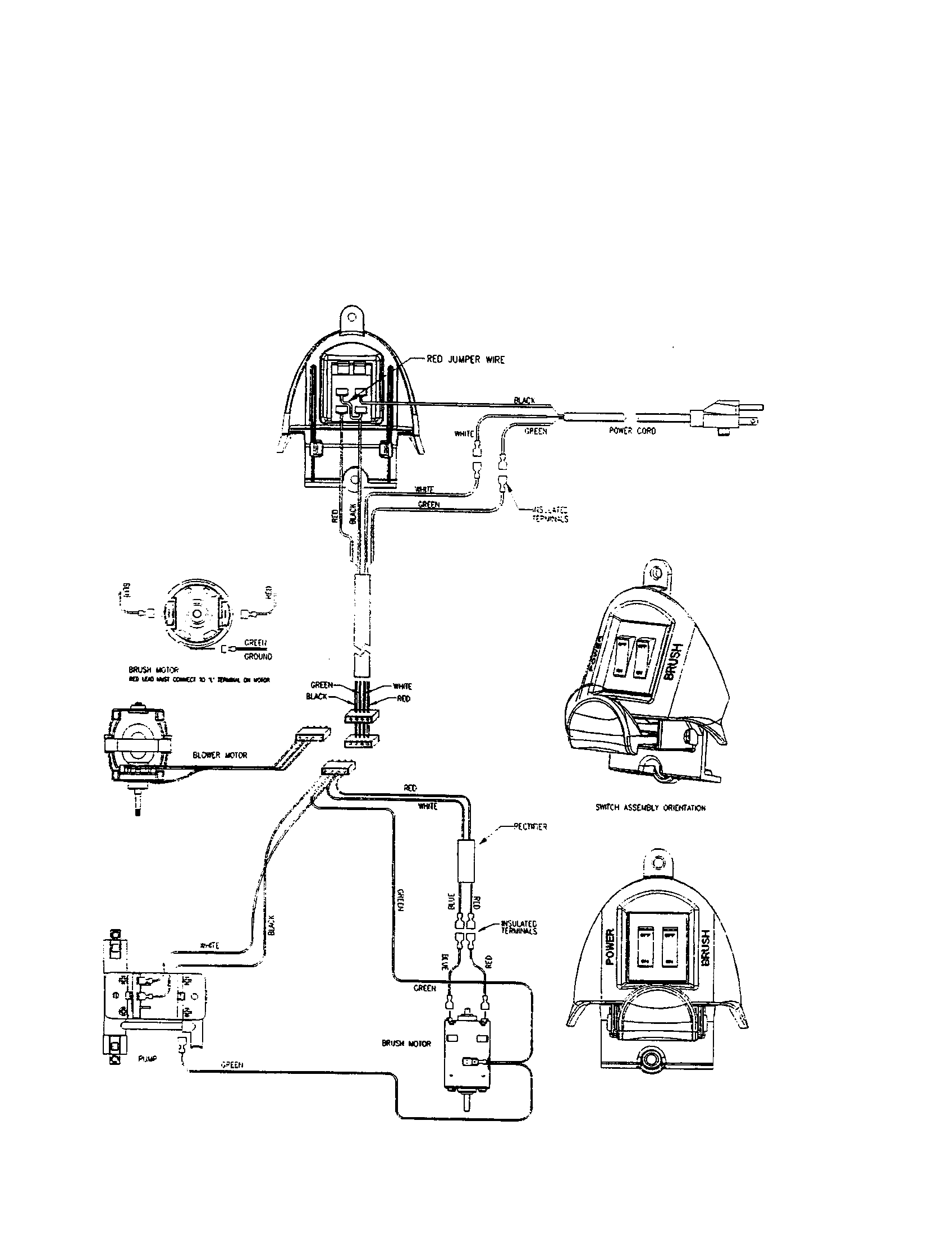

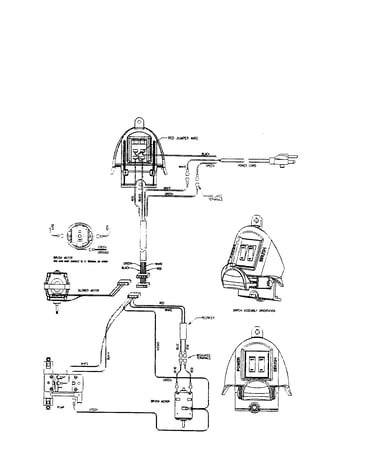

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |

Screen 1-700595-600
#18

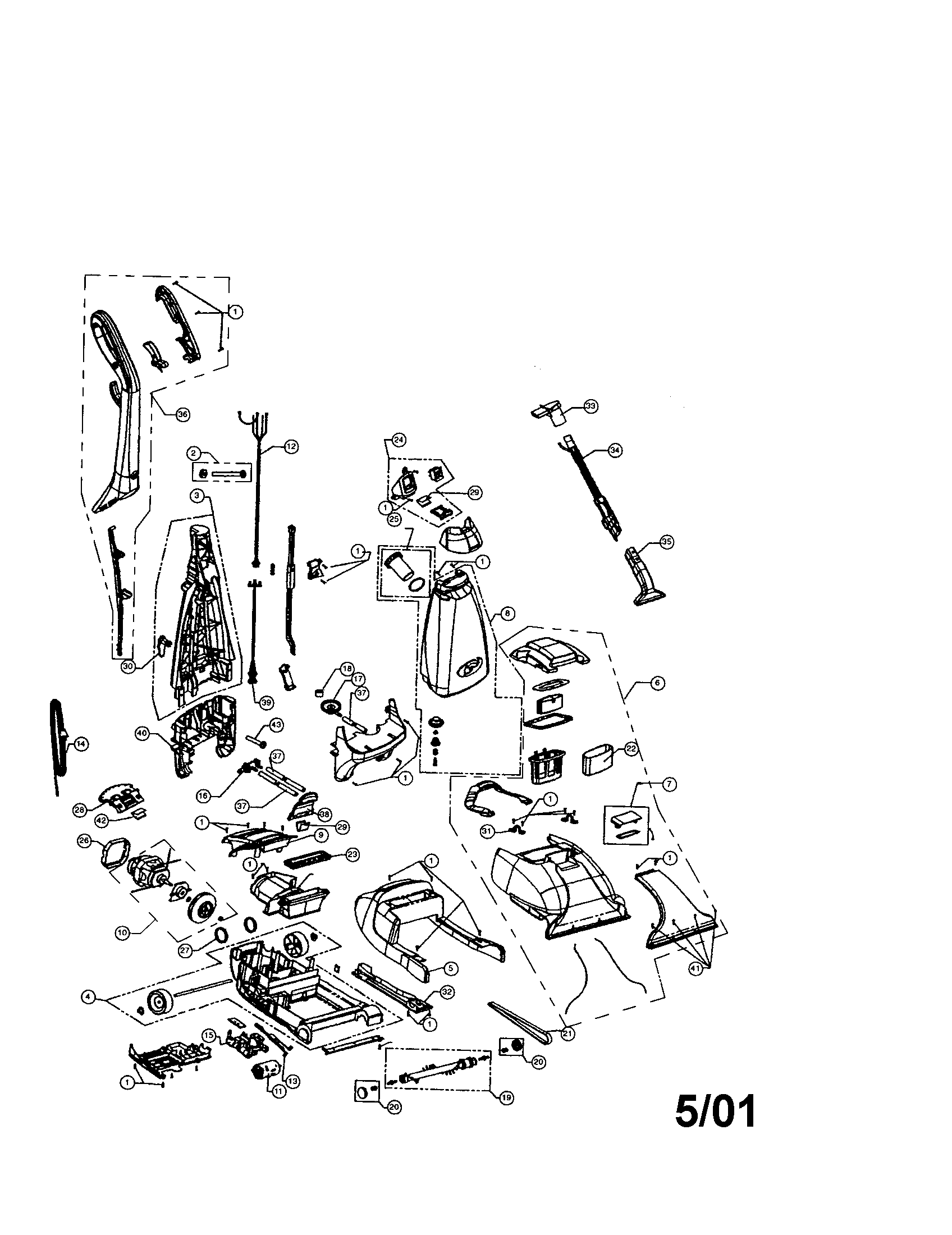

Easy steamer diagram

Screen

Part #1-700595-600

The manufacturer no longer makes this part, and there's no substitute part

Rear Mount 1-700210-600
#26

Easy steamer diagram

Rear mount

Part #1-700210-600

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Adapter 1-710580-000
#17

Easy steamer diagram

Vacuum adapter

Part #1-710580-000

The manufacturer no longer makes this part, and there's no substitute part

Tubing 1-700567-600
#37

Easy steamer diagram

Tubing

Part #1-700567-600

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Door 2-700755-Q00
#7

Easy steamer diagram

Vacuum door

Part #2-700755-Q00

The manufacturer no longer makes this part, and there's no substitute part

Spring 1-700140-000
#29

Easy steamer diagram

Spring

Part #1-700140-000

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Beater Bar Belt, 2-pack 3-400615-001
#21

Easy steamer diagram

Carpet cleaner beater bar belt, 2-pack

Part #3-400615-001

The manufacturer no longer makes this part, and there's no substitute part

Lock 1-700135-B00
#28

Easy steamer diagram

Lock

Part #1-700135-B00

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor 1-700301-000
#11

Easy steamer diagram

Vacuum motor

Part #1-700301-000

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Screw 1-700155-000
#41

Easy steamer diagram

Carpet cleaner screw

Part #1-700155-000

The manufacturer no longer makes this part, and there's no substitute part
