Frigidaire FRFC2323AS2 bottom-mount refrigerator Parts

The most common problem we see with Frigidaire refrigerators like model FRFC2323AS2 is a cooling complaint: the refrigerator section gets warm, the freezer may still feel cold, or temperatures swing. The usual root causes are restricted airflow, dirty condenser area, or a failing fan or temperature sensor.

Most common symptoms (and what they usually point to)

• Fridge warm, freezer cold: evaporator airflow problem (fan not running, frost buildup, blocked vents)
• Both sections warm: condenser airflow issue, sealed-system problem, or control issue
• Food freezing in the fresh-food section: temperature sensor or airflow damper issue
• Noisy humming or rattling: fan blade rubbing ice or a worn fan motor
• Moisture, sweating, or frost around doors: door gasket not sealing

Quick checks you can do first

1. Confirm settings: refrigerator about 37°F and freezer about 0°F.
2. Make sure air vents inside are not blocked by food packages.
3. Clean dust from the condenser area and verify the unit has breathing room.
4. Listen for the evaporator fan: it should run when the compressor is running (door switch may need to be held closed).
5. Check door seals with the “paper test” (paper should drag when you pull it out).

Parts that commonly fix these problems on FRFC2323AS2

Problem area	Common part involved	What it affects

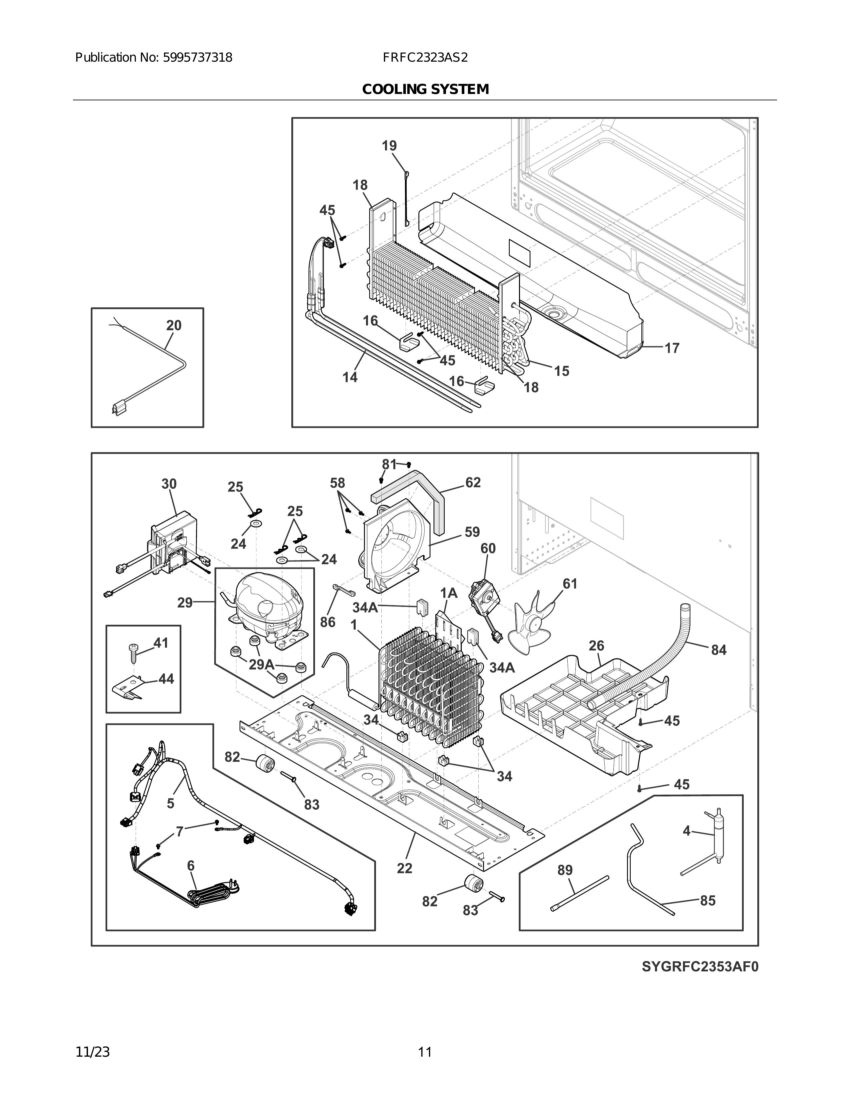

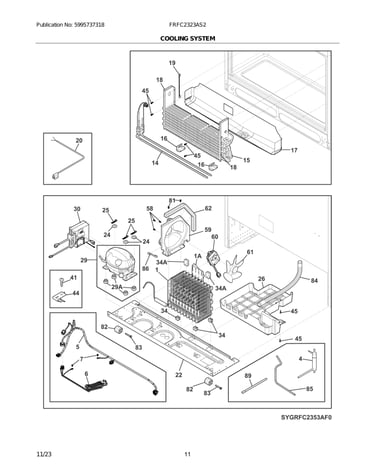

Poor airflow in fresh-food section	Frigidaire refrigerator evaporator fan motor 809069206	Moves cold air from the evaporator through the refrigerator
Temperature swings or freezing	Refrigerator temperature sensor 5303918775	Tells the control board when to cool and when to stop
Frost, leaks, warm temps from air leaks	Frigidaire refrigerator freezer door gasket (gray) 5304537408	Keeps warm, humid air out so the unit can cool efficiently

Why it matters

Cooling and airflow issues make the compressor run longer, raise energy use, and can spoil food quickly. Catching a weak fan motor, bad sensor, or leaking gasket early usually prevents bigger cooling failures.

Helpful DIY guidance

• Use our troubleshooting steps in how to fix your evaporator cooling fan.
• If your display shows a code, start with Frigidaire refrigerator error codes.

Last updated: February 2026

A Frigidaire freezer typically lasts 10 to 15 years with normal household use. In a Frigidaire FRFC2323AS2 bottom-mount refrigerator, keeping airflow clear, temperatures stable, and door seals tight is what most directly extends freezer life.

Typical lifespan and what changes it

Most freezer sections fail early due to airflow restrictions, poor sealing, or cooling-system strain.

• 10 to 15 years is the normal range for a freezer section in a modern refrigerator
• 15+ years is common with good ventilation and clean condenser area
• Frequent door openings, warm garages, and overpacking can shorten life
• A leaking or warped gasket can increase run time and wear
• Fan or sensor issues can cause temperature swings that stress the system

Quick maintenance checklist (high impact)

These steps reduce compressor run time and help prevent frost and warm-freezer complaints.

• Keep freezer vents inside the cabinet unblocked
• Set freezer temperature near 0°F (typical target)
• Make sure the door closes easily and seals all the way around
• Clean dust from the condenser area periodically (where accessible)
• Replace a torn or loose gasket if you feel cold air leaking

Parts that commonly affect freezer performance

If your freezer is warming, frosting heavily, or running constantly, these model-matched parts are often involved:

Symptom	Common cause	Example part for FRFC2323AS2
Warm freezer, noisy airflow	Evaporator fan not moving air	Frigidaire refrigerator evaporator fan motor 809069206
Frost buildup, poor sealing	Door gasket leaking	Frigidaire refrigerator freezer door gasket (gray) 5304537408
Temps swing, food softens	Sensor (thermistor) drifting	Refrigerator temperature sensor 5303918775

Why it matters

A freezer that has to run longer to hold temperature uses more energy and puts extra wear on the sealed system. Fixing airflow and sealing issues early is one of the best ways to keep a Frigidaire freezer in the 10 to 15 year lifespan range.

Last updated: February 2026

Transporting your Frigidaire FRFC2323AS2 bottom-mount refrigerator lying down is a last resort; keep it upright whenever possible. If it must ride on its side, keep the time as short as you can and then set it upright for at least 24 hours before plugging it in so compressor oil can drain back where it belongs.

Recommended timing (practical rule)

• Best: Transport upright the entire time; you can plug in after it is positioned and settled.
• If transported on its side: Stand it upright and wait 24 hours before powering on.
• If it was on its side for a long trip (many hours): Waiting 24 hours still covers the risk in most moves.
• Never transport on its back if you can avoid it; it increases the chance oil migrates into the sealed system.

Why the wait matters

When a refrigerator is laid down, compressor oil can move out of the compressor and into refrigerant lines. Starting the compressor before that oil drains back can cause poor lubrication, noisy operation, and in worst cases compressor damage.

How to move it more safely (quick checklist)

• Unplug the refrigerator and remove food; secure shelves and drawers.
• Keep the unit as upright as possible; use a dolly and straps.
• If you must lay it down, lay it on its side, not the back.
• After delivery, set it upright in its final spot and wait the full time.
• Plug in and listen for normal operation; cooling can take several hours to stabilize.

After you power it on: what to watch for

What you notice	What it usually means	What to do
Loud buzzing or clicking repeatedly	Compressor struggling to start	Unplug, wait longer upright, then retry
Warm fridge and freezer after several hours	Normal pull-down time or airflow issue	Confirm doors seal and vents are clear
Poor cooling days later	Possible fan or sealed-system issue	Troubleshoot airflow and fans first

If you suspect airflow problems after the move, our DIY guide on how to fix your evaporator cooling fan helps you narrow down common causes, including a failing fan motor.

Last updated: February 2026

On a Frigidaire FRFC2323AS2 bottom-mount refrigerator, a leak from the bottom is usually a clogged or frozen defrost drain that overflows and runs down to the floor. Clearing the drain and checking the drain pan and water line connections typically stops the leak.

Quick checks (start here)

• Unplug the refrigerator before removing panels or using heat.
• Look for water under the crisper drawers; this often points to a defrost drain issue.
• Check the freezer floor for a sheet of ice; this often means the drain is frozen.
• If you have an ice maker or dispenser, inspect the water supply line and fittings.
• Confirm the refrigerator is level; a forward tilt can let water spill out.

Clear a clogged or frozen defrost drain

1. Remove food and the freezer bin(s) as needed to access the rear interior panel.
2. Take off the rear panel and find the drain trough and drain hole under the evaporator area.
3. Melt ice in the trough using a hair dryer on low (keep it moving) or warm towels.
4. Flush the drain hole with hot water using a turkey baster until it drains freely.
5. Reassemble and monitor for 24 hours.

If heavy frost keeps returning (which can re-freeze the drain), use: how to fix your evaporator cooling fan.

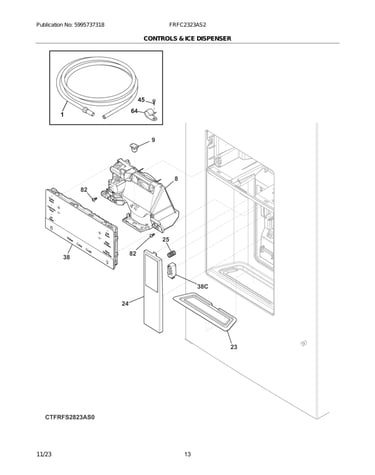

If the leak happens only during ice or water use

• Check the supply line for cracks, kinks, or a loose compression fitting.
• Inspect the filter area for drips right after a filter change.
• Reseat or replace a damaged filter.

A common replacement is the Frigidaire refrigerator water filter FPPWFU01.

Symptom-to-cause guide

What you notice	Most likely cause	What to do
Water under crispers	Defrost drain clogged	Melt ice, flush drain
Ice sheet on freezer floor	Defrost drain frozen	Melt ice, restore flow
Leak only when dispensing/making ice	Water line or filter leak	Tighten, reseat, replace

Why it matters

Bottom leaks can damage flooring and often indicate a drain restriction that can lead to repeat icing and temperature swings.

Last updated: February 2026
