Model # 4323 Official Makita jig saw

Here are the diagrams and repair parts for Official Makita 4323 jig saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |

Blade Clamp 313083-4
#13

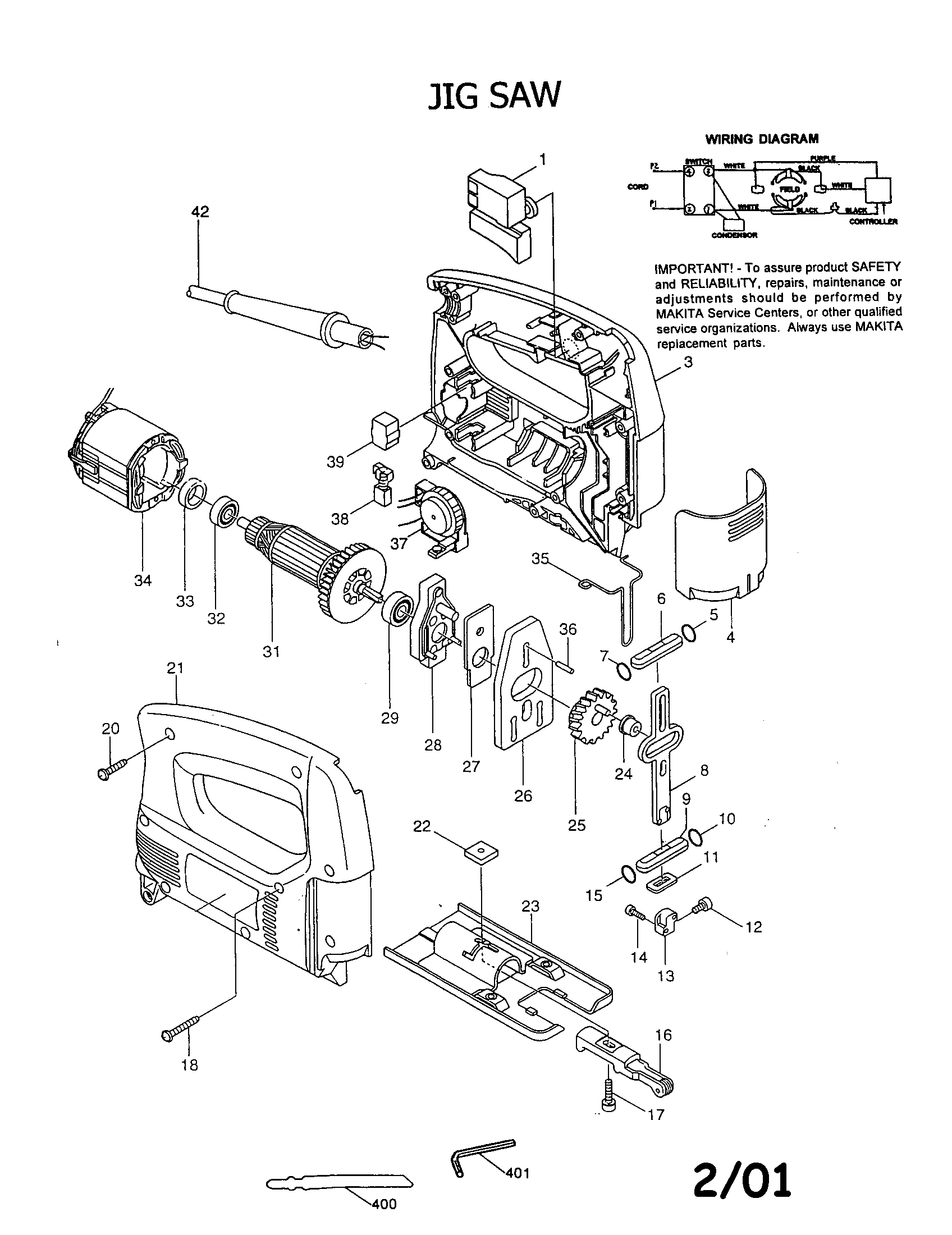

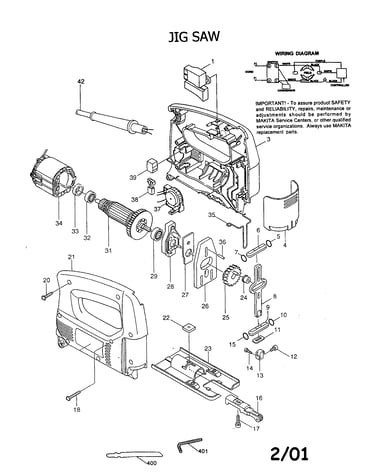

Jig saw diagram

Blade clamp

Part #313083-4

The manufacturer no longer makes this part, and there's no substitute part

Hex Wrench 783201-2
#401

Jig saw diagram

Hex wrench

Part #783201-2

The manufacturer no longer makes this part, and there's no substitute part

Holder 643552-4
#39

Jig saw diagram

Holder

Part #643552-4

The manufacturer no longer makes this part, and there's no substitute part

Retainer C 152578-0
#16

Jig saw diagram

Retainer c

Part #152578-0

The manufacturer no longer makes this part, and there's no substitute part

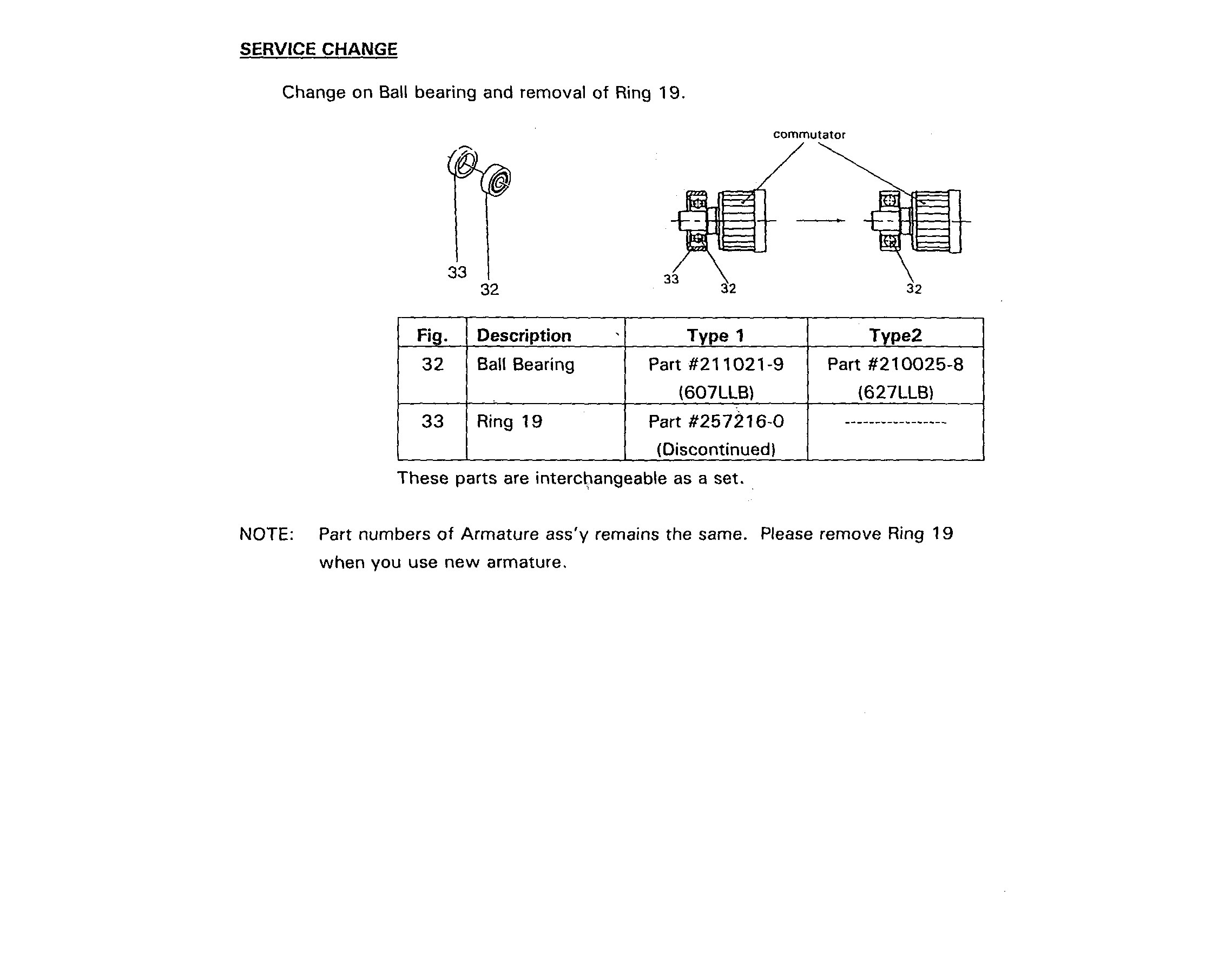

Ball Bearing 210025-8
#32B

Jig saw diagram

Ball bearing

Part #210025-8

The manufacturer no longer makes this part, and there's no substitute part

Screw 265995-6
#20

Jig saw diagram

Screw

Part #265995-6

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 210005-4
#29

Jig saw diagram

Ball bearing

Part #210005-4

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 211021-9
#32A

Jig saw diagram

Ball bearing

Part #211021-9

The manufacturer no longer makes this part, and there's no substitute part

Hex Socket Head Bolt M4 X 922107-1
#12

Jig saw diagram

Hex socket head bolt m4 x

Part #922107-1

The manufacturer no longer makes this part, and there's no substitute part

Head Bolt 266178-1
#17

Jig saw diagram

Head bolt

Part #266178-1

The manufacturer no longer makes this part, and there's no substitute part
