Samsung AW0510C/XAA air conditioner Parts
Here are the diagrams and repair parts for Samsung AW0510C/XAA air conditioner, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM

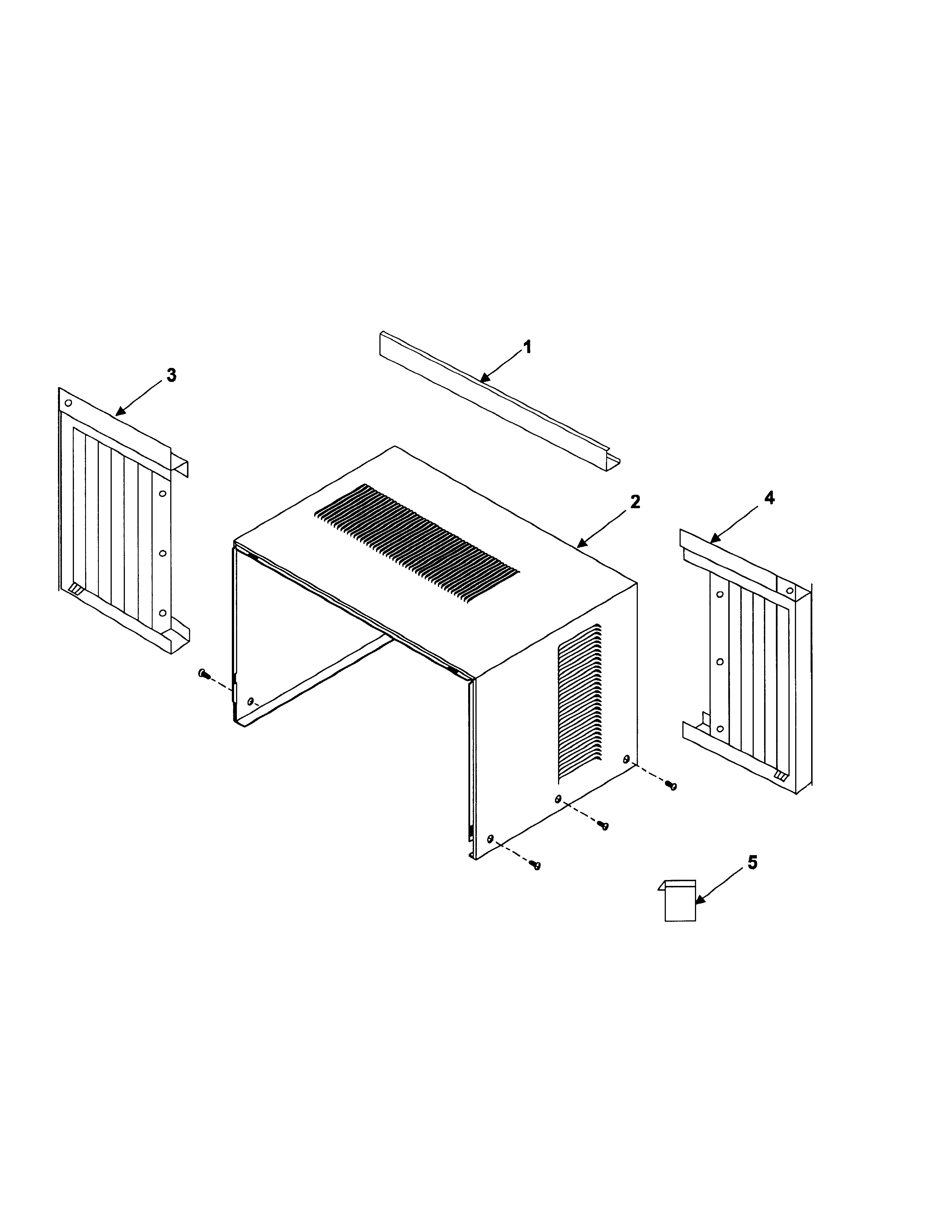

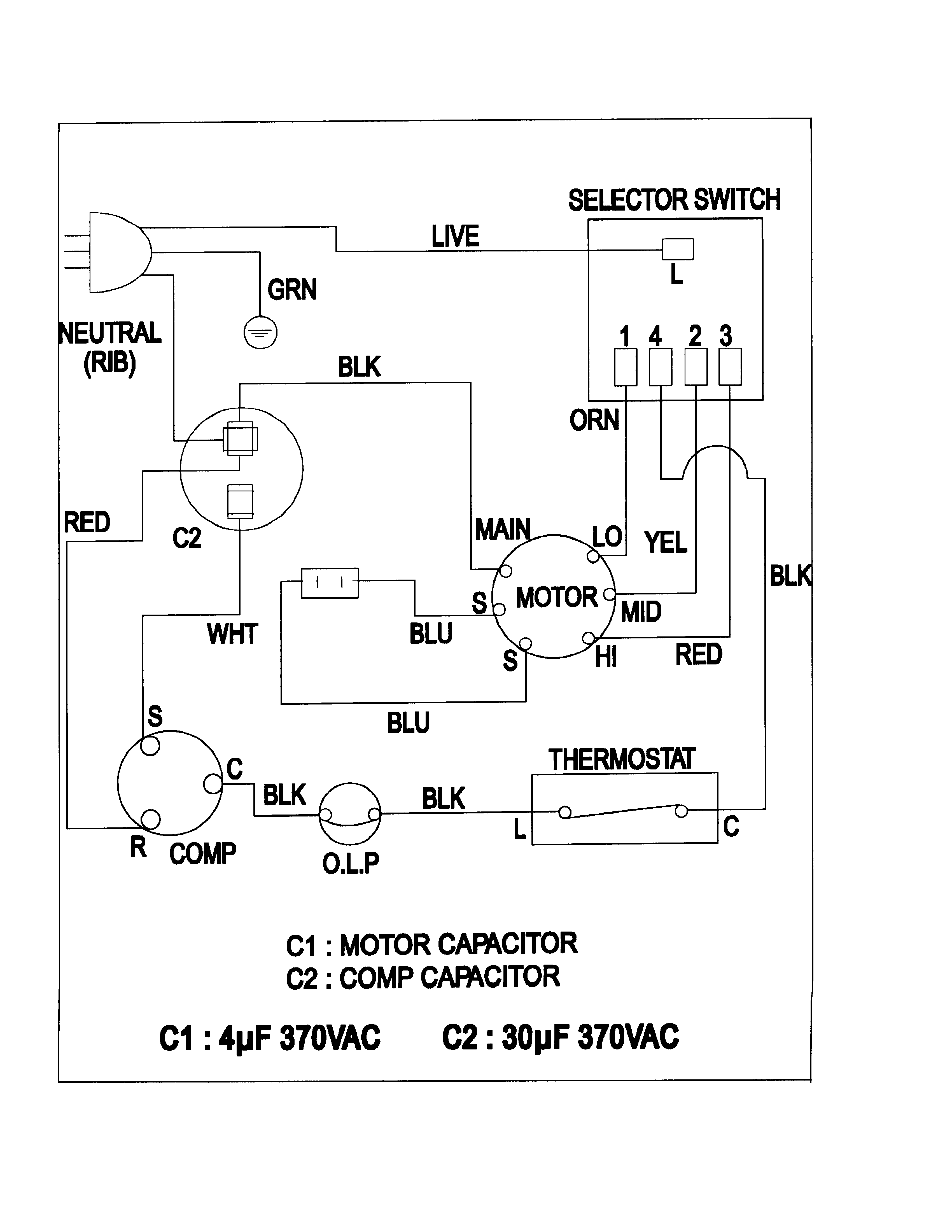

Browse Parts for AW0510C/XAA Air Conditioner

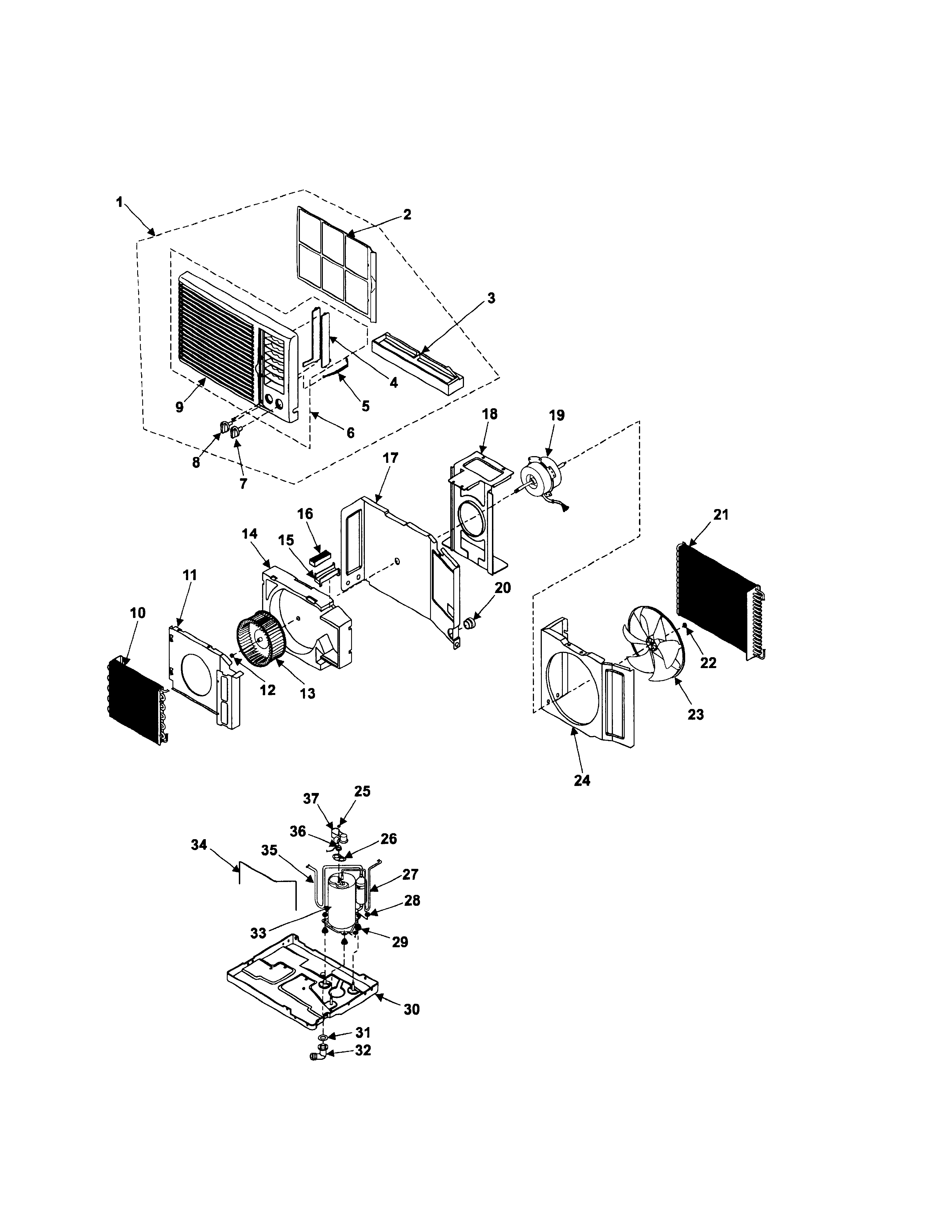

Chassis assembly diagram
Flange Nut
In Stock$27.31
Qty

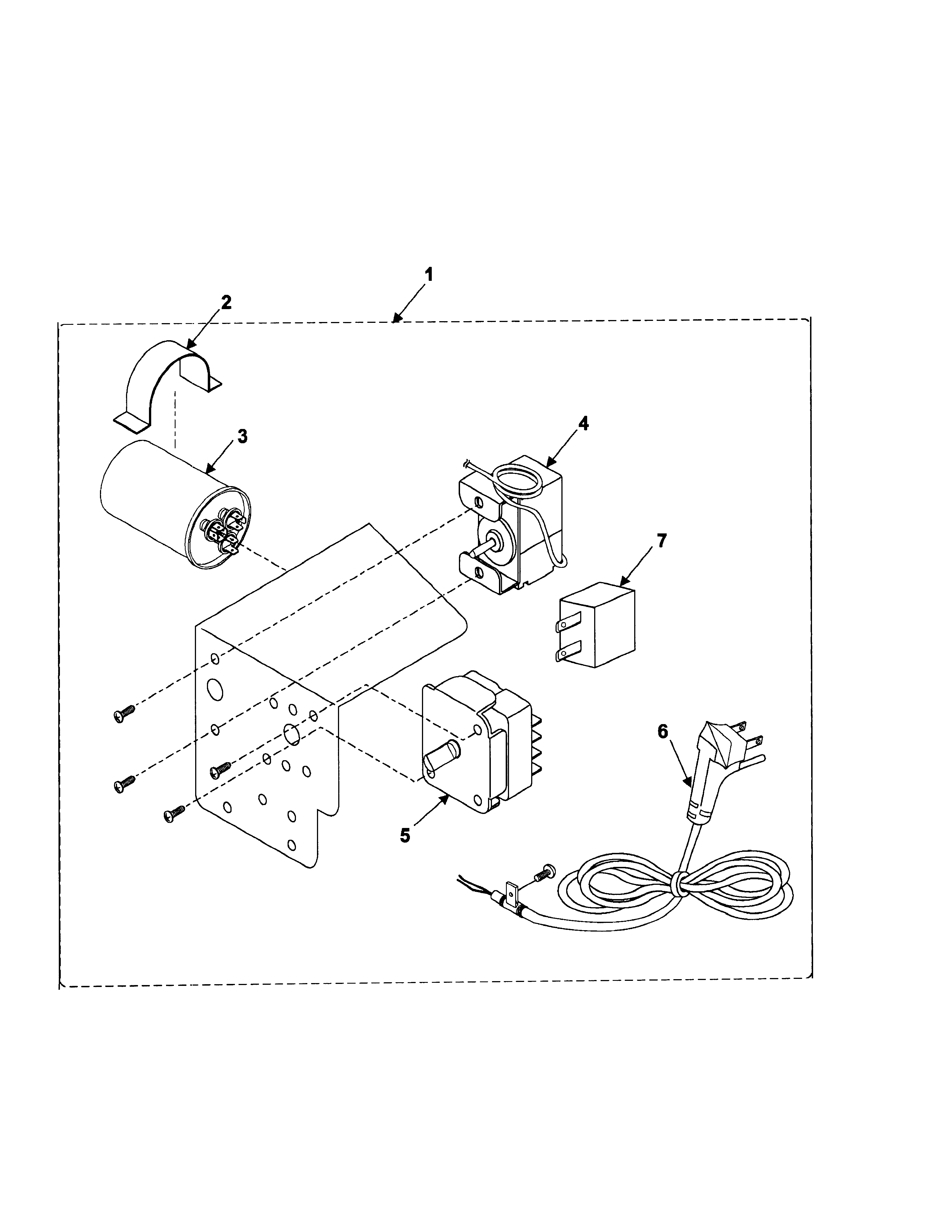

Control assembly diagram
Thermostat
In Stock$81.447% OFF Phone Price : $87.44
QtyChassis assembly diagram
Room Air Conditioner Condenser Fan Blade
In Stock$46.2423% OFF Was : $59.71QtyChassis assembly diagram
Control Knob
Part #DB64-00124AThis item is not returnableIn Stock$36.61QtyChassis assembly diagram
Flange Nut
Part #DB60-30020A
The manufacturer no longer makes this part, and there's no substitute part
Chassis assembly diagram
Assy Evap
Part #DB96-00548A
The manufacturer no longer makes this part, and there's no substitute part
Chassis assembly diagram
Blade-v
Part #DB66-00023A
The manufacturer no longer makes this part, and there's no substitute part
Chassis assembly diagram
Grommet-isolator
Part #DB73-00016A
The manufacturer no longer makes this part, and there's no substitute part
Chassis assembly diagram
Rotary Compressor:115v,60hz,r2
Part #44A052HS1KA
The manufacturer no longer makes this part, and there's no substitute part
Control assembly diagram
Power Cord
Part #DB39-10032N
The manufacturer no longer makes this part, and there's no substitute part
