Downdraft Ventilation System

Model #RMP17004 Broan internal blower

Here are the diagrams and repair parts for Broan RMP17004 internal blower, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

Showing 10 of 41 parts

Downdraft Vent Grease Filter

#9

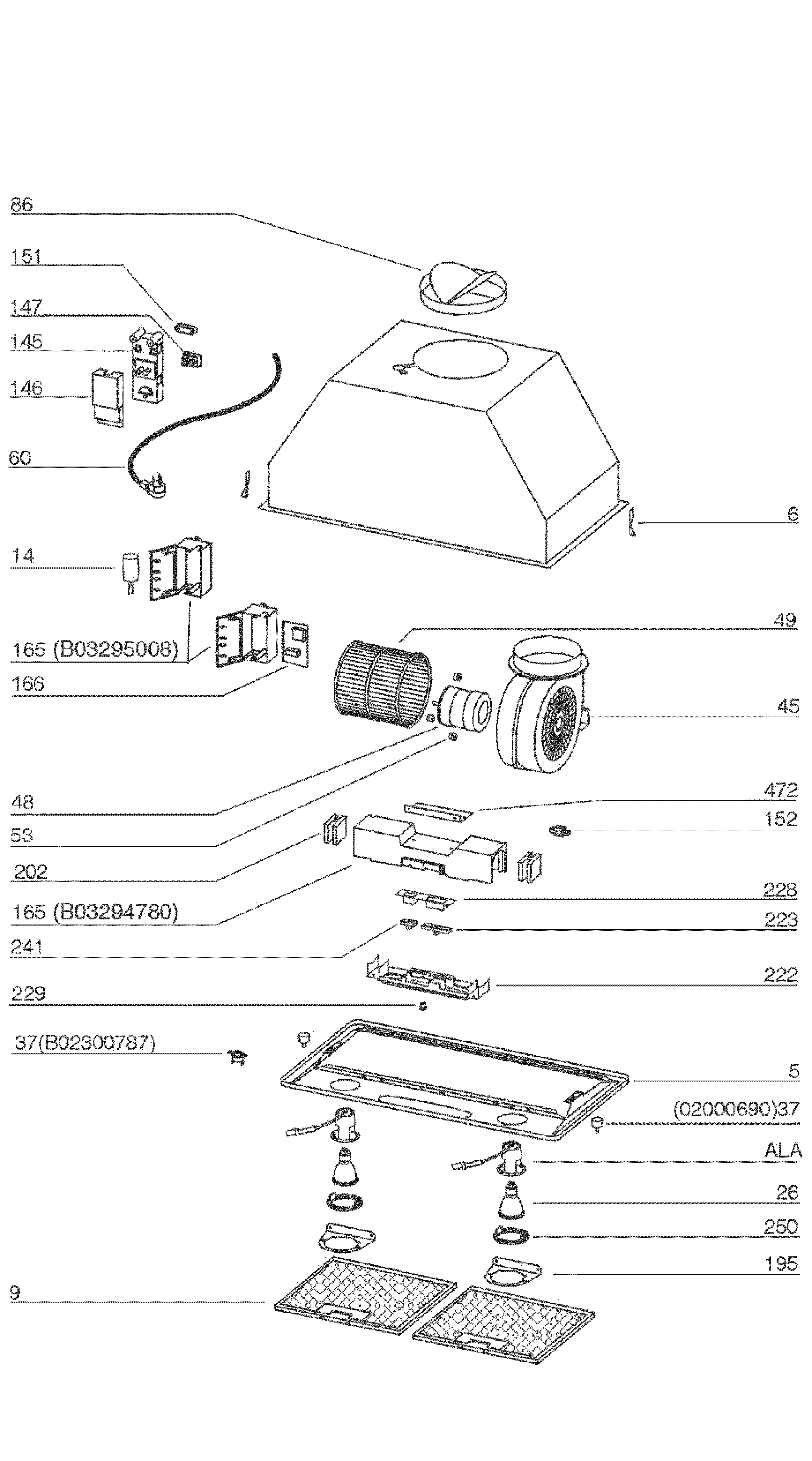

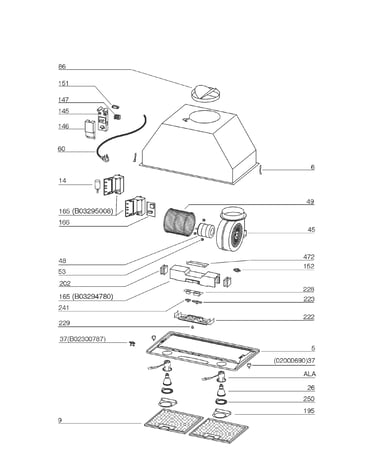

Range hood Diagram

Downdraft vent grease filter

Part #SB08087153
?
Manufacturer substitution
This part replaces B08087153. Substitute parts can look different from the original.
This part replaces B08087153
$26.64

In Stock

Control Board

#165

Range hood Diagram

Control board

Part #SB03294780
?
Manufacturer substitution
This part replaces B03294780. Substitute parts can look different from the original.
This part replaces B03294780
$30.02

In Stock

LIGHT BUTT

#241

Range hood Diagram

Light butt

Part #SB03295081
?
Manufacturer substitution
This part replaces B03295081. Substitute parts can look different from the original.
This part replaces B03295081
This item is not returnable
$3.43

In Stock

Range Hood Electronic Control Board

#228

Range hood Diagram

Range hood electronic control board

Part #SB08086285
?
Manufacturer substitution
This part replaces B08086285. Substitute parts can look different from the original.
This part replaces B08086285
$16.55

In Stock

Spring

#6

Range hood Diagram

Spring

Part #SB02011013
?
Manufacturer substitution
This part replaces B02011013. Substitute parts can look different from the original.
This part replaces B02011013
$7.83

In Stock

HT SENTRY

#37

Range hood Diagram

Ht sentry

Part #SB02300787
?
Manufacturer substitution
This part replaces B02300787. Substitute parts can look different from the original.
This part replaces B02300787
$52.84

In Stock

Hardware P

#NI

Range hood Diagram

Hardware p

Part #SB080810168
?
Manufacturer substitution
This part replaces B080810168. Substitute parts can look different from the original.
This part replaces B080810168
This item is not returnable
$3.51

In Stock

Range Hood Electronic Control Board

#166

Range hood Diagram

Range hood electronic control board

Part #SB08086668
?
Manufacturer substitution
This part replaces B08086668. Substitute parts can look different from the original.
This part replaces B08086668
$97.02

In Stock

Box

#165A

Range hood Diagram

Box

Part #SB03295008
?
Manufacturer substitution
This part replaces B03295008. Substitute parts can look different from the original.
This part replaces B03295008
$19.56

In Stock

Range Hood Round Vent Damper, 6-in

#86

Range hood Diagram

Range hood round vent damper, 6-in

Part #SB08088378
?
Manufacturer substitution
This part replaces B08088378. Substitute parts can look different from the original.
This part replaces B08088378
$11.41

In Stock
